BD13003B: DescriptionNPN Plastic Encapsulated Transistor; File Size375KB，3 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet View All

BD13003B Overview

NPN Plastic Encapsulated Transistor

Preview

Download Datasheet

View All

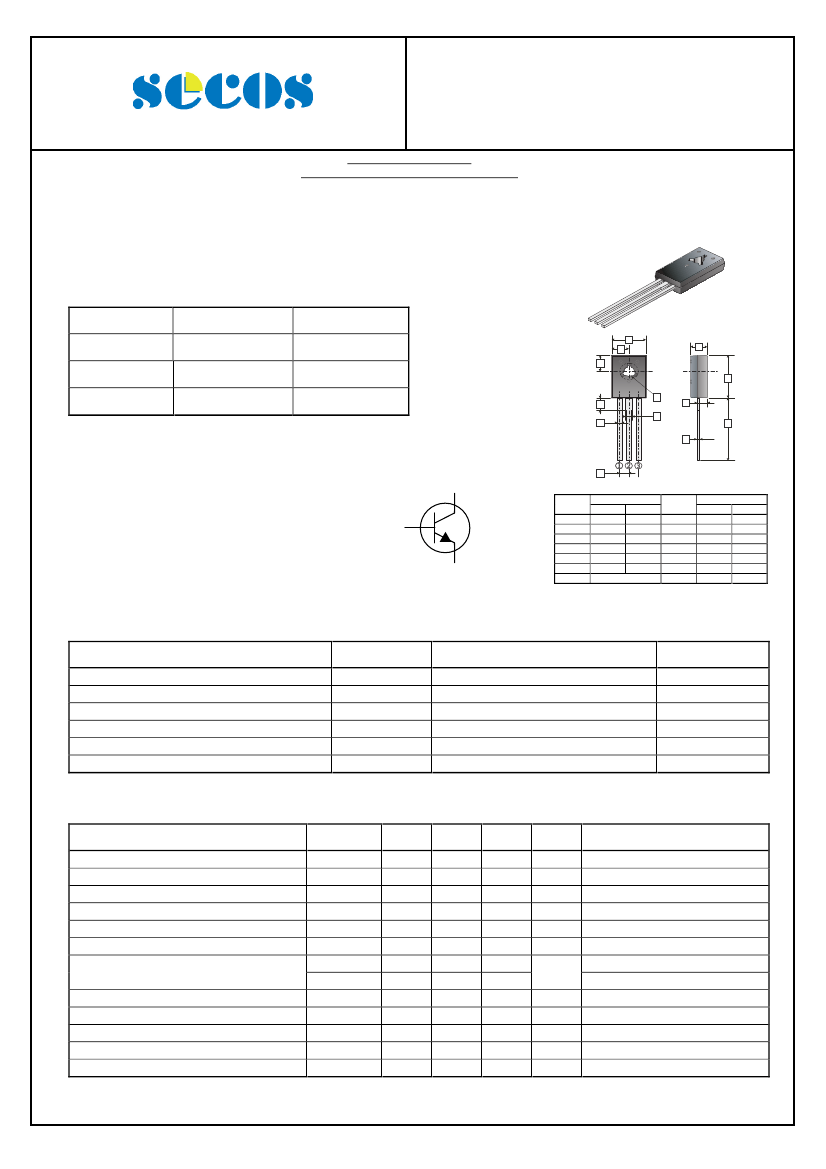

BD13003B

Elektronische Bauelemente

1.5A , 700V

NPN Plastic Encapsulated Transistor

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Power Switching Applications

TO-126

CLASSIFICATION OF t

s

Product-Rank

Range

Product-Rank

Range

BD3DD13003-A1

2-2.5 (µs)

BD3DD13003-B1

3-3.5 (µs)

BD3DD13003-A2

A

2.5-3 (µs)

F

E

B

BD3DD13003-B2

3.5-4 (µs)

N

L

M

K

J

H

C

D

Collector

G

2

REF.

1

Base

3

Emitter

A

B

C

D

E

F

G

Millimeter

Min.

Max.

7.40

7.80

2.50

2.90

10.60

11.00

15.30

15.70

3.70

3.90

4.10

2.29 TYP.

REF.

H

J

K

L

M

N

Millimeter

Min.

Max.

1.10

1.50

0.45

0.60

0.66

0.86

2.10

2.30

1.17

1.37

3.00

3.20

ABSOLUTE MAXIMUM RATINGS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector to Base Voltage

Collector to Emitter Voltage

Emitter to Base Voltage

Collector Current - Continuous

Collector Power Dissipation

Junction, Storage Temperature

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

T

J

, T

STG

Rating

700

400

9

1.5

150, -55~150

Unit

V

A

W

°

C

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector to Base Breakdown Voltage

Collector to Emitter Breakdown Voltage

Emitter to Base Breakdown Voltage

Collector Cut – Off Current

Emitter Cut – Off Current

DC Current Gain

Collector to Emitter Saturation Voltage

Base to Emitter Saturation Voltage

Transition Frequency

Fall time

Storage time

http://www.SeCoSGmbH.com/

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

CEO

I

EBO

h

FE (1)

h

FE (2)

V

CE(sat)

V

BE(sat)

f

T

t

f

t

S

Min.

700

400

9

-

20

5

-

5

-

2

Typ.

-

Max.

-

1

0.5

1

30

-

0.6

1.2

-

0.5

4

Unit

V

mA

Test Conditions

I

C

=5mA, I

E

=0

I

C

=10mA, I

B

=0

I

E

=2mA, I

C

=0

V

CB

=700V, I

E

=0

V

CE

=400V, I

B

=0

V

EB

=9V, I

C

=0

V

CE

=5V, I

C

=0.5A

V

CE

=5V, I

C

=1.5A

V

I

C

=1A, I

B

=250mA

V

I

C

=1A, I

B

=250mA

MHz V

CE

=10V, I

C

=100mA, f =1MHz

µs

I

C

=1A,I

B1

= -I

B2

=0.2A,V

CC

=100V

µs

changes of specification will not be informed individually.

Any

I

C

=250mA (UI9600)

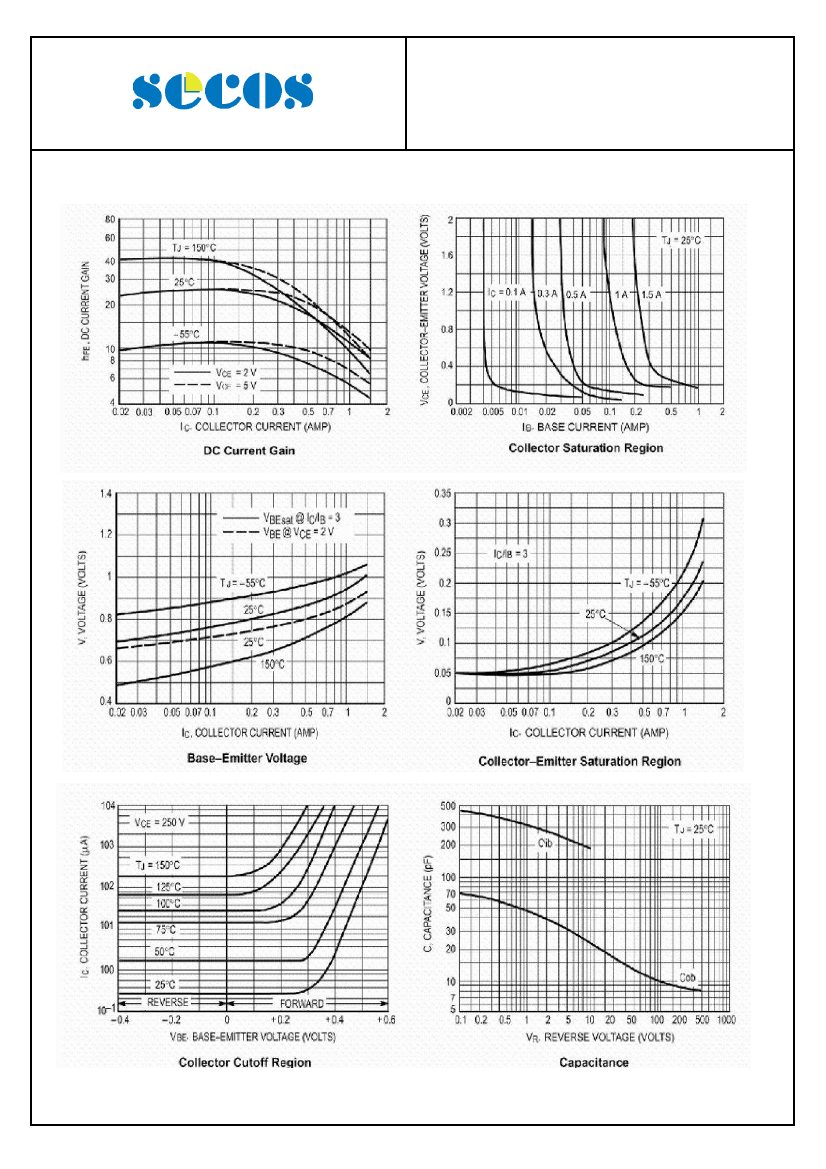

23-Jun-2011 Rev. A

Page 1 of 2
