D20SB10 ~ D20SB100
Elektronische Bauelemente
100 V ~ 1000 V
20.0 Amp High Current Glass Passivated
Molding Single-Phase Bridge Rectifier
RoHS Compliant Product
A suffix of “-C” specifies halogen-free and RoHS Compliant
D5-25SB
FEATURES
Plastic Package has Underwriters
Laboratory Flammability Classification 94V-0
This Series is UL listed under the Recognized Component index,
file number E231047
Single-in-line package
High current capacity with small package
Superior thermal conductivity
High temperature soldering guaranted：
260°C / 10 seconds
R
A
High IFSM
GB
N
O
P
S L L
MD
H
C
J
F
K
E
REF.
A
B
C
D
E
G
J
F
Millimeter
Min.
Max.
29.7
30.3
19.7
20.3
4.4
4.8
17.0
18.0
0.6
0.8
5 REF.
3.4
3.8
3.3
3.7
REF.
K
L
N
P
O
R
S
H
Millimeter
Min.
Max.
2.6
2.8
7.3
7.7
2.3
2.7
0.9
1.1
2.0
2.4
3 X 45°
9.8
10.2
10.8
11.2
MAXIMUM RATINGS (T
A
=25℃ unless otherwise noted)
PART NUMBERS
PARAMETERS
SYMBOL
D20SB D20SB D20SB D20SB D20SB D20SB
10
20
40
60
80
100
RBV
RBV
RBV
RBV
RBV
RBV
2002S 2003S 2004S 2005S 2006S 2007S
100
200
400
600
800
1000
10
500
20
(1)
3.5
(2)
300
1.1
2.5
22
(2)
1.5
(1)
UNITS
Maximum repetitive voltage
Maximum DC reverse current at @T
A
=25°C
rated DC blocking voltage
@T
A
=125°C
Average rectified forward
@T
C
=87°C
current 60Hz Sine wave
@T
A
=25°C
Resistance load
Peak Forward Surge Current 8.3ms single half
sine-wave superimposed on rated load
Maximum Instantaneous
Forward Voltage @ 10.0A
Dielectric strength terminals to case,
AC 1 minute Current 1mA
Maximum thermal on P.C.B without heat-sink
Resistance per leg
on AI plate heat-sink
Operating and Storage Temperature Range
Mounting torque
V
RM
I
R
V
A
A
I
O
I
FSM
V
F
Vdia
R
θJA
R
θJC
T
J
, T
STG
Tor
A
V
KV
°C / W
°C
N.m
150 , -40 ~ 150
Rating Torque：0.8N.m
Notes：
(1) Unit case mounted on AI plate heat-sink
(2) Unites mounted on P.C.B. without heat-sink
(3) Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat
transfer with #6 screw {heat-sink size：12.7 * 10.2 * 7.6cm}
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
06-Aug-2010 Rev. A
Page 1 of 2
D20SB10 ~ D20SB100
Elektronische Bauelemente
100 V ~ 1000 V
20.0 Amp High Current Glass Passivated
Molding Single-Phase Bridge Rectifier

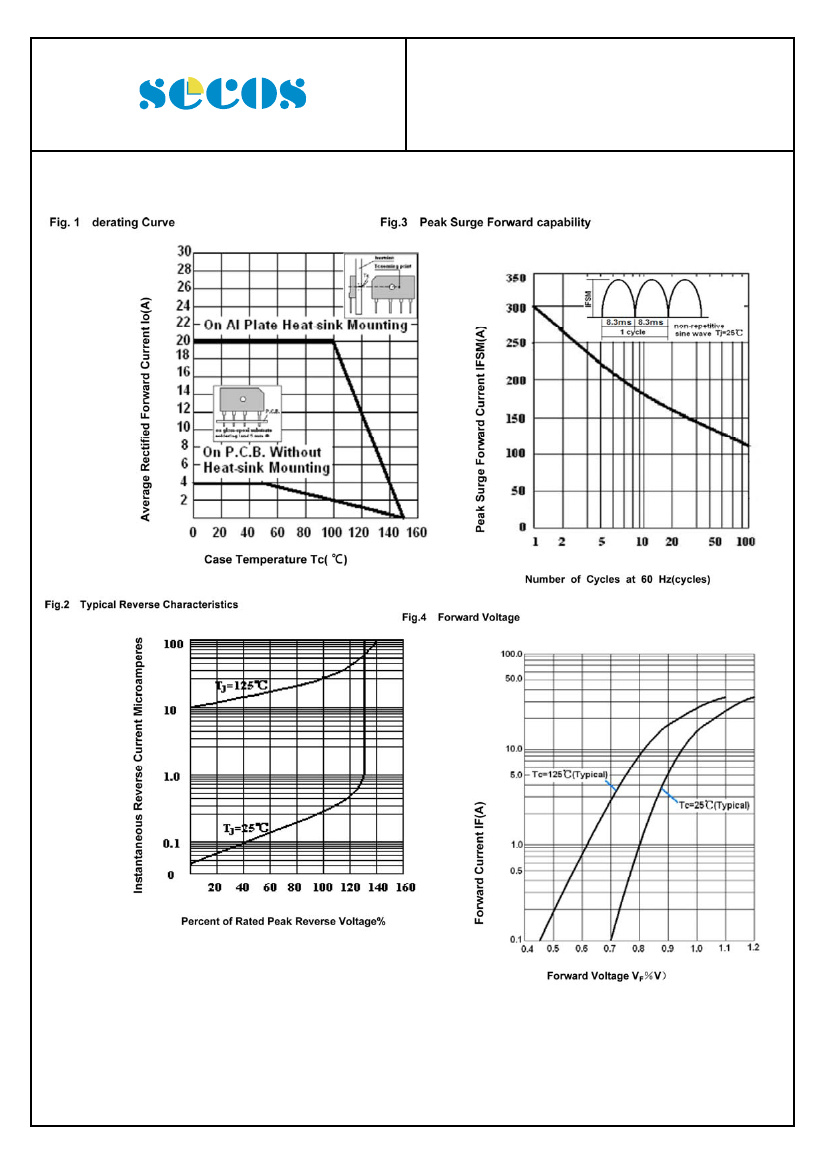

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
06-Aug-2010 Rev. A
Page 2 of 2
