Q-SERIES Ø6mm Panel Mounting LED Indicator
6mmØ
Product Specification
Distinctive Features and Specifications
•
•
•
•
•
•
•
•
6mm panel mounting LED indicator
3mm coloured diffused epoxy lens or 3mm water clear super bright LEDs
Bright chrome, black chrome or satin grey bezel finish
Prominent, recessed and flush bezel styles
2VDC – 28VDC
(2.0 x 0.5) terminals, pins or (200mm long) wire terminations
IP67 sealing option (EN60529)
Supplied with fixing nut and spring washer
Ø 6,00 ±0,1
PANEL CUTOUT
NB: UL Recognised Component
TECHNICAL SPECIFICATIONS
Switch Voltage
2VDC (No Resistor)
12VDC
24VDC
28VDC
Intensity (Typical) at |op Standard
HE Red
Green
Yellow
Blue
White
Bi-colour (Typical) (Red/Green)
Operating Voltage Vop
(Min to Max)
1.8 to 2.5VDC
10.8 to 13.2VDC
21.6 to 26.4VDC
25.2 to 30.8VDC
Operating Current |op
(Typical All Types)
20mA
20mA
20mA
20mA
Forward Voltage
2.0V
2.2V
2.1V
3.8V
3.8V
2.0V/2.2V
Prominent and Recessed
Flush
(all voltages)
(all voltages)
40mcd
10mcd
40mcd
8mcd
30mcd
8mcd
65mcd
8mcd
100mcd
15mcd
20/15mcd
10/8mcd
The colour is changed by reversing the polarity of the supply voltage.
Prominent and Recessed
Flush
(all voltages)
(all voltages)
3,500mcd
500mcd
2,000mcd
350mcd
900mcd
140mcd
550mcd
200mcd
600mcd
150mcd
Luminous intensity will be reduced with lower operating current.
Super Bright
HE Red
Green
Yellow
Blue
White
Forward Voltage
2.2V
3.5V
2.3V
3.7V
3.6V
Max Reverse Voltage:
5V
Viewing Angle:
100° (dependant on model)
Life Expectancy:
100,000 hours
Operating Temperature Range:
–40 to +85°C
Note: The operating voltage must not be exceeded by more that 10% as this will result in reduced life expectancy.
The company reserves the right to change specifications without notice.
www.apem.com
1

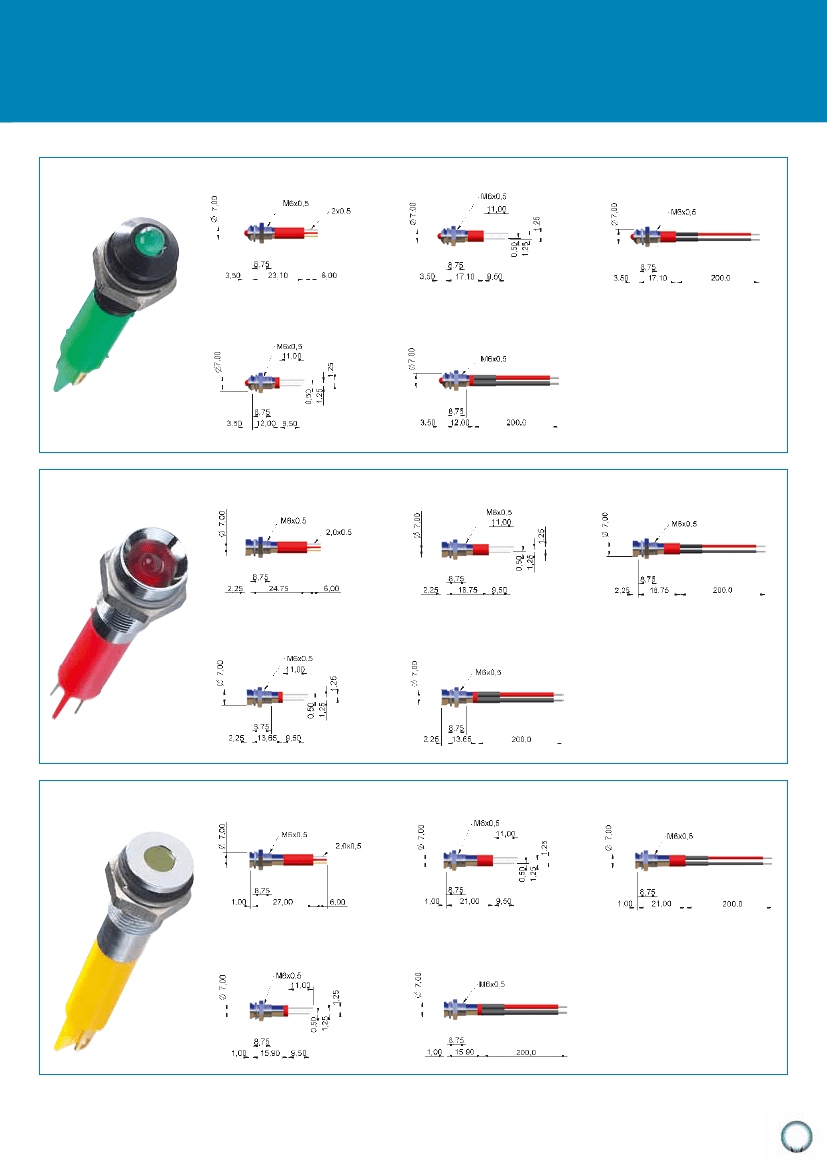

Q-SERIES 6mmØ Panel Mounting LED Indicator
Order Overview
STANDARD OPTIONS
The Q6 Series is available with a range of standard options, to specify your LED, simply choose one option from each column.
An example is shown below.
Q
SERIES
Q
6
MOUNTING
HOLE
6 = Ø6mm
P
BEZEL
STYLE
P = Prominent
R = Recessed
F = Flush
1
TERMINALS
1 = Solder Lug/
Fastons
(2.0 x 0.5)
2 = Pins
3 = Wires
6 = Short body
Pins
7 = Short body
Wires
B
BEZEL FINISH
C = Bright Chrome
B = Black Chrome
G = Satin Grey
XX
TYPE OF
ILLUMINATION
XX = Fixed Light
KK = Flashing Light
YY = Bi-colour
G
LED COLOUR
R = Red
G = Green
Y = Yellow
B = Blue
W = White
12
VOLTAGE
02 = 2VDC
06 = 6VDC
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
E
SEALING
(Blank) = Unsealed
E = IP67
SR = Super Bright Red
SG = Super Bright Green
SY = Super Bright Yellow
SB = Super Bright Blue
28 = 28VDC
28A = 28VAC/DC
Example Q6P1BXXG12E
Ø6mm, prominent bezel, solder lug
terminals, black chrome finish, fixed light,
green, 12volt DC LED, IP67 Panel Seal
SW = Super Bright White
RG = Red/Green
RY = Red/Yellow
GY = Green/Yellow
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 24AWG, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• For LEDs with alternate voltages consult APEM
• Bi-colour LEDs, by connecting the gold Faston (+) one colour is produced,
by reversing the supply voltage another colour is produced – Bi-colours are available up to 28VDC
• Take care when soldering to the Faston terminals
• Short body options are only available up to 24VDC
• Maximum panel thickness 7mm
• For behind panel epoxy sealed options please contact APEM
• For resistorless versions (02) please pay attention to the forward voltage
www.apem.com
3
