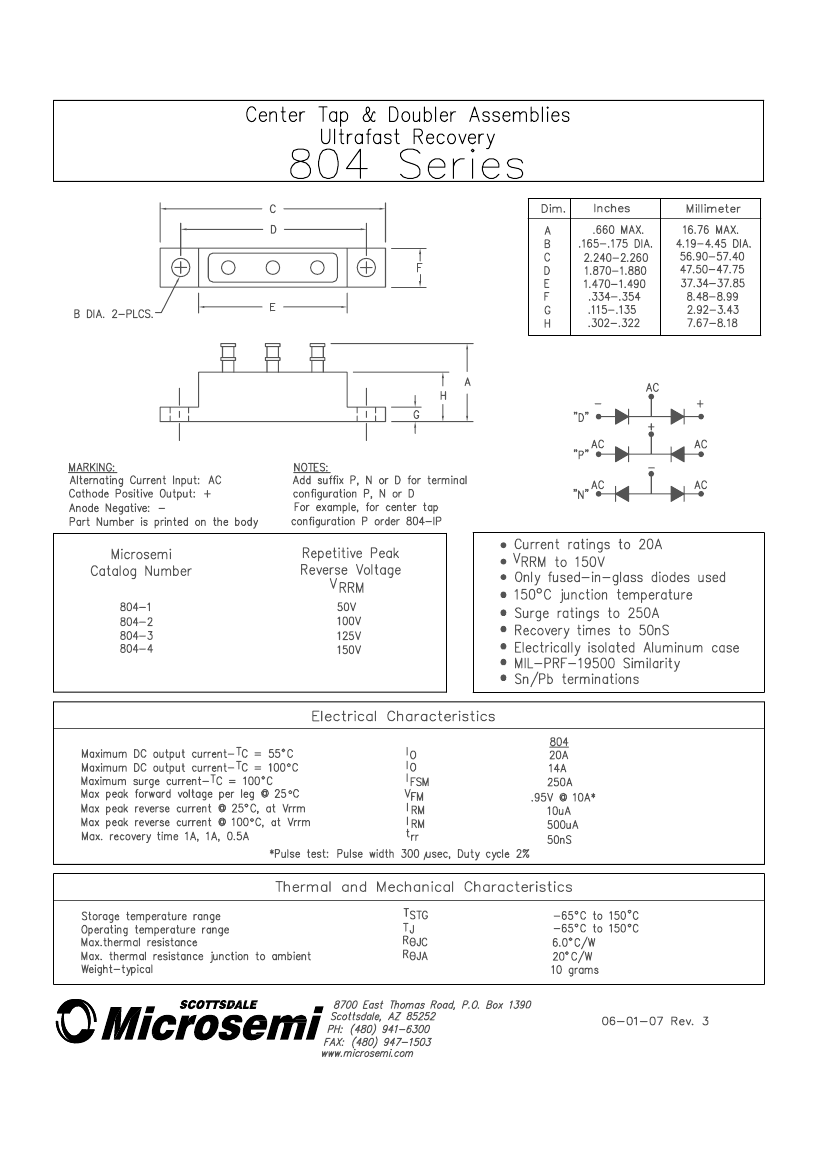

804-1 datasheet, PDF - EEWORLD Datasheet

804-1: Description20 A, SILICON, RECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size119KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

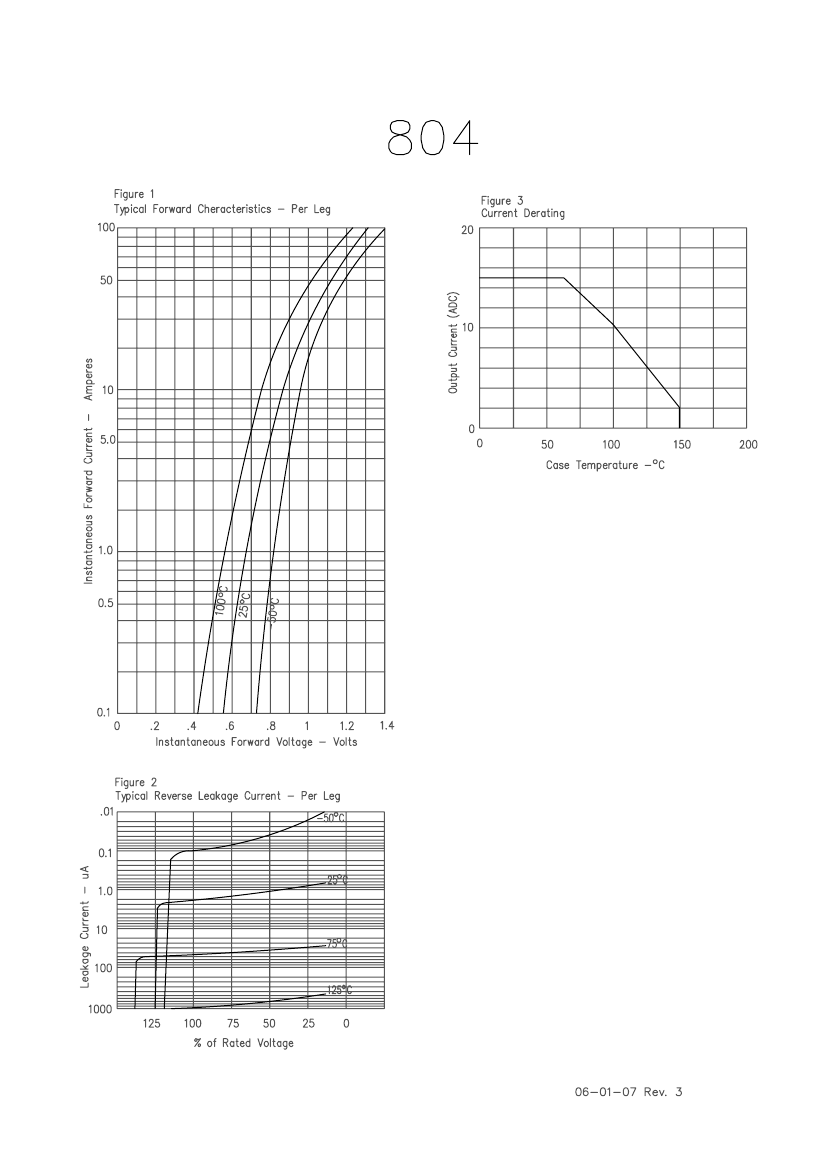

804-1 Overview

20 A, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Number of terminals	3
Number of components	2
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	UNSPECIFIED
terminal coating	TIN LEAD
Terminal location	UPPER
Packaging Materials	UNSPECIFIED
structure	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Shell connection	ISOLATED
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
application	EFFICIENCY
Phase	1
Maximum reverse recovery time	0.0500 us
Maximum average forward current	20 A
Maximum non-repetitive peak forward current	250 A

	804-1	804-2	804-3	804-4	804_07
Description	20 A, SILICON, RECTIFIER DIODE	20 A, SILICON, RECTIFIER DIODE	20 A, SILICON, RECTIFIER DIODE	20 A, SILICON, RECTIFIER DIODE	20 A, SILICON, RECTIFIER DIODE
Number of terminals	3	3	3	3	3
Number of components	2	2	2	2	2
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Packaging Materials	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
structure	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Phase	1	1	1	1	1
Maximum reverse recovery time	0.0500 us	0.0500 us	0.0500 us	0.0500 us	0.0500 us
Maximum average forward current	20 A	20 A	20 A	20 A	20 A
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A
