K200SS2X-32-24G: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K200SS2X-32-24G Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

K200SS2X-32-24G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K200SS2X
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	32
UL Flammability Code	94V-0

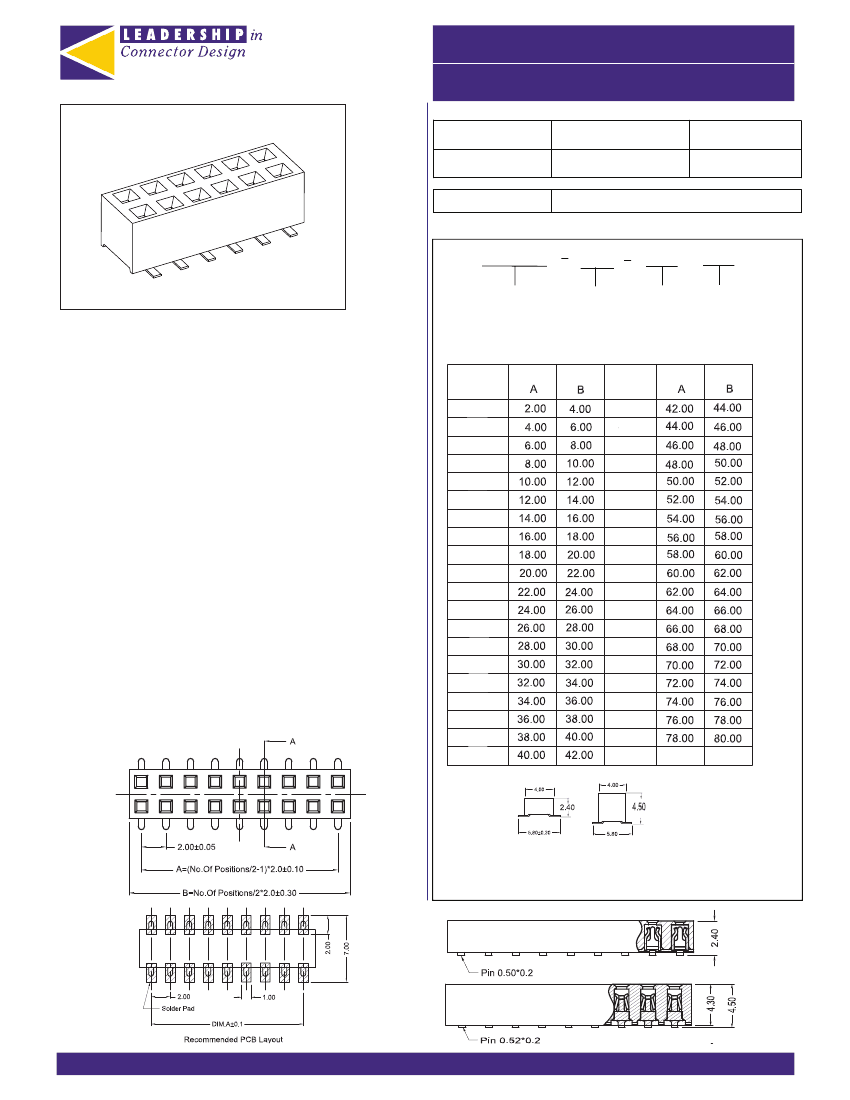

K200SS2X-32-24G Preview

2.0MM PCB Socket SMD Double Row

KYCON

RoHS

K200SS2X Series

Documentation &

Ordering Information

Drawing

Sample

Stock

Email

CofC

RFQ

Kycon Part #

K200SS2X-10-24-G

Part Number Builder

K200SS2X

Series

10

Contacts

24

Height

G

Plating

K200SS2X Series

2.0MM PCB Socket SMD Double Row

Features

• Dual row Surface mount Socket

• 0.079” spacing for real estate savings

• Multiple stack height options

• Circuit sizes range from 4-80

Series

K200SS2X

- 2.0MM PCB Socket Double Row SMD Type

Number of Contacts

04

06

08

10

44

46

48

50

52

54

12

14

Performance Specifications

Material and Finish

Housing

:High Temp plastic (UL94V-0)

Contact

: Phosphor Bronze

Plated

: Gold Plated

16

18

56

58

20

22

60

62

64

24

Electrical Characteristics

Current Rating :

2.0A AC/DC

Voltage Rating :

250V AC/DC

Resistance :

20m ohm.max.

Insulation Resistance :

1000M ohm.Min.

Withstanding Voltage :

500V AC for one minute

Operating Temperature Range :

-40ºC to +105ºC

26

28

66

68

30

70

32

72

74

76

78

34

36

38

40

42

80

Height

Plating

G -

Gold

24

45

Contact Kycon for more options

2009

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
