FR301G ~ FR307G
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
3.0 A, Glass Passivated Fast Recovery Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Low forward voltage drop
High current capability
High reliability
High surge current capability
DO-27
C
A
B
MECHANICAL DATA
Glass Passivated
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 1.1050 grams (approximately)
D
A
REF.
A
B
C
D
Millimeter
Min.
Max.
25.4 (TYP)
7.20
9.53
5.00
5.60
1.20
1.32
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25°C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.
PART NUMBERS
SYMBOL
FR
FR
FR
FR
FR
PARAMETERS
301
G
302
G
303
G
304
G
305
G
FR
306
G
FR
307
G
UNITS
TESTING
CONDITIONS
Recurrent Reverse Voltage (Max.)
RMS Voltage (Max.)
DC Blocking Voltage (Max.)
Instantaneous Forward Voltage(Max.)
Average Forward
Rectified Current (Max.)
V
RRM
V
RMS
V
DC
V
F
I
O
50
35
50
100
70
100
200
140
200
400
280
400
1.3
3.0
600
420
600
800
560
800
1000
700
1000
V
V
V
V
A
I
F
= 3A
0.375” (9.5mm)
lead length
@ T
A
= 75°C
8.3ms single half
sine-wave
superimposed on
rated load
(JEDEC method)
Peak Forward Surge Current
I
FSM
80
5.0
150
150
60
-65 ~ 150
250
500
A
DC Reverse Current (Max.)
Reverse Recovery Time (Max.)
Junction Capacitance (Typ.)
Storage Temperature Range
I
R
T
RR
C
J
T
STG
μA
nS
pF
°C
V
R
= V
DC
, T
A
=25°C
V
R
=V
DC
, T
A
=100°C
I
F
=0.5A, I
R
=1.0A,
I
RR
=0.25A
f=1MHz and
applied 4V DC
reverse voltage
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-April-2009 Rev. B
Page 1 of 2
FR301G ~ FR307G
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
3.0 A, Glass Passivated Fast Recovery Rectifiers

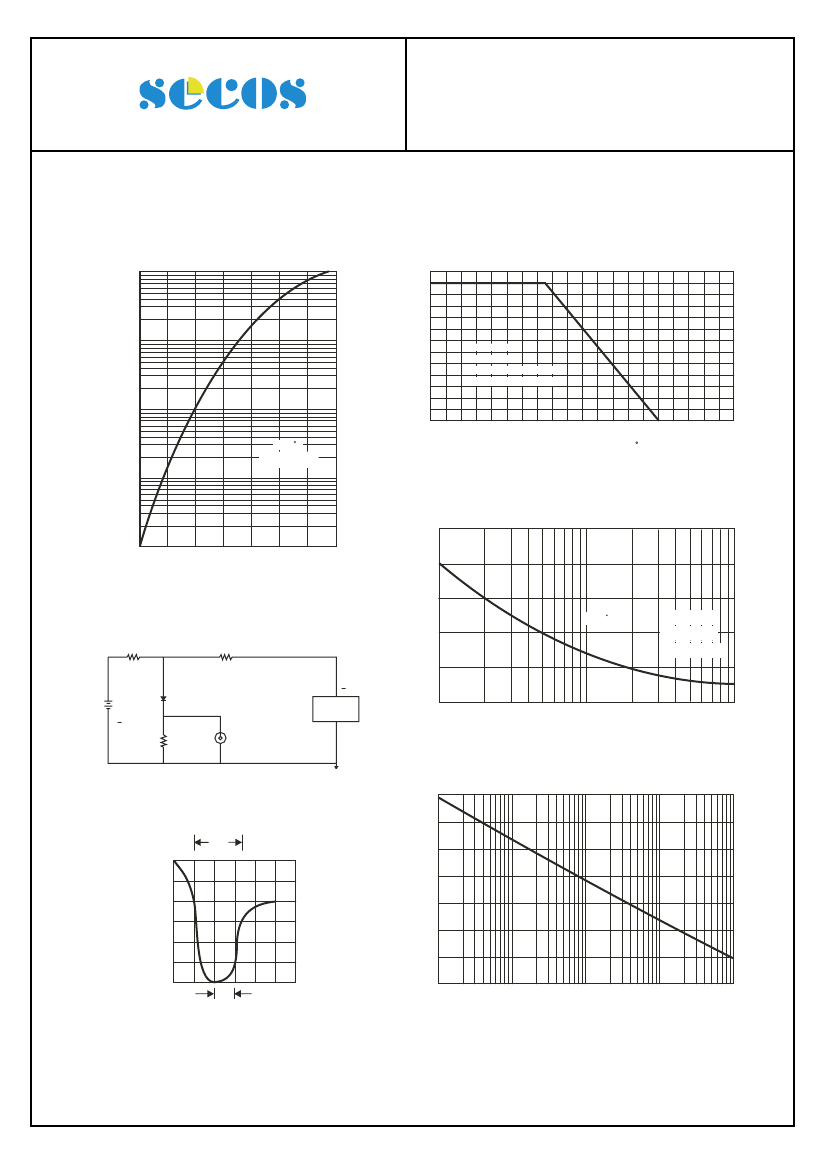

RATINGS AND CHARACTERISTIC CURVES (FR301G THRU FR307G)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
50
INSTANTANEOUS FORWARD CURRENT,(A)
3.0
2.5
2.0
1.5
1.0
0.5
0
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
0.375"(9.5mm) Lead Length
10
3.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE,( C)
0.1
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT,(A)
250
.01
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLT
AGE,(V)
200
FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
50W
NONINDUCTIVE
10W
NONINDUCTIVE
150
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
100
50
(+)
25Vdc
(approx.)
( )
1W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
FIG.5-TYPICAL JUNCTION CAPACITANCE
140
120
100
80
60
40
20
0
trr
+0.5A
|
|
|
|
|
|
|
|
0
-0.25A
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
JUNCTION CAPACITANCE,(pF)
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-April-2009 Rev. B
Page 2 of 2
