FR301 ~ FR307
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
3.0 A, Fast Recovery Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Low forward voltage drop
High current capability
High reliability
High surge current capability
DO-27
C
A
B
MECHANICAL DATA
Glass Passivated
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 1.1050 grams (approximately)
D
A
REF.
A
B
C
D
Millimeter
Min.
Max.
25.4 (TYP)
7.20
9.53
5.00
5.60
1.20
1.32
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25°C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.
PART NUMBERS
SYMBOL
PARAMETERS
FR
FR
FR
FR
FR
301
302
303
304
305
FR
306
FR
307
UNITS
TESTING
CONDITIONS
Recurrent Reverse Voltage (Max.)
RMS Voltage (Max.)
DC Blocking Voltage (Max.)
Instantaneous Forward Voltage(Max.)
Average Forward
Rectified Current (Max.)
V
RRM
V
RMS
V
DC
V
F
I
O
50
35
50
100
70
100
200
140
200
400
280
400
1.3
3.0
600
420
600
800
560
800
1000
700
1000
V
V
V
V
A
I
F
= 3A
0.375” (9.5mm)
lead length
@ T
A
= 75°C
8.3ms single half
sine-wave
superimposed on
rated load
(JEDEC method)
Peak Forward Surge Current
I
FSM
80
5.0
150
150
60
-65 ~ 150
250
500
A
DC Reverse Current (Max.)
Reverse Recovery Time (Max.)
Junction Capacitance (Typ.)
Storage Temperature Range
I
R
T
RR
C
J
T
STG
μA
nS
pF
°C
V
R
= V
DC
, T
A
=25°C
V
R
=V
DC
, T
A
=100°C
I
F
=0.5A, I
R
=1.0A,
I
RR
=0.25A
f=1MHz and
applied 4V DC
reverse voltage
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-April-2009 Rev. B
Page 1 of 2
FR301 ~ FR307
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
3.0 A, Fast Recovery Rectifiers

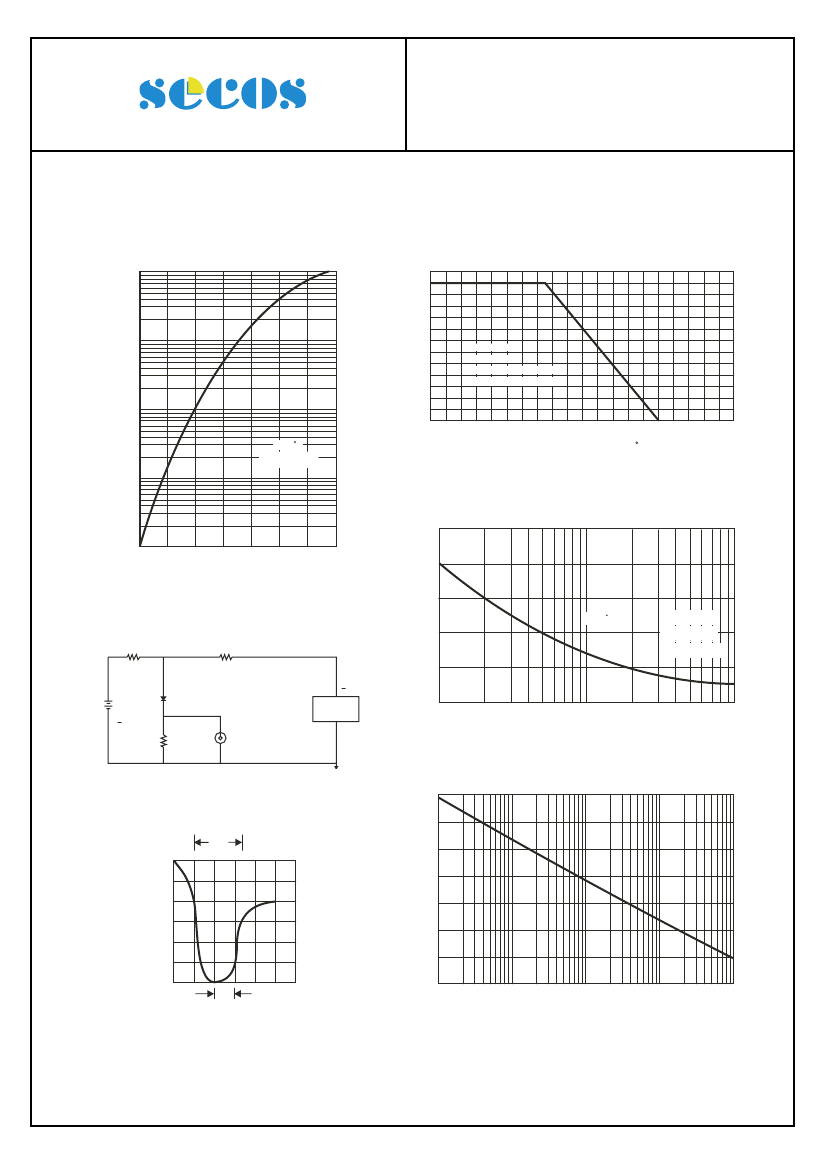

RATINGS AND CHARACTERISTIC CURVES (FR301 THRU FR307)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
50
INSTANTANEOUS FORWARD CURRENT,(A)
3.0
2.5
2.0
1.5
1.0
0.5
0
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
0.375"(9.5mm) Lead Length
10
3.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE,( C)
0.1
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT,(A)
250
.01
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLT
AGE,(V)
200
FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
50W
NONINDUCTIVE
10W
NONINDUCTIVE
150
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
100
50
(+)
25Vdc
(approx.)
( )
1W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
FIG.5-TYPICAL JUNCTION CAPACITANCE
140
120
100
80
60
40
20
0
trr
+0.5A
|
|
|
|
|
|
|
|
0
-0.25A
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
JUNCTION CAPACITANCE,(pF)
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-April-2009 Rev. B
Page 2 of 2
