FAWH3HSPRG3MM3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FAWH3HSPRG3MM3

FAWH3HSPRG3MM3: DescriptionRectangular Connector Adapter, 25 Contacts(Side1), 25 Contacts(Side2), Panel Mount, Female-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size565KB，4 Pages; ManufacturerFCT electronic; Environmental Compliance

Download Datasheet Parametric View All

FAWH3HSPRG3MM3 Overview

Rectangular Connector Adapter, 25 Contacts(Side1), 25 Contacts(Side2), Panel Mount, Female-Male, ROHS COMPLIANT

FAWH3HSPRG3MM3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FCT electronic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652, SHIELDED
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-MALE
Contact material	COPPER ALLOY
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	PANEL
触点数量:侧 1	25
触点数量:侧 2	25
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
direct connection	NO
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

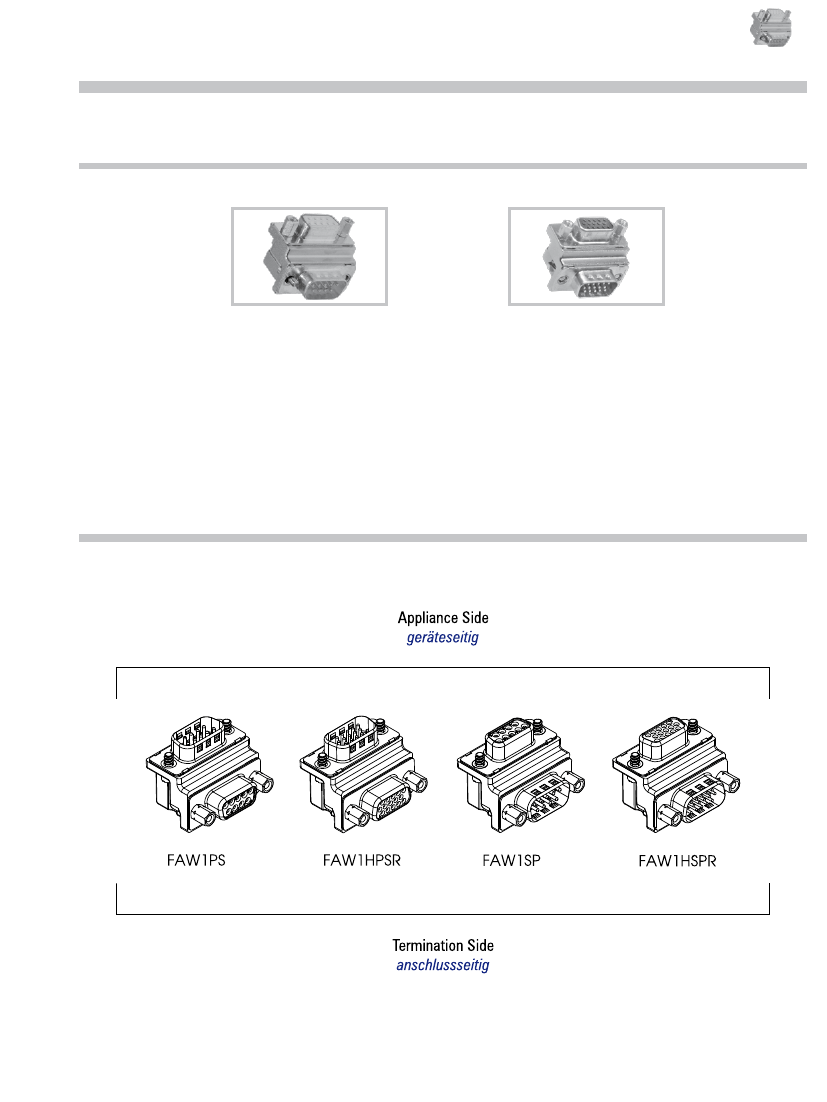

Shielded Right Angled Adapter, Screwable

Geschirmter Winkeladapter, verschraubbar

Special Features

Besondere Merkmale

FAW1PS...

pro

eit

FAW1HPS...

May be used as a bracket adaptor, e.g. in narrow installation conditions

Suitable for robust application

Very good shielding properties

No loose component or assembly parts, screws are pre-mounted

A change in the termination direction is facilitated with “reverse”

mounted contacts

- Very good electrical properties through the use of one-piece contacts

- Also with D-Sub Miniatur connectors

- RoHS conform

nutzbar als Winkeladapter, z.B. bei beengten Einbauverhältnissen

für robuste Einsätze geeignet

sehr gute Abschirmeigenschaften

keine losen Einzel- und Montageteile, Verriegelungsschrauben vormontiert

Änderung der Anschlussrichtung durch „reverse“ montierte Kontakte

sehr gute elektrische Eigenschaften durch Verwendung von

einteiligen Kontakten

- auch mit D-Sub Miniatur Steckverbindern

- RoHS konform

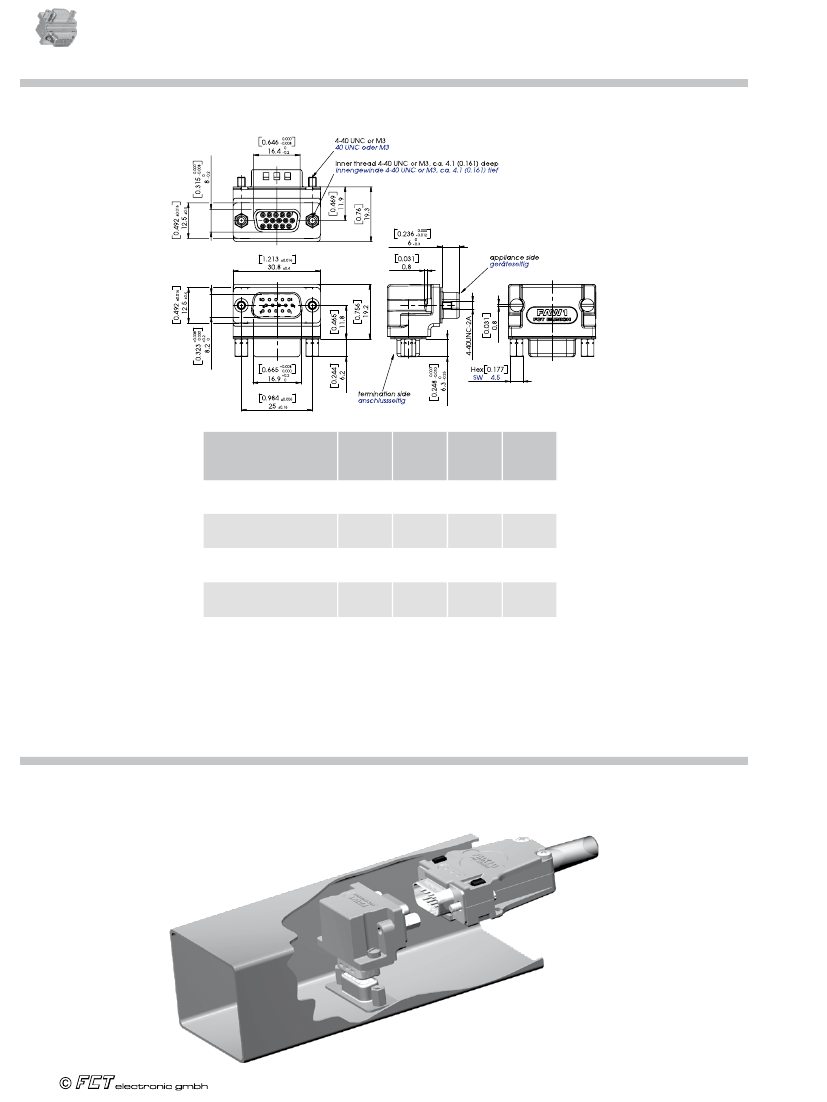

Ordering Code, Use Contact Type and Direction of Right Angled Contacts

Bestellschlüssel, Nutzung Kontaktart und Richtung der abgewinkelten Kontakte

ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE

HD 01/2007
