BSR43TA

Description
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon
CategoryDiscrete semiconductor    The transistor
File Size48KB,1 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Environmental Compliance

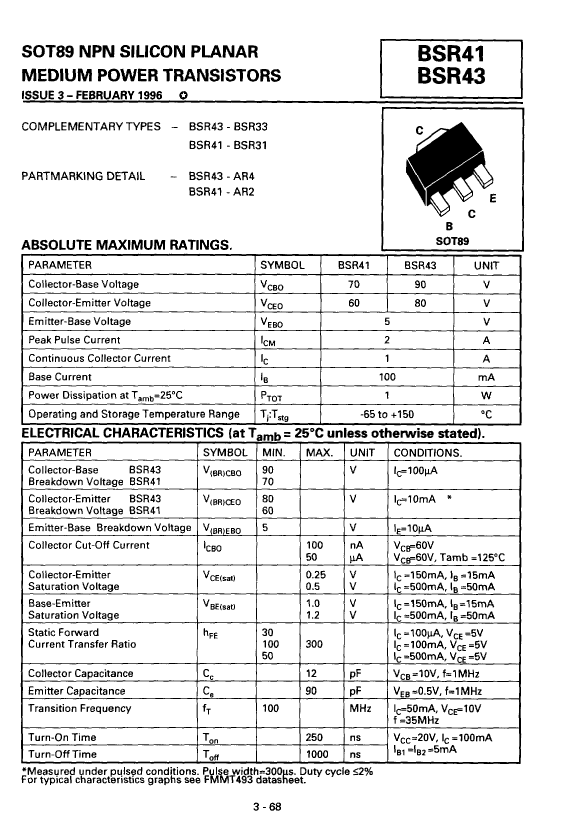

Download Datasheet Parametric Compare View All

BSR43TA Online Shopping

Suppliers Part Number Price MOQ In stock
BSR43TA - - View Buy Now

BSR43TA Overview

Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon

BSR43TA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerZetex Semiconductors
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-based maximum capacity12 pF
Collector-emitter maximum voltage80 V
ConfigurationSINGLE
Minimum DC current gain (hFE)50
JESD-30 codeR-PSSO-F3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formFLAT
Terminal locationSINGLE
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
Maximum off time (toff)1000 ns
Maximum opening time (tons)250 ns
VCEsat-Max0.5 V

BSR43TA Related Products

BSR43TA BSR41TA UBSR43TA
Description Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code compliant unknown unknown
ECCN code EAR99 EAR99 EAR99
Shell connection COLLECTOR COLLECTOR COLLECTOR
Maximum collector current (IC) 1 A 1 A 1 A
Collector-based maximum capacity 12 pF 12 pF 12 pF
Collector-emitter maximum voltage 80 V 60 V 80 V
Configuration SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 50 50 50
JESD-30 code R-PSSO-F3 R-PSSO-F3 R-PSSO-F3
Number of components 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Terminal form FLAT FLAT FLAT
Terminal location SINGLE SINGLE SINGLE
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz 100 MHz
Maximum off time (toff) 1000 ns 1000 ns 1000 ns
Maximum opening time (tons) 250 ns 250 ns 250 ns
VCEsat-Max 0.5 V 0.5 V 0.5 V
Is it Rohs certified? conform to - conform to
Maker Zetex Semiconductors Zetex Semiconductors -
JESD-609 code e3 - e3
Humidity sensitivity level 1 - 1
Peak Reflow Temperature (Celsius) 260 - 260
Terminal surface Matte Tin (Sn) - MATTE TIN
Maximum time at peak reflow temperature 40 - 10
Base Number Matches - 1 1
