FST16090 - FST160100
A
N 4 Places
C
1
2
3

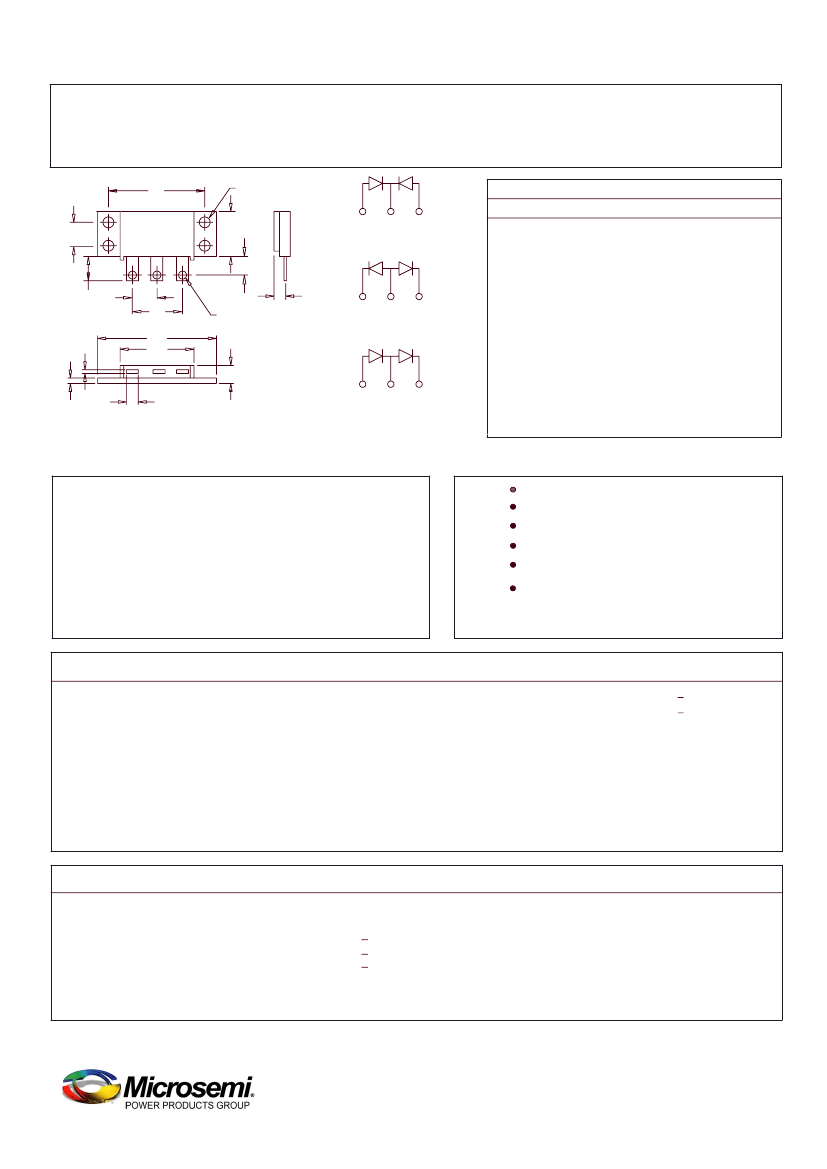

Schottky Powermod
E
B
L
Q
R
P
F
G
J
M
D
K
1
2
3
Common Cathode
Dim. Inches
Max.
Min.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
1.995
0.300
0.495
0.182
0.990
2.390
1.500
0.120
---
0.240
0.490
0.330
0.175
0.035
0.445
0.890
2.005
0.325
0.505
0.192
1.010
2.410
1.525
0.130
0.400
0.260
0.510
0.350
0.195
0.045
0.455
0.910
1
2
3
A=Common Anode
H
1
2
3
D=Doubler
Notes:
Baseplate: Nickel plated copper;
electrically isolated
Pins: Nickel plated copper
50.67
7.62
12.57
4.62
25.15
60.71
38.10
3.05
---
6.10
12.45
8.38
4.45
0.89
11.30
22.61
Millimeters
Min.
Max. Notes
50.93
8.26
12.83
4.88
Dia.
25.65
61.21
38.70
3.30
10.16
6.60 to Lead C
L
12.95
6.90
Dia.
4.95
1.14
11.56
23.11
TO-249
Schottky Barrier Rectifier
Guard Ring for Reverse Protection
V RRM - 90 to 100 Volts
High Surge Capacity
Reverse Energy Tested
ROHS Compliant
Microsemi
Working Peak
Catalog Number Reverse Voltage
FST16090*
FST160100*
90V
100V
Repetitive Peak
Reverse Voltage
90V
100V
*Add the Suffix A for Common Anode, D for Doubler
Electrical Characteristics
IF(AV) 160 Amps
Average forward current per pkg
IF(AV) 80 Amps
Average forward current per leg
IFSM
1200 Amps
Maximum surge current per leg
I
Max repetitive peak reverse current per leg R(OV) 2 Amps
VFM
.75 Volts
Max peak forward voltage per leg
VFM
.96 Volts
Max peak forward voltage per leg
IRM
30 mA
Max peak reverse current per leg
IRM
2 mA
Max peak reverse current per leg
C
Typical junction capacitance per leg
1500 pF
J
TC = 120°C, Square wave, R 0JC = 0.5°C/W
TC = 120°C, Square wave, R 0JC = 0.9°C/W
8.3 ms, half sine T J = 175°C
f = 1 KHz, 25°C, 1µsec Square wave
I FM = 80A: T J = 175°C*
I FM = 80A: T J = 25°C *
VRRM, T J = 125°C *
VRRM, T J = 25°C
VR = 5.0V, T J = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Maximum thermal resistance per leg
Max thermal resistance per pkg.
Typical thermal resistance (greased)
Mounting torque
Weight
T STG
TJ
R OJC
R OJC
R OCS
-55°C to 175°C
-55°C to 175°C
0.9°C/W
Junction to case
0.5°C/W
Junction to case
0.1°C/W
Case to sink
15 - 20 inch pounds
2.5 ounces (71 grams) typical
www.microsemi.com
October, 2012 - Rev. 5
FST16090 - FST160100

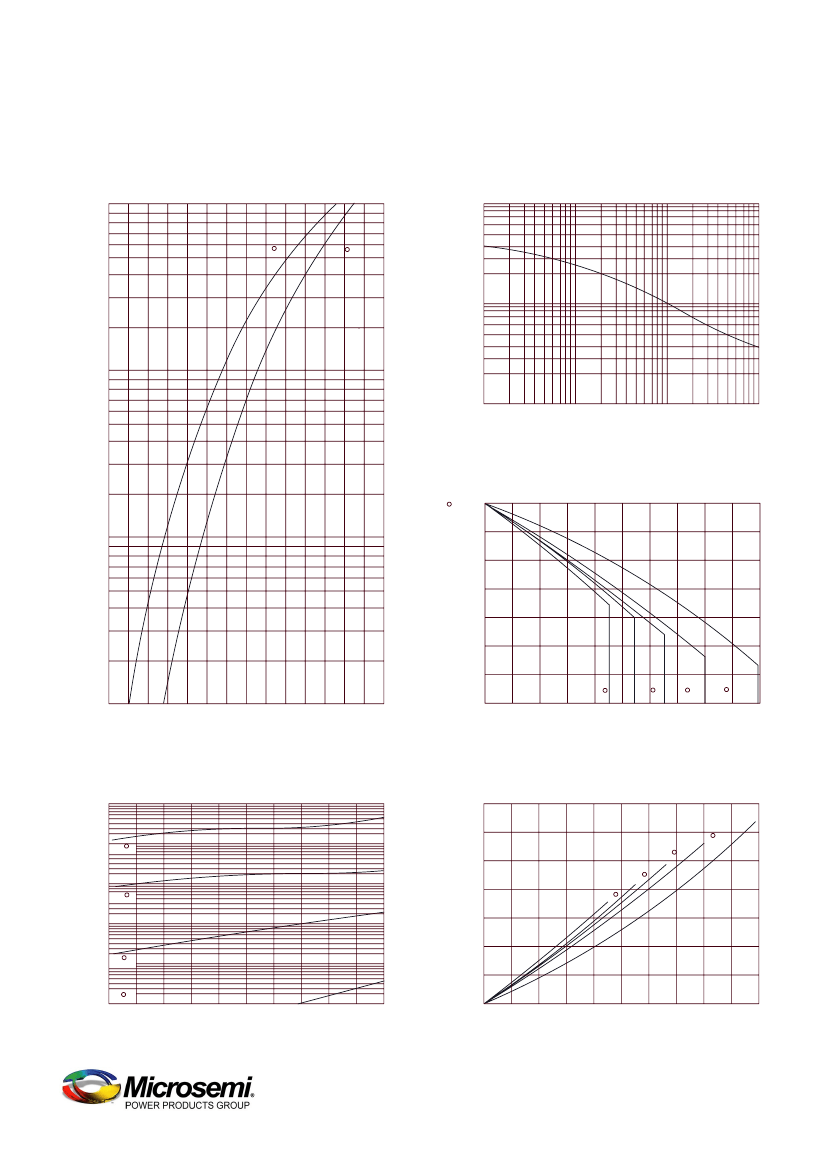

Figure 1
Typical Forward Characteristics
1000
800
600
400
Junction Capacitance - pF
125 C
25 C
Figure 3
Typical Junction Capacitance
10000
6000
4000
2000
1000
600
400
200
100
0.1
200
100
80
60
40
Instantaneous Forward Current - Amperes
0.5
1.0
5.0
10
50
100
Reverse Voltage - Volts
Figure 4
Forward Current Derating
175
165
155
145
135
125
115
105
60
0
10
20
30
40
50
90
60
120
70
180
80
90
DC
100
20
10
8.0
6.0
4.0
2.0
1.0
0
.3
.5
.7
.9
1.1
1.3
1.5
Instantaneous Forward Voltage - Volts
Maximum Allowable Case Temperature - C
Maximum Power Dissipation - Watts
Average Forward Current - Amperes
Figure 5
Maximum Forward Power Dissipation
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
Average Forward Current - Amperes
90
60
120
180
DC
Figure 2
Typical Reverse Characteristics
100
Typical Reverse Current - mA
10 175 C
1.0
125 C
0.1
75 C
25 C
0
20
40
60
80
100
.01
.001
Reverse Voltage - Volts
www.microsemi.com
