FST6230_10: Description60 A, 30 V, SILICON, RECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size118KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Compare View All

FST6230_10 Overview

60 A, 30 V, SILICON, RECTIFIER DIODE

Preview

Download Datasheet

View All

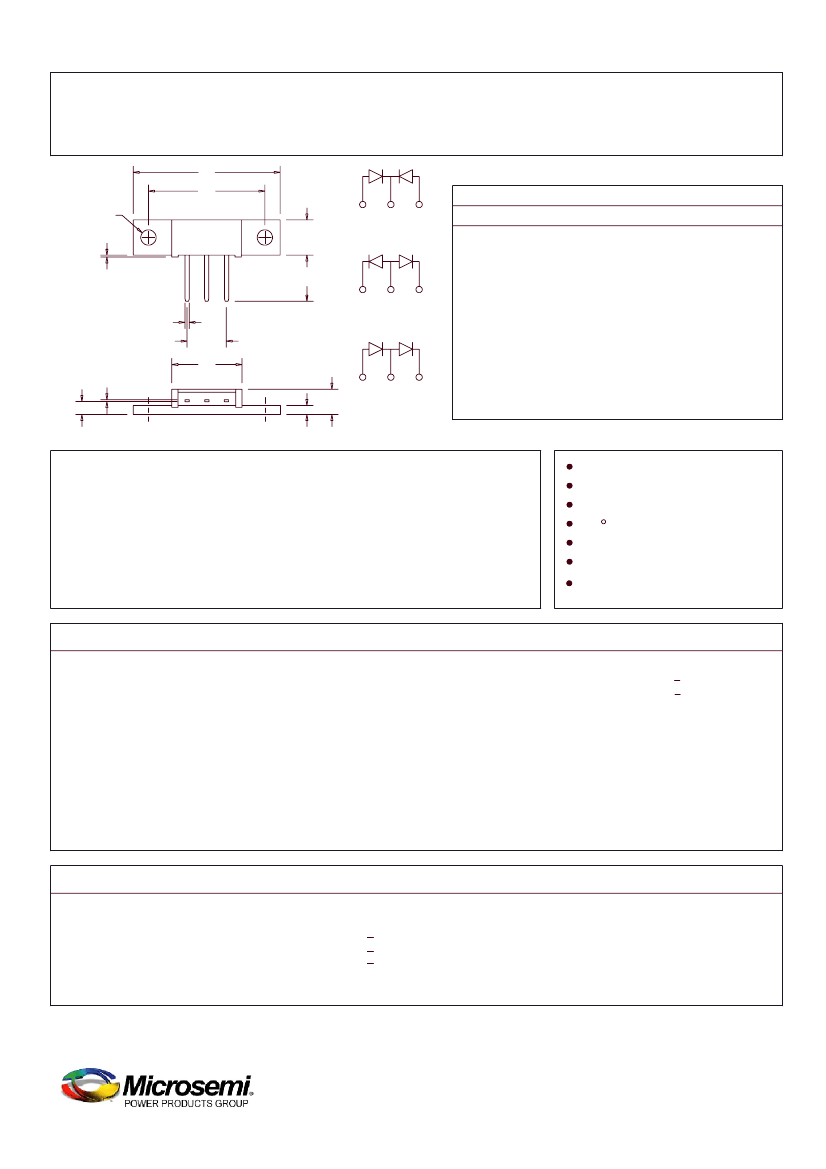

Schottky MiniMod

F

A

N 2-PLCS.

P

1

2

3

FST6230

Dim. Inches

1

2

3

Common Cathode

A

C

E

F

G

H

J

K

L

M

N

P

1.180

.025

.350

1.490

.695

.088

.240

.115

.460

.034

.151

.015

1.195

.035

.370

1.510

.715

.098

.260

.135

.480

.046

.161

.025

Millimeter

29.97

0.64

8.89

37.85

17.65

2.24

6.10

2.92

11.68

0.86

3.84

0.38

30.35

0.89

9.40

38.35

18.16

2.49

6.60

3.43

12.19

1.17

4.09

0.64

Minimum Maximum Minimum Maximum Notes

E

L

M

3 PINS eq sp at .200

G

K

C

J

Note: Baseplate Common with Pin 2

H

1

2

3

A=Common Anode

1

2

3

D=Doubler

Dia.

Microsemi

Catalog Number

FST6230*

Industry

Part Number

62CNQ030

Working

Peak Reverse

Voltage

30V

Repetitive

Peak Reverse

Voltage

30V

Schottky Barrier Rectifier

Guard Ring Protection

2X30 Amperes avg.

150 C Junction Temperature

Reverse Energy Tested

Low Forward Voltage

ROHS Compliant

*Add the Suffix A for Common Anode, D for Doubler

Electrical Characteristics

I F(AV) 60 Amps

Average forward current per pkg

I F(AV) 30 Amps

Average forward current per leg

I FSM 800 Amps

Maximum surge current per leg

Max repetitive peak reverse current per leg I R(OV) 2 Amps

VFM 0.40 Volts

Max peak forward voltage per leg

VFM 0.47 Volts

Max peak forward voltage per leg

I RM 300 mA

Max peak reverse current per leg

I RM 2.0 mA

Typical reverse current per leg

CJ 2400 pF

Typical junction capacitance per leg

TC = 124°C, Square wave, R0JC = 0.5°C/W

T C = 124°C, Square wave, R0JC = 1.0°C/W

8.3 ms, half sine, T J = 150°C

f = 1 KHZ, 25°C, 1µsec square wave

I FM = 30A: T J = 150°C*

I FM = 30A: T J = 25°C*

VRRM, T J = 125°C*

VRRM, T J = 25°C

VR = 5.0V, T C = 25°C

*Pulse test: Pulse width 300µsec, Duty cycle 2%

Thermal and Mechanical Characteristics

Storage temp range

Operating junction temp range

Max thermal resistance per leg

Max thermal resistance per pkg

Typical thermal resistance (greased)

Mounting Base Torque

Weight

T STG

TJ

R 0JC

R 0CS

-55°C to 175°C

-55°C to 150°C

Junction to case

1.0°C/W

0.5°C/W

Junction to case

0.3°C/W

Case to sink

10 inch pounds maximum

0.3 ounce (8.4 grams) typical

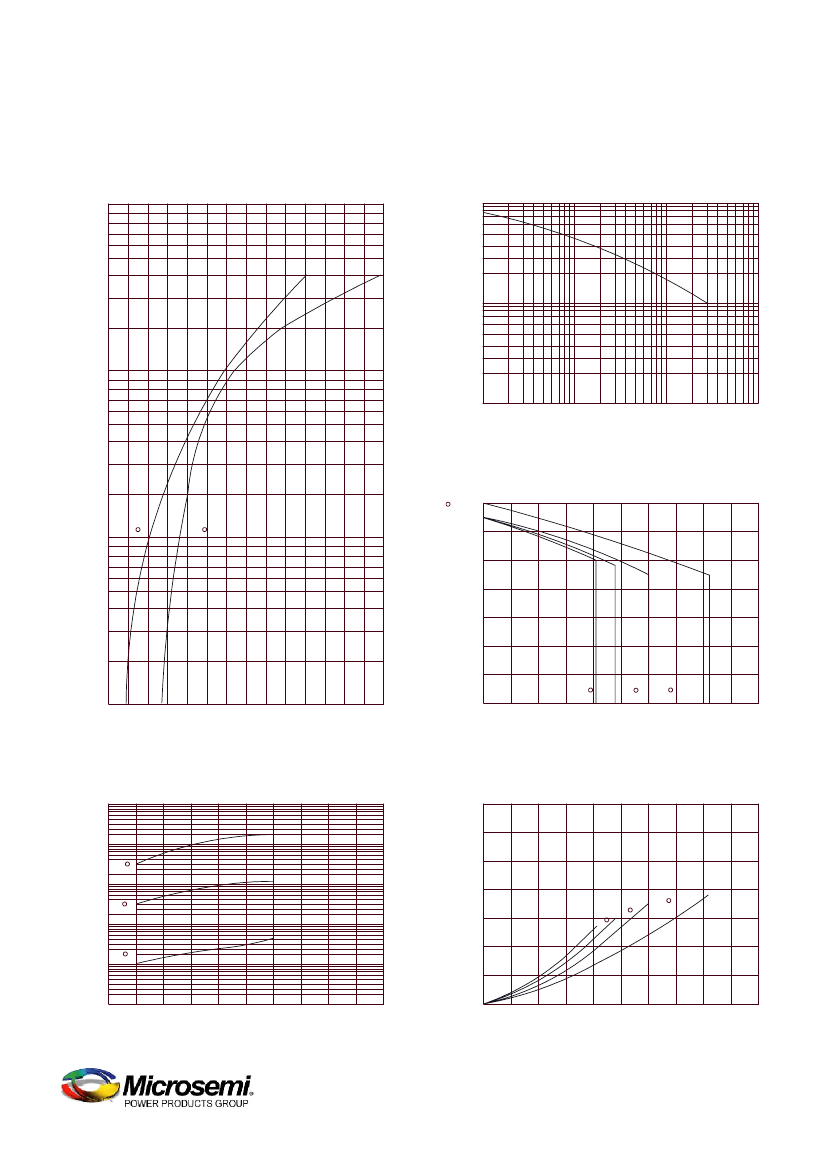

www.microsemi.com

January, 2010 - Rev. 4

FST6230_10 Related Products

	FST6230_10	62CNQ030	FST6230
Description	60 A, 30 V, SILICON, RECTIFIER DIODE	60 A, 30 V, SILICON, RECTIFIER DIODE	60 A, 30 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	-	conform to	conform to
Maker	-	Microsemi	Microsemi
package instruction	-	MINIMOD-3	ROHS COMPLIANT, MINIMOD-3
Contacts	-	3	3
Reach Compliance Code	-	compli	compli
ECCN code	-	EAR99	EAR99
application	-	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	-	CATHODE	CATHODE
Configuration	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	-	SILICON	SILICON
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	-	R-XSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	-	800 A	800 A
Number of components	-	2	2
Phase	-	1	1
Number of terminals	-	3	3
Maximum operating temperature	-	150 °C	150 °C
Minimum operating temperature	-	-55 °C	-55 °C
Maximum output current	-	30 A	30 A
Package body material	-	UNSPECIFIED	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT
Certification status	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	30 V	30 V
surface mount	-	NO	NO
technology	-	SCHOTTKY	SCHOTTKY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	SINGLE	SINGLE
