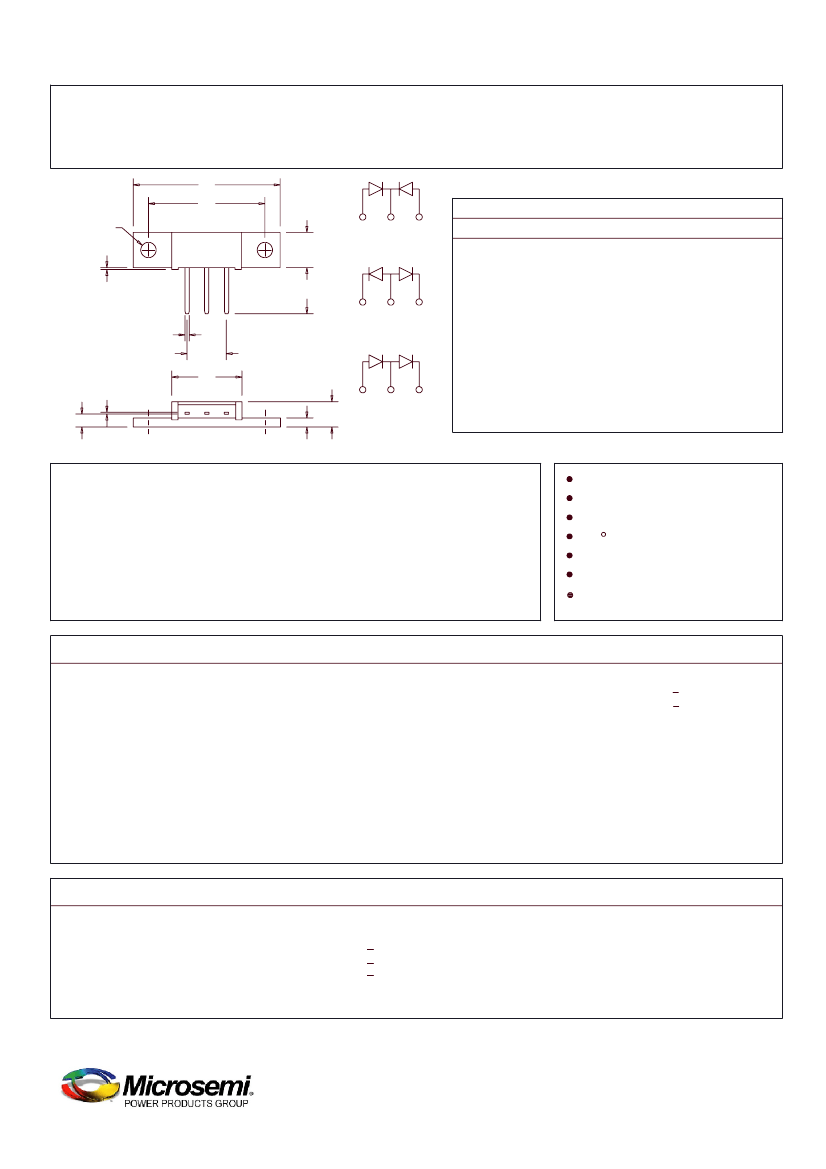

FST6130 - FST6145
F
A
N 2-PLCS.
P
1
2
3
Schottky MiniMod
Dim. Inches
1
2
3
Common Cathode
A
C
E
F
G
H
J
K
L
M
N
P
1.180
.025
.350
1.490
.695
.088
.240
.115
.460
.034
.151
.015
1.195
.035
.370
1.510
.715
.098
.260
.135
.480
.046
.161
.025
Millimeter
29.97
0.64
8.89
37.85
17.65
2.24
6.10
2.92
11.68
0.86
3.84
0.38
30.35
0.89
9.40
38.35
18.16
2.49
6.60
3.43
12.19
1.17
4.09
0.64
Minimum Maximum Minimum Maximum Notes
E
L
M
3 PINS eq sp at .200
G
K
C
J
Note: Baseplate Common with Pin 2
H
1
2
3
A=Common Anode
3
1
2
D=Doubler
Dia.
Microsemi
Catalog Number
FST6130*
FST6135*
FST6140*
FST6145*
Industry
Part Number
Working
Peak Reverse
Voltage
30V
35V
40V
45V
Repetitive
Peak Reverse
Voltage
30V
35V
40V
45V
Schottky Barrier Rectifier
Guard Ring Protection
2X30 Amperes avg.
150 C Junction Temperature
Reverse Energy Tested
Low Forward Voltage
ROHS Compliant
60CNQ035
60CNQ040
60CNQ045
*Add the Suffix A for Common Anode, D for Doubler
Electrical Characteristics
I F(AV) 60 Amps
Average forward current per pkg
I F(AV) 30 Amps
Average forward current per leg
I FSM 800 Amps
Maximum surge current per leg
Max repetitive peak reverse current per leg I R(OV) 2 Amps
VFM 0.42 Volts
Max peak forward voltage per leg
VFM 0.50 Volts
Max peak forward voltage per leg
I RM 500 mA
Max peak reverse current per leg
I RM 3.0 mA
Max reverse current per leg
CJ 2100 pF
Typical junction capacitance per leg
TC = 115°C, Square wave, R0JC = 0.5°C/W
T C = 115°C, Square wave, R0JC = 1.0°C/W
8.3 ms, half sine, T J = 150°C
f = 1 KHZ, 25°C, 1µsec square wave
I FM = 30A: T J = 150°C*
I FM = 30A: T J = 25°C*
VRRM, T J = 125°C*
VRRM, T J = 25°C
VR = 5.0V, T C = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Max thermal resistance per leg
Max thermal resistance per pkg
Typical thermal resistance (greased)
Mounting Base Torque
Weight
T STG
TJ
R 0JC
R 0JC
R 0CS
-55°C to 175°C
-55°C to 150°C
1.0°C/W
Junction to case
0.5°C/W
Junction to case
Case to sink
0.3°C/W
10 inch pounds maximum
0.3 ounce (8.4 grams) typical
www.microsemi.com
January, 2010 - Rev. 3

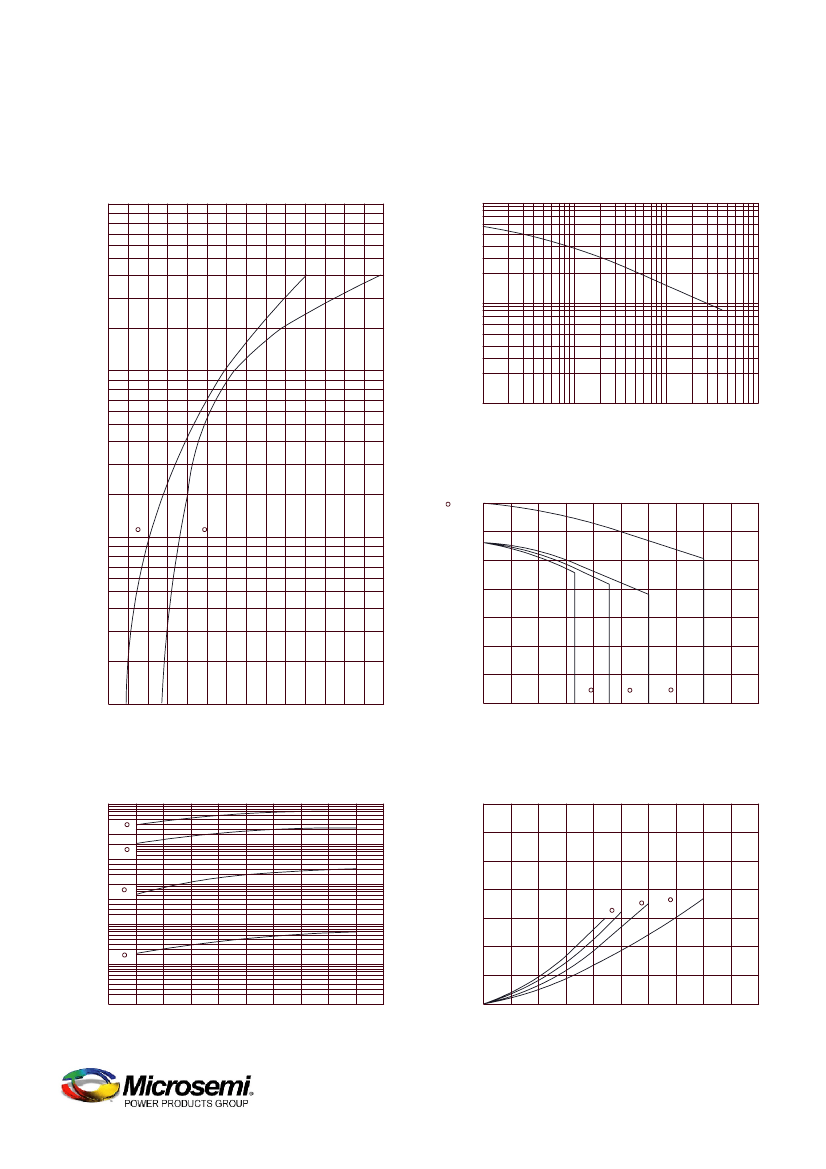

FST6130 - FST6145
Figure 1
Typical Forward Characteristics - Per Leg
1000
800
600
Junction Capacitance - pF
400
Figure 3
Typical Junction Capacitance - Per Leg
10000
6000
4000
2000
1000
600
400
200
100
0.1
200
100
80
60
40
Instantaneous Forward Current - Amperes
0.5
1.0
5.0
10
50
100
Reverse Voltage - Volts
Figure 4
Forward Current Derating - Per Leg
150
140
130
120
110
100
90
80
0
5
10
15
90
20
120
25
180
30
35
DC
40
45
50
20
150 C
25 C
10
8.0
6.0
4.0
2.0
1.0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward Voltage - Volts
Maximum Allowable Case Temperature - C
Maximum Power Dissipation - Watts
Average Forward Current - Amperes
Figure 5
Maximum Forward Power Dissipation - Per Leg
35
30
25
20
15
10
5.0
0
0
5.0
10
15
20
25
30
35
40
45
50
Average Forward Current - Amperes
90
120
180
DC
Typical Reverse Current - mAmperes
Figure 2
Typical Reverse Characteristics - Per Leg
1000
150 C
100
10
1.0
0.1
.01
0
10
20
30
40
50
Reverse Voltage - Volts
25 C
125 C
75 C
www.microsemi.com
January, 2010 - Rev. 3
