BU-61586J1-110 datasheet, PDF - EEWORLD Datasheet

BU-61586J1-110: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDSO70, CERAMIC, J LEAD PACKAGE-70; CategoryThe embedded processor and controller Microcontrollers and processors; File Size91KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

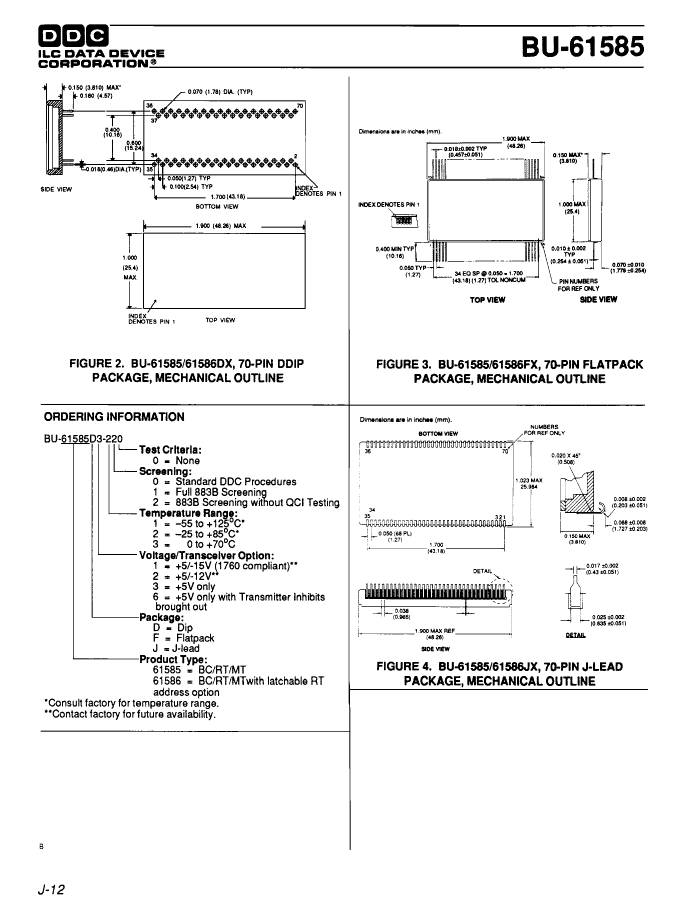

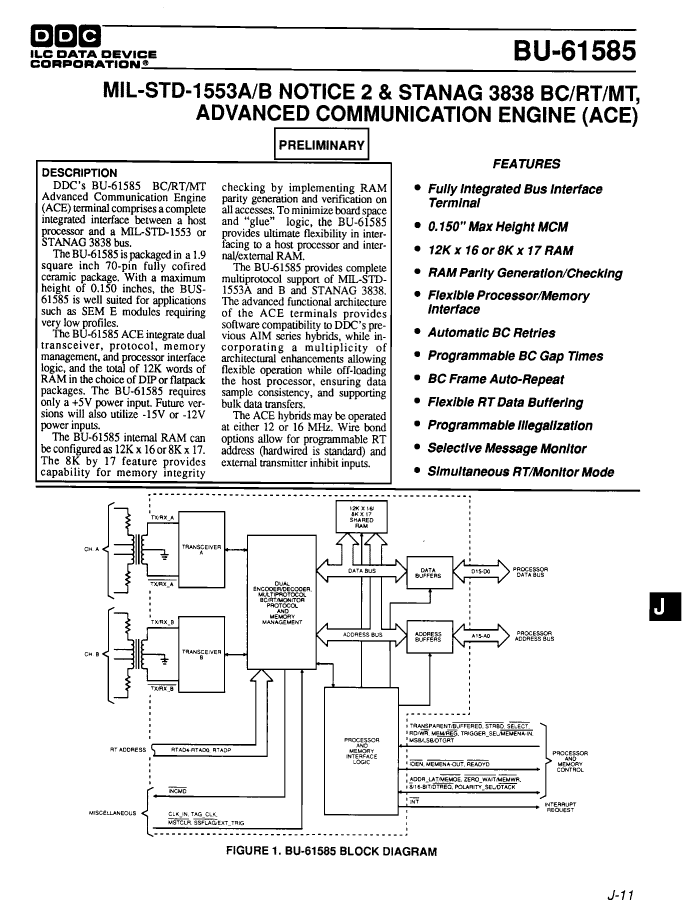

BU-61586J1-110 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDSO70, CERAMIC, J LEAD PACKAGE-70

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	SOIC
package instruction	SOJ, SOJ70,1.0
Contacts	70
Reach Compliance Code	compliant
Other features	ADDITIONAL POWER SUPPLY -15V; LATCHABLE RT ADDRESS OPTION; ALTERNATE MEMORY 8K X 17
Address bus width	16
boundary scan	NO
maximum clock frequency	16 MHz
letter of agreement	MIL-STD-1553A; MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-CDSO-J70
JESD-609 code	e0
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	70
On-chip data RAM width	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SOJ
Encapsulate equivalent code	SOJ70,1.0
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-15 V
Certification status	Not Qualified
RAM (number of words)	6144
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.74 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
