Information Technology Equipment, General Requirements for Safety
EAC
RoHs 2+
Report / File Number
1602031
RU-AT.49.09571
Standard
IEC60950-1:2005, 2nd Edition + A2:2013
EN60950-1:2006 + A2:2013
TP TC 004/2011
RoHS-2011/65/EU + AM-2015/863
DIMENSION AND PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
continued on next page
www.recom-power.com
REV.: 1/2018
ECO-4
Type
case
potting
PCB
Value
non-conductive black plastic (UL94 V-1)
epoxy, (UL94 V-0)
FR4, (UL94 V-0)
11.5 x 7.6 x 10.2mm
2.0g typ.
RI
DC/DC Converter

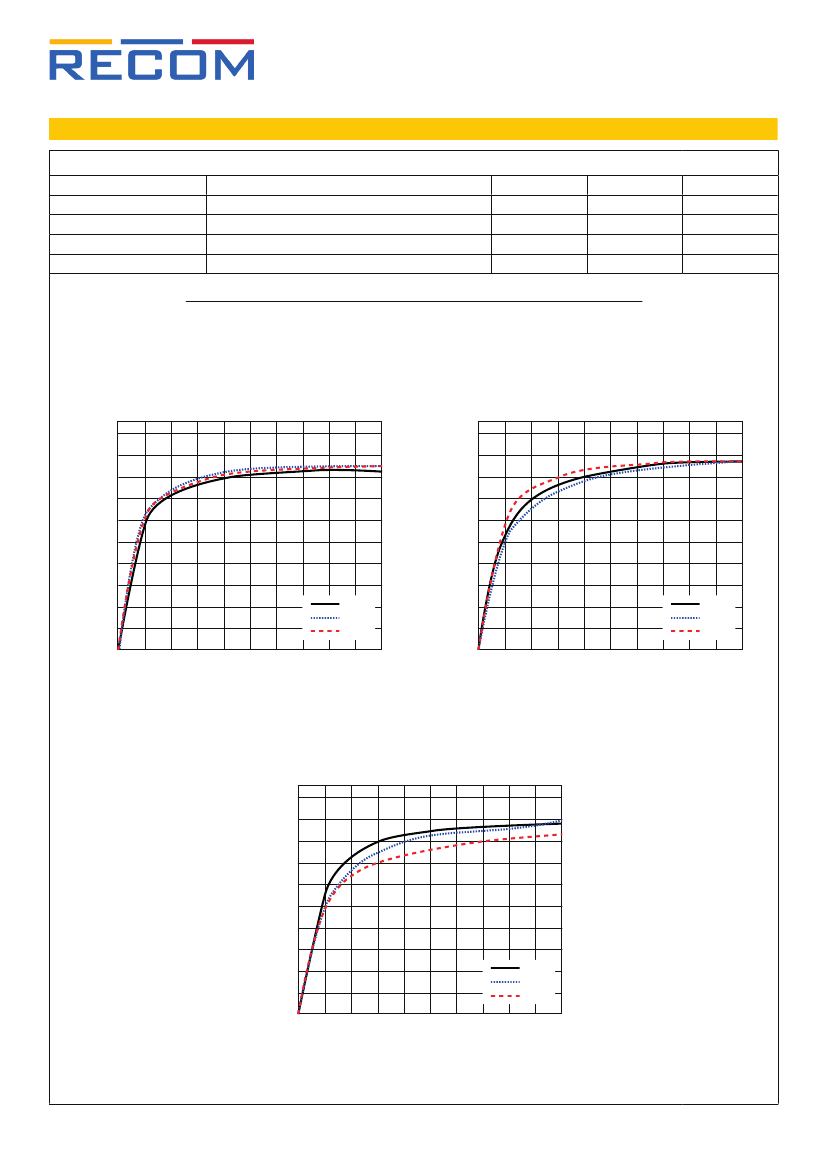

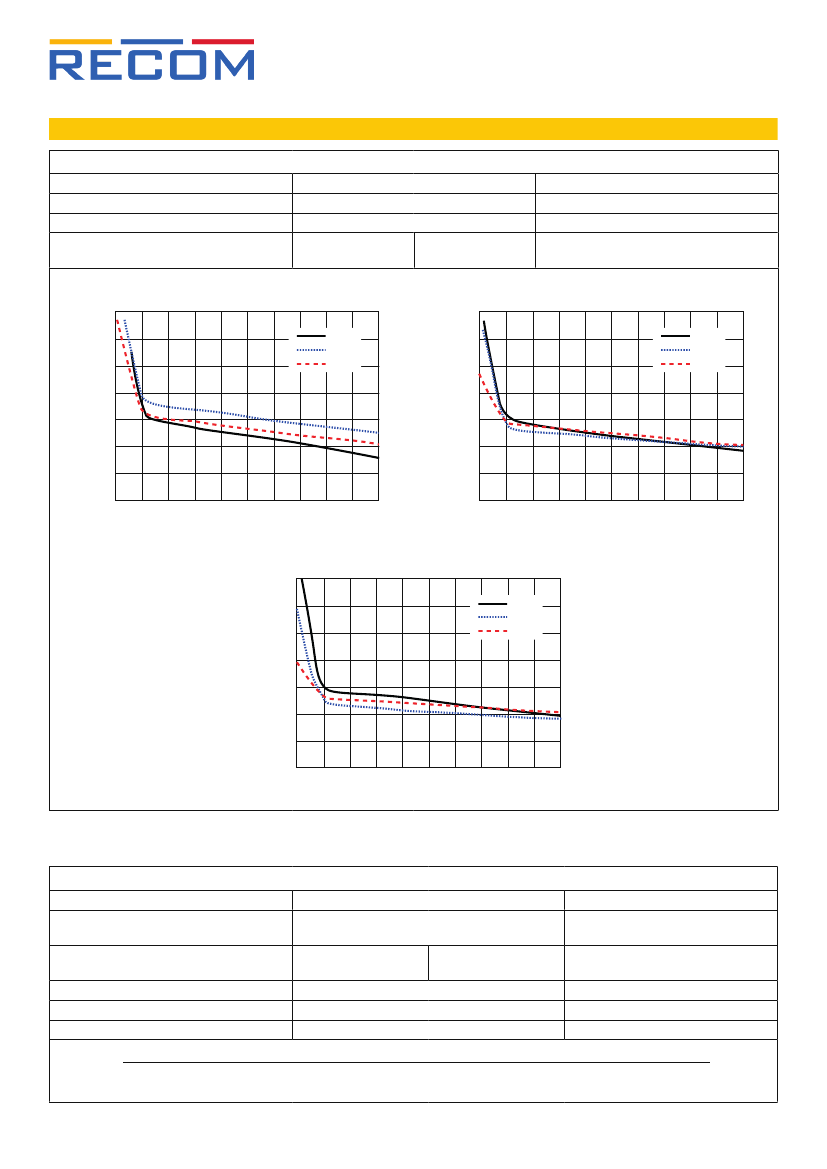

Specifications
(measured @ Ta= 25°C, nom. Vin and full load unless otherwise stated)
Dimension Drawing (mm)
Series
embossed logo
11.5
7.6
Pinning information
Pin #
1
2
3
4
Dual
-Vin
+Vin
-Vout
+Vout
10.2
0.51
Marking
Tolerance: xx.x= ±0.5mm
xx.xx= ±0.25mm
4.10
0.51
+0.10/-0.05
2.03
0.25
±0.05
Recommended Footprint Details
1.00 Ø
+0.15/-0
2.54
7.62
1.27
1 2 3 4
Bottom View
1 2 3 4
2.54
Top View
PACKAGING INFORMATION
Parameter
Packaging Dimension (LxWxH)
Packaging Quantity
Storage Temperature Range
Storage Humidity
Type
tube
tube
Value
520.0 x 16.0 x 9.0mm
42pcs
-55°C to +125°C
95% RH max.
The product information and specifications may be subject to changes even without prior written notice.The product has been designed for various applications; its suitability lies in the responsibility of each customer. The
products are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or cause
loss of life, inflict bodily harm or damage property. The applicant shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized
use of RECOM products in such safety-critical applications.
