Ordering number : EN8637
2SK3835
N-Channel Silicon MOSFET
2SK3835
Features
•
•
•
General-Purpose Switching Device
Applications
Ultrahigh-speed switching.
4V drive.
Avalanche resistance guarantee.
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current (DC)
Drain Current (Pulse)
Allowable Power Dissipation
Channel Temperature
Storage Temperature
Avalanche Energy (Single Pulse) *1
Avalanche Current *2
Symbol
VDSS
VGSS
ID
IDP
PD
Tch
Tstg
EAS
IAV
PW≤10µs, duty cycle≤1%
Tc=25°C
Conditions
Ratings
60
±20
50
200
3.0
40
150
--55 to +150
175
50
Unit
V
V
A
A
W
W
°C
°C
mJ
A
*1
VDD=20V, L=100µH, IAV=50A
*2
L≤100µH, single pulse
Electrical Characteristics
at Ta=25°C
Parameter
Drain-to-Source Breakdown Voltage
Zero-Gate Voltage Drain Current
Gate-to-Source Leakage Current
Cutoff Voltage
Forward Transfer Admittance
Static Drain-to-Source On-State Resistance
Symbol
V(BR)DSS
IDSS
IGSS
VGS(off)
yfs
RDS(on)1
RDS(on)2
Conditions
ID=1mA, VGS=0V
VDS=60V, VGS=0V
VGS=±16V, VDS=0V
VDS=10V, ID=1mA
VDS=10V, ID=25A
ID=25A, VGS=10V
ID=25A, VGS=4V
Ratings
min
60
1
±10
1.2
21
35
11.5
16
15
22
2.6
typ
max
Unit
V
µ
A
µ
A
V
S
mΩ
mΩ
Marking : K3835
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
N2505QA MS IM TB-00001913 No.8637-1/4
2SK3835
80
70
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0

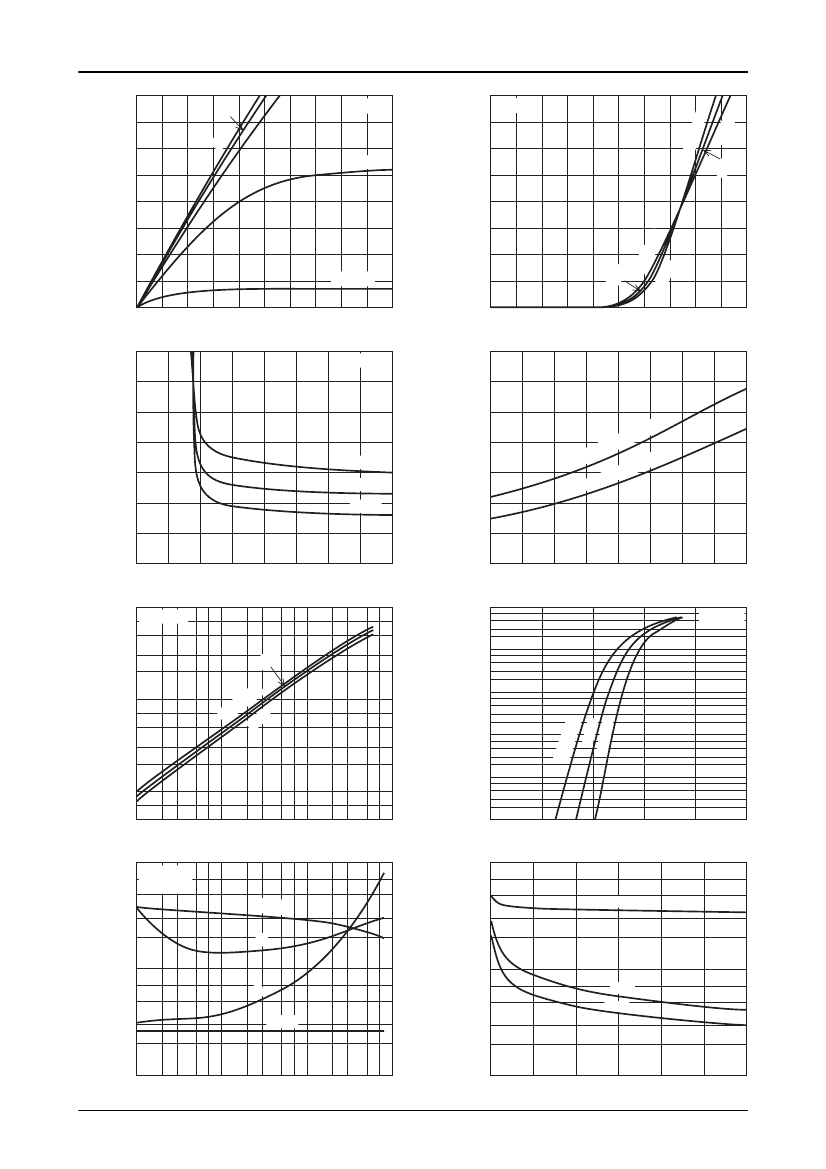

ID -- VDS
