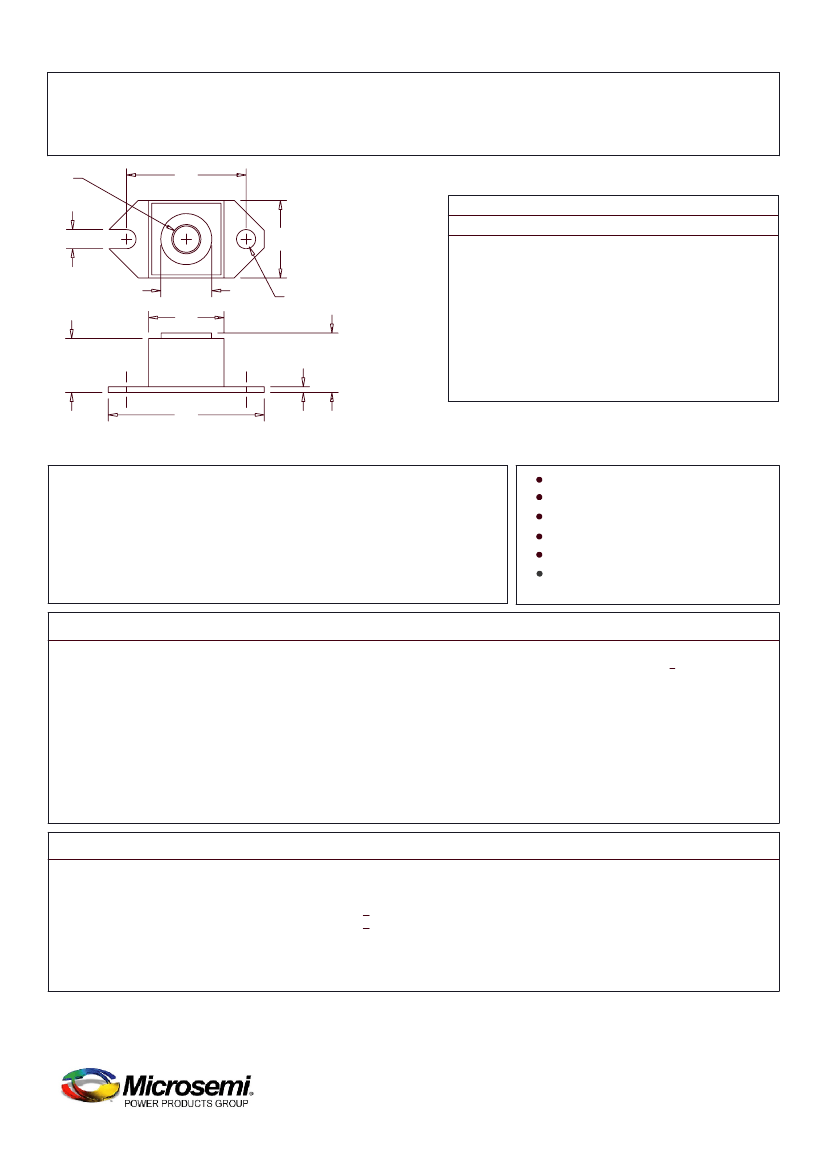

240 Amp Schottky Rectifier
HS24230
Std. Polarity
Base is cathode
Rev. Polarity
Base is anode
Dim. Inches
A
B
C
D
E
F
G
H
J
K
L
1.52
.725
.605
1.182
.745
.152
.525
.156
.495
.120
G
J
D
Millimeter
B
Minimum Maximum Minimum Maximum Notes
38.61
1.56
18.42
.775
15.37
.625
30.02
1.192
18.92
.755
3.86
.160
1/4-20 UNC-2B
13.34
.580
3.96
.160
12.57
.505
3.05
.130
39.62
19.69
15.88
30.28
19.18
4.06
14.73
4.06
12.83
3.30
K
H
E
F
C
Sq.
Dia.
Dia.
A
L
Working Peak
Repetitive Peak
Microsemi
Microsemi
Catalog Number Catalog Number Reverse Voltage Reverse Voltage
HS24230*
242NQ030
30V
30V
Schottky Barrier Rectifier
Guard Ring Protection
240 Amperes/30 Volts
150°C Junction Temperature
Reverse Energy Tested
ROHS Compliant
*Add Suffix R for Reverse Polarity
Electrical Characteristics
Average forward current
Maximum surge current
Maximum repetitive reverse current
Max peak forward voltage
Max peak forward voltage
Max peak reverse current
Max peak reverse current
Typical junction capacitance
I F(AV)
I FSM
I R(OV)
VFM
VFM
I RM
I RM
CJ
240 Amps
3500 Amps
2 Amps
0.49 Volts
0.55 Volts
3 Amp
12mA
10500pF
T C = 84°C, Square wave, R 0JC = .24°C/W
8.3ms, half sine, T J = 150°C
f = 1 KHZ, 25°C
I FM = 240A: T J = 125°C*
I FM = 240A: T J = 25°C*
VRRM, T J = 125°C*
VRRM, T J = 25°C
VR = 5.0V, T C = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Max thermal resistance
Typical thermal resistance (greased)
Terminal Torque
Mounting Base Torque
Weight
T STG
TJ
R OJC
R OCS
-55°C to 150°C
-55°C to 150°C
0.24°C/W Junction to case
0.12°C/W Case to sink
35-40 inch pounds
20-25 inch pounds
1.1 ounces (32 grams) typical
www.microsemi.com
January, 2011 - Rev. 5
HS24230

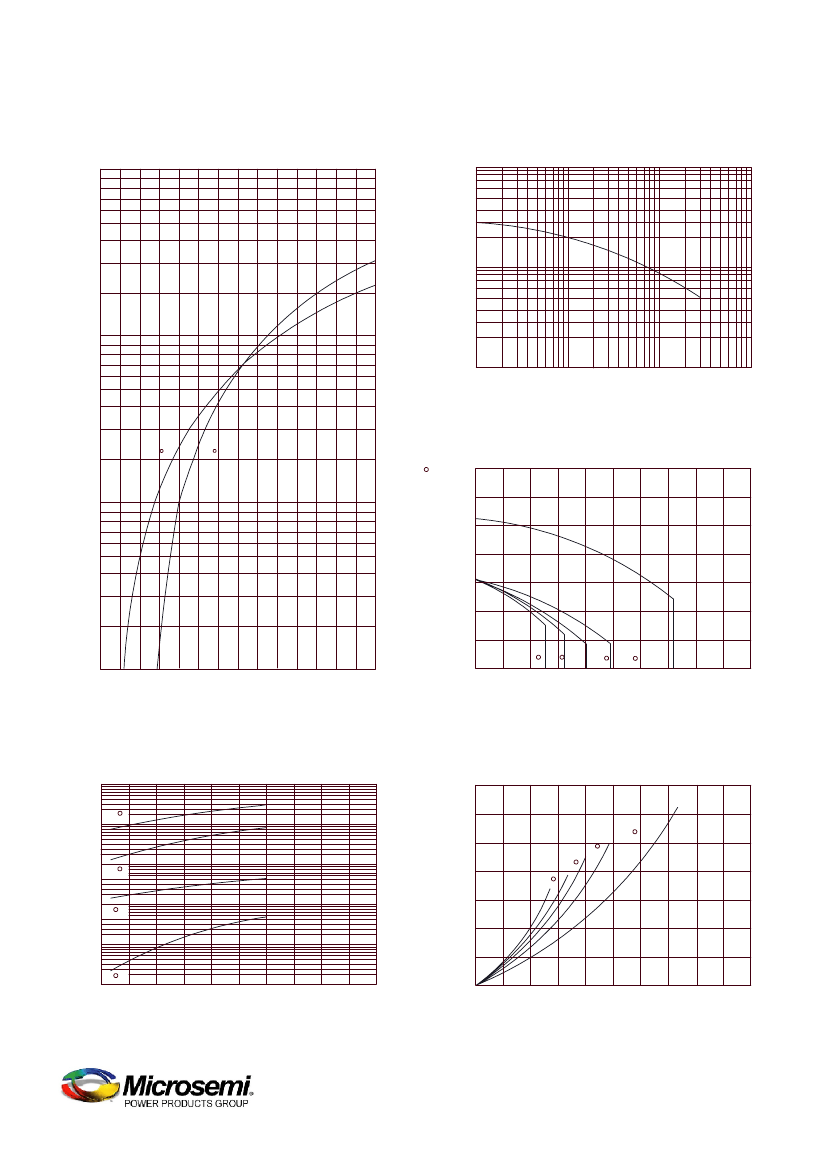

Figure 1
