DBV5W5P300G40 datasheet, PDF - EEWORLD Datasheet

DBV5W5P300G40: DescriptionD Subminiature Connector, 5 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DBV5W5P300G40 Overview

D Subminiature Connector, 5 Contact(s), Male, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DBV5W5P300G40
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	5

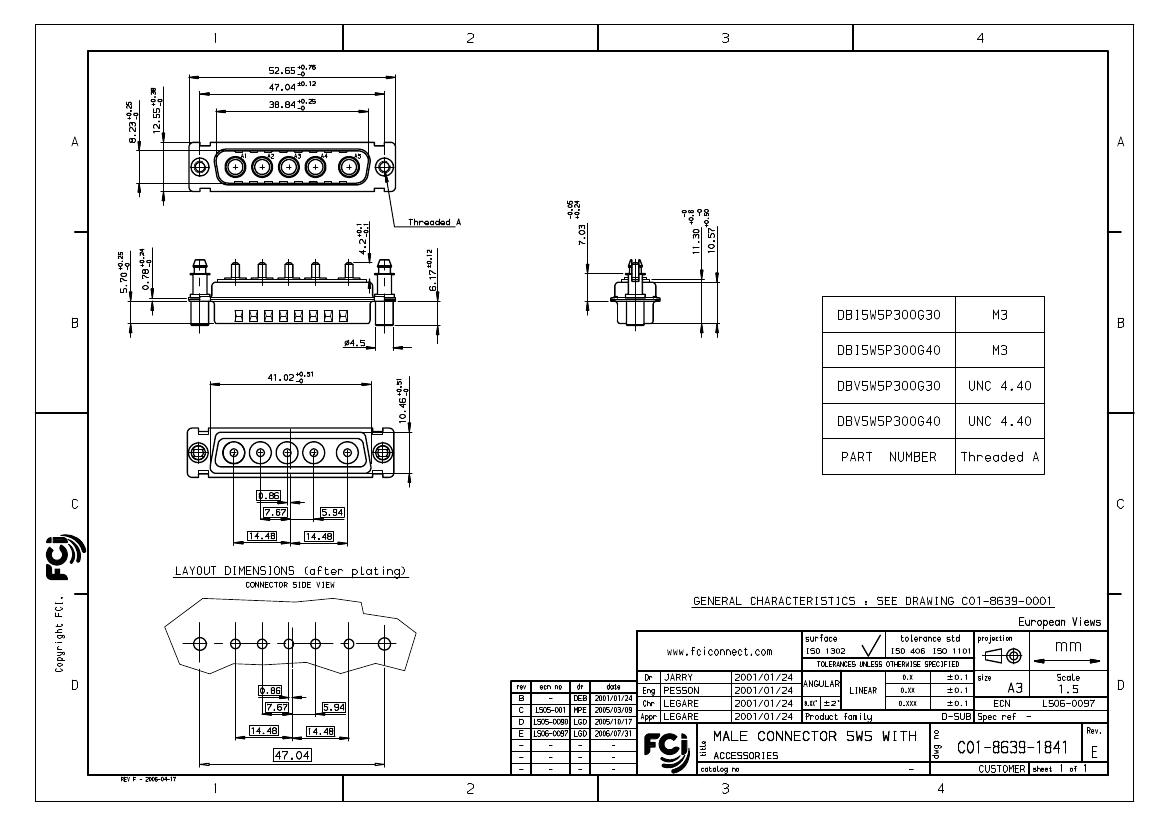

PDM: Rev:E

STATUS:

Released

Printed: Oct 01, 2010

.

	DBV5W5P300G40	DBV5W5P300G30LF	DBI5W5P300G30	DBI5W5P300G40	DBV5W5P300G30
Description	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal	CONN D-SUB PLUG 5POS VERT SLDR	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	YES	NO	NO	NO
Installation type	BOARD	BOARD AND PANEL	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	3/B	3/B	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	5	5	5	5
Manufacturer's serial number	DBV5W5P300G40	-	DBI5W5P300G30	DBI5W5P300G40	DBV5W5P300G30
