RN2701~RN2706
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor)
RN2701, RN2702, RN2703
RN2704, RN2705, RN2706
Unit: mm
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Including two devices in USV (ultra super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Complementary to RN1701 to RN1706

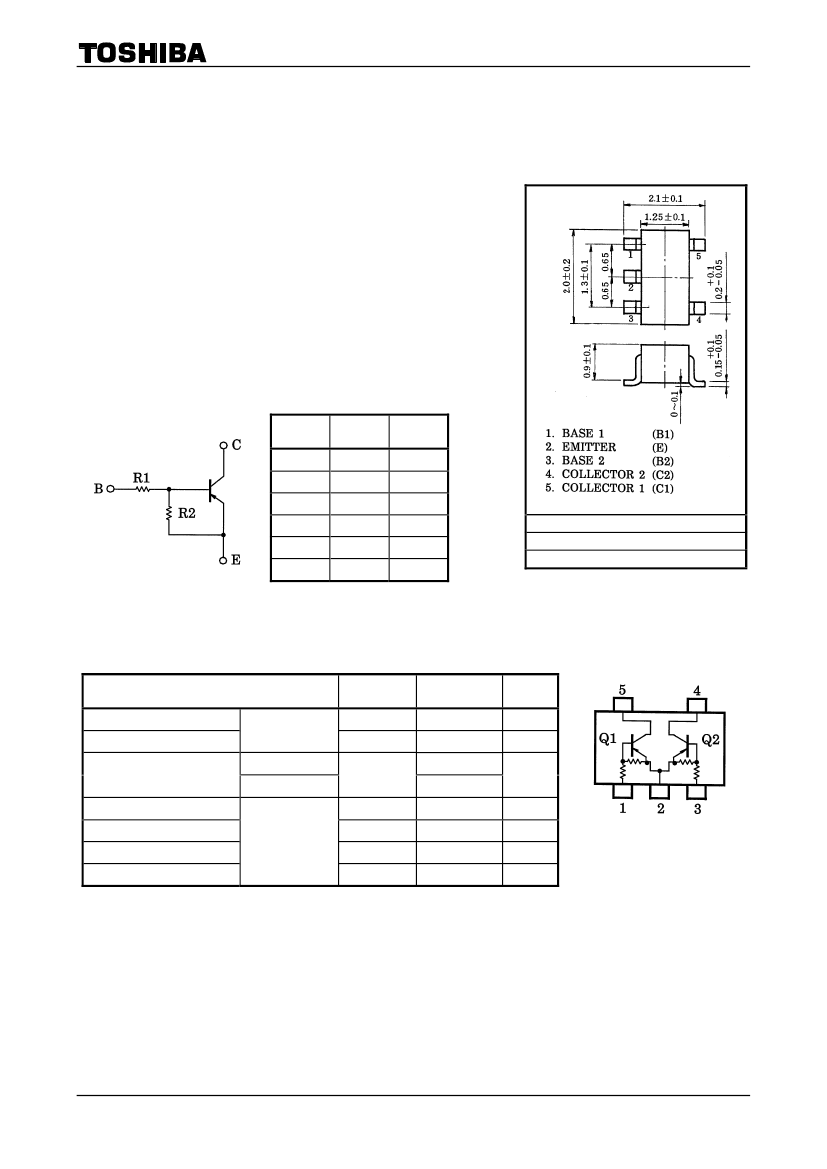

Equivalent Circuit and Bias Resistor Values
Type No.
RN2701
RN2702
RN2703
RN2704
RN2705
RN2706
R1 (kΩ)
4.7
10
22
47
2.2
4.7
R2 (kΩ)
4.7
10
22
47
47
47
USV
JEDEC
―
JEITA
―
TOSHIBA
2-2L1A
Weight: 6.2 mg (typ.)
Absolute Maximum Ratings
(Ta = 25°C)
(Q1, Q2 Common)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
RN2701 to 2706
RN2701 to 2706
RN2701 to 2704
RN2705, 2706
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
*
T
j
T
stg
Rating
−50
−50
−10
−5
−100
200
150
−55
to 150
Unit
V
V
V
mA
mW
°C
°C
Equivalent Circuit
(top view)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
*
Total rating
Start of commercial production
1992-01
1
2014-03-01
RN2701~RN2706
Electrical Characteristics
(Ta = 25°C) (Q1, Q2 Common)
Characteristics
Collector cut-off current
RN2701 to 2706
RN2701
RN2702
Emitter cut-off current
RN2703
RN2704
RN2705
RN2706
RN2701
RN2702

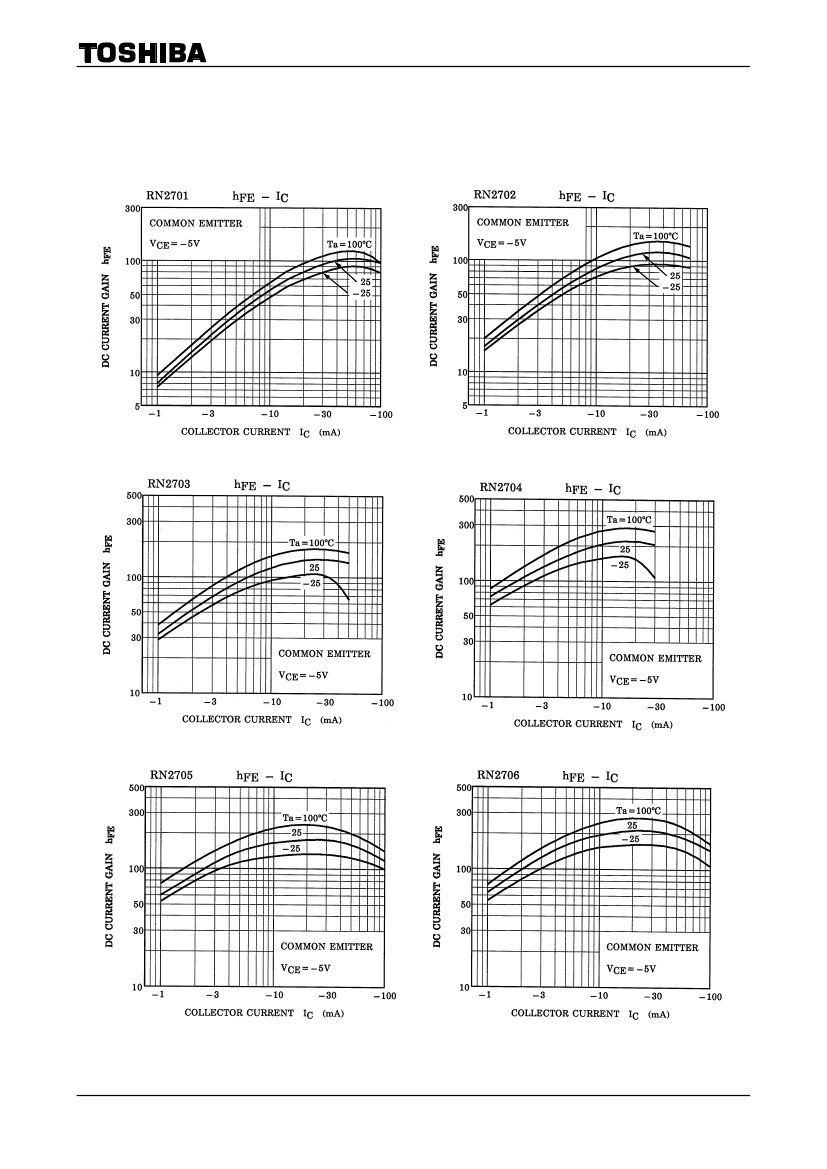

DC current gain
RN2703
RN2704
RN2705
RN2706
Collector-emitter
saturation voltage
RN2701 to 2706
RN2701
RN2702

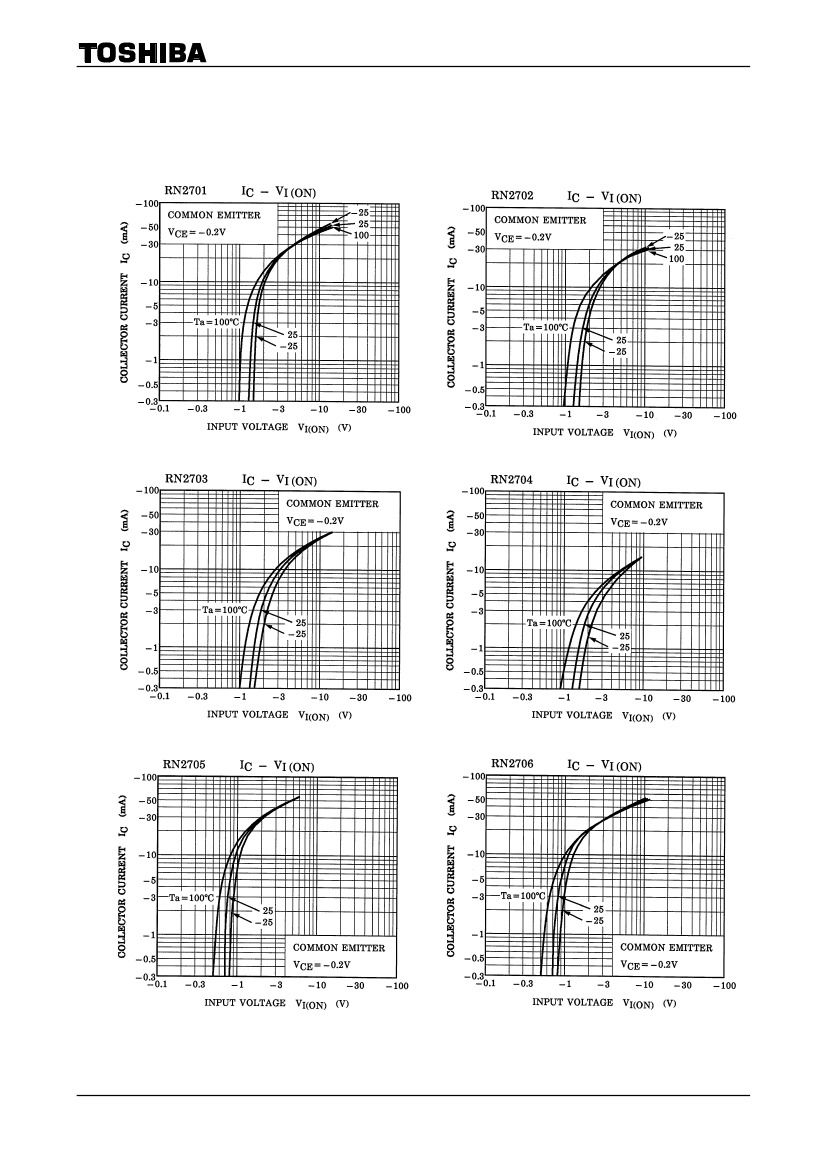

Input voltage (ON)
RN2703
RN2704
RN2705
RN2706

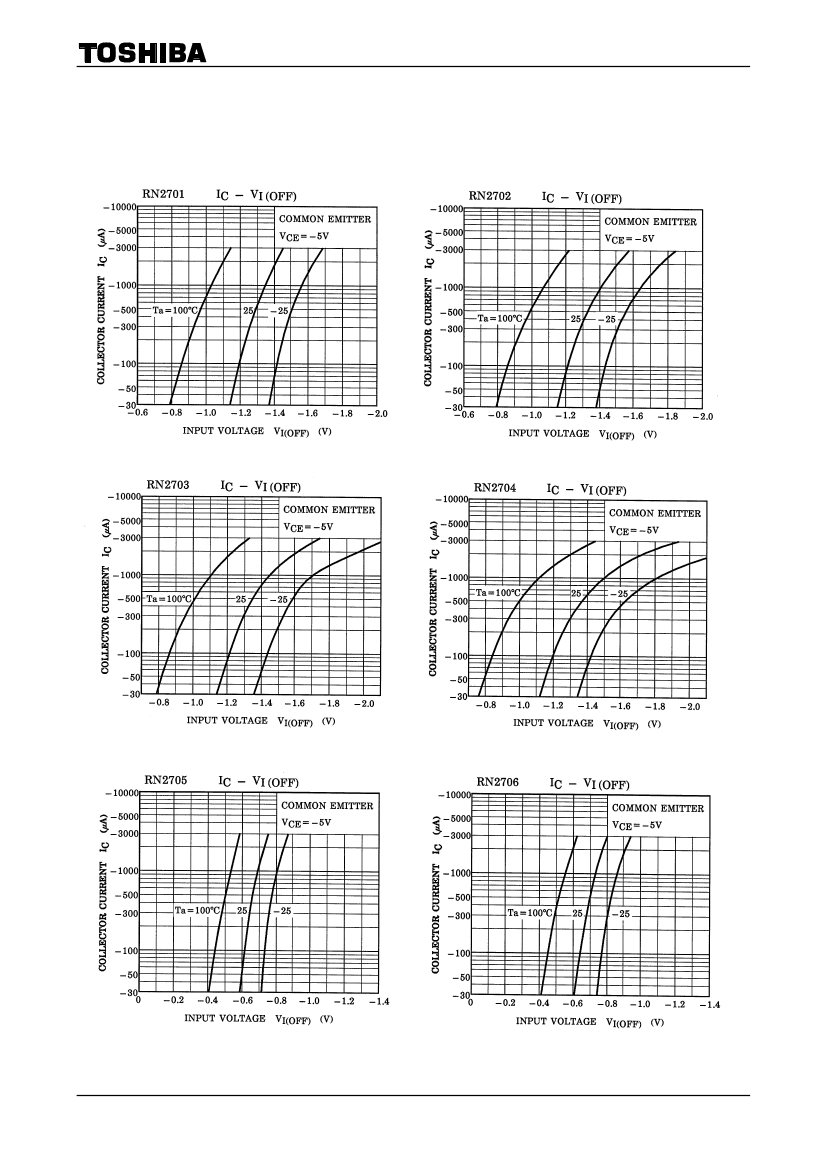

Input voltage (OFF)
Transition frequency
Collector output
capacitance
RN2701 to 2704
RN2705, 2706
RN2701 to 2706
RN2701 to 2706
RN2701
RN2702
Input resistor
RN2703
RN2704
RN2705
RN2706
RN2701 to 2704
Resistor ratio
RN2705
RN2706
R1/R2
R1
V
I (OFF)
f
T
C
ob
V
I (ON)
V
CE (sat)
h
FE
I
EBO
Symbol
I
CBO
I
CEO
Test
Circuit
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
―
V
CE
=
−5V,
I
C
=
−0.1mA
V
CE
=
−10V,
I
C
=
−5mA
V
CB
=
−10V,
I
E
= 0
f = 1MHz
V
CE
=
−0.2V,
I
C
=
−5mA
I
C
=
−5mA,
I
B
=
−0.25mA
V
CE
=
−5V,
I
C
=
−10mA
V
EB
=
−5V,
I
C
= 0
V
EB
=
−10V,
I
C
= 0
Test Condition
V
CB
=
−50V,
I
E
= 0
V
CE
=
−50V,
I
B
= 0
Min
―
―
−0.82
−0.38
−0.17
−0.082
−0.078
−0.074
30
50
70
80
80
80
―
−1.1
−1.2
−1.3
−1.5
−0.6
−0.7
−1.0
−0.5
―
―
3.29
7
15.4
32.9
1.54
3.29
0.9
Typ.
―
―
―
―
―
―
―
―
―
―
―
―
―
―
−0.1
―
―
―
―
―
―
―
―
200
3
4.7
10
22
47
2.2
4.7
1.0
Max
−100
−500
−1.52
−0.71
−0.33
−0.15
−0.145
−0.138
―
―
―
―
―
―
−0.3
−2.0
−2.4
−3.0
−5.0
−1.1
−1.3
−1.5
−0.8
―
6
6.11
13
28.6
61.1
2.86
6.11
1.1
―
kΩ
V
MHz
pF
V
V
―
mA
Unit
nA
0.0421 0.0468 0.0515
0.09
0.1
0.11
2
2014-03-01
