NAMD80C287-10 datasheet, PDF - EEWORLD Datasheet

NAMD80C287-10: DescriptionMath Coprocessor, 16-Bit, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size606KB，11 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

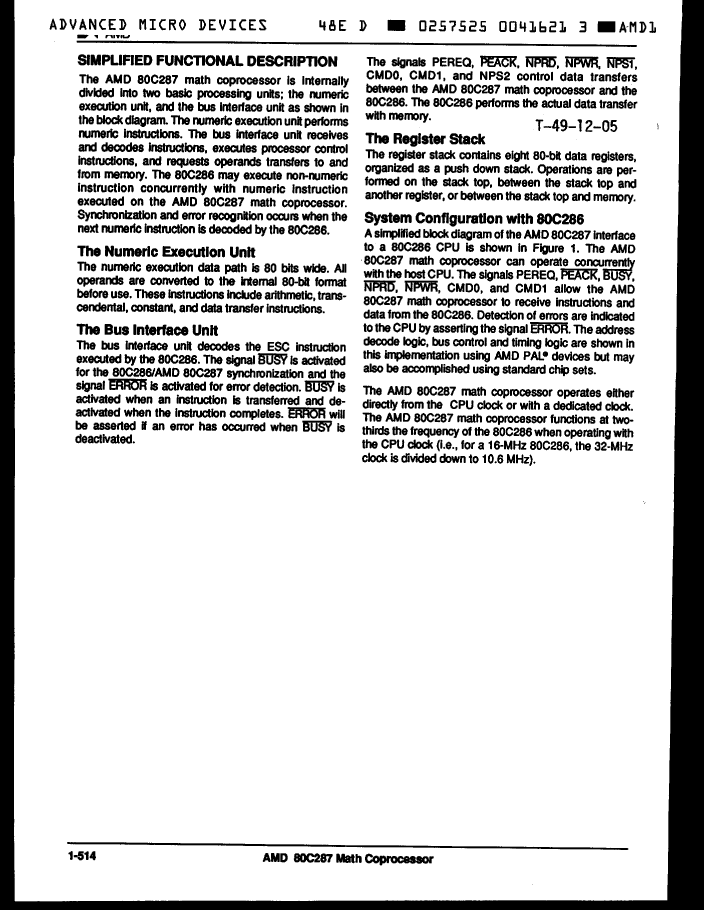

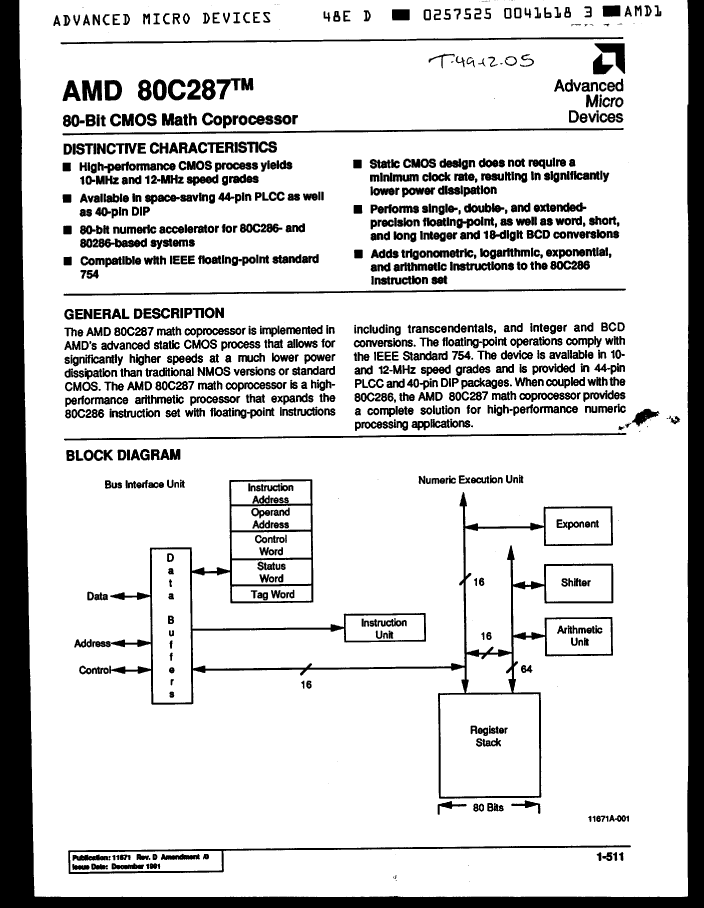

NAMD80C287-10 Overview

Math Coprocessor, 16-Bit, CMOS, PQCC44, PLASTIC, LCC-44

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	LCC
package instruction	QCCJ,

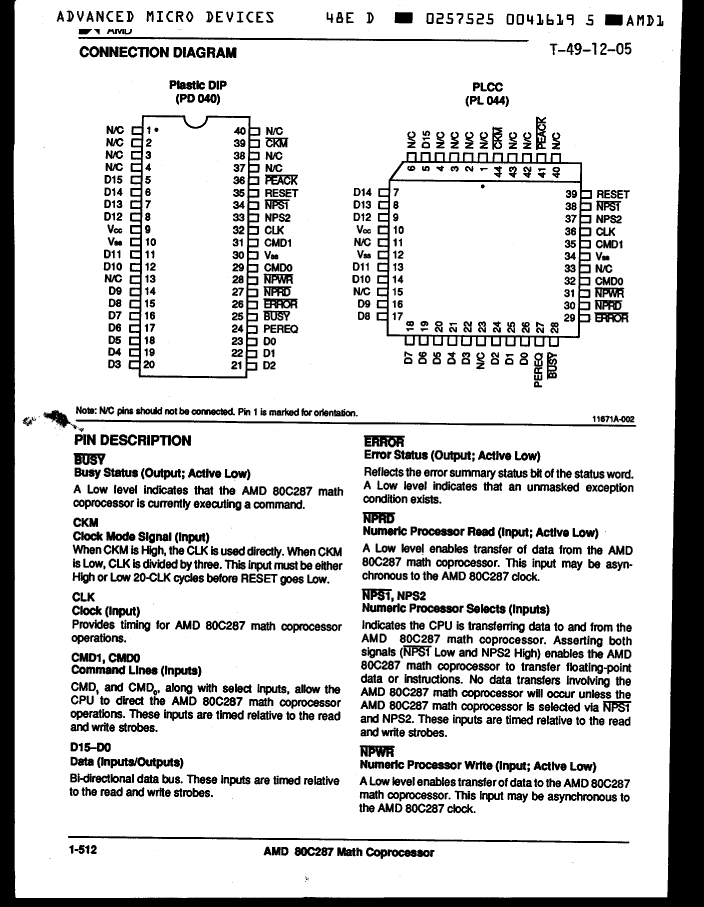

Contacts	44
Reach Compliance Code	unknown
boundary scan	NO
Bus compatibility	80286; 80C286
maximum clock frequency	10 MHz
External data bus width	16
JESD-30 code	S-PQCC-J44
length	16.5862 mm
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, COPROCESSOR

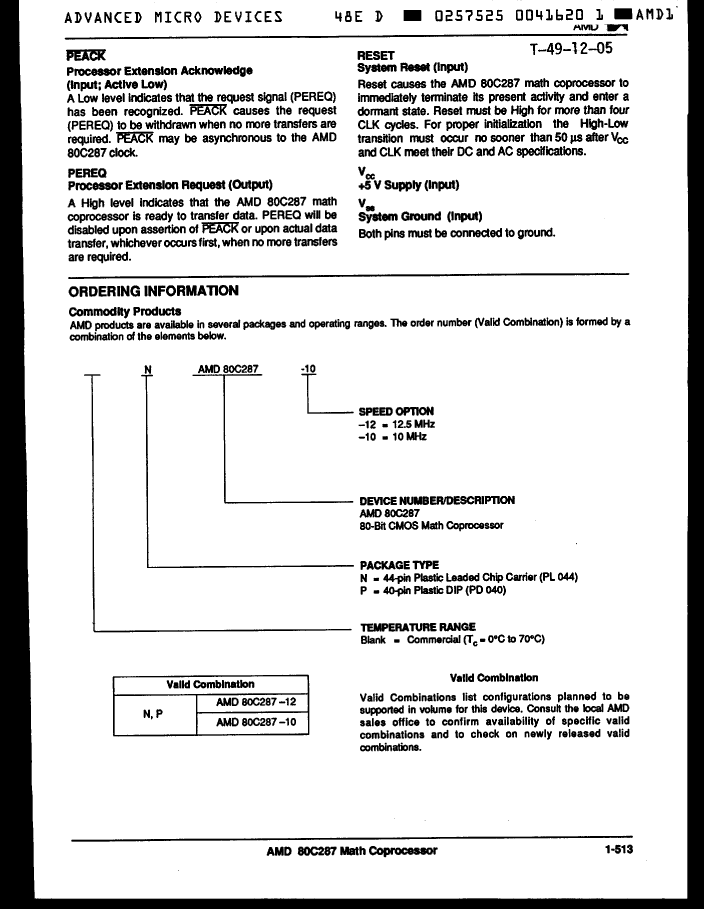

	NAMD80C287-10	NAMD80C287-12
Description	Math Coprocessor, 16-Bit, CMOS, PQCC44, PLASTIC, LCC-44	Math Coprocessor, 16-Bit, CMOS, PQCC44, PLASTIC, LCC-44
Maker	AMD	AMD
Parts packaging code	LCC	LCC
package instruction	QCCJ,	QCCJ,
Contacts	44	44
Reach Compliance Code	unknown	unknown
boundary scan	NO	NO

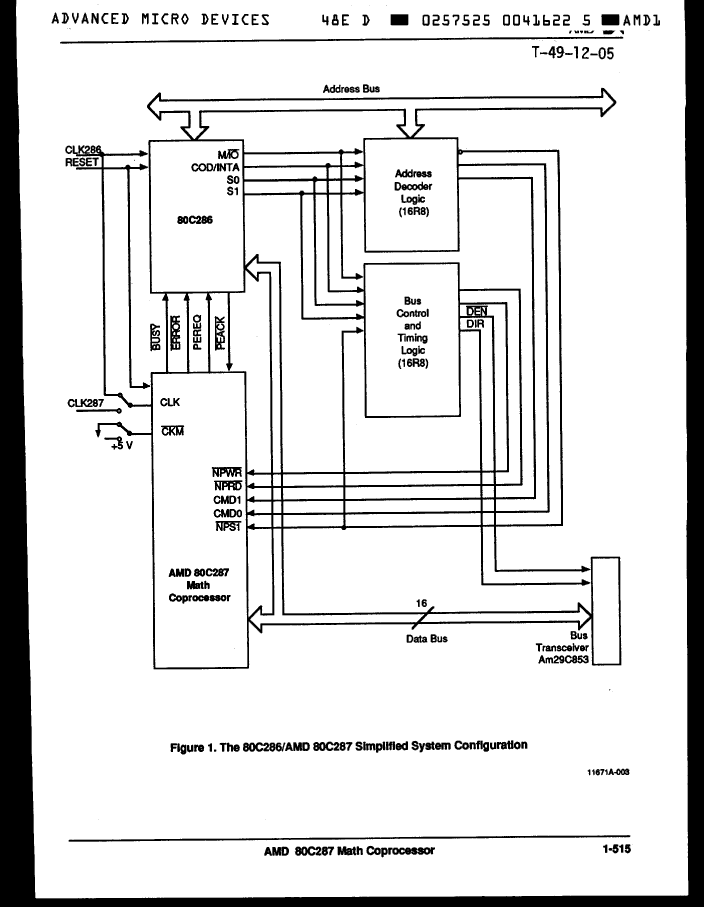

Bus compatibility	80286; 80C286	80286; 80C286
maximum clock frequency	10 MHz	12.5 MHz
External data bus width	16	16
JESD-30 code	S-PQCC-J44	S-PQCC-J44
length	16.5862 mm	16.5862 mm
Number of terminals	44	44
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR
