RN1904FE(T5LMAA,F) datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> RN1904FE(T5LMAA,F)

RN1904FE(T5LMAA,F): DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon; CategoryDiscrete semiconductor The transistor; File Size546KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

RN1904FE(T5LMAA,F) Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN, Silicon

RN1904FE(T5LMAA,F) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F6
Reach Compliance Code	unknown
Other features	BUILT IN BIAS RESISTANCE RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JESD-30 code	R-PDSO-F6
Number of components	2
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

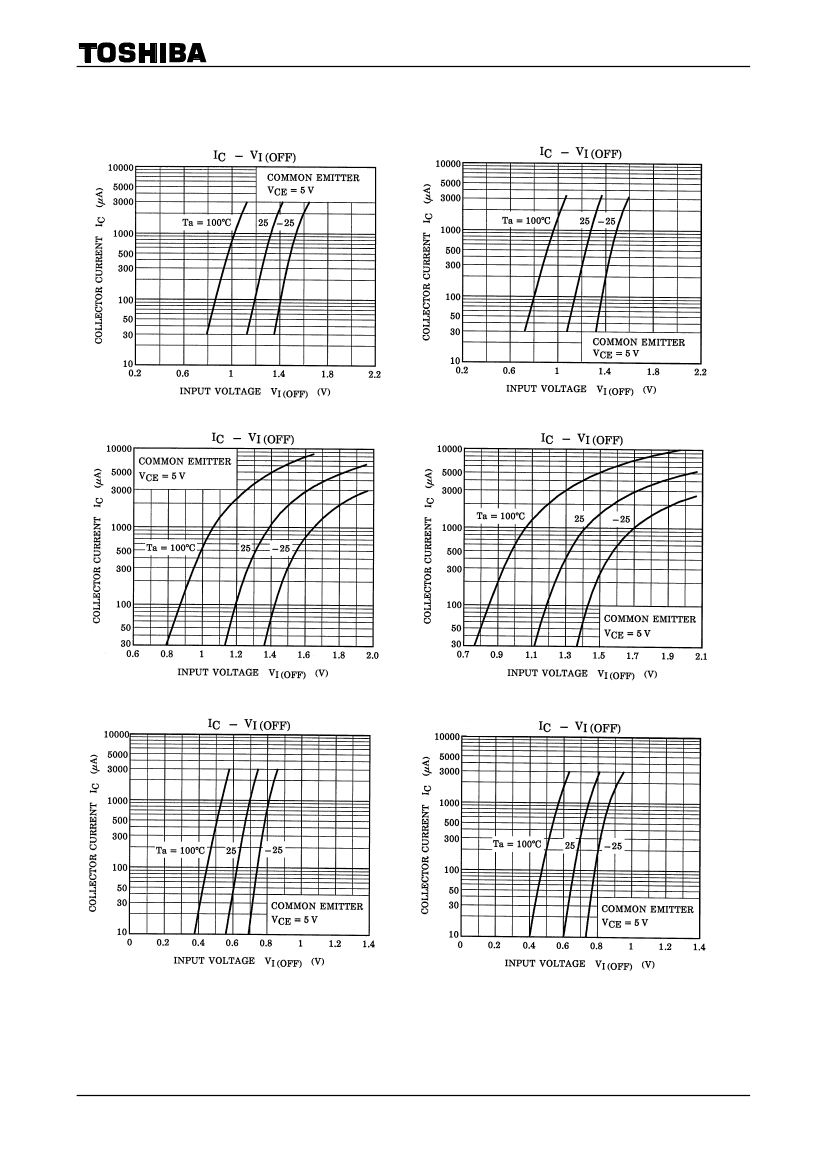

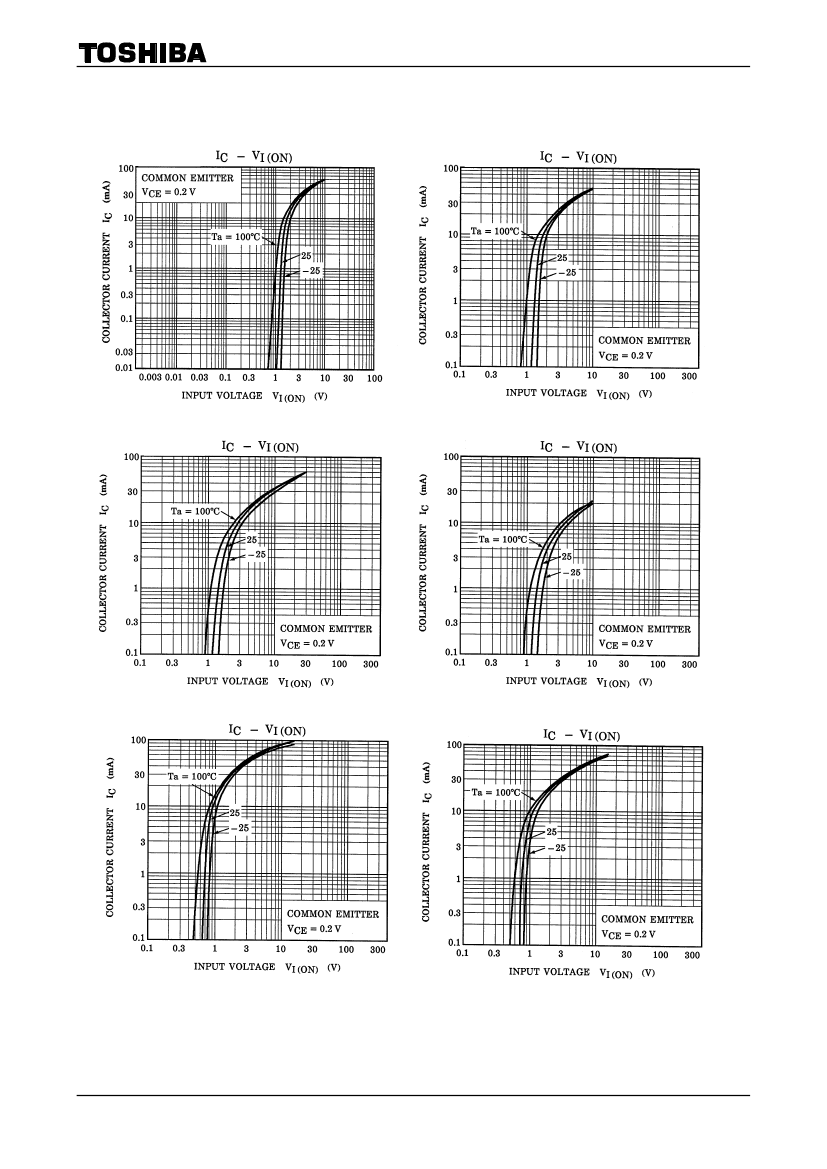

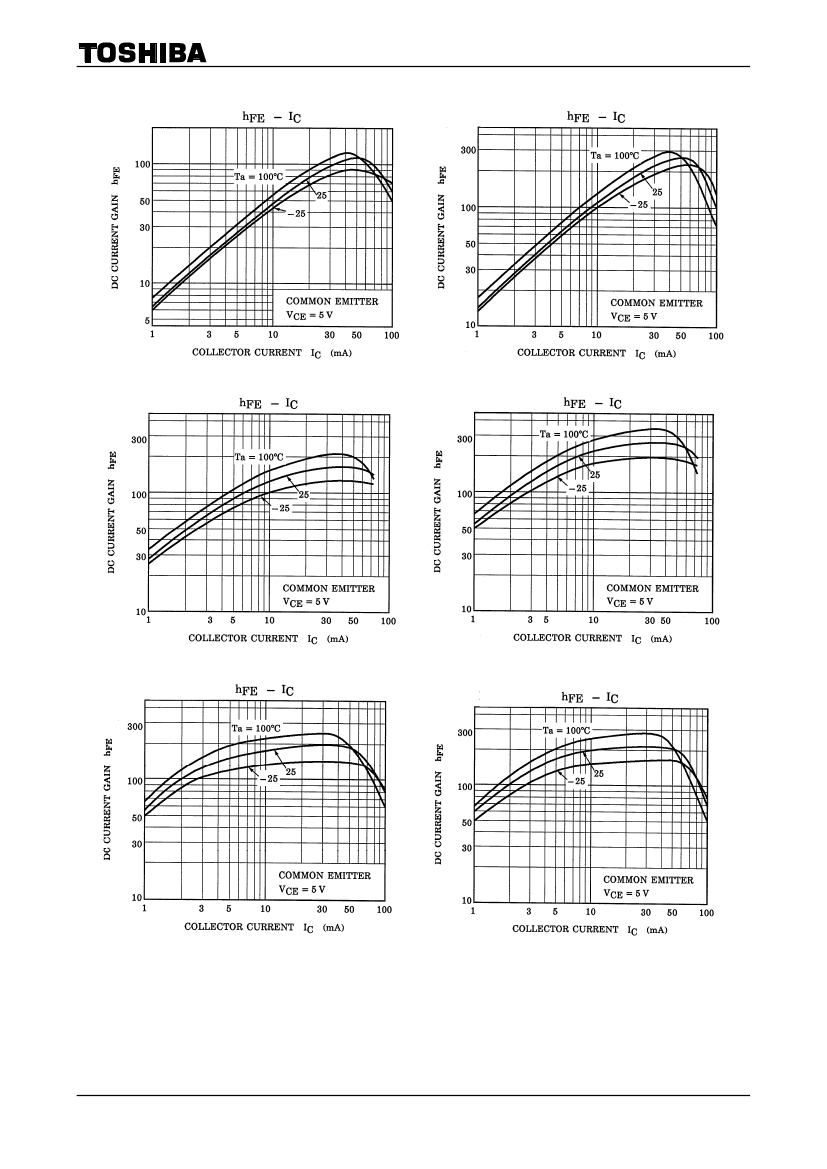

Preview

Download Datasheet

View All

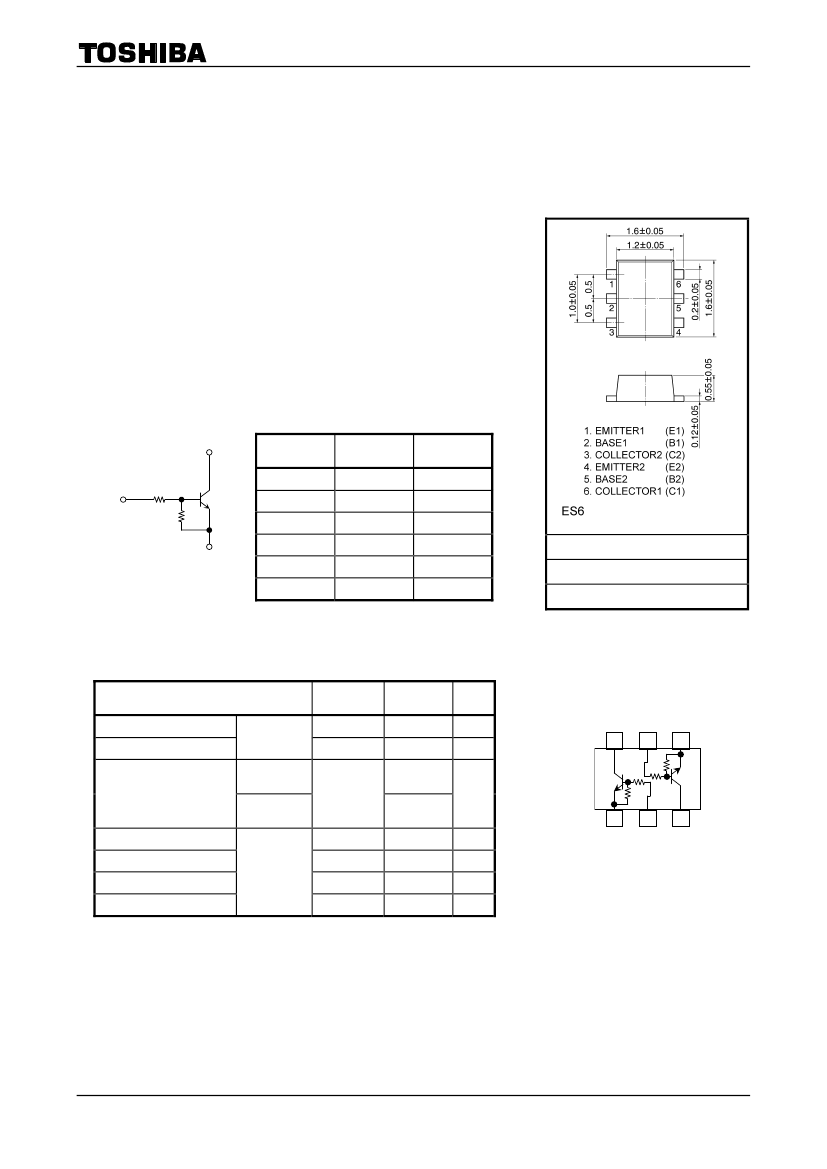

RN1901FE~RN1906FE

TOSHIBA Transistor

Silicon NPN Epitaxial Type (PCT process) (Bias Resistor Built-in Transistor)

RN1901FE, RN1902FE, RN1903FE

RN1904FE, RN1905FE, RN1906FE

Switching, Inverter Circuit, Interface Circuit and

Driver Circuit Applications

•

Two devices are incorporated into an Extreme-Super-Mini (6-pin)

package.

Incorporating a bias resistor into a transistor reduces parts count.

Reducing the parts count enables the manufacture of ever more compact

equipment and lowers assembly cost.

•

Complementary to RN2901FE to RN2906FE

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN1901FE

RN1902FE

RN1903FE

RN1904FE

RN1905FE

RN1906FE

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

JEDEC

JEITA

TOSHIBA

―

2-2N1G

Weight: 3 mg (typ.)

Absolute Maximum Ratings

(Ta = 25°C)

(Q1, Q2 common)

Equivalent Circuit

Characteristics

Collector-base voltage

Collector-emitter voltage

RN1901FE to

RN1906FE

RN1901FE to

RN1904FE

RN1905FE

RN1906FE

Symbol

CBO

CEO

Rating

EBO

(Note1)

stg

100

150

−55

to 150

°C

Unit

(top view)

Emitter-base voltage

Collector current

Collector power dissipation RN1901FE to

RN1906FE

Junction temperature

Storage temperature range

Note:

Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly

even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute

maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

Total rating

Note1:

Start of commercial production

2000-05

2014-03-01
