MTH200_07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > MTH200_07

Preview

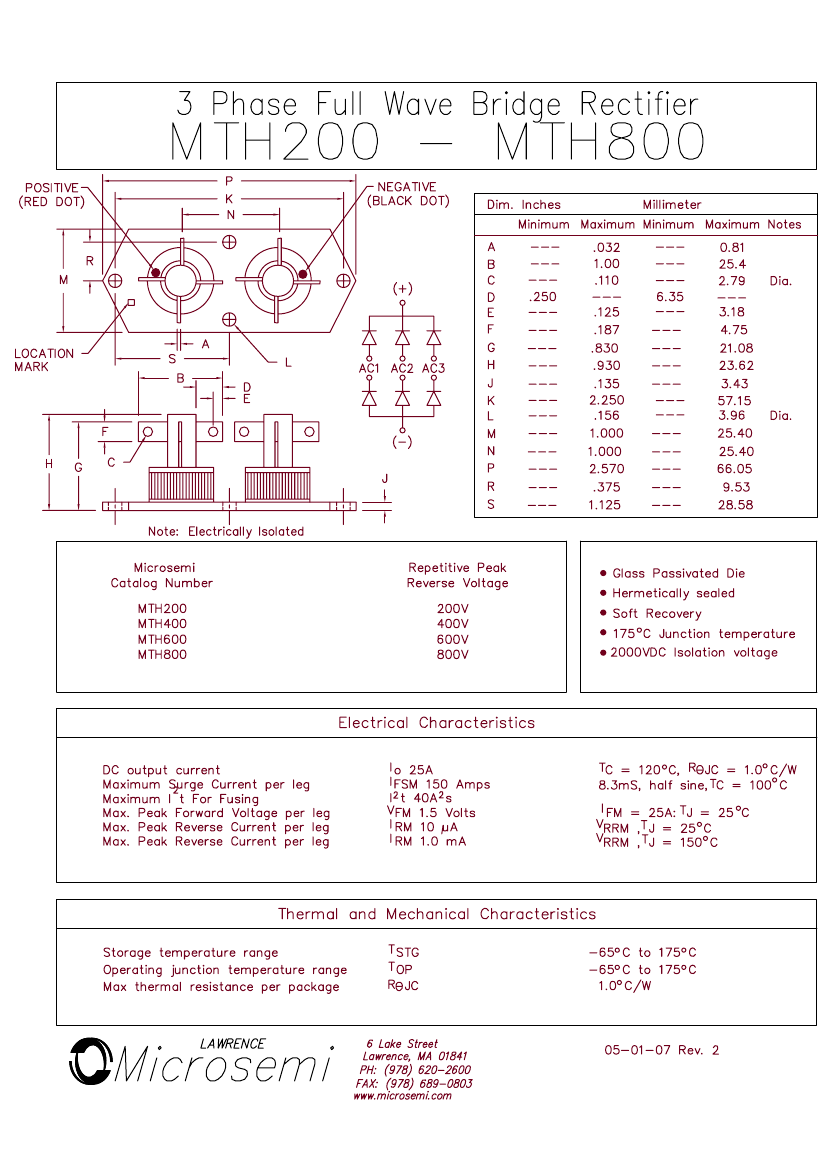

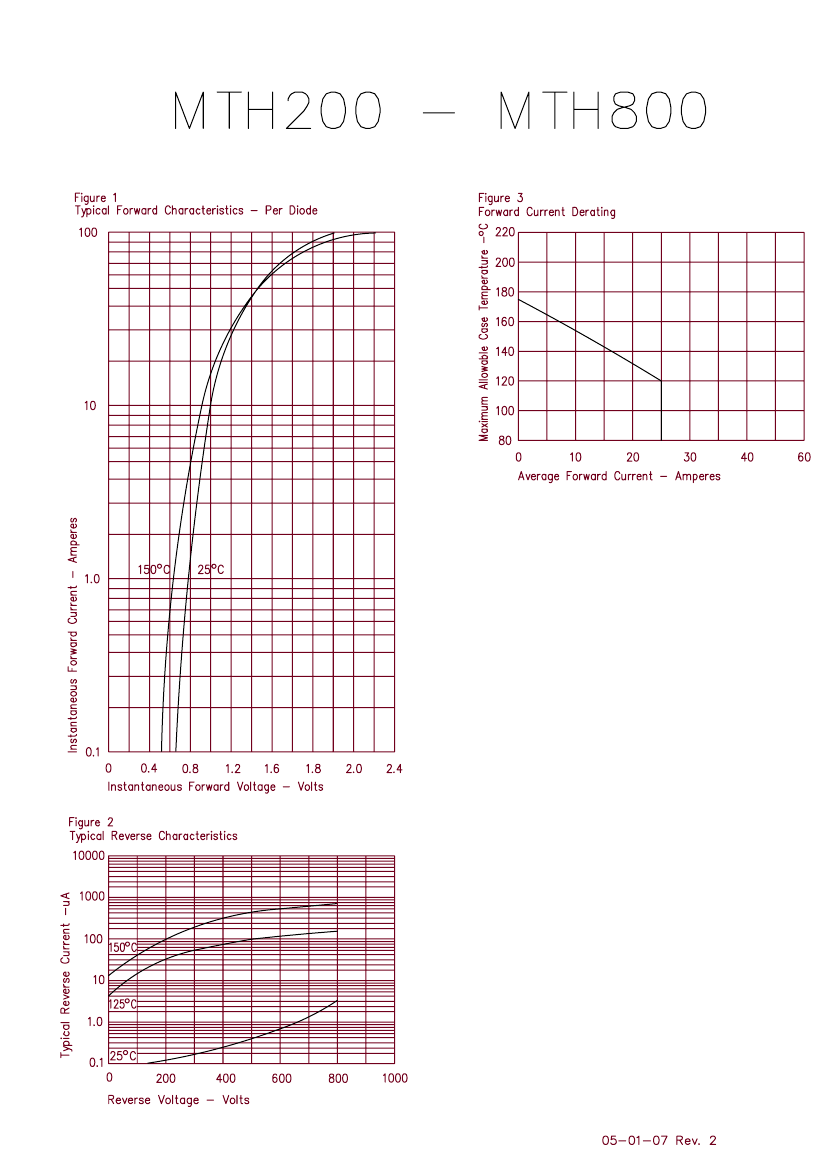

MTH200_07: Description3 Phase Full Wave Bridge Rectifer; File Size106KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Compare View All

MTH200_07 Overview

3 Phase Full Wave Bridge Rectifer

Preview

Download Datasheet

View All

MTH200_07 Related Products

	MTH200_07	MTH200	MTH400	MTH800	MTH600
Description	3 Phase Full Wave Bridge Rectifer	3 Phase Full Wave Bridge Rectifer	3 Phase Full Wave Bridge Rectifer	3 Phase Full Wave Bridge Rectifer	3 Phase Full Wave Bridge Rectifer
Is it lead-free?	-	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible
package instruction	-	X-MUFM-D2	-	X-MUFM-D2	X-MUFM-D2
Contacts	-	2	-	2	2
Reach Compliance Code	-	compli	-	unknow	unknow
Shell connection	-	ISOLATED	-	ISOLATED	ISOLATED
Configuration	-	BRIDGE, 6 ELEMENTS	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	-	SILICON	-	SILICON	SILICON
Diode type	-	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	-	1.5 V	-	1.5 V	1.5 V
JESD-30 code	-	X-MUFM-D2	-	X-MUFM-D2	X-MUFM-D2
JESD-609 code	-	e0	-	e0	e0
Maximum non-repetitive peak forward current	-	150 A	-	150 A	150 A
Number of components	-	6	-	6	6
Phase	-	3	-	3	3
Number of terminals	-	2	-	2	2
Maximum operating temperature	-	175 °C	-	175 °C	175 °C
Maximum output current	-	25 A	-	25 A	25 A
Package body material	-	METAL	-	METAL	METAL
Package shape	-	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED
Package form	-	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	200 V	-	800 V	600 V
surface mount	-	NO	-	NO	NO
Terminal surface	-	TIN LEAD	-	TIN LEAD	TIN LEAD
Terminal form	-	SOLDER LUG	-	SOLDER LUG	SOLDER LUG
Terminal location	-	UPPER	-	UPPER	UPPER
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	-	1	1
