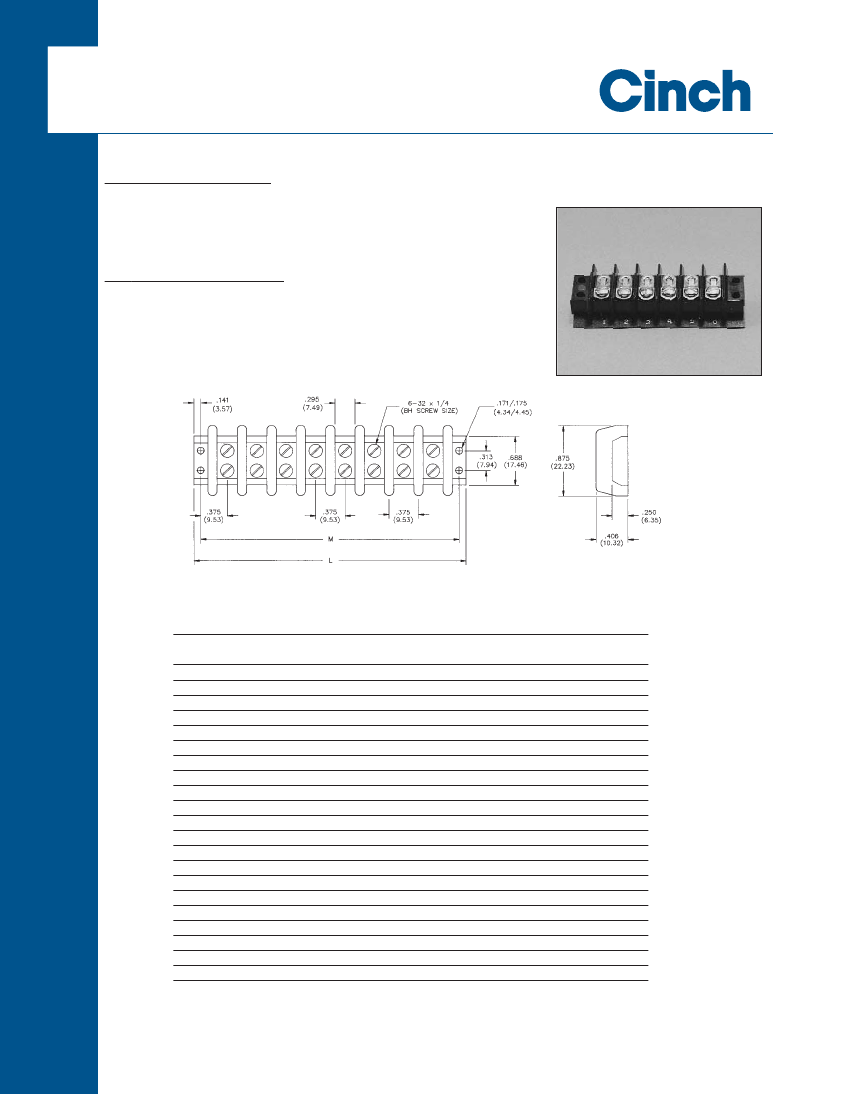

Barrier Blocks
Series 164
.375 Density, 6-32 x 5/16"
BH Screw, Open Bottom,
Double Row
Electrical Characteristics
Voltage Rating:
250 Volts maximum
Current Rating:
15 Amps maximum
Maximum Watts Per Terminal:
3750
Mechanical Characteristics
Maximum Wire Size:
#14
Recommended Tightening Torque:
12 lb.-in.
Dimensions
Ordering Information
No. of
Terminals
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Catalog No.
1-164
2-164
3-164
4-164
5-164
6-164
7-164
8-164
9-164
10-164
11-164
12-164
13-164
14-164
15-164
16-164
17-164
18-164
19-164
20-164
21-164
“M”
Dim. (in)
0.750
1.125
1.500
1.875
2.250
2.625
3.000
3.375
3.750
4.125
4.500
4.875
5.250
5.625
6.000
6.375
6.750
7.125
7.500
7.875
8.250
“L”
Dim. (in)
1.032
1.407
1.782
2.157
2.532
2.907
3.282
3.657
4.032
4.407
4.782
5.157
5.532
5.907
6.282
6.657
7.032
7.407
7.782
8.157
8.532
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-20
Barrier Blocks
Series 164
.375 Density, 6-32 x 1/4"
BH Screw, Open Bottom,
Double Row
Solder Terminal Options
Dimensions
“Y” Terminals
“3/4W” Terminals
“W” Terminals
Ordering Information
No. of
Terminals
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Catalog No.
1-164-Y
2-164-Y
3-164-Y
4-164-Y
5-164-Y
6-164-Y
7-164-Y
8-164-Y
9-164-Y
10-164-Y
11-164-Y
12-164-Y
13-164-Y
14-164-Y
15-164-Y
16-164-Y
17-164-Y
18-164-Y
19-164-Y
20-164-Y
21-164-Y
Catalog No.
1-164-3/4W
2-164-3/4W
3-164-3/4W
4-164-3/4W
5-164-3/4W
6-164-3/4W
7-164-3/4W
8-164-3/4W
9-164-3/4W
10-164-3/4W
11-164-3/4W
12-164-3/4W
13-164-3/4W
14-164-3/4W
15-164-3/4W
16-164-3/4W
17-164-3/4W
18-164-3/4W
19-164-3/4W
20-164-3/4W
21-164-3/4W
Catalog No.
1-164-W
2-164-W
3-164-W
4-164-W
5-164-W
6-164-W
7-164-W
8-164-W
9-164-W
10-164-W
11-164-W
12-164-W
13-164-W
14-164-W
15-164-W
16-164-W
17-164-W
18-164-W
19-164-W
20-164-W
21-164-W
Marketed exclusively through distribution.
2-21
Call Toll Free: 1 (800) 323-9612
DURA-CON
®
Barrier Blocks
High Reliability
Series 164
All-Plastic
Marker Strips
Dimensions
Standard
[.050” (1.27mm) Density
.375 Density, 6-32 x 1/4"
Solder Cup/Wire Bottom,
BH Screw, Open
D-Microminiature]
Double Row
“Y” Terminal
2
Ordering Information
No. of
Terminals
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Catalog No.
N/A
MS-2-140
MS-3-140
MS-4-140
MS-5-140
MS-6-140
MS-7-140
MS-8-140
MS-9-140
MS-10-140
MS-11-140
MS-12-140
MS-13-140
MS-14-140
MS-15-140
MS-16-140
MS-17-140
MS-18-140
MS-19-140
MS-20-140
MS-21-140
Catalog No.
N/A
MS-2-140-Y
MS-3-140-Y
MS-4-140-Y
MS-5-140-Y
MS-6-140-Y
MS-7-140-Y
MS-8-140-Y
MS-9-140-Y
MS-10-140-Y
MS-11-140-Y
MS-12-140-Y
MS-13-140-Y
MS-14-140-Y
MS-15-140-Y
MS-16-140-Y
MS-17-140-Y
MS-18-140-Y
MS-19-140-Y
MS-20-140-Y
MS-21-140-Y
Use Standard Marker Strips for “3/4W” and “W” Solder Terminals.
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-22
