SBR30150RF
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen free
Voltage 150 V
30 Amp Schottky Barrier Rectifiers
FEATURES
ITO-220
Low forward voltage drop
High current capability
High reliability
High surge current capability
Epitaxial construction
B
N
D
E
M
A
MECHANICAL DATA
H
J
K
L
Millimeter
Min.
Max.
14.60
15.60
9.50
10.50
12.60
13.70
4.30
4.70
2.50
3.2
2.40
2.80
0.30
0.70
C
G
F
REF.
H
J
K
L
M
N
Millimeter
Min.
Max.
3.00
3.80
0.90
1.50
0.50
0.90
2.34
2.74
2.40
2.90
3.0
3.4
Case: Molded plastic
Epoxy: UL94V-0 rate flame retardant
Lead: Lead solderable per MIL-STD-202
method 208 guaranteed
Polarity: As Marked
Mounting position: Any
Weight: 2.24 grams (approximate)
L
REF.
A
B
C
D
E
F
G
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
°
C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.
Parameter
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Per Leg
Per Device
Symbol
V
RRM
V
RSM
V
DC
I
F
I
FSM
V
F
I
R
C
J
R
JC
dv / dt
T
J
T
STG
Rating
150
150
150
15
30
180
0.88
0.76
0.2
5
350
4
10000
-50 ~ +150
-65 ~ +175
Unit
V
V
V
A
A
V
mA
pF
°C
/W
V /
μs
°C
°C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous
Forward Voltage
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance
2
3
I
F
= 15 A, T
A
= 25°C, per leg
I
F
= 15 A, T
A
= 125°C, per leg
T
A
= 25°C
T
A
= 125°C
Typical Junction Capacitance
1
Voltage Rate Of Chance (Rated V
R
)
Operating Temperature Range T
J
Storage Temperature Range T
STG
Notes:
1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.
2. Thermal Resistance Junction to Case.
3. Pulse test: 300μS pulse width, 2% duty cycle.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-Mar-2011 Rev. E
Page 1 of 2
SBR30150RF
Elektronische Bauelemente
Voltage 150 V
30 Amp Schottky Barrier Rectifiers

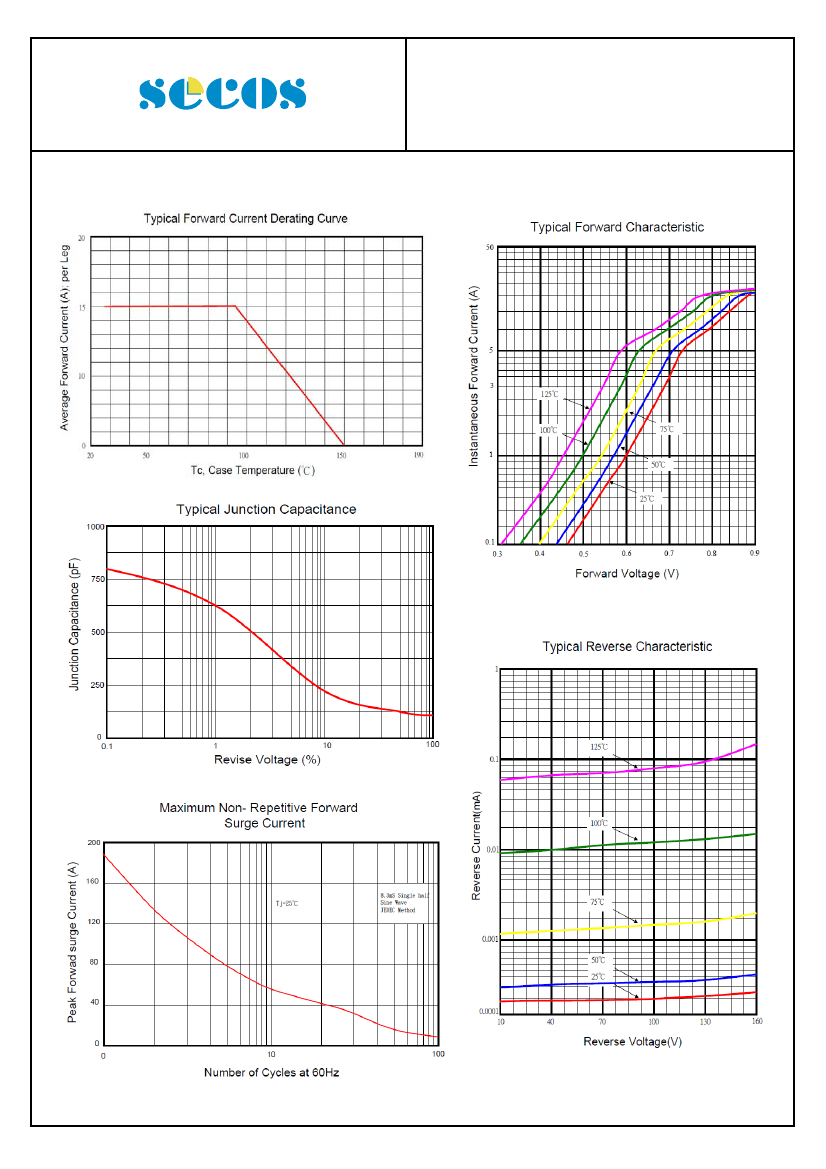

RATINGS AND CHARACTERISTIC CURVES
