SBR5045PFR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SBR5045PFR

SBR5045PFR: Description50 A, 45 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size122KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SBR5045PFR Overview

50 A, 45 V, SILICON, RECTIFIER DIODE

SBR5045PFR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	PRESSFIT-1
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	REVERSE ENERGY TESTED
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XUPF-P1
JESD-609 code	e0
Maximum non-repetitive peak forward current	800 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

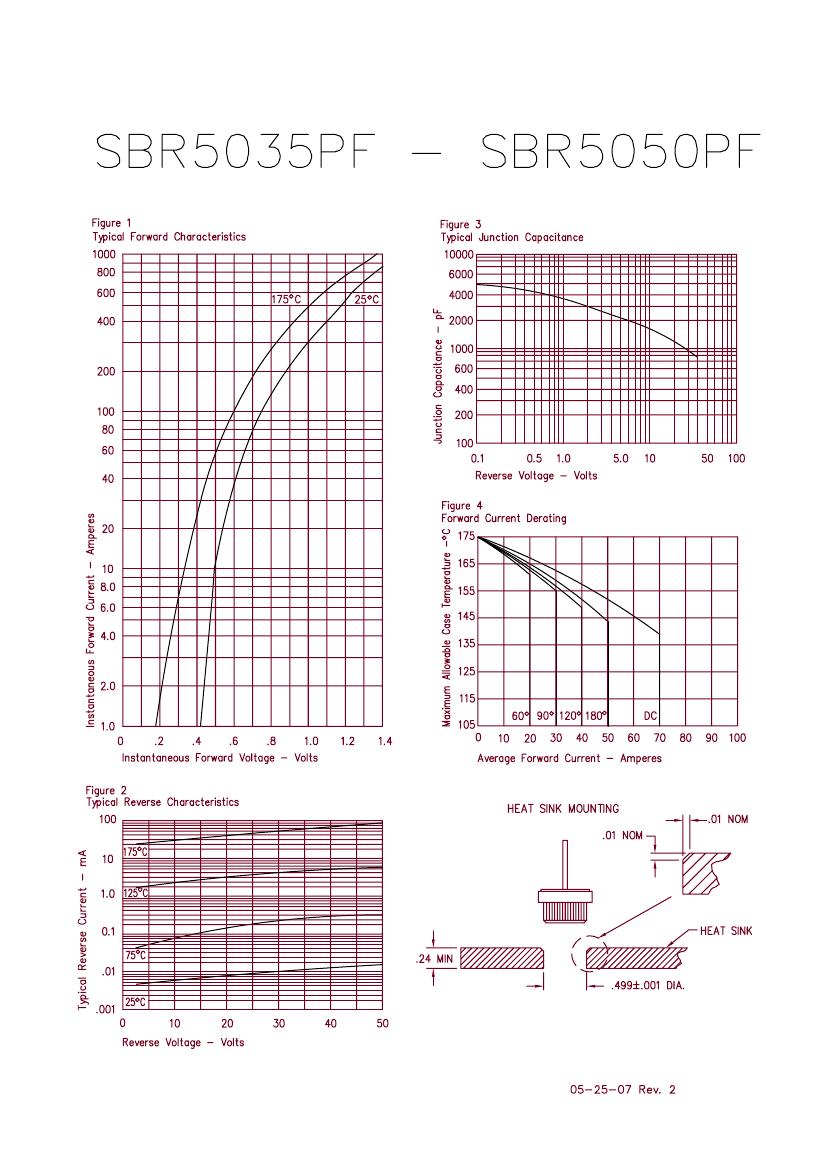

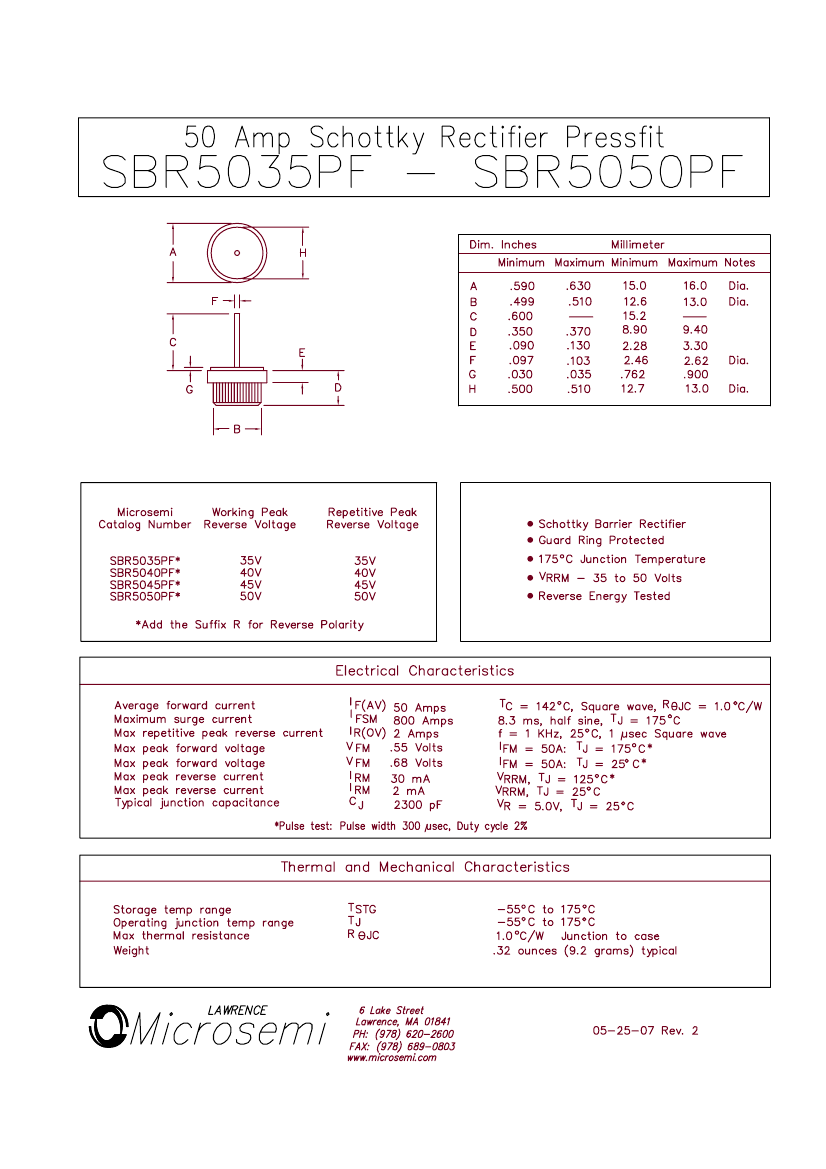

Preview

Download Datasheet

View All

SBR5045PFR Related Products

	SBR5045PFR	SBR5035PF	SBR5035PF_07	SBR5040PFR	SBR5050PFR	SBR5045PF	SBR5050PF	SBR5035PFR	SBR5040PF
Description	50 A, 45 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE	50 A, 50 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE	50 A, 35 V, SILICON, RECTIFIER DIODE	50 A, 40 V, SILICON, RECTIFIER DIODE
Is it lead-free?	Contains lead	Contains lead	-	-	Contains lead	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	-	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	PRESSFIT-1	PRESSFIT-1	-	PRESSFIT-1	PRESSFIT-1	PRESSFIT-1	PRESSFIT-1	PRESSFIT-1	PRESSFIT-1
Contacts	1	1	-	1	1	1	1	1	1
Reach Compliance Code	unknow	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED	-	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED	REVERSE ENERGY TESTED
application	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-XUPF-P1	O-XUPF-P1	-	O-XUPF-P1	O-XUPF-P1	O-XUPF-P1	O-XUPF-P1	O-XUPF-P1	O-XUPF-P1
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	800 A	800 A	-	800 A	800 A	800 A	800 A	800 A	800 A
Number of components	1	1	-	1	1	1	1	1	1
Phase	1	1	-	1	1	1	1	1	1
Number of terminals	1	1	-	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	-	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	50 A	50 A	-	50 A	50 A	50 A	50 A	50 A	50 A
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	35 V	-	40 V	50 V	45 V	50 V	35 V	40 V
surface mount	NO	NO	-	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	-	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	-	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
