SM10150C
Elektronische Bauelemente
VOLTAGE 150V
10
Amp Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
SMC
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
.124(3.15)
.108(2.75)
.280(7.11)
.260(6.60)
.012(0.31)
.006(0.15)
.103(2.62)
.079(2.00)
.050(1.27)
.030(0.76)
.008
MAX.
(.203)
.320(8.13)
.305(7.75)
.245(6.22)
.220(5.59)
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity: As Marked
* Mounting position: Any
* Weight: 1.10 grams(Approximately)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage (I
F
=10 Amps,T
F
= 25 C)
Maximum Instantaneous Forward Voltage (I
F
=
10
Amps,T
F
=125 C
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note1)
Typical Thermal Resistance RθJC (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
SM10150C
150
150
150
10
200
0.89
0.75
0.02
10
350
12
-50
~
+150
-65
~
+175
UNITS
V
V
V
A
A
V
mA
mA
pF
C/W
C
C
Ta=25 C
Ta=125 C
1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.
2. Thermal Resistance Junction to Case.
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
SM10150C
Elektronische Bauelemente
VOLTAGE 150V
10Amp
Schottky Barrier Rectifiers

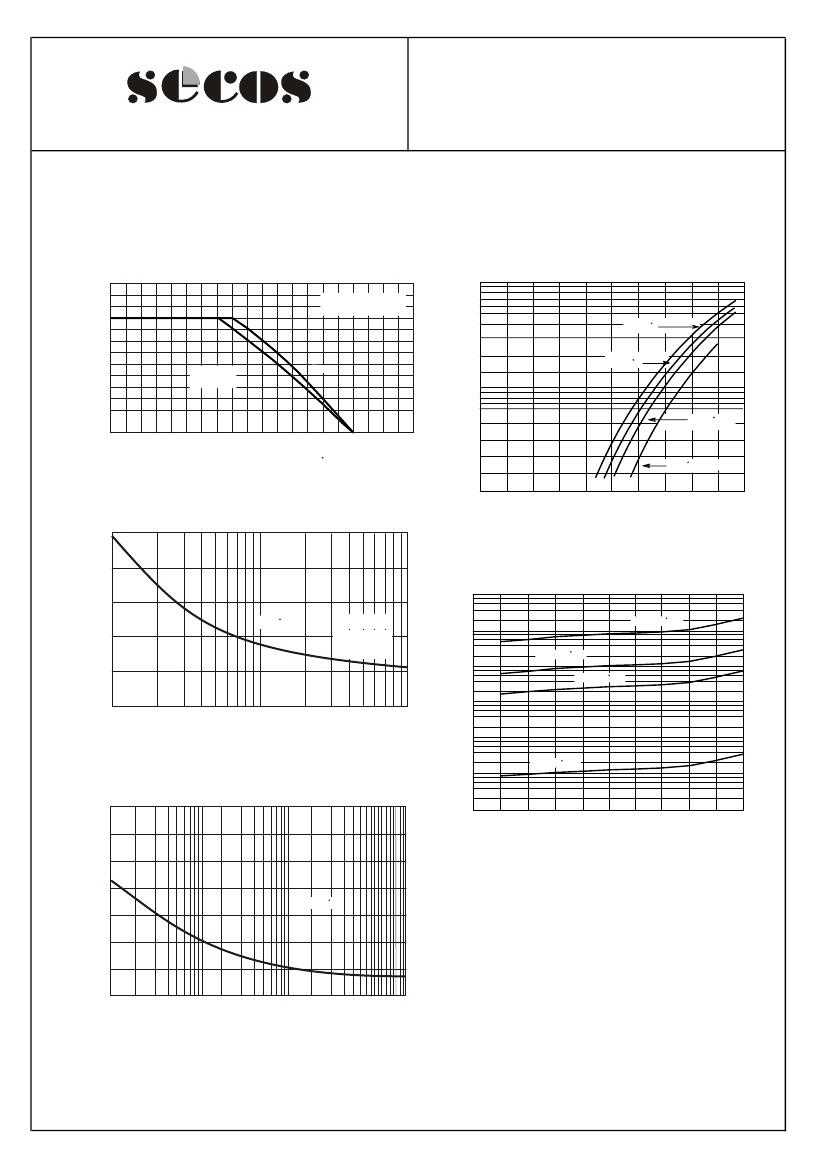

RATING AND CHARACTERISTIC CURVES (SM10150C)
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
I
F(AV)
,AVERAGE POWER DISSIPATION(WATTS)
I
F(AV)
,INSTANEOUS FORWAED CURRENT(AMP)
60
40
20
FIG.2- TYPICAL FORWARD VOLTAGE
6
5
4
3
2
1
0
70
80
90
100
110
120
130
SQUARE
WAVE
RATED VOLTAGE
R
qJC
= 2° C/W
Tj=150 C
10
Tj=125 C
dc
8
4
Tj=100 C
140
150
160
180
Tc,CASE TEMPERATURE,( C)
Tj=25 C
T
J
= 25 C
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT,(A)
200
0
0.2
0.4
0.6
0.8
1.0
V
F
,INSTANTANEOUS VOLTAGE(VOLTS)
FIG.5-TYPICAL REVERSE CURRENT(PER LEG)
160
100,000
120
Tj=25 C
Tj=150 C
I
R
, REVERSE CURRENT(
m
A)
8.3ms Single Half
Sine Wave
JEDEC method
10,000
Tj=125 C
80
1,000
Tj=100 C
40
100
0
1
10
50
100
10
Tj=25 C
NUMBER OF CYCLES AT 60Hz
1
FIG.4-TYPICAL JUNCTION CAPACITANCE
700
0
0
20
40
60
80
100
120
140
160
180
200
JUNCTION CAPACITANCE,(pF)
600
500
400
Tj=25 C
VR , REVERSE CURRENT (VOLTS)
300
200
100
0
1
2
5
10
50
100
REVERSE VOLTAGE,(V)
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individua
l
01-Jun-2002 Rev. A
Page
2
of 2
