UFT40270 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UFT40270

Preview

UFT40270: DescriptionRectifier Diode, 1 Phase, 2 Element, 200A, 700V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size121KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT40270 Overview

Rectifier Diode, 1 Phase, 2 Element, 200A, 700V V(RRM), Silicon,

UFT40270 Parametric

Parameter Name	Attribute value
Objectid	8073445344
package instruction	R-XUFM-X2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XUFM-X2
Maximum non-repetitive peak forward current	2100 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	200 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	700 V
Maximum reverse recovery time	0.13 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

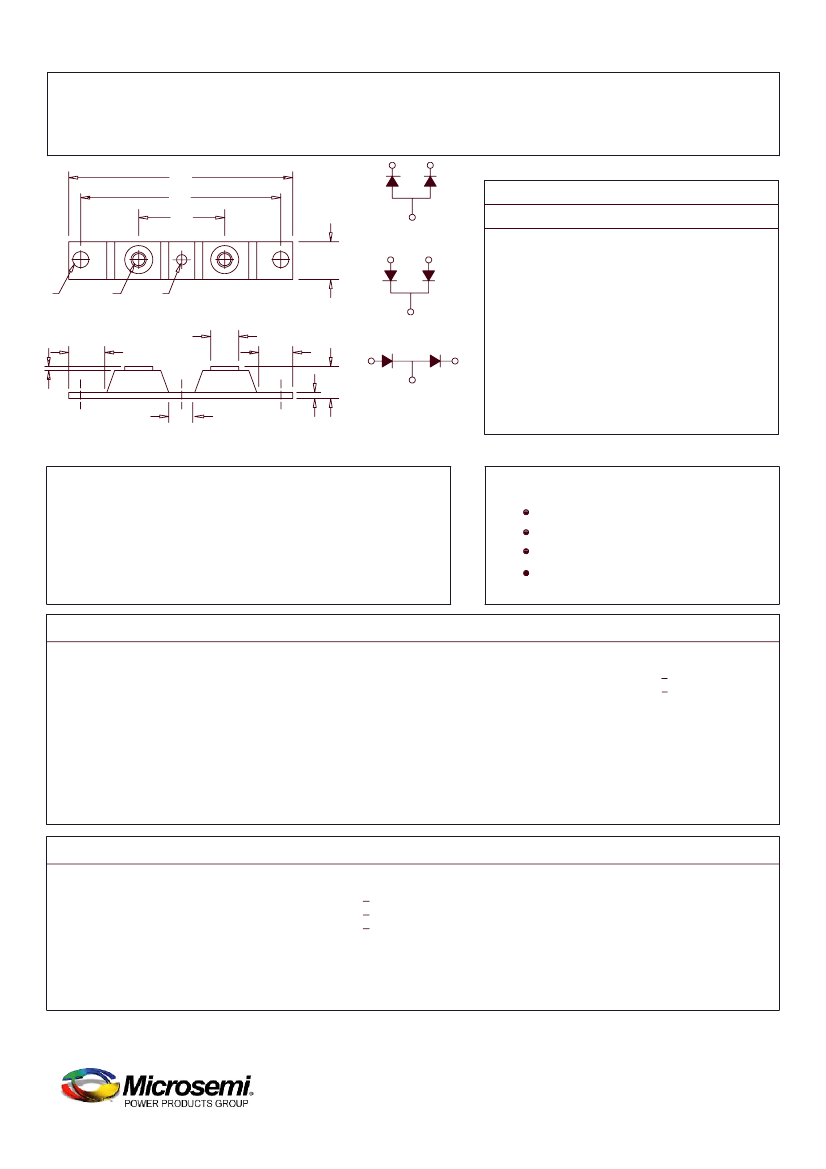

UFT40260 - UFT40280

A

R

G

Baseplate

A=Common Anode

B

Q

N

W

Baseplate

Common Cathode

U

C

H

V

E

Baseplate

D=Doubler

Notes:

Baseplate: Nickel plated

copper

Ultra Fast Recovery Module

Dim. Inches

Min.

A

B

C

E

F

G

H

N

Q

R

U

V

W

Millimeters

Min.

Max.

Notes

Max.

F

U

---

3.630

0.800

0.700

0.630

---

0.130

0.120

0.510

0.490

1.375 BSC

---

0.010

---

0.290

0.275

3.150 BSC

---

0.600

0.340

0.312

0.195

0.180

---

92.20

20.32

17.78

---

16.00

3.30

3.05

12.95

12.45

34.92 BSC

---

0.25

---

7.37

6.99

80.01 BSC

---

15.24

8.64

7.92

4.95

4.57

1/4-20

Dia.

Microsemi

Catalog Number

UFT40260*

UFT40270*

UFT40280*

Working Peak

Reverse Voltage

600V

700V

800V

Repetitive Peak

Reverse Voltage

600V

700V

800V

Ultra Fast Recovery

175°C Junction Temperature

2 X 200 Amp current rating

ROHS Compliant

*Add Suffix A for Common Anode, D for Doubler

Electrical Characteristics

I F(AV) 400 Amps

I F(AV) 200 Amps

I FSM 2100 Amps

VFM

1.35 Volts

trr

130 nS

I RM

8 mA

I RM

50 uA

CJ

400 pF

TC = 120°C, Square wave, R0JC = 0.12°C/W

TC = 120°C, Square wave, R0JC = 0.24°C/W

8.3ms, half sine,T J = 175°C

I FM = 200A: J = 25°C*

T

I F = 1A, R = 30V di/dt = 25A/µS

V

VRRM, TJ = 125°C*

VRRM, TJ = 25°C

VR = 10V,T J = 25°C

Average forward current per pkg

Average forward current per leg

Maximum surge current per leg

Max peak forward voltage per leg

Max peak reverse recovery time per leg

Max peak reverse current per leg

Typical junction capacitance per leg

*Pulse test: Pulse width 300µsec, Duty cycle 2%

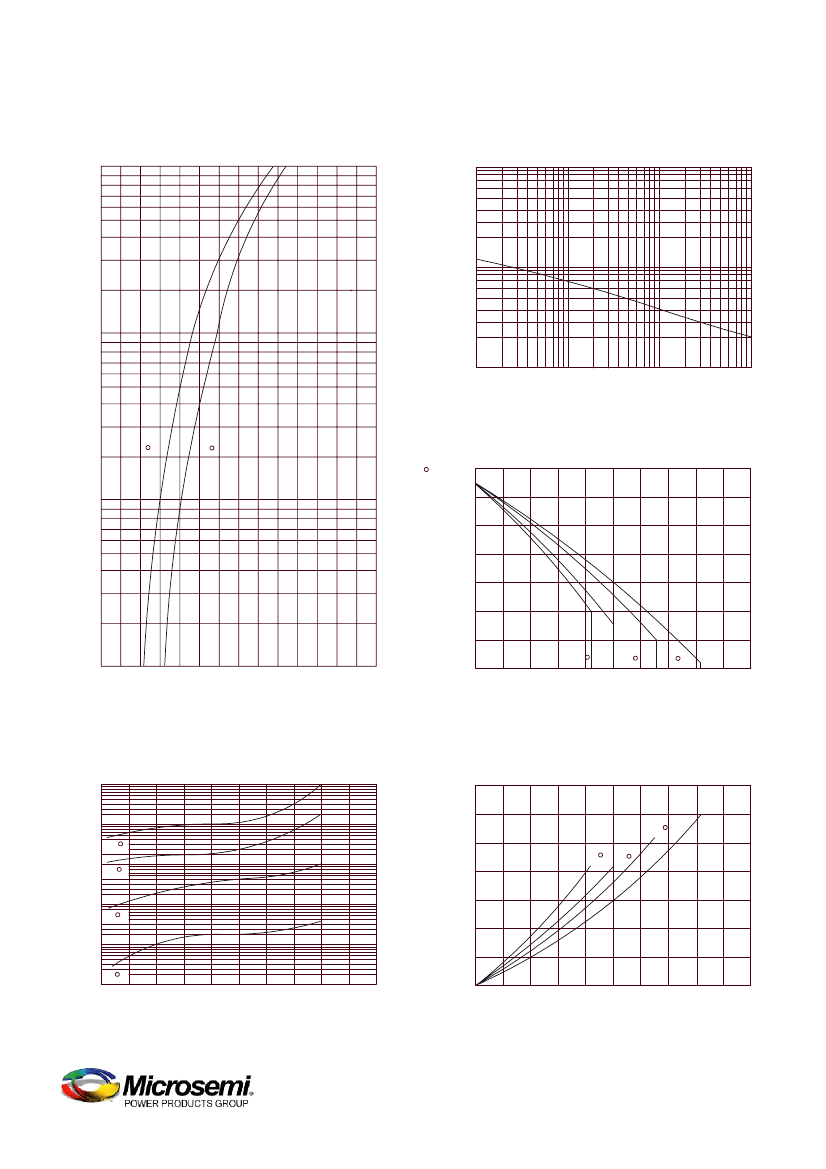

Thermal and Mechanical Characteristics

Storage temp range

Operating junction temp range

Max thermal resistance per leg

Max thermal resistance per pkg

Typical thermal resistance (greased)

Terminal Torque

Mounting Base Torque (outside holes)

Mounting Base Torque (center hole)

center hole must be torqued first

Weight

T STG

TJ

R OJC

R OCS

-55°C to 175°C

0.24°C/W Junction to case

0.12°C/W Junction to case

0.08°C/W Case to sink

35-50 inch pounds

30-40 inch pounds

8-10 inch pounds

2.8 ounces (75 grams) typical

www.microsemi.com

January, 2010 - Rev. 2

UFT40270 Related Products

	UFT40270	UFT40260	UFT40260_10	UFT40280
Description	Rectifier Diode, 1 Phase, 2 Element, 200A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 200A, 600V V(RRM), Silicon,	200 A, 600 V, SILICON, RECTIFIER DIODE	Rectifier Diode, 1 Phase, 2 Element, 200A, 800V V(RRM), Silicon,
Objectid	8073445344	8073445342	-	8073445349
package instruction	R-XUFM-X2	R-XUFM-X2	-	R-XUFM-X2
Reach Compliance Code	unknown	unknown	-	unknown
ECCN code	EAR99	EAR99	-	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	-	ULTRA FAST RECOVERY
Shell connection	ANODE	ANODE AND CATHODE	-	CATHODE
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE
JESD-30 code	R-XUFM-X2	R-XUFM-X2	-	R-XUFM-X2
Maximum non-repetitive peak forward current	2100 A	2100 A	-	2100 A
Number of components	2	2	-	2
Phase	1	1	-	1
Number of terminals	2	2	-	2
Maximum operating temperature	175 °C	175 °C	-	175 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Maximum output current	200 A	200 A	-	200 A
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT
Maximum repetitive peak reverse voltage	700 V	600 V	-	800 V
Maximum reverse recovery time	0.13 µs	0.13 µs	-	0.13 µs
surface mount	NO	NO	-	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Terminal location	UPPER	UPPER	-	UPPER

Recommended Resources

Inverter power circuit diagram

Low battery flash LED circuit

Plot motor microcomputer protector

Pulse charger circuit diagram with self-detection function

Voice control relay circuit diagram

875p computer motherboard circuit diagram_093
