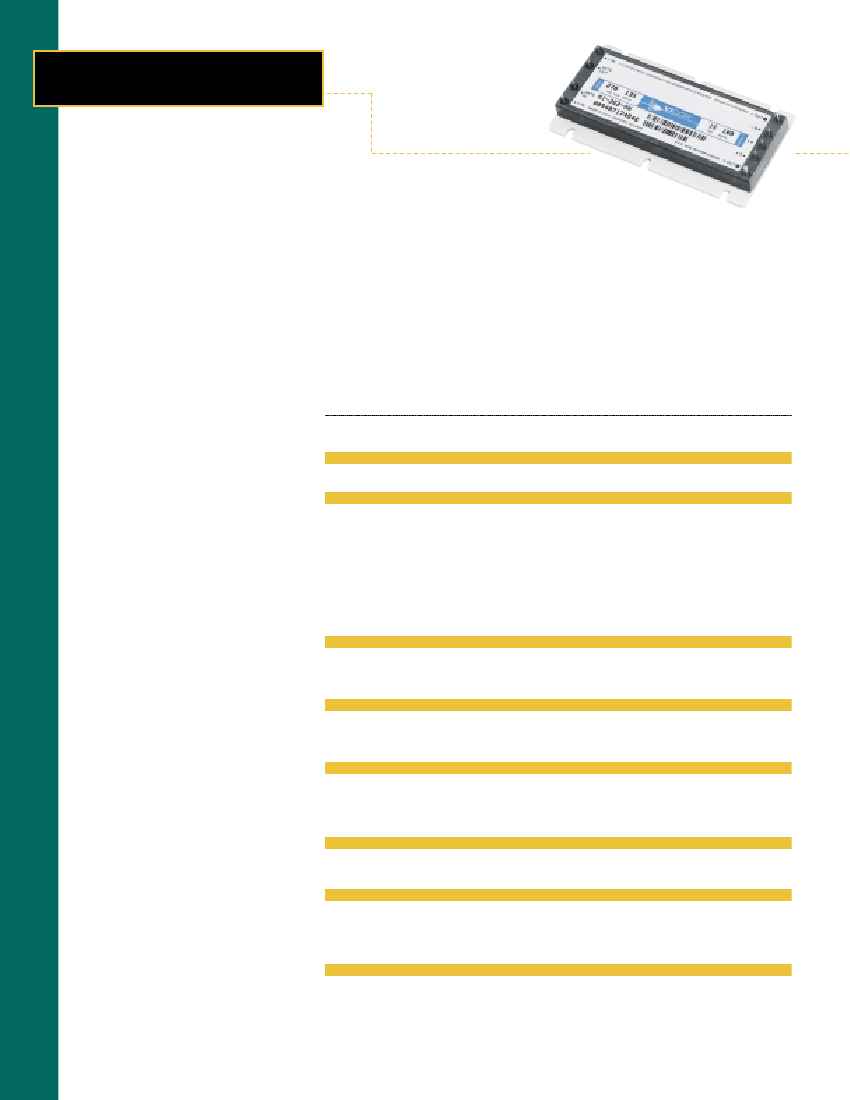

MI-200
™
Product Highlights
The MI Series is designed for Military
applications and is based on Vicor‘s
second generation family of zero-current-
switching, component level DC-DC
converters. Operating at frequencies in
excess of 1MHz, the MI Series offers
state-of-the-art performance in terms of
power density, efficiency, noise, ease
of use, and reliability.
All units are manufactured under a
quality system approved to MIL-I-45208
and in ISO 9001-registered facilities.
Full epoxy encapsulation in Vicor’s
industry standard package enables the
MI Series to meet MIL-STD-810
environmental requirements for humidity,
fungus, salt, fog, explosive atmosphere,
acceleration, vibration, and shock.
Standard features such as wide output
trimming/programming, current limiting,
remote sense, output inhibit and latching
OVP and OTP combine to offer a high
degree of protection, versatility and
reliability for military power systems.
Military High-Density
DC-DC Converters
50 to 100W
Features:
➤
Inputs:
28Vdc per MIL-STD-704D/E
155Vdc per DOD-STD-1399A
270Vdc per MIL-STD-704D/E
➤
➤
➤
➤
Single Output: 1 to 95Vdc
Up to 23 W/in
3
MIL-STD-810 Environments
80-90% Efficiency
➤
➤
➤
➤
➤
➤
Remote Sense
Current Limit
OVP and Thermal Shutdown
Power Boosters for
Higher Power Outputs
ZCS Power Architecture
Low Noise FM Control
Converter/Booster Specifications
(Typical at T
BP
= 25°C, nominal line and 75% load, unless otherwise specified)
PARAMETER
Input Characteristics
Input Voltage Range
No Load Power Dissipation
Output Characteristics
Set Point Accuracy
Load/Line Regulation
Output Temperature Drift
Output Noise - pp
Output Voltage Trimming
Remote Sense Compensation
OVP Set Point
Current Limit
Short Circuit Current
Control Pin Characteristics
Gate In High Threshold
Gate In Low Threshold
Gate In Low Current
Power Sharing Accuracy
Isolation Characteristics
Isolation (Input to Output)
Isolation (Output to Baseplate)
Isolation (Input to Baseplate)
Input/Output Capacitance
Environmental (MIL-STD-810D)
Altitude - Method 500.2
Humidity - Method 507.2
Acceleration - Method 513.3
Vibration - Method 514.3
Shock - Method 516.3
1
MIN
TYP
See Input Voltage Chart
1.35
0.5%
0.05%
0.2%
0.01
1.0%
100
MAX
UNITS
TEST CONDITIONS
2
1%
0.2%
0.5%
0.02
1.5%
150
110%
135%
125%
130%
Watts
V
NOM
V
NOM
V
NOM
%/°C
V
NOM
mV
V
NOM
Volts
V
NOM
I
NOM
I
NOM
Volts
Volts
mA
LL to HL, 10% to FL
LL to HL, NL to 10%
Whichever is greater
20MHz BW
50%
0.5
115%
105%
105%
125%
Latching
Auto restart
Auto restart
6
0.65
0.95
3,000
500
1,500
50
70,000
86, 240
9
20
40
864,000
111,000
81,000
80-90%
0.2
95
75
6
1.05
V
RMS
V
RMS
V
RMS
pF
feet
%, hours
g's
g's
g's
hours
hours
hours
Procedure II
Procedure 1, Cycle 1
Procedure 2
Procedure 1, Category 6
Procedure 1
Reliability (MIL-HDBK-217F)
25°C Ground Benign: G.B.
50°C Naval Sheltered: N.S.
65°C Airborne Inhabited Cargo: A.I.C.
Thermal Characteristics
Efficiency
Baseplate to Sink
Shutdown Temperature
Baseplate Operating Temperature
Storage Temperature
Mechanical Specifications
Volume
Weight
90
105
+85
+100
°C/W
°C
°C
°C
in
3
Ounces (Grams)
With Thermal Pads
Latching
See Product Grade
See Product Grade
4.35
6.0 (170)
1
12V and 15V outputs, standard trim range ± 10%. Consult factory for wider trim range.
For latest Vicor Product Information: www.vicr.com
Vers 2
10/98 1 of 2
Converter Selection Chart
MI - 2
-
2
5
6
7
Input Voltage
Nominal Range
= 28V
= 155V
= 270V
= 165V
18
100
125
100
-
-
-
-
50V (1)
210V
400V (2)
310V
Output Voltage
Transient
60V
230V
475V
Z
Y
0
M
1
=
=
=
=
=
2V
3.3V
5V
10V
12V
2
3
L
4
=
=
=
=
15V
24V
28V
48V
Semi-custom driver and booster modules
Product Highlights
available: Inputs from 10 to 500Vdc; outputs
from 1
MI
95Vdc.
is designed for Military
The
to
Series
(1) 16V operation at 75% load.
(2) These units rated at 75% load from 125-150Vin:
5V @ 100W; 2V and 3.3V @ 30A.
28Vdc input per MIL-STD 704D/E
155Vdc input per DOD-STD-1399A
270Vdc input per MIL-STD-704D/E
Product Grade
I
M
=
=
Operating Temp.
-40°C
-55°C
to +85°C
to +85°C
Y
X
W
V
Output Power
≥5V
=
=
=
=
50W
75W
100W
—
<5V
10A
15A
20A
30A
Product Grade Specifications
For additional power, 100W and 75W Booster
modules available. Change MI-2xx-xx to MI-Bxx-xx.
Product Grade Specifications
Parameter
I
Product Grade
M
Storage Temperature
Operating Temperature (baseplate)
Power Cycling Burn-in
Temperature Cycled with Power Off
-55°C to +100°C
-40°C to +85°C
12 hours, 25 cycles
48 hours, 12-16 cycles
-55°C to +100°C
Test Data Supplied at These Temperatures
-40°C, +80°C
Warranty
2 years
Environmental Compliance
MIL-STD-810
Derating
NAVMAT P-4855-1A
-65°C to +100°C
-55°C to +85°C
96 hours, 200 cycles
48 hours, 12-16 cycles
-65°C to +100°C
-55°C, +80°C
2 years
MIL-STD-810
NAVMAT P-4855-1A
Mechanical Drawing
.50
(12,7)
.30 (7,6)
±.015
(0,38)
4.60 (116,8)
3.60 (91,4)
1.80
(45,7)
.080 (2,0) Dia (2) places
Solder plate
over copper alloy
Alternative Mechanical
Packaging Available.
4
2.10
(53,3)
3
9
MI-200
2
1
8
7
6
5
1.40
1.00 (35,6)
.70 (25,4)
.40 (17,8)
(10,2)
.35 (8,9)
±.015
(0,38)
Pin #
1
2
3
4
5
6*
7*
8*
9
Function
+In
Gate In
Gate Out
-In
+Out
+Sense
Trim
-Sense
-Out
.15
(3,8)
FULL R
.15
(3,8)
Product ID
this surface
.040 (1,0) Dia (7) places
Solder plate
over copper alloy
* Do not connect on
Booster modules
2.40 (61,0)
4.20 (106,7)
.22 (5,6) MIN
.30 (7,6)
Min
1.75 (44,5)
.50 (12,7)
.12 (3,0)
+.030 (0,76)
-.000
.01
Aluminum Base
