HCCF-R2-1-00-05-16-RPC datasheet, PDF

Datasheet> All Categories > The connector> The connector> HCCF-R2-1-00-05-16-RPC

HCCF-R2-1-00-05-16-RPC: DescriptionFiber Optic Connector, 9/125um, Single Mode, Duplex, Receptacle; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HCCF-R2-1-00-05-16-RPC Overview

Fiber Optic Connector, 9/125um, Single Mode, Duplex, Receptacle

HCCF-R2-1-00-05-16-RPC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connection Type	DUPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	THREADED
DIN compliance	NO
Fiber size	9/125um
IEC compliance	NO
Insertion loss	0.5 dB
MIL compliance	NO
Manufacturer's serial number	974
model	SINGLE
Installation type	PANEL

Preview

Download Datasheet

View All

HCFF

!"!"!"!"!"!"!"!

974 Series

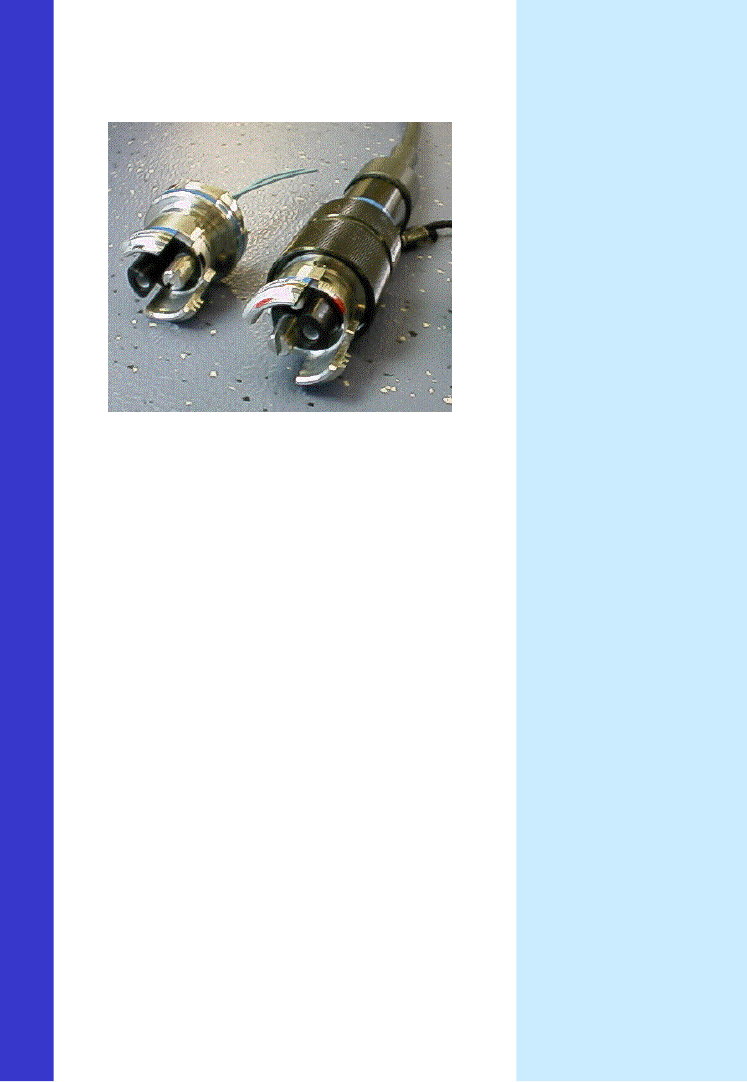

Hermaphroditic Connector with fiber to fiber alignment

MAIN CHARACTERISTICS

The Amphenol HCFF butt

coupled

fiber

optic

connector

hermaphroditic

miniature

connector for indoor and

external systems.

This product offers high performance optical multichannel

connections in a dense and lightweight design. It allows

daisy chains between multiple pieces of equipment

indoors or outdoors.

The threaded antidelocking coupling nut makes this

hermaphroditic connector very resistant to vibration and

shock.

The front of the HCFF

connector can easily be

removed with a single

screw driver to access the

optical ceramic ferrules

and clean them.

Technical description

• Small size (o.d. 22mm) butt coupled connector

• Hermaphroditic interface

• 2 and 4 channel products are intermatable

• 2 and 4 channel Plugs, Pigtails and Harnesses

• 2 and 4 channel jam nut receptacles with 0,9mm or

1,6mm pigtails and compact rear allowing for high

electronic density inside the pannel

• Threaded coupling nut with antidelocking system

• Front insulator removable for termini cleaning

• Typical Insertion Loss : 0.5 dB @ 1300 nm multimode

0.5 dB @ 1300 nm singlemode

• Typical return loss : - 30 dB @ 1300 nm singlemode

- 55 dB possible with APC termini

• Durability : 500 mating/unmating cycles

• Operating Temperature : -40°C, +85°C

• Water resistant

• Termination HCFF tool kits available

• FTOS harness maintenance tool kits available

• HCFF is interchangeable with the lens connector HCL

• Tactical drums and accessories available

Applications

• Army, Navy and Airforce

optical networks

• Light transmission links

•Shelter equipment

• Base Stations

• Industrial machine

networks

• CATV networks

Amphenol

Amphenol Socapex

Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23

Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and

reliable but are presented without garanty. No reproduction without agreement. E523/A . Printed in France by Amphenol Socapex.
