M40-6022146 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M40-6022146

M40-6022146: DescriptionBoard Connector, 21 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size413KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M40-6022146 Overview

Board Connector, 21 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE

M40-6022146 Parametric

Parameter Name	Attribute value
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	POLARISED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M40-6
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	21

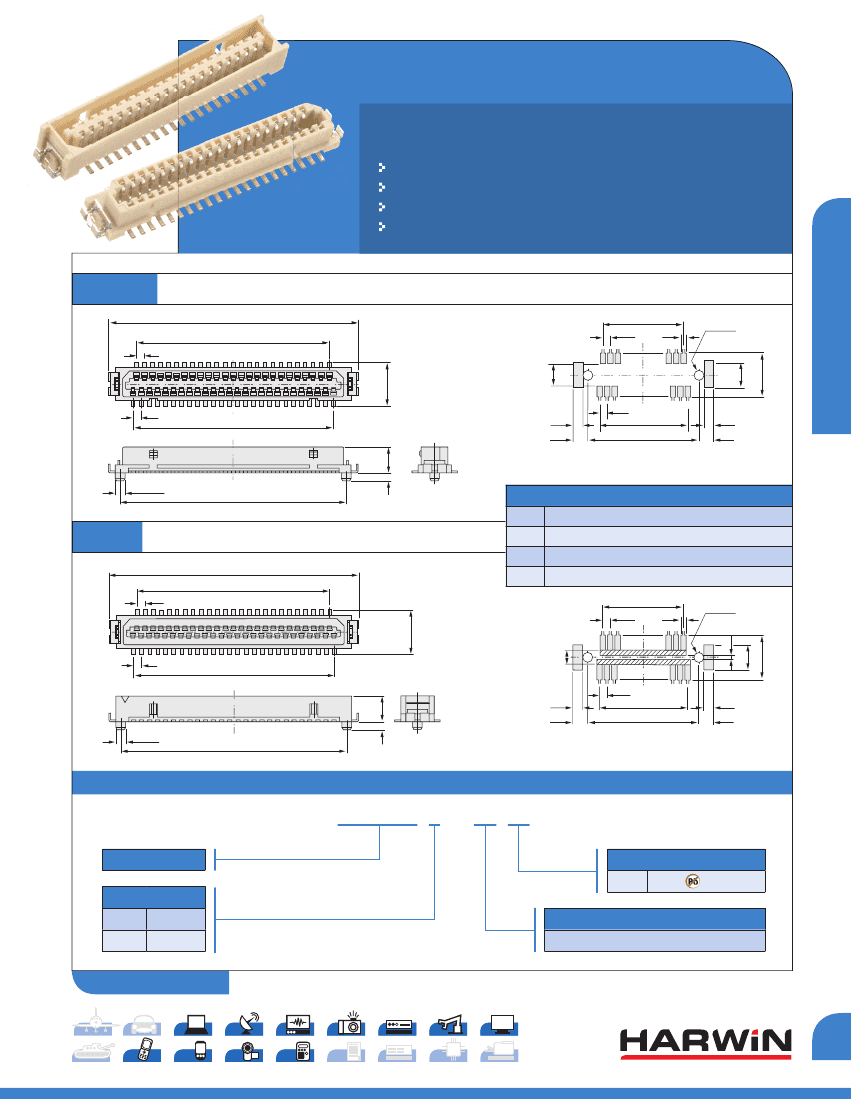

M40-6022146 Preview

M40 connectors

Vertical Surface Mount

A range of double row 1.00mm pitch SMT male and female connectors

for board-to-board stacking.

Locating pegs to ensure correct positioning onto the board.

Polarised to prevent mis-mating.

Staggered pin-out to help board layout.

For tape and reel packaging contact technical@harwin.com.

FEMALE

1.00

5.60

9~25 ways: 1.84

31~51 ways: 3.00

1.00

0.70

1.30

1.00

B+1

3.30

1.30

1.95

1.00

B+1

1.30

1.95

recommended Pc board Pattern

1.20

CALCULATION

B + 7.1

(Total No. Of Contacts – 3) / 2

B + 4.1

1.0mm for 9, 15, 21, 25 way, otherwise 0.8mm

9~25 ways: 1.84

31~51 ways: 3.00

1.00

0.70

MALE

1.00

5.60

1.30

0.50

1.00

B+1

3.30

1.00

B+1

1.30

1.95

1.30

1.95

1.20

recommended Pc board Pattern

how to orDEr

M40 – 6 X 0 XX XX

SERIES CODE

GENDER

Male

Female

FINISH

Tin

TOTAL NO. OF CONTACTS

09, 15, 21, 25, 31, 41, 51

All dimensions in mm.

www.harwin.com

3.40

6.00

1.0mm (.040") Pitch

3.40

6.00

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

M40-6022146 Related Products

	M40-6022146	M40-6020946	M40-6021546	M40-6022546	M40-6023146	M40-6024146	M40-6025146
Description	Board Connector, 21 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 15 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 25 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 31 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 41 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 51 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M40-6	M40-6	M40-6	M40-6	M40-6	M40-6	M40-6
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	21	9	15	25	31	41	51
