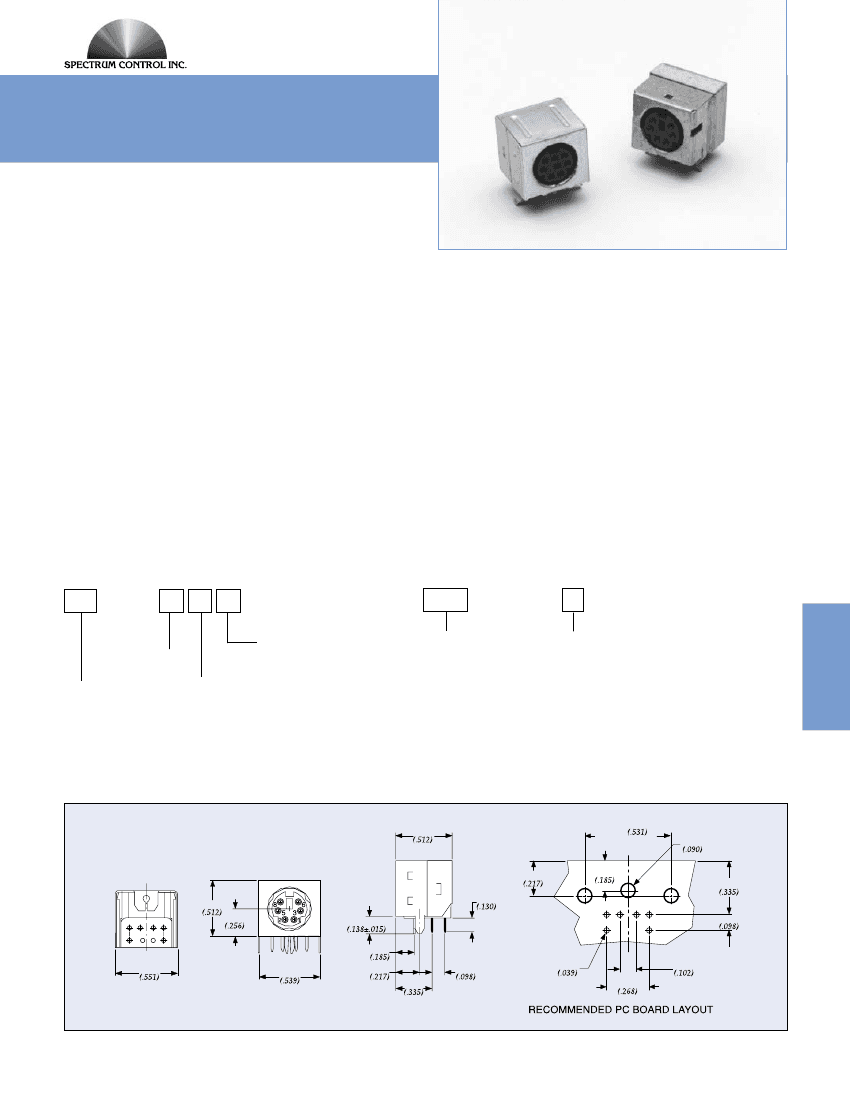

Filtered Mini-DIN
Connectors
Filtered mini-DIN connectors are available in several
configurations and sizes. These are “drop-in” replace-
ments for standard unfiltered connectors with matched
footprints. Housings are made of high temperature
UL94V-0 rated thermoplastic material. Connectors are
available with full metal shields and kinked or straight
ground tabs. Each size can be filtered with ferrites
or chip capacitors.
Primary applications are in computer keyboard and
mouse connections.
Specifications
Contacts
. . . . . . . . . . . . . . . . .Copper alloy,
gold over nickel plating
Shield
. . . . . . . . . . . . . . . . . . .Brass, tin plated
Housing
. . . . . . . . . . . . . . . . . .94V-0 rated thermoplastic,
black
Current rating
. . . . . . . . . . . . .1A @ 12 VDC
DWV
. . . . . . . . . . . . . . . . . . .500 VDC
Insulation Resistance
. . . . . . . . .500MOhms min
Operating Temp
. . . . . . . . . . . .-25°C to +70°C
Typical Ferrite Impedance
. . . . . .20-22 Ohm @ 100 MHz
Features
I
I
I
Audio, video and computer equipment
Drop-in replacement for unfiltered connectors
Shielded, ferrite or capacitive filtering
Ordering Information
Example:
56-B32-000-S
56
-
B 3 2
Filtering
Mini-DIN
Filtered
Connectors
Shell Size
1
= 4 Position
2
= 5 Position
3
= 6 Position
4
= 7 Position
5
= 8 Position
1
= None
2
= Ferrite
3
= Capacitive (6 Pos. only)
Typical insertion loss
. . . . . . . . .32 db @ 200 MHz
-
000
Filter Values
-
S
Features
S
= Straight Ground Tab
K
= Kinked Ground Tab
FS
= Full Shield & Straight
Ground Tab
FK
= Full Shield & Kinked
Ground Tab
Typical Dimensions
For 56-B32-000-S
5
8
2
1
3
6
Dimensions in inches
(mm)
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
189
Filtered Connectors
000
= None or Ferrite
001
= 100 pF
002
= 220 pF
003
= 470 pF
004
= 820 pF
005
= 1500 pF
