92813-010 datasheet, PDF - EEWORLD Datasheet

92813-010: DescriptionBoard Stacking Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle,; CategoryThe connector The connector; File Size314KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

92813-010 Overview

Board Stacking Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	BAG PACKAGING
Board mount options	PEG
body width	0.157 inch
subject depth	0.374 inch
body length	0.945 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH (15) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH (15) OVER PALLADIUM NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BEIGE
insulator material	GLASS FILLED POLYCARBONATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	92813
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
UL Flammability Code	94V-0

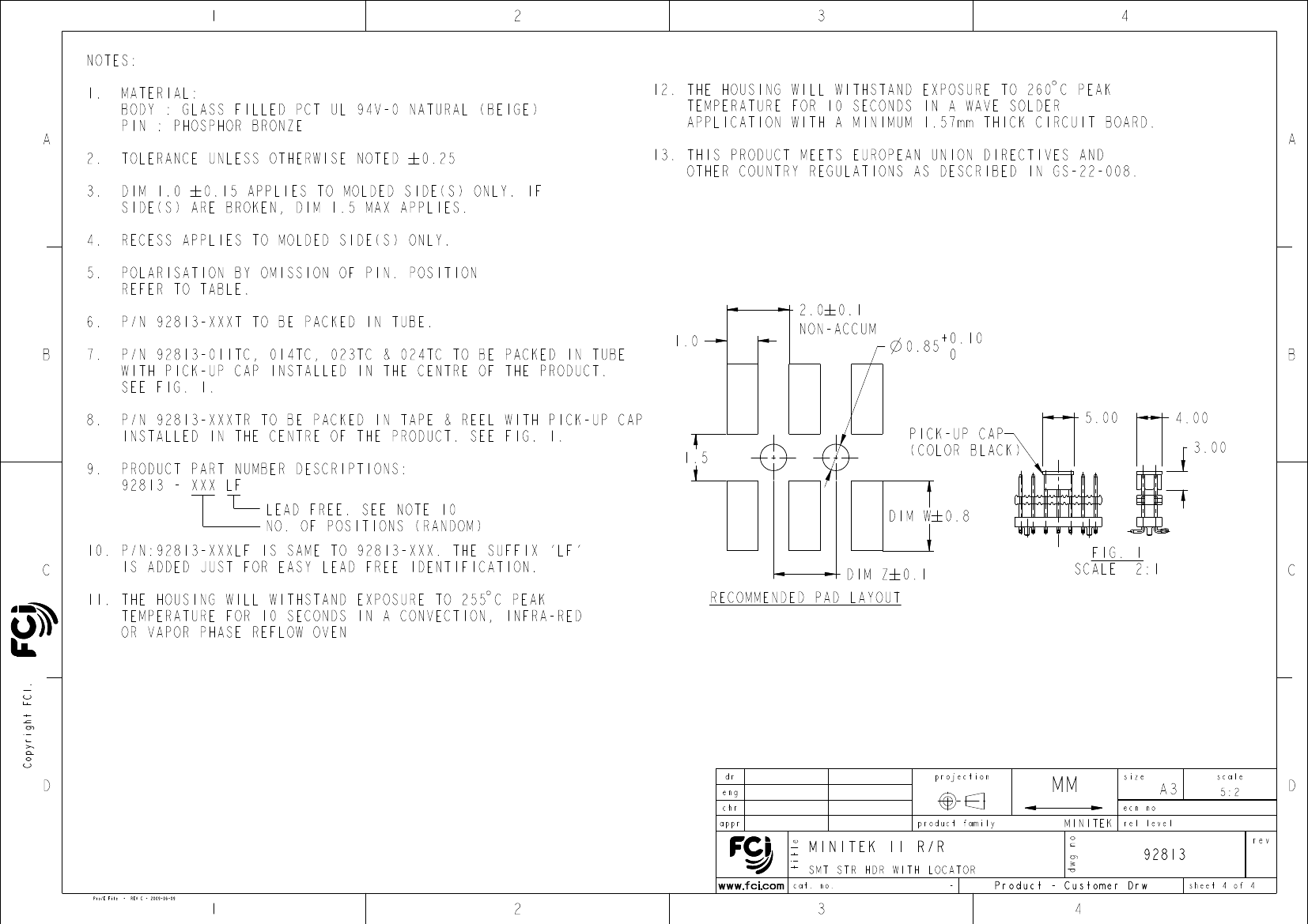

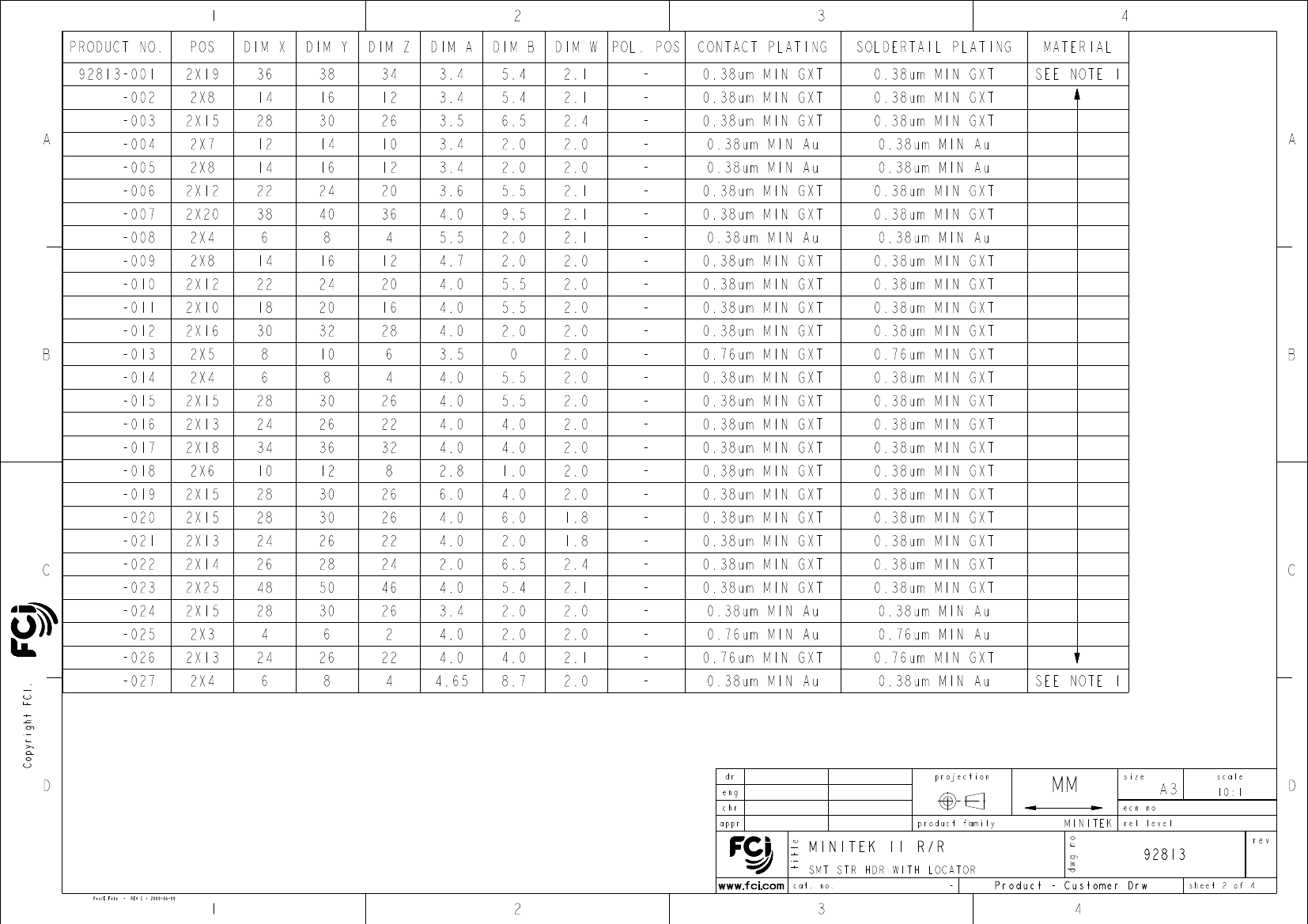

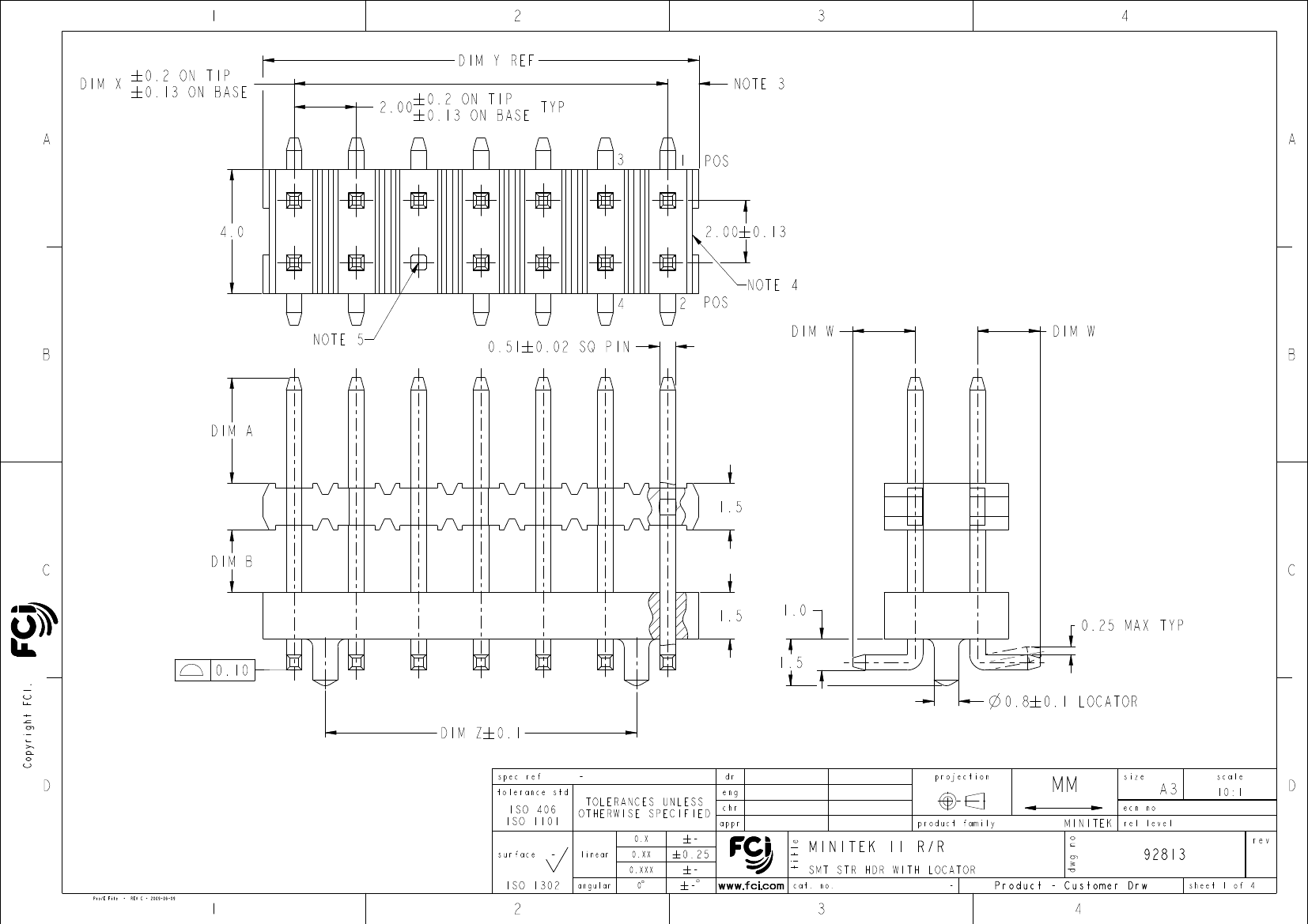

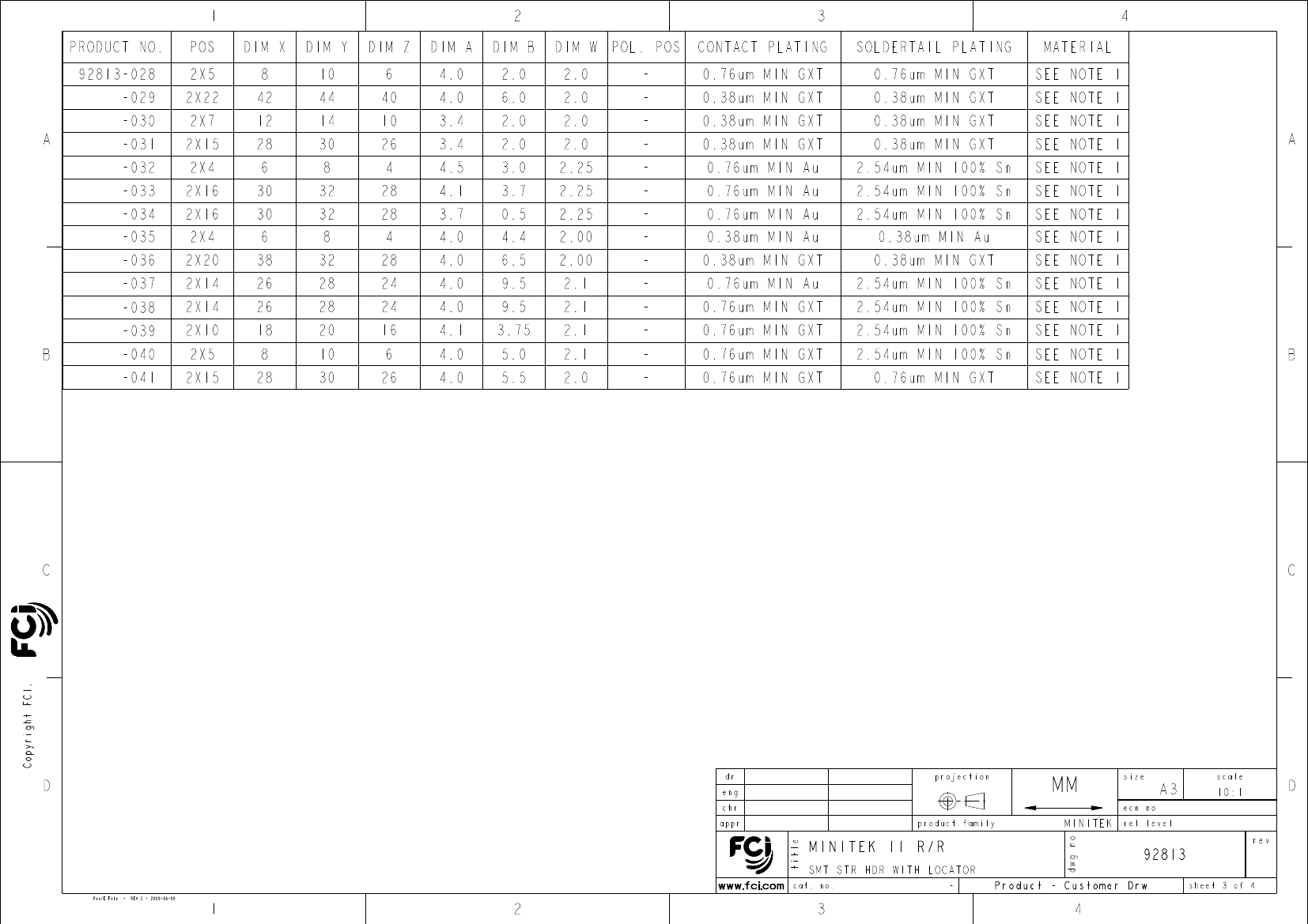

w wcadmin

Guo-Min Sun

Rick Bian

2010/11/01

2013/12/05

ELX-N-16450-1

Released

PDS: Rev :AU

STATUS:Released

Printed: Dec 05, 2013
