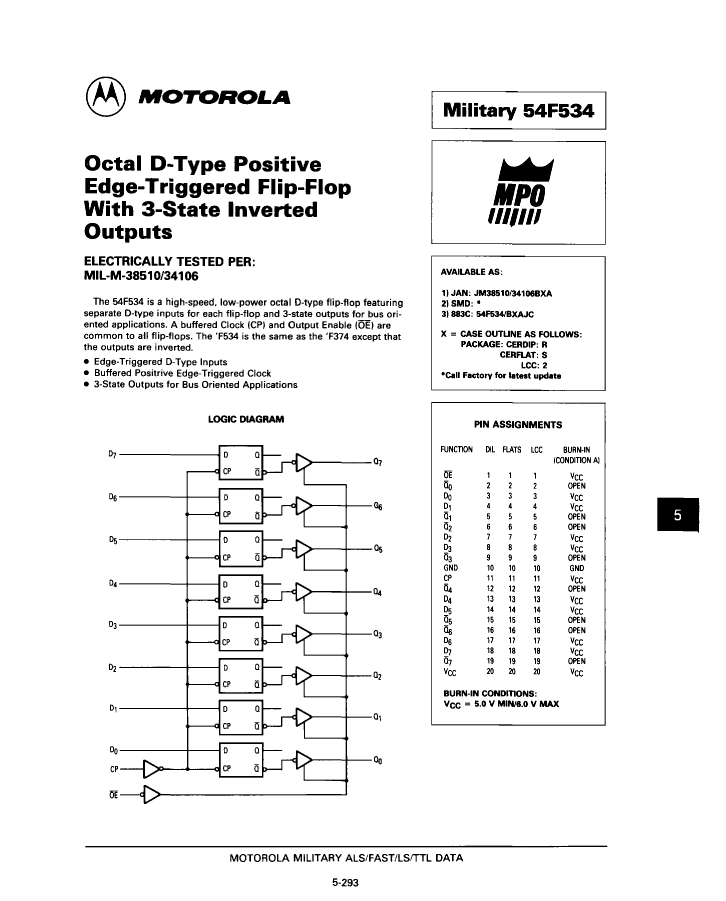

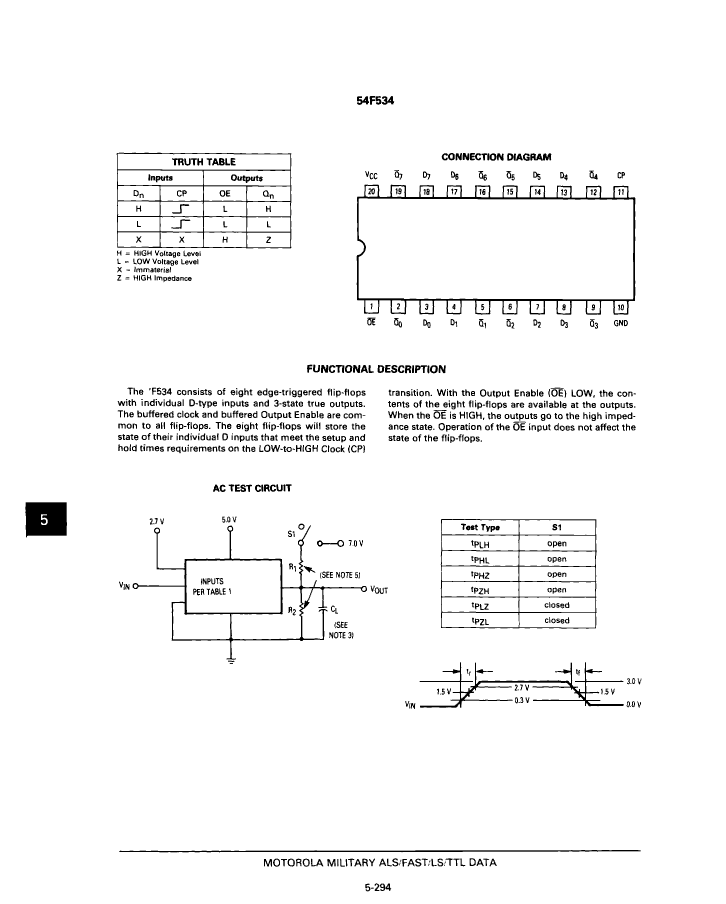

F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20

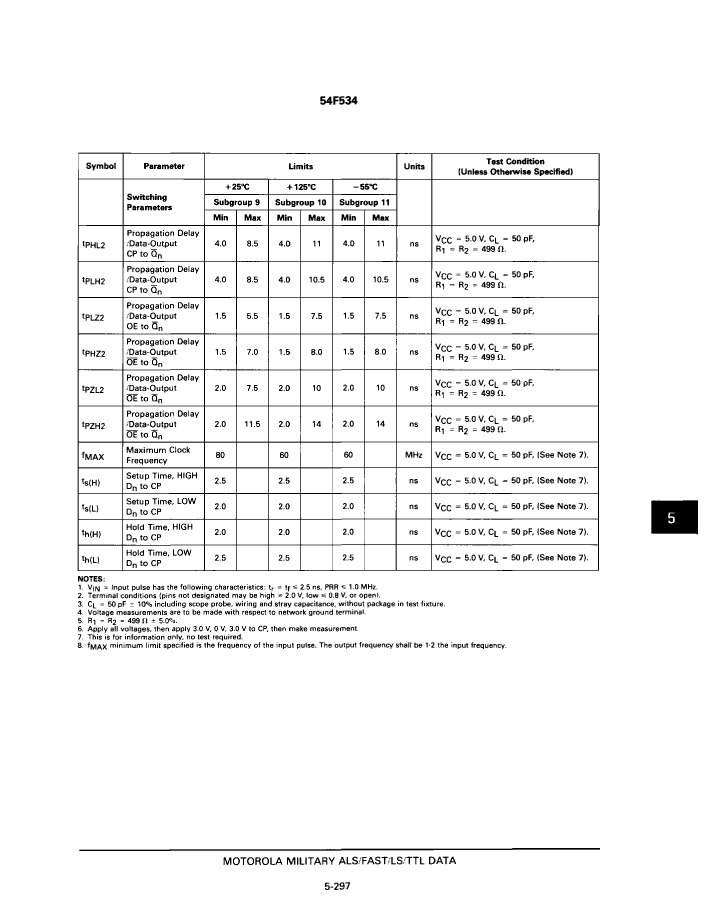

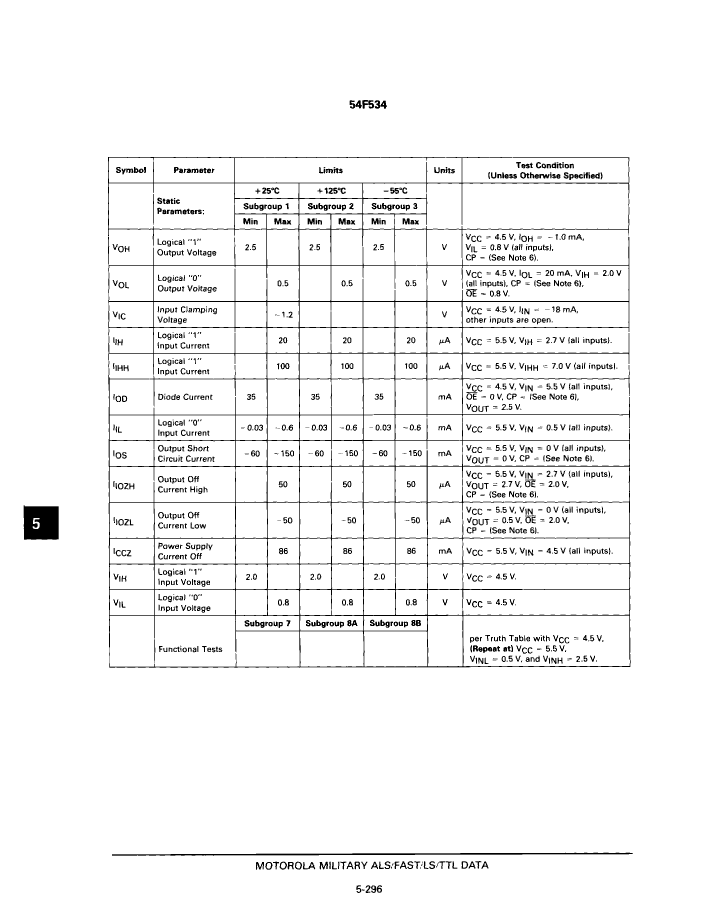

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | R-GDFP-F20 |
| length | 12.7 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 11 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.16 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.475 mm |
| JM38510/34106BSA | JM38510/34106B2A | JM38510/34106BRA | |
|---|---|---|---|
| Description | F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERDIP-20 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DFP, | QCCN, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDFP-F20 | S-CQCC-N20 | R-CDIP-T20 |
| length | 12.7 mm | 8.89 mm | 24.515 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP | QCCN | DIP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | FLATPACK | CHIP CARRIER | IN-LINE |
| propagation delay (tpd) | 11 ns | 11 ns | 11 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.16 mm | 1.9 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL |
| width | 6.475 mm | 8.89 mm | 7.62 mm |
