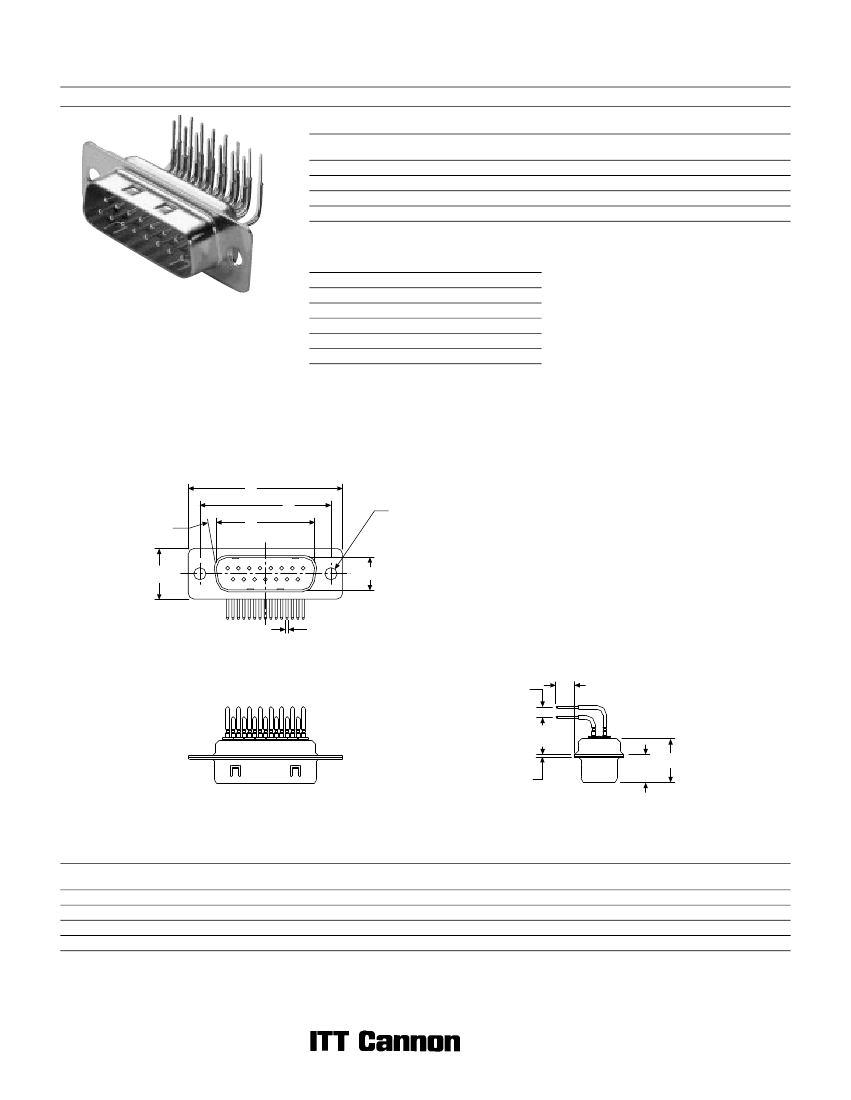

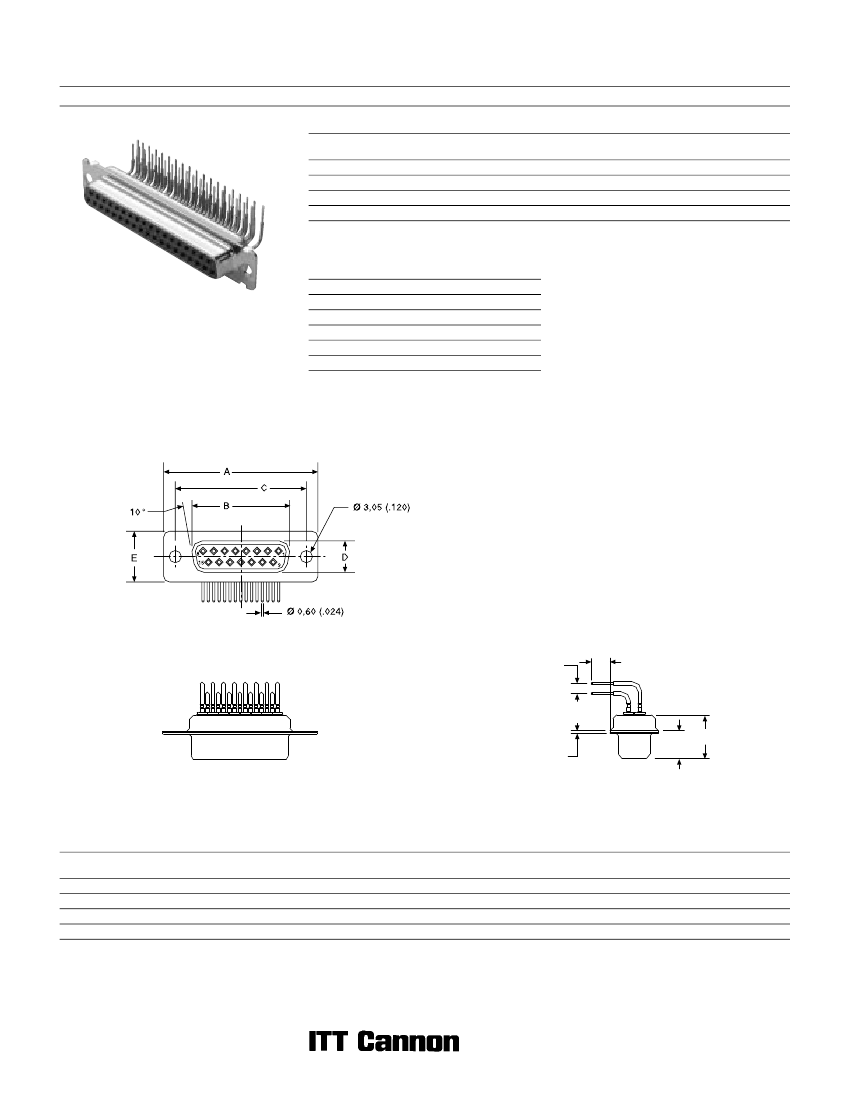

D Subminiature
D*JK — 90° PC Tails — European Footprint 10,2 or 9,4 mm
Plug
Part Numbers
Shell Size
DE
DA
DB
DC
Layout
9
15
25
37
Through Hole
DEJK9P*-1A0N
DAJK15P*-1A0N
DBJK25P*-1A0N
DCJK37P*-1A0N
Clinch Nut
#4-40 UNC
DEJKE9P*-1A0N
DAJKE15P*-1A0N
DBJKE25P*-1A0N
DCJKE37P*-1A0N
Filter D
Clinch Nut
M3
DEJKX9P*-1A0N
DAJKX15P*-1A0N
DBJKX25P*-1A0N
DCJKX37P*-1A0N
* Insert filter designator. Example: DEJK9P4-1A0N (For 1000 pF Filter Capacitance)
Modifier: For performance class 1 add -A190. Example: DEJK9P1-1A0N-A190
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware options (European),
see page 227.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
Ø 3,05 (.120)
1
8
E
9
15
D
Ø 0,60 (.024)
2,54 (.100)
4,73 (.186)
9,40
(.370)
W
L
F
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,72 (.422)
10,72 (.422)
W
±0,37
(.015)
6,69 (.264)
6,69 (.264)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
110
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
D*JK — 90° PC Tails — European Footprint 10,2 or 9,4 mm
Receptacle
Part Numbers
Shell Size
DE
DA
DB
DC
Layout
9
15
25
37
Through Hole
DEJK9S*-1A0N
DAJK15S*-1A0N
DBJK25S*-1A0N
DCJK37S*-1A0N
Clinch Nut
#4-40 UNC
DEJKE9S*-1A0N
DAJKE15S*-1A0N
DBJKE25S*-1A0N
DCJKE37S*-1A0N
Filter D
Clinch Nut
M3
DEJKX9S*-1A0N
DAJKX15S*-1A0N
DBJKX25S*-1A0N
DCJKX37S*-1A0N
* Insert filter designator. Example: DEJK9S4-1A0N (for 1000 pF Filter Capacitance)
Note: For performance class 1, add -A190. Example: DEJK9S1-1A0N-A190
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware options (European),
see page 227.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
2,54 (.100)
4,73 (.186)
9,40
(.370)
W
L
F
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
111
