530779-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 530779-1

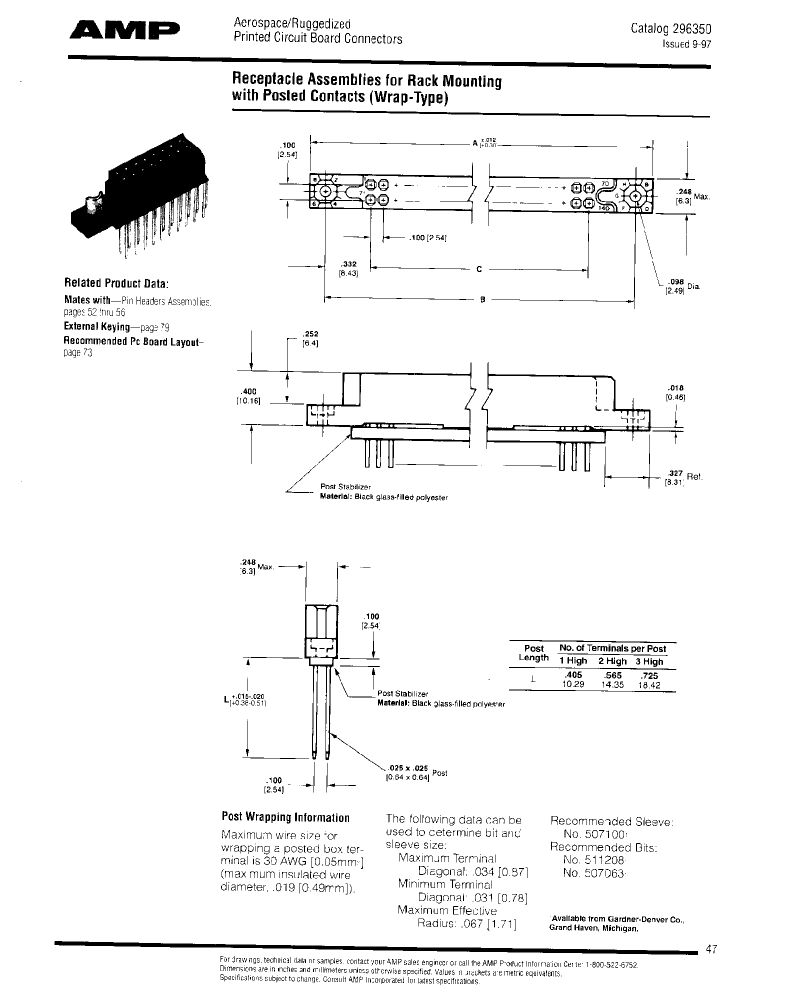

530779-1: Description30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE; CategoryThe connector The connector; File Size22KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

530779-1 Overview

30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE

530779-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-55302
body width	0.248 inch
subject depth	0.4 inch
body length	2.355 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	530779
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.725 inch
Terminal pitch	2.54 mm
Termination type	SOLDER; WIRE WRAP
Total number of contacts	30

Preview

Download Datasheet

View All

530779-1 Related Products

	530779-1	531836-7	531836-3	530779-5	RN732BLTDD2290C10	1-530780-2
Description	30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE	90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	50 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE	Fixed Resistor, Thin Film, 0.125W, 229ohm, 150V, 0.25% +/-Tol, 10ppm/Cel, Surface Mount, 1206, CHIP	134 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; WIRE WRAP, RECEPTACLE
Reach Compliance Code	unknown	unknown	compliant	compliant	not_compliant	unknown
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99
Other features	STANDARD: MIL-C-55302	POLARIZED	POLARIZED	STANDARD: MIL-C-55302	-	STANDARD: MIL-C-55302
body width	0.248 inch	0.248 inch	0.248 inch	0.248 inch	-	0.248 inch
subject depth	0.4 inch	0.4 inch	0.4 inch	0.4 inch	-	0.4 inch
body length	2.355 inch	5.355 inch	3.355 inch	4.335 inch	-	7.555 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	-	AU ON NI
Contact completed and terminated	GOLD	GOLD	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	-	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	-	NO
MIL compliance	YES	NO	NO	YES	-	YES
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	NO
Installation option 1	#2-56	#2-56	#2-56	#2-56	-	#2-56
Installation option 2	THREADED	THREADED	THREADED	THREADED	-	THREADED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD
Number of connectors	ONE	ONE	ONE	ONE	-	ONE
PCB row number	2	2	2	2	-	2
Number of rows loaded	2	2	2	2	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Plating thickness	50u inch	30u inch	30u inch	50u inch	-	50u inch
polarization key	ENDS	ENDS	ENDS	ENDS	-	SHRD ENDS
Terminal length	0.725 inch	0.405 inch	0.405 inch	0.725 inch	-	0.565 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Termination type	SOLDER; WIRE WRAP	WIRE WRAP	WIRE WRAP	SOLDER; WIRE WRAP	-	SOLDER; WIRE WRAP
Total number of contacts	30	90	50	70	-	134
Objectid	-	1430669777	1430669610	1430668462	1543387640	1430668322
