LSX301-23-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LSX301-23-2

LSX301-23-2: DescriptionRectifier Diode, Schottky, 2 Element, 1A, 20V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size145KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

LSX301-23-2 Overview

Rectifier Diode, Schottky, 2 Element, 1A, 20V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3

LSX301-23-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.43 V
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

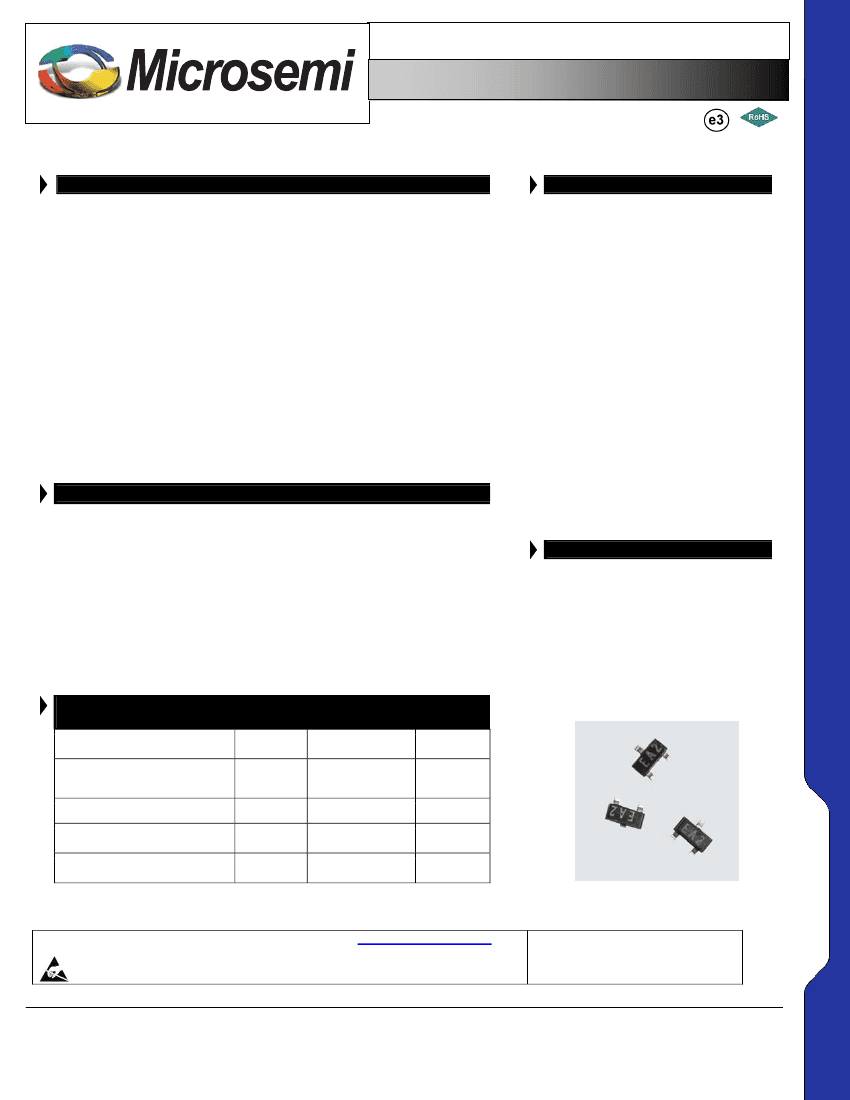

LSX101-LSX701

SURFACE MOUNT SOT-23

General Purpose Schottky Diodes

RoHS Compliant

DESCRIPTION

Mil spec quality Schottky barrier devices are available in

economical SOT23 plastic packages. Priced for high volume

commercial applications, these devices provide state-of-the-art

electrical performance, ideal for use as detectors, mixers, in

up/down converters or in sampling phase detectors. When

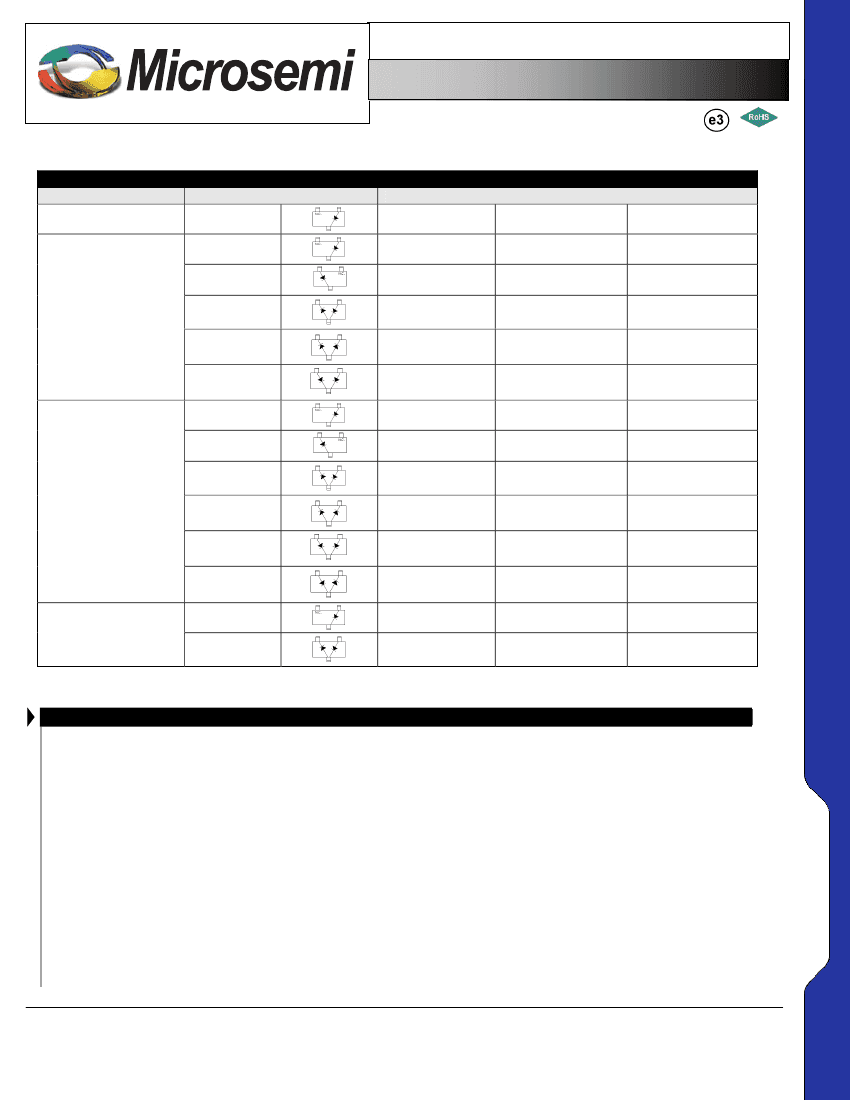

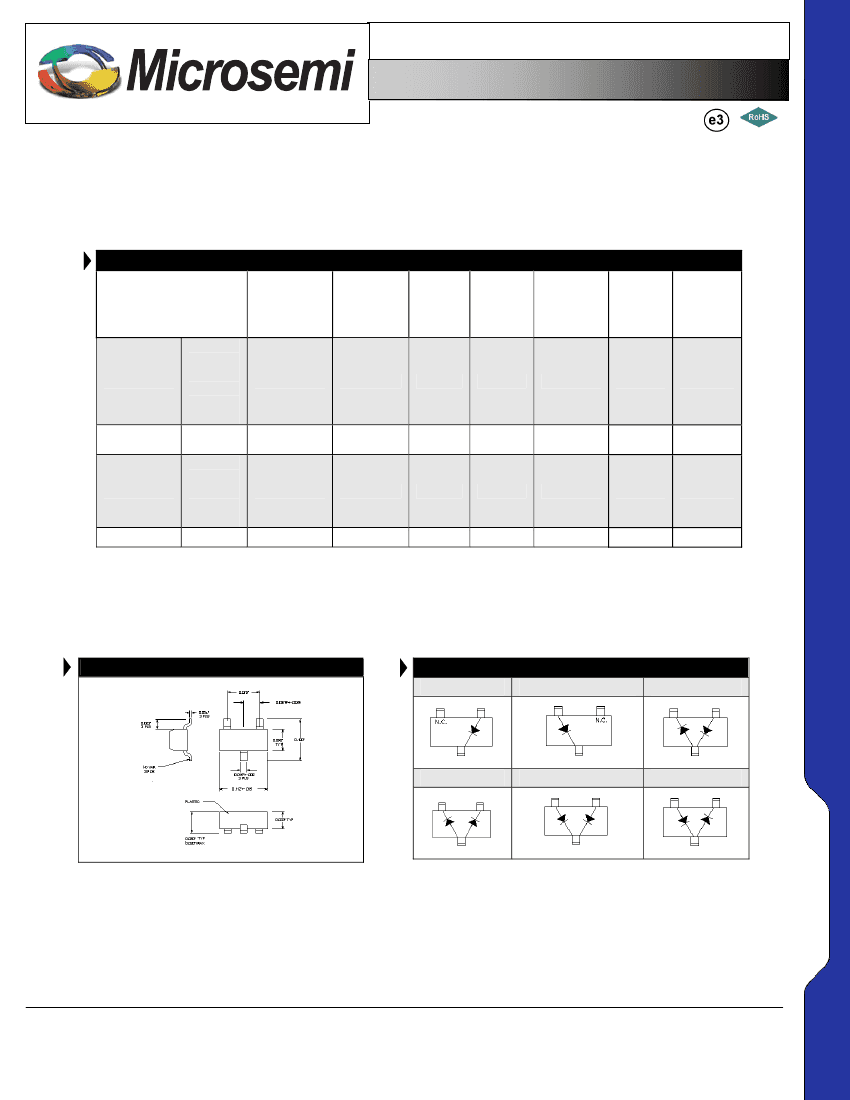

ordering, specify configuration - see configuration table for internal

wiring diagrams. Other configurations are available - some

limitations apply. Consult factory for availability. The LSX series of

diodes are the RoHS compliant versions of the LSS series. The

LSX series supersedes the LSS version.

This LSX series of devices meets RoHS requirements per EU

Directive 2002/95/EC.

KEY FEATURES



Standard SOT-23 Package

Outline



Surface Mount design



Wide Selecting of Values and

Configurations



Available on Tape & Reel for

Automated Pick & Place Assembly



Excellent Conversion Loss



RoHS Compliant

www.MICROSEMI.com

APPLICATIONS

Microsemi offers a variety of Schottky Barrier diodes in the SOT-23

package style. These products are well suited for mixer and

detector applications, as well as for sampling, limiter and wave

shaping circuits. Available on tape & reel, these products are ideal

for high volume applications.

APPLICATIONS/BENEFITS



Mixers



Detectors



Limiters



Sampling



Wave Shaping

ABSOLUTE MAXIMUM RATINGS AT 25º C

(UNLESS OTHERWISE SPECIFIED)

Rating

Power Dissipation (De-rated

linearly to 0 at T

(max)

Storage Temperature

Operating Temperature

Forward Current (1us Pulse)

Symbol

STG

Value

250

-55 to +125

1.0

Unit

ºC

LSX101-LSX701

IMPORTANT:

For the most current data, consult our website

www.MICROSEMI.com

Specifications subject to change. Consult factory for latest information.

These devices are ESD sensitive and must be handled using ESD precautions.

These devices are supplied with a

matte tin finish suitable for RoHS

compliant assembly.



2007

Rev: 2009-01-19

Microsemi

Microwave Products

75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748

Page 1
