BZX84C15D87Z datasheet, PDF - EEWORLD Datasheet

BZX84C15D87Z: DescriptionZener Diode, 15V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN; CategoryDiscrete semiconductor diode; File Size62KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

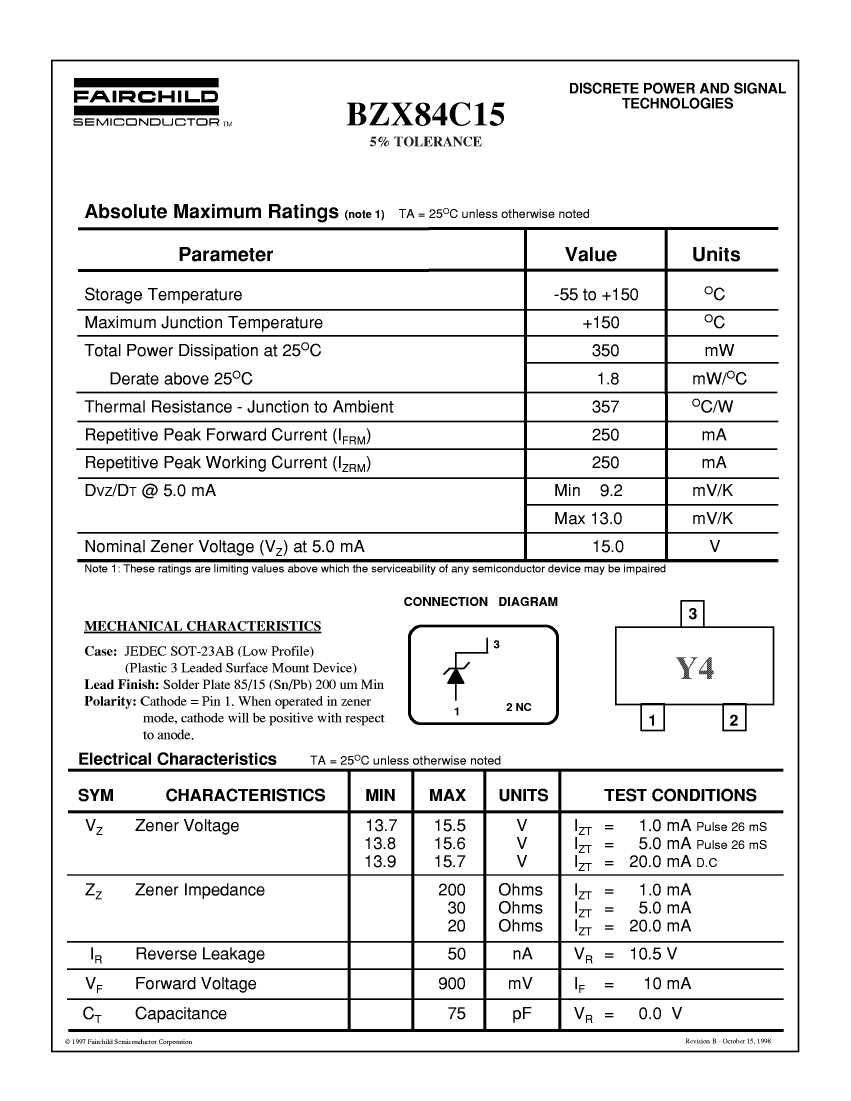

BZX84C15D87Z Overview

Zener Diode, 15V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild

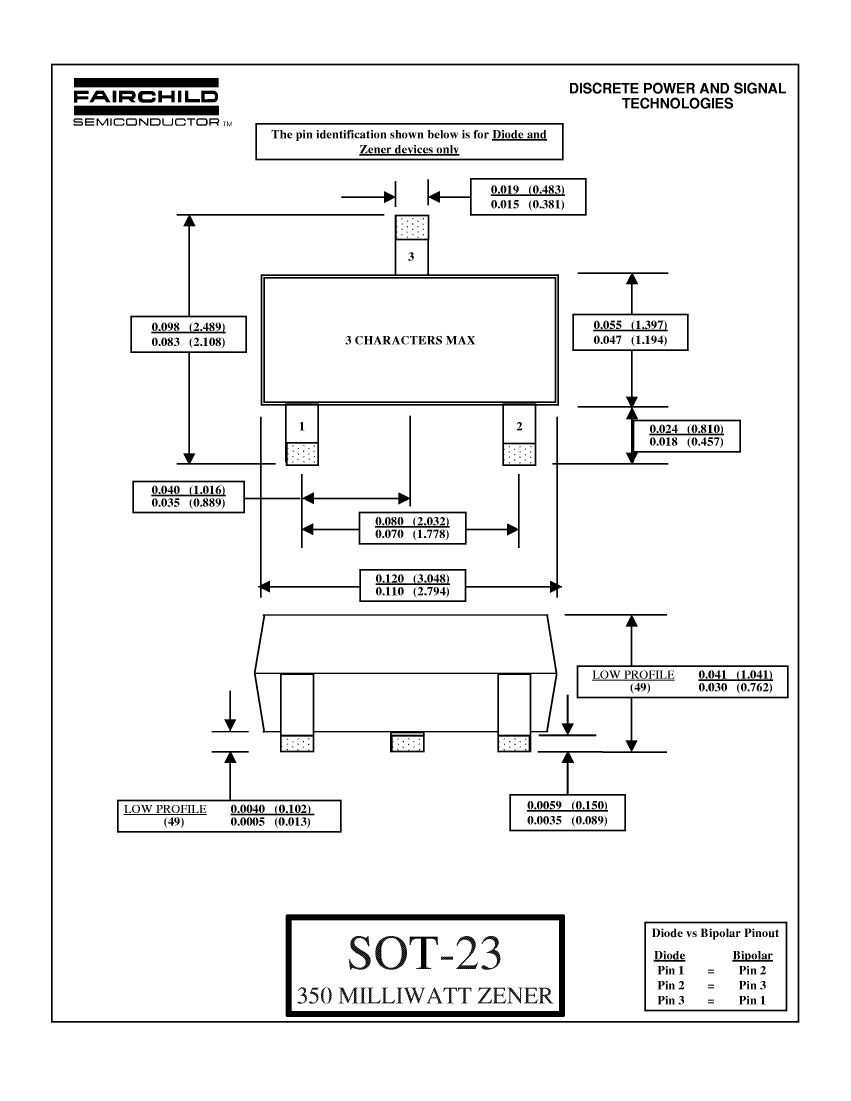

package instruction	49, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	30 Ω
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	15 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum voltage tolerance	5%
Working test current	5 mA

	BZX84C15D87Z	BZX84C15L99Z	BZX84C15S62Z
Description	Zener Diode, 15V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN	Zener Diode, 15V V(Z), 5%, 0.35W, Silicon, Unidirectional	Zener Diode, 15V V(Z), 5%, 0.35W, Silicon, Unidirectional,
Reach Compliance Code	compliant	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	15 V	15 V	15 V
surface mount	YES	YES	YES
technology	ZENER	ZENER	ZENER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum voltage tolerance	5%	5%	5%
Working test current	5 mA	5 mA	5 mA
Maker	Fairchild	-	Fairchild
Base Number Matches	-	1	1
