LX1708ILQ-TR

Description
Audio Amplifier, 15W, 2 Channel(s), 1 Func, CMOS, PQCC32, 7 X 7 MM, ROHS COMPLIANT, PLASTIC, MLPQ-32
CategoryAnalog mixed-signal IC    Consumption circuit
File Size462KB,18 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Environmental Compliance
Download Datasheet Parametric View All

LX1708ILQ-TR Overview

Audio Amplifier, 15W, 2 Channel(s), 1 Func, CMOS, PQCC32, 7 X 7 MM, ROHS COMPLIANT, PLASTIC, MLPQ-32

LX1708ILQ-TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMicrosemi
Parts packaging codeQFN
package instruction7 X 7 MM, ROHS COMPLIANT, PLASTIC, MLPQ-32
Contacts32
Reach Compliance Codecompliant
ECCN codeEAR99
Nominal bandwidth20 kHz
Commercial integrated circuit typesAUDIO AMPLIFIER
JESD-30 codeS-PQCC-N32
JESD-609 codee3
length7 mm
Humidity sensitivity level1
Number of channels2
Number of functions1
Number of terminals32
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Nominal output power15 W
Package body materialPLASTIC/EPOXY
encapsulated codeHVQCCN
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height1 mm
Maximum supply voltage (Vsup)15 V
Minimum supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMATTE TIN
Terminal formNO LEAD
Terminal pitch0.65 mm
Terminal locationQUAD
Maximum time at peak reflow temperature40
width7 mm

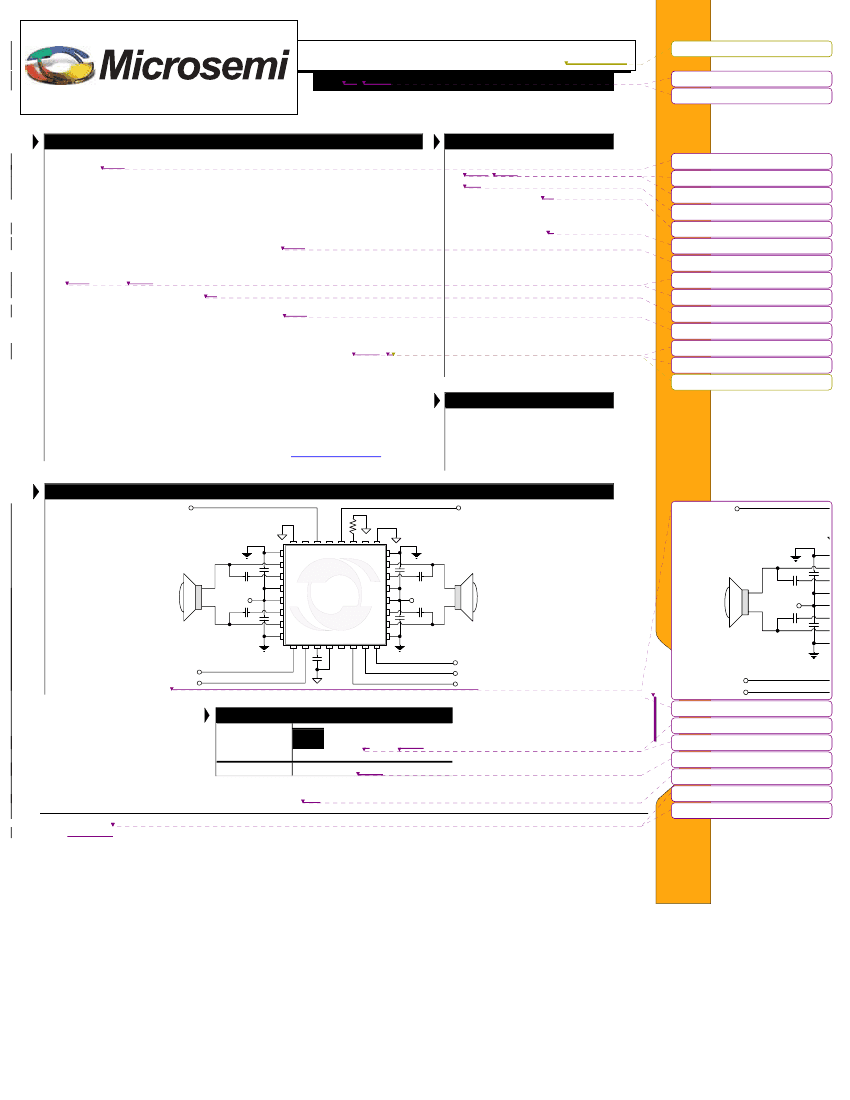

LX1708ILQ-TR Preview

LX1708
TM
®
Deleted:
LX1705
Deleted:
8
Deleted:
8W
15+15W
Stereo Filterless Class-D Amplifier
P
RODUCTION
D
ATA
S
HEET
DESCRIPTION
KEY FEATURES
Filter Free Operation
12W
+12W Output Power @
4Ω
load: THD+N < 1%
High Efficiency >
85%
Full Audio Bandwidth: 20Hz to
20kHz
Low Distortion < 0.4% @ 30%
Max Power, 1kHz
High Signal-to-Noise Ratio:
90dB
Wide Supply Voltage Range
5.0V ~ 15V
5mA Per Channel Typical
Quiescent Current
Turn ON/OFF POP Free
Standby / Mute Feature
Built-in Under Voltage Lockout
Thermal Protection
Deleted:
1705
Deleted:
6W
Deleted:
6W
Deleted:
8Ω
Deleted:
90
Deleted:
25
Deleted:
1705
Deleted:
1705
Deleted:
8W
Deleted:
90
Deleted:
1705
Deleted:
5mm
Deleted:
5
Deleted:
APPLICATIONS
WWW .
Microsemi
.
C OM
The LX1708 is a fully integrated
stereo class-D CMOS audio amplifier.
optimized
for
highly
efficient
operation and minimum system cost.
The stereo BTL (Bridge-tied-load)
configuration uses 3-level PWM
modulation. This allows eliminating
the LC filter to reduce the system cost
and simplify the system design. The
LX1708 outputs
15W
into each of two
channels with better than
85%
efficiency. The entire signal path
from input to output is differential to
reject any sources of common-mode
noise or distortion.
The part features on–board H-bridge
output stages with low R
DSON
. External
bootstrap capacitors are all that is
required to provide the gate drive to the
all-NFET output stage since on-board
bootstrap diodes are provided.
The LX1708 also features Mute and
Standby modes, POP-free turn-on and
turn-off, under-voltage lockout for both
input supplies, and multi-level over-
temperature protection.
The LX1708 is offered in a small
thermally efficient footprint, low profile
surface mountable 32-pin Micro Lead
Quad Package (MLPQ) in
7mm
x
7mm.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
LCD TV
Car Navigation
MP3 Docking Stations
Portable Sound System
PRODUCT HIGHLIGHT
STBY
5V
STBY
AVSS1
PVSS1N
OUT1N
BOOT1N
PVDD1
AVSS2
PVSS2N
OUT2N
BOOT2N
V5V
STATUS
N.C.
ROSC
TMON
PVDD
PVDD1
BOOT1P
OUT1P
LX1708
TCTRL
MUTE
VREF
IN1P
N.C.
STBY
PVDD2
PVDD2
BOOT2P
OUT2P
PVDD
PVDD
PVSS1P
IN1N
PVSS2P
IN2P IN2N
IN2N
LX1708
LX
1708
IN1N
IN1P
IN2P
MUTE
IN1N
Deleted:
Deleted:
5
IN1P
PACKAGE ORDER INFO
Deleted:
1705
T
A
(°C)
-40 to 85
LQ
Plastic MLPQ
32-Pin7mm x
7mm
RoHS Compliant / Pb-free
Deleted:
5mm
Deleted:
1705
Deleted:
1705
Deleted:
2007-03-20
Deleted:
2007-03-19
LX1708ILQ
Note: Available in Tape & Reel. Append the letters “TR” to the
part number. (i.e. LX1708ILQ-TR)
Copyright
©
2007
Rev. 1.3,
2007-04-05
Microsemi
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
Page 1
LX1708
TM
®
Deleted:
LX1705
Deleted:
8
Deleted:
8W
15+15W
Stereo Filterless Class-D Amplifier
P
RODUCTION
D
ATA
S
HEET
ABSOLUTE MAXIMUM RATINGS
Power Supply Voltage (PVDD) ..................................................................... -0.3V to 16.5V
BOOTP/N - PVDD............................................................................................ -0.3 to 16.5V
Bias Supply Voltage (V5V) ................................................................................... -0.3 to 6V
Input Pins (IN1P/N, IN2P/N ,TCTRL, STBY, MUTE) ...................... -0.3V to V5V + 0.3V
Output Pins (VREF, STATUS, ROSC, TMON) ................................. -0.3V to V5V + 0.3V
Maximum Operating Junction Temperature................................................................ 150°C
Storage Temperature Range .......................................................................... -65°C to 150°C
Package Peak Temp. for Solder Reflow (40 seconds maximum exposure)....260°C (+0 -5)
Note: Exceeding these ratings could cause damage to the device. All voltages are with respect to
AVSS, except as noted. Currents are positive into, negative out of specified terminal
.
PACKAGE PIN OUT
WWW .
Microsemi
.
C OM
BOOT1N
BOOT1P
30
PVSS1N
PVSS1P
32
BOOT1N
BOOT1P
PVSS1N
PVSS1P
OUT1N
OUT1P
31
PVDD1
29
PVDD1
28
OUT1N
OUT1P
PVDD1
PVDD1
27
26
25
24
23
32
31
30
29
28
27
26
25
STBY
IN1P
IN1N
N.C.
N.C.
IN2N
IN2P
MUTE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TCTRL
TMON
AVSS2
ROSC
VREF
AVSS1
V5V
STATUS
STBY
IN1P
IN1N
N.C.
N.C.
IN2N
IN2P
MUTE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MSC
LX1708
XXXX
22
21
20
19
18
17
PVSS2P
OUT2P
BOOT2P
PVDD2
PVDD2
BOOT2N
OUT2N
PVSS2N
PVSS2P
OUT2P
BOOT2P
PVDD2
PVDD2
BOOT2N
OUT2N
PVSS2N
THERMAL DATA
XXXX =
date code /
lot code
Deleted:
LQ P
ACKAGE
(Top View)
LQ
Formatted:
Font: (Default) Arial, 9
pt
Deleted:
5mm
Deleted:
5mm
Deleted:
21.6
Plastic MLPQ 32-Pin
7mm
x
7mm
THERMAL RESISTANCE
-
JUNCTION TO
A
MBIENT
,
θ
JA
Pb-free 100% Matte Tin Pin Finish
15.5°C/W
Junction Temperature Calculation: T
J
= T
A
+ (P
D
x
θ
JA
).
The
θ
JA
numbers are guidelines for the thermal performance of the device/pc-board system. All of the
above assume no ambient airflow.
P
ACKAGE
D
ATA
P
ACKAGE
D
ATA
Deleted:
2007-03-20
Deleted:
2007-03-19
Copyright
©
2007
Rev. 1.3,
2007-04-05
Microsemi
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
Page 2
