Wide Band Medium Power Amplifier, 100MHz Min, 500MHz Max,
PA001005-28 Parametric
Parameter Name
Attribute value
Maker
Cobham Semiconductor Solutions
Reach Compliance Code
unknown
Characteristic impedance
50 Ω
structure
COAXIAL
Gain
25 dB
Maximum operating frequency
500 MHz
Minimum operating frequency
100 MHz
Maximum operating temperature
95 °C
Minimum operating temperature
-55 °C
RF/Microwave Device Types
WIDE BAND MEDIUM POWER
PA001005-28 Preview
Broadband Standard Product

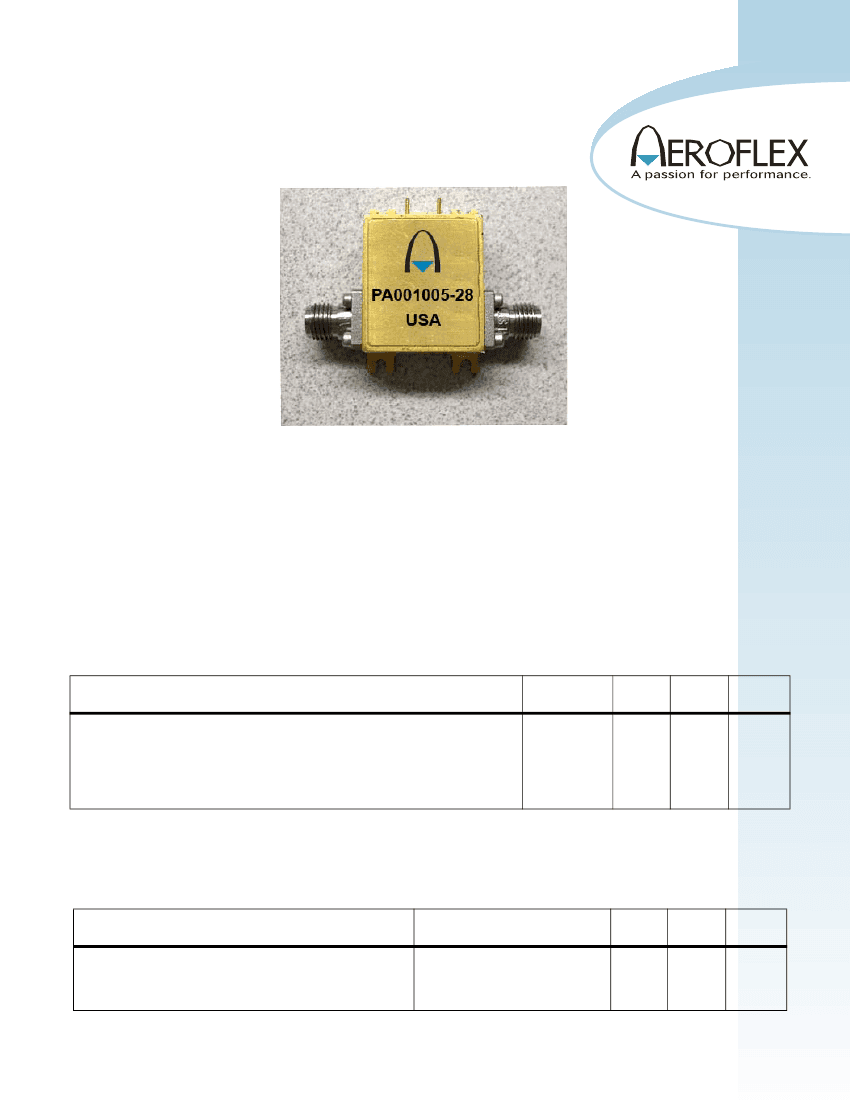

PA001005-28 GaN Medium Power Amplifier
100MHz to 500MHz
February 9, 2009
www.aeroflex.com/bband
DESCRIPTION
The PA001005-28 is a power amplifier in a compact package and is
ideal for use as a stable gain block, IF Amplifier or medium Power
Amplifier for commercial, military or space applications.
Our team of engineers can custom design power amplifiers using the
latest simulation software and proprietary technology to meet even
the most demanding specifications.
FEATURES
❑
❑
❑
❑
❑
❑
100MHz to 500MHz Frequency Range
P
1dB
> 28dBm
25dB typical Gain
Operates from a Single +12V Supply
Unconditionally Stable
Compact Size
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
1
PARAMETER
Operating Temperature – Case
Storage Temperature – Case
Positive Supply Voltage
SYMBOL
T
MO
T
MS
V
PS
MIN
-55
-65
-
MAX
+95
+125
+15
UNITS
°C
°C
V
1. Stresses above those listed under "Absolute Maximums Rating" may cause permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
NOMINAL OPERATING CONDITIONS
PARAMETER
Temperature, T
C
– Case
Positive Supply Voltage, V
PS
Aeroflex Plainview
SCD10046 Rev A
CONDITIONS
Full Range
MIN
-55
+11.75
MAX
+85
+12.5
UNITS
°C
V
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS @ +25°C
PARAMETER
Frequency Range
Power Output
Power Output Variation
Gain
Gain Flatness
RF Input Impedance
RF Output Impedance
OIP3
Positive Supply Voltage
Positive Supply Current
Reference to 50 ohms
Reference to 50 ohms
1dB Compression Point
Over Frequency
CONDITIONS
MIN
100
-
-1
-
-1.5
-
-
-
-
-
TYP
-
+28
-
25
-
1.6:1
1.7:1
+38
+12
275
MAX
500
-
+1
-
+1.5
-
-
-
-
-
UNIT
MHz
dBm
dBm
dB
dB
-
-
dBm
V
mA
TYPICAL INPUT RETURN LOSS
0
-10
dB
-20
-30
-40
0.1
0.2
0.3
Frequency (GHz)
0.4
0.5
SCD10046 Rev A 2/9/09
Aeroflex Plainview
2
TYPICAL OUTPUT RETURN LOSS
0
-5
-10
dB
-15
-20
-25
-30
0.1
0.2
0.3
Frequency (GHz)
0.4
0.5
TYPICAL GAIN
30
25
20
dB
15
10
5
0
0.1
0.2
0.3
Frequency (GHz)
0.4
0.5
SCD10046 Rev A 2/9/09
Aeroflex Plainview
3

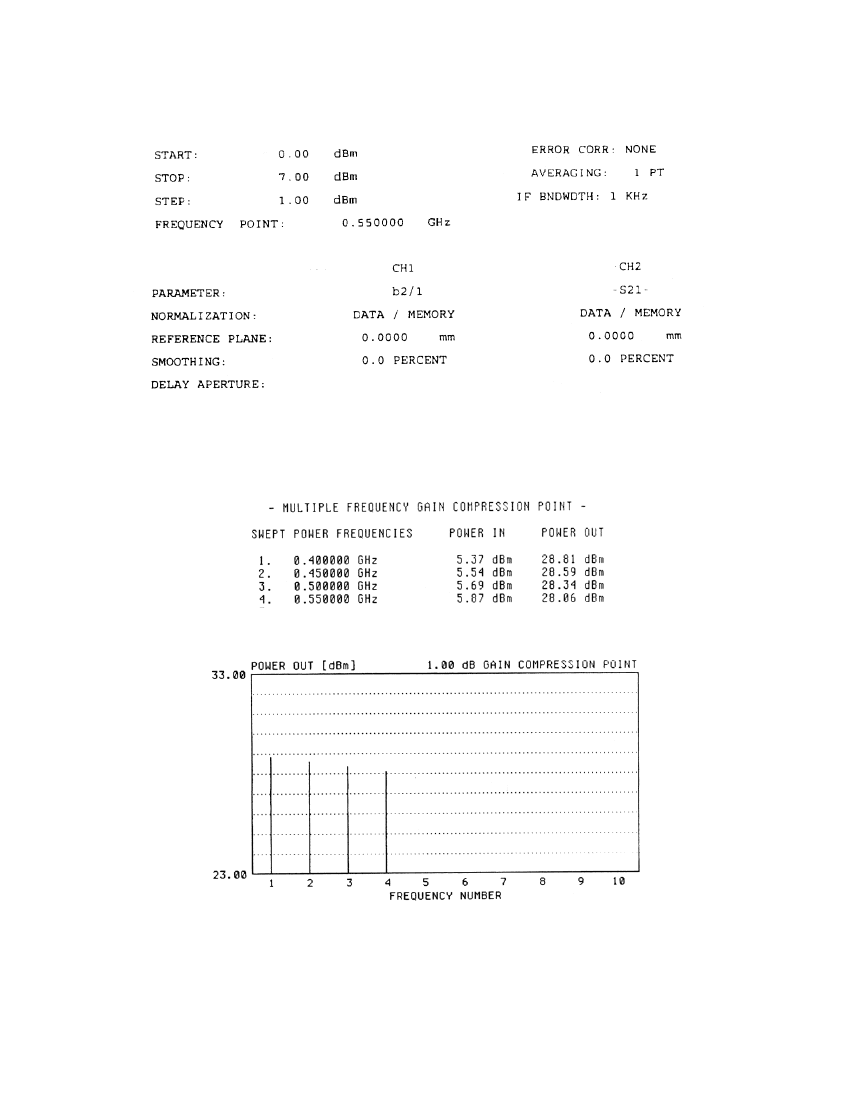

TYPICAL POWER P1dB
SCD10046 Rev A 2/9/09
Aeroflex Plainview
4

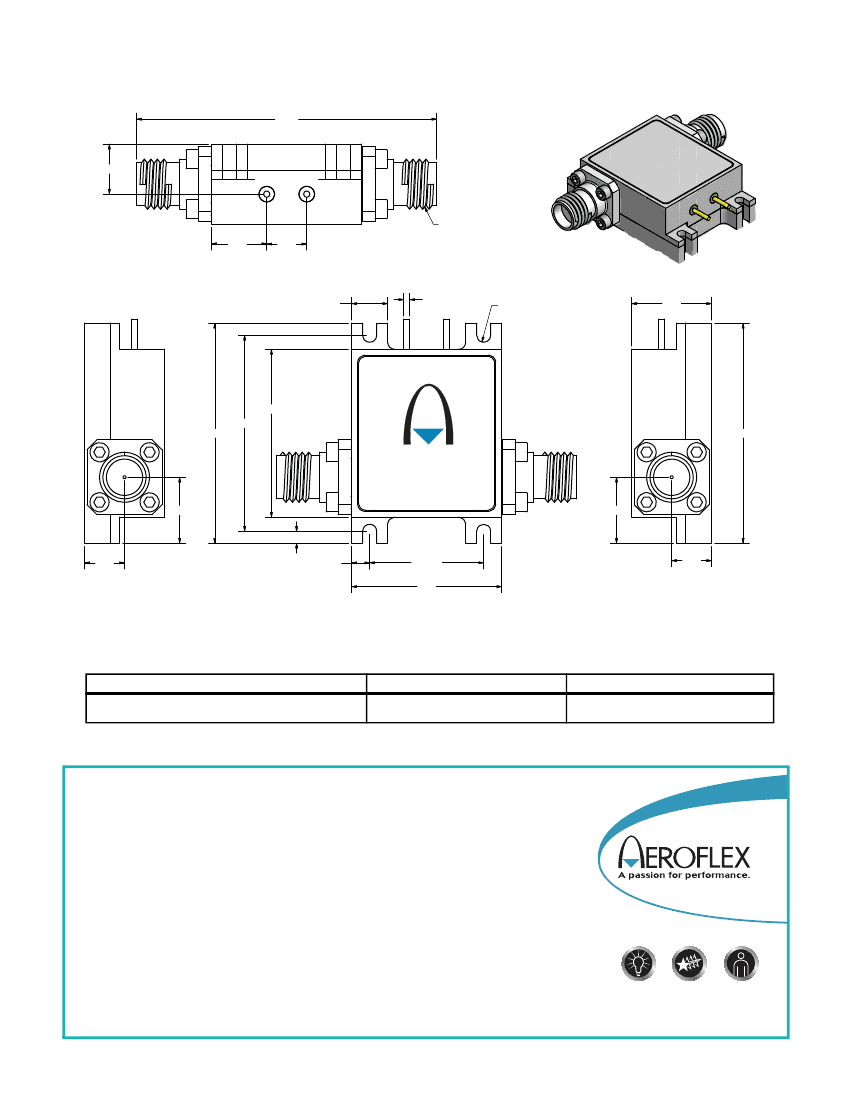

OUTLINE DRAWING
1.500
.250
.275
.200
SMA
CONNECTOR
BOTH SIDES
4X .180
2X Ø.030
4X R.035
.400
+12V
GND
.840
1.100
2X .980
1.100
RF
IN
.330
RF
OUT
.330
.200
2X .060
2X .090
2X .570
.750
.200
ORDERING INFORMATION
MODEL NUMBER
PA001005-28
HERMETICITY
Non-Hermetic
PACKAGE
.840''L x 0.750"W x 0.40''Ht
PLAINVIEW, NEW YORK
Toll Free: 800-THE-1553
Fax: 516-694-6715
SE AND MID-ATLANTIC
Tel: 321-951-4164
Fax: 321-951-4254
INTERNATIONAL
Tel: 805-778-9229
Fax: 805-778-1980
WEST COAST
Tel: 949-362-2260
Fax: 949-362-2266
NORTHEAST
Tel: 603-888-3975
Fax: 603-888-4585
CENTRAL
Tel: 719-594-8017
Fax: 719-594-8468
www.aeroflex.com
info-ams@aeroflex.com
Aeroflex Microelectronic Solutions reserves the right to
change at any time without notice the specifications, design,
function, or form of its products described herein. All
parameters must be validated for each customer's application
by engineering. No liability is assumed as a result of use of
this product. No patent licenses are implied.
SCD10046 Rev A 2-9-09
