PC10HT

Description
CAPACITOR, ELECTRIC DOUBLE LAYER
CategoryPassive components    capacitor
File Size1MB,5 Pages
ManufacturerMaxwell Technologies Inc.
Environmental Compliance
Download Datasheet Parametric View All

PC10HT Online Shopping

Suppliers Part Number Price MOQ In stock
PC10HT - - View Buy Now

PC10HT Overview

CAPACITOR, ELECTRIC DOUBLE LAYER

PC10HT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMaxwell Technologies Inc.
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance10000000 µF
Capacitor typeELECTRIC DOUBLE LAYER CAPACITOR
high29.6 mm
length23.6 mm
Manufacturer's serial numberPC10HT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package formRadial
Rated (DC) voltage (URdc)2.2 V
seriesPC10
size code9319
Terminal pitch5.1 mm
width4.8 mm

PC10HT Preview

DATASHEET

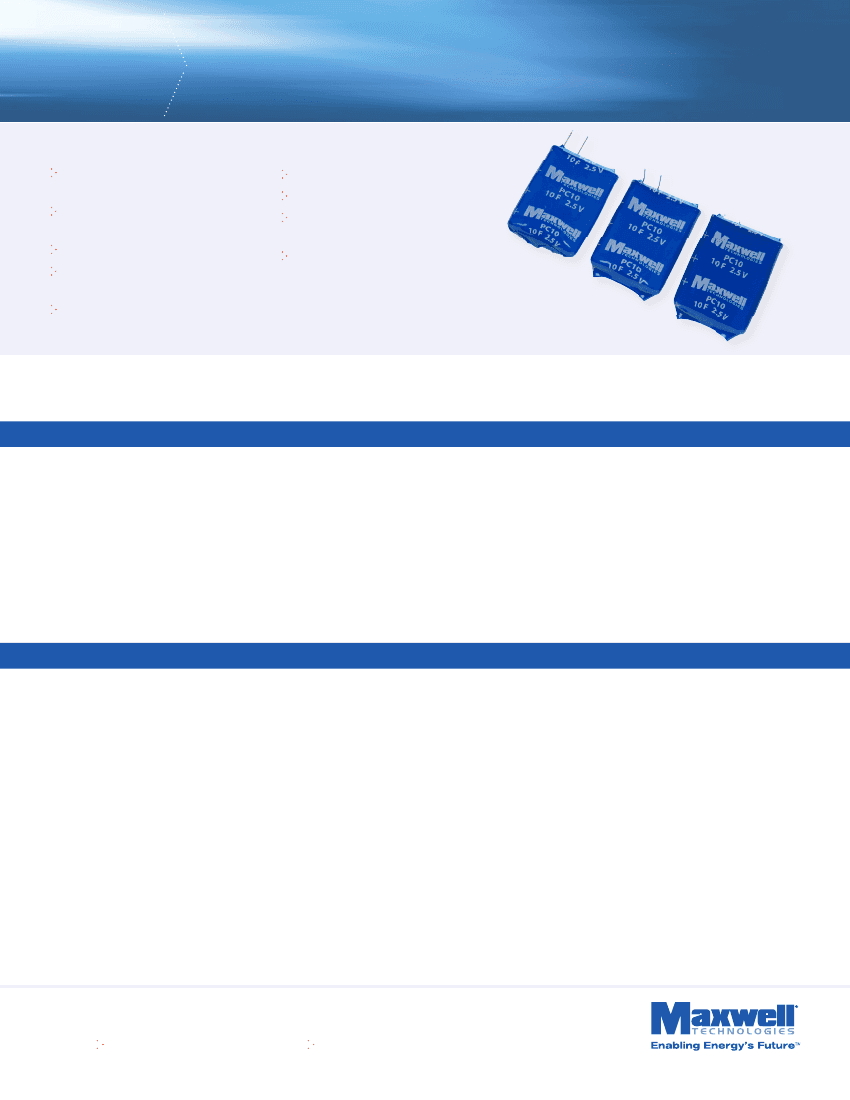

PC SERIES ULTRACAPACITORS
FEATURES AND BENEFITS
Up to 500,000 duty cycles
with 10 year life capability
Hermetically sealed, stainless
steel construction
Low profile prismatic design
Higher energy vs electrolytic
capacitors
Higher power vs batteries
TYPICAL APPLICATIONS
Automotive subsystems
Smart Meter
Back up power for SSD and
NV-DIMM
Consumer electronics
PRODUCT SPECIFICATIONS
ELECTRICAL
Rated Capacitance
1
Minimum Capacitance, Initial
1
Maximum Capacitance, Initial
1
Maximum ESR
DC,
initial
1
Test Current for Capacitance and ESR
DC1
Rated Voltage
Absolute Maximum Voltage
3
Absolute Maximum Current
Leakage Current at 25°C, maximum
4
PC10, PC10-90, PC10-270
10 F
9F
12 F
180 mΩ
1A
2.50 V
2.70 V
2.80 A
0.040 mA
PC10HT, PC10HT-90, PC10HT-270
10 F
9F
12 F
180 mΩ
1A
2.20 V
2.70 V
2.40 A
0.040 mA
TEMPERATURE
Operating temperature range
(Cell case temperature)
Minimum
Maximum
Storage temperature range
(Stored uncharged)
-40
o
C
70
o
C
-40
o
C
85
o
C
Minimum
Maximum
-40
o
C
85
o
C
-40
o
C
85
o
C
Page 1
Document number: 1003996.14
maxwell.com
DATASHEET
PC SERIES ULTRACAPACITORS
PRODUCT SPECIFICATIONS (Cont’d)
PHYSICAL
Mass, typical
Terminals
Vibration Specification
Shock Specification
6.3 g
Wire Leads
ISO16750, Table 14
-
PC10, PC10-90, PC10-270
660 W/kg
1,400 W/kg
1.4 Wh/kg
0.009 Wh
6.3 g
Wire Leads
ISO16750, Table 14
-
PC10HT, PC10HT-90, PC10HT-270
510 W/kg
1,100 W/kg
1.1 Wh/kg
0.007 Wh
POWER AND ENERGY
Usable Specific Power, P
d5
Impedance Match Specific Power, P
max6
Specific Energy, E
max7
Stored Energy
8, 11
SAFETY
Short Circuit Current, typical
Certifications
(Current possible with short circuit from rated voltage. Do not
use as an operating current.)
14 A
UL810a, RoHS
12 A
UL810a, RoHS
Page 2
Document number: 1003996.14
maxwell.com
DATASHEET
PC SERIES ULTRACAPACITORS
TYPICAL CHARACTERISTICS
THERMAL CHARACTERISTICS
Thermal Resistance
(Rth, Case to Ambient), typical
2
Thermal Capacitance (C
th
), typical
2
Maximum Continuous Current (∆T = 15 °C)
2
Maximum Continuous Current (∆T = 40 °C)
2
PC10, PC10-90, PC10-270
15
o
C/W
3.6 J/
o
C
2.4 A
RMS
3.8 A
RMS
PC10HT, PC10HT-90, PC10HT-270
15
o
C/W
3.6 J/
o
C
2.4 A
RMS
3.8 A
RMS
LIFE
DC Life at High Temperature
1
Capacitance Change
ESR Change
(held continuously at Rated Voltage and Maximum Operating
Temperature)
(% decrease from minimum initial value)
(% increase from maximum initial value)
3,000 hours
20%
100%
10 years
20%
100%
500,000 cycles
20%
100%
1.0 A
4 years
1,000 hours
20%
100%
10 years
20%
100%
500,000 cycles
20%
100%
1.0 A
4 years
Projected DC Life at 25°C
1
Capacitance Change
ESR Change
(% decrease from minimum initial value)
(% increase from maximum initial value)
Cycle Life
1,9
Capacitance Change
ESR Change
(% decrease from minimum initial value)
(% increase from maximum initial value)
Test Current
Shelf Life
(Stored uncharged at 25°C)

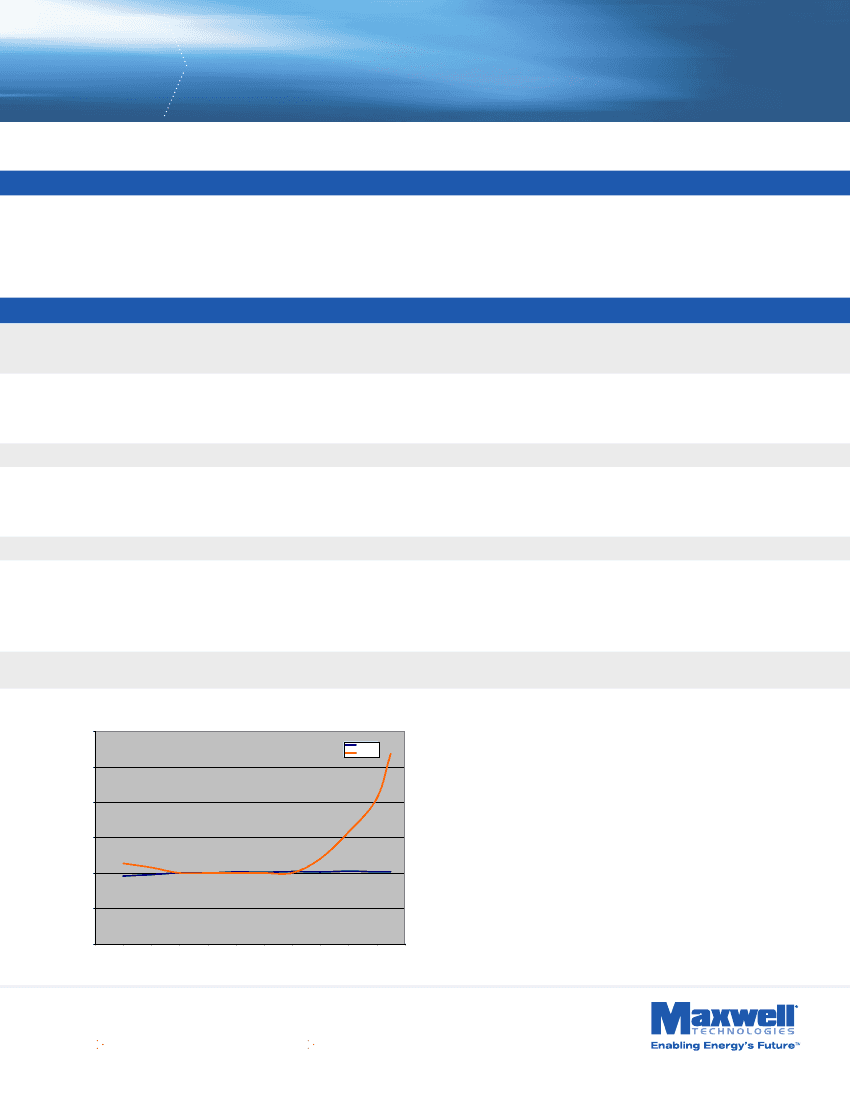

ESR AND CAPACITANCE VS TEMPERATURE
PC-10 HT Temperature Response Plot
140%
Cap
DC ESR
130%
Percentage Change from Value at 20°C
120%
110%
100%
90%
80%
-20
-10
0
10
20
30
40
50
60
70
80
90
Temperature (°C)
Page 3
Document number: 1003996.14
maxwell.com
DATASHEET
PC SERIES ULTRACAPACITORS
NOTES

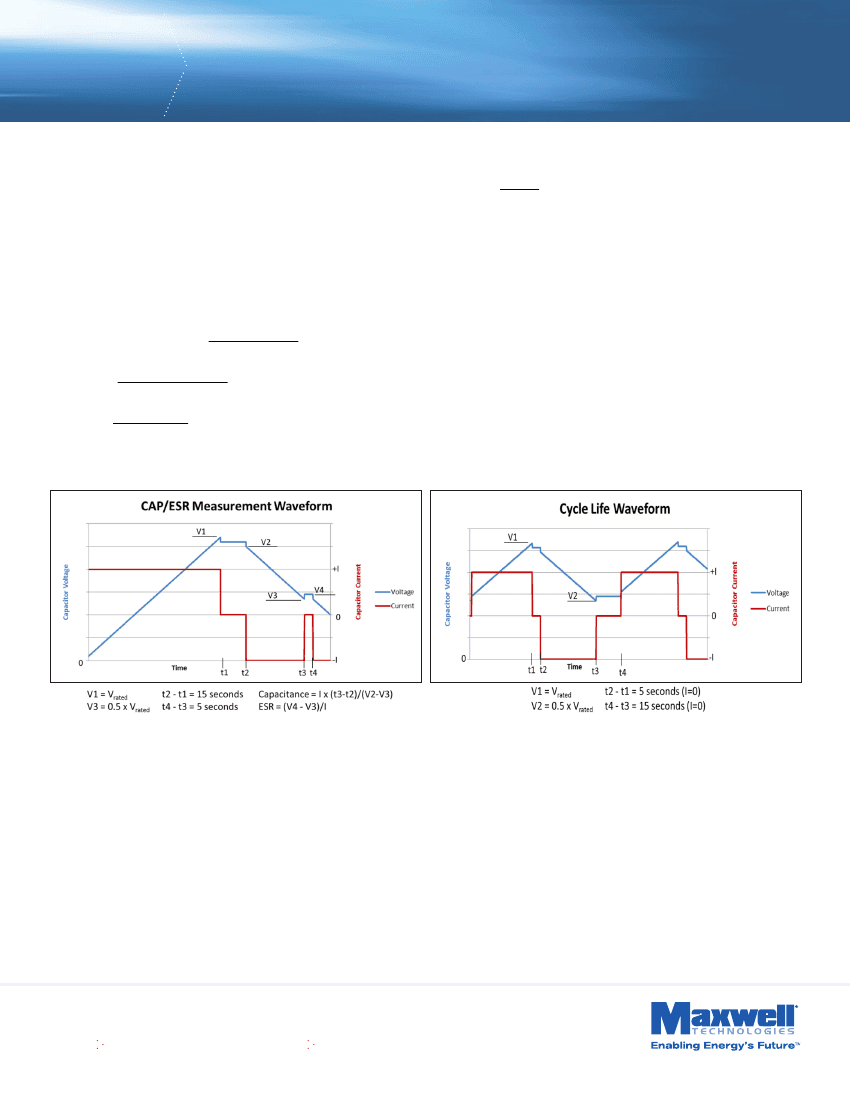

1. Capacitance and ESR
DC
measured at 25°C using specified
test current per waveform below.
2. ∆T=I
RMS2
x ESR x R
th
3. Absolute maximum voltage, non-repeated. Not to exceed 1
second.
4. After 72 hours (208 hours - BCAP3400) at rated voltage.
Initial leakage current can be higher.
5. Per IEC 62391-2, P
d
=
6. P
max
=
0.12V
2
ESR
DC
x mass
½ CV
2
8. E
stored
=
3,600
9. Cycle using specified test current per waveform below.
10. Cycle life varies depending upon application-specific
characteristics. Actual results will vary.
11. Per United Nations material classification UN3499, all
Maxwell ultracapacitors have less than 10 Wh capacity
to meet the requirements of Special Provisions 361. Both
individual ultracapacitors and modules composed of those
ultracapacitors shipped by Maxwell can be transported
without being treated as dangerous goods (hazardous
materials) under transportation regulations.
V
2
4 x ESR
DC
x mass
½ CV
2
7. E
max
=
3,600 x mass
MOUNTING RECOMMENDATIONS
Do not reverse polarity. Please refer to document
number 1008238, available at maxwell.com for soldering
recommendations.
MARKINGS
Products are marked with the following information:
Rated capacitance, rated voltage, product number, name of
manufacturer, and positive terminal.
Page 4
Document number: 1003996.14
maxwell.com
DATASHEET

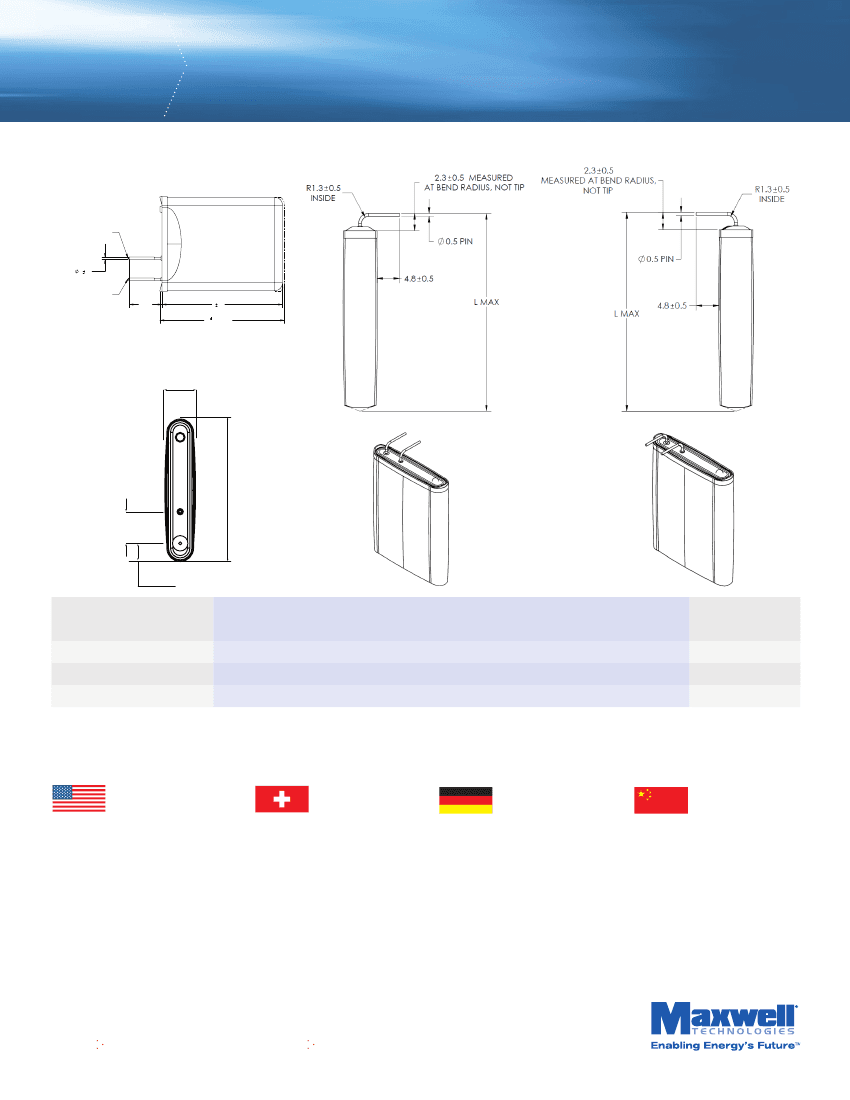

PC SERIES ULTRACAPACITORS
PC10, PC10HT
PC10-90, PC10HT-90
PC10-270, PC10HT-270
(-) NEGATIVE TERMINAL
d 0.5
(+) POSITIVE TERMINAL
8 MIN
L 0.5
L 3.5 MAX
BODY+SHRINK
T ± 0.2
p ± .5
3.1 ± .5
W ± 0.3
Part Description
PC10, PC10HT
PC10-90, PC10HT-90
PC10-270, PC10HT-270
L (mm)
29.6
35.9
35.9
W (mm)
23.6
23.6
23.6
Dimensions (mm)
T (mm)
4.8
4.8
4.8
d (mm)
0.5
0.5
0.5
p (mm)
5.1
5.1
5.1
Package Quantity
2,000
2,000
2,000
Product dimensions are for reference only unless otherwise identified. Product dimensions and specifications may change without notice.
Please contact Maxwell Technologies directly for any technical specifications critical to application. All products featured on this datasheet are covered by the
following U.S. patents and their respective foreign counterparts: 6585152, 6643119, 6842330, 7116545, 7295423, 7342770, 7352558, 7384433, 7407520, 7492571,
7508651, 7791860, 7791861, 7883553, 7935155, 8072734, 8279580, and patents pending.
Maxwell Technologies, Inc.
Global Headquarters
3888 Calle Fortunada
San Diego, CA 92123
USA
Tel: +1 858 503 3300
Fax: +1 858 503 3301
Maxwell Technologies SA
Route de Montena 65
CH-1728 Rossens
Switzerland
Tel: +41 (0)26 411 85 00
Fax: +41 (0)26 411 85 05
Maxwell Technologies, GmbH
Leopoldstrasse 244
80807 München
Germany
Tel: +49 (0)89 / 4161403 0
Fax: +49 (0)89 / 4161403 99
Maxwell Technologies
Shanghai Trading Co. Ltd.
Unit A2BC, 12th Floor
500 Zhangyang Road, Pudong
Shanghai 200122, P.R. China
Tel: +86 21 3852 4000
Fax: +86 21 3852 4099
MAXWELL TECHNOLOGIES, MAXWELL, MAXWELL CERTIFIED INTEGRATOR, ENABLING ENERGY’S FUTURE, BOOSTCAP, C CELL, D CELL and their respective
designs and/or logos are either trademarks or registered trademarks of Maxwell Technologies, Inc. and may not be copied, imitated or used, in whole
or in part, without the prior written permission from Maxwell Technologies, Inc. All contents copyright © 2013 Maxwell Technologies, Inc. All rights
reserved. No portion of these materials may be reproduced in any form, or by any means, without prior written permission from Maxwell Technologies,
Inc.
maxwell.com
Page 5
Document number: 1003996.14
maxwell.com
