AIC1527
Quad USB High-Side Power Switch
n
FEATURES
•
110mΩ (5V Input) High-Side MOSFET Switch.
l
500mA Continuous Load Current per Channel.
l
220µA Typical On-State Supply Current.
l
1µA Typical Off-State Supply Current.
l
Current-Limit / Short Circuit Protection.
l
Thermal Shutdown Protection under Overcurrent
Condition.
l
Undervoltage Lockout Ensures that Switch is off at
Start Up.
l
Output can be Forced Higher than Input (Off-State).
l
Open-Drain Fault Flag.
l
Slow Turn ON and Fast Turn OFF.
l
Enable Active-High or Active-Low.
n
DESCRIPTION
The AIC1527 is a quad high-side power switch for
self-powered and bus-powered Universal Serial
Bus (USB) applications. One high-side switch is a
MOSFET with 110mΩ R
DS(ON)
, which meets USB
voltage drop requirements for maximum
transmission wire length.
n
APPLICATIONS
•
USB Power Management.
l
l
Multi-purpose open-drain fault flag output
indicates over-current limiting, thermal shutdown,
or undervoltage lockout for each channel. Output
current is typically limited to 1A, well below the 5A
safety requirement, and the thermal shutdown
function independently controls each channel
under overcurrent condition.
Hot Plug-In Power Supplies.
Battery-Charger Circuit.
Guaranteed minimum output rise time limits
inrush current during hot plug-in, minimizing EMI
and preventing the voltage at upstream port from
dropping excessively.
n

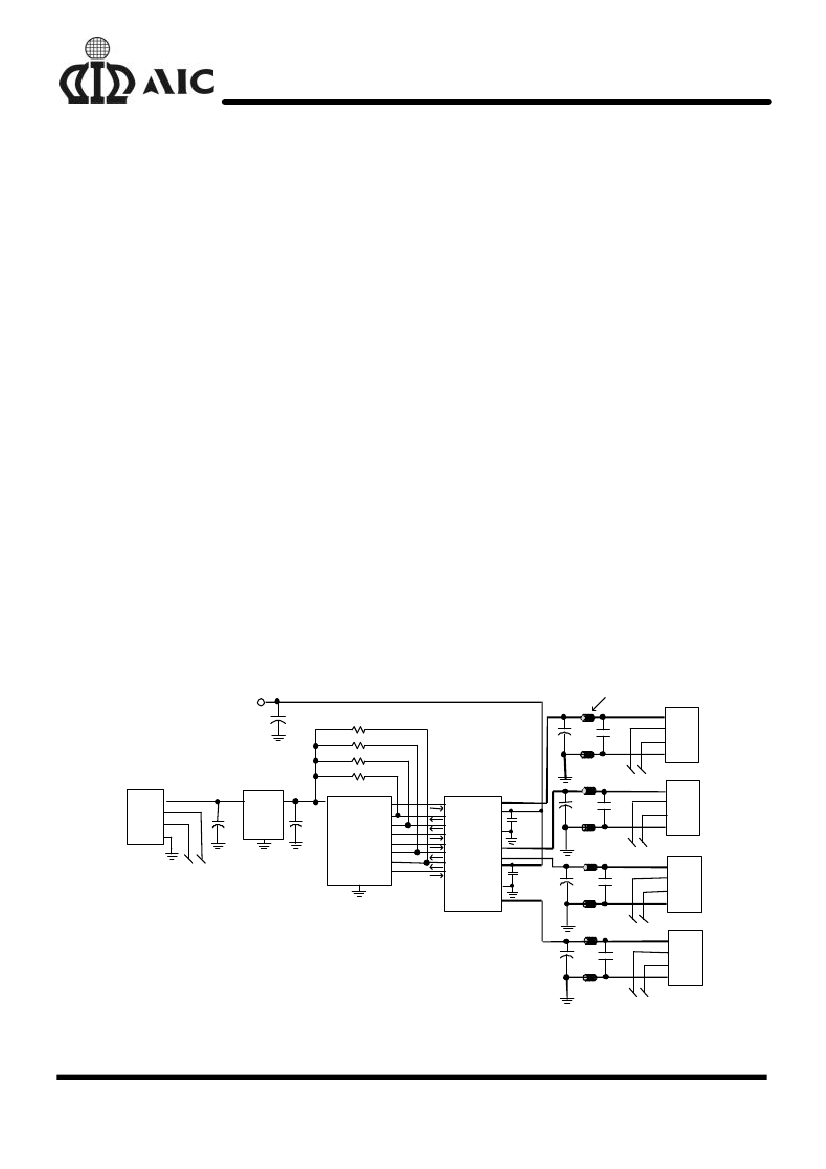

TYPICAL APPLICATION CIRCUIT
VCC
5.0V
Ferrite
Bead
+
33
µ
F
VBUS
D+
0
.
01
µ
F
D-
GND
DATA
10K
10K
+
33
µ
F
*
4.50V to 5.25V
Upstream VBUS
100mA max
VBUS
D+
D-
GND
+
1
µ
F
C
IN
10K
10K
AIC
17
22
1
7
IN
OUT
US B Con tr oller
+
VIN
ON/OFF
OVERCURRENT
OVERCURRENT
ON/OFF
ON/OFF
OVERCURRENT
OVERCURRENT
ON/OFF
GND
AI
I
C
1
527
A C 52
OUTA
CTLA
FLGA IN(A/B)
FLGB
GND1
CTLB
CTLA OUTB
FLGA
OUTA
FLGB IN(A/B)
CTLB
GND
1
OUTB
0.1
µ
F
+
33
µ
F
VBUS
D+
0
.
01
µ
F
D-
GND
DATA
GND
10
µ
F
C
OUT
*
DATA
0.1
µ
F
VBUS
+
33
µ
F
D+
0
.
01
µF
D-
GND
DATA
*
*
33
µ
F, 16V Tantalum, or
100
µ
F, 10V Electrolytic
Bold line indicate high- current traces
+
33
µ
F
VBUS
D+
0
.
01
µ
F
D-
GND
DATA
*
4-Port Self-Powered Hub
Analog Integrations Corporation
4F, 9, Industry E. 9th Rd, Science Based Industrial Park, Hsinchu Taiwan, ROC
DS-1527-00
May 31, 00
TEL: 886-3-5772500
FAX: 886-3-5772510
www.analog.com.tw
1
AIC1527
n
ORDERING INFORMATION
AIC1527- XXX
PACKAGE TYPE
N: PLASTIC DIP
S: SMALL OUTLINE
TEMPERATURE RANGE
C:0
°
C~+70
°
C
CONTROL POLARITY
0: ACTIVE LOW
1: ACTIVE HIGH
AIC1527-0CS
AIC1527-1CS
(PLASTIC SO)
ORDER NUMBER
AIC1527-0CN
AIC1527-1CN
(PLASTIC DIP)
PIN CONFIGURATION
TOP VIEW
CTLA 1
FLGA 2
FLGB 3
CTLB 4
CTLC
5
FLGC 6
FLGD 7
CTLD
8
16 OUTA
15 IN(A/B)
)
14 GND
13 OUTB
12 OUTC
11 IN(C/D)
10 GND
9 OUTD
n
ABSOLUTE MAXIMUM RATINGS
Supply Voltage (V
IN
)
.........................… … … … ............................… … … … .......… … ...........
7.0V
Fault Flag Voltage (V
FLG
)
........................................................… … … … .… … … … … ..........
7.0V
Fault Flag Current (I
FLG
)
...................… … … … … … .......................… … … .......................
50mA
Control Input (V
CTL
)
.............................… … … … ....................… … … … … ........… .
-0.3V ~15V
.....… … … … … ...… … ..… … … ....… … … .................
-20°C~80°C
.......… … … … … … … ............................… … … .......
-65°C ~ 150°C
Operating Temperature Range
Storage Temperature Range
n
TEST CIRCUIT
10K
+5V
ON
CTLA
OF F
FLGA
FLGB
CTLB
CTLC
FLGC
CTLD
FLGD
OUTA
IN
(
A/B
)
0.1
µ
F
GND
OUTB
OUTC
IN
(
C/D
)
GND
OUTD
10
Ω
AIC1527
(For output reference only)
DS-1527-00
May 31, 00
2
AIC1527
n
ELECTRICAL CHARACTERISTICS
(V
specified.)
PARAMETERS
Supply Current
Control Input Voltage
IN
=
5V, Ta=25°C, unless otherwise
CONDITIONS
V
CTL
=Logic “0” , OUT=Open
V
CTL
=Logic “1” , OUT=Open
V
CTL
=Logic “0”
V
CTL
=Logic “1”
MIN.
TYP.
1.50
220
MAX.
10
320
0.8
UNIT
µA
V
2.4
0.01
0.01
1
110
150
1
1
pF
mΩ
µS
2500
20
20
10
0.6
1.0
135
125
10
15
0.01
2.6
2.4
25
40
1
µA
V
Ω
1.25
µS
µS
µS
µA
A
°C
µA
Control Input Current
V
CTL
=Logic “0”
V
CTL
=Logic “1”
Control Input Capacitance
Output MOSFET Resistance
Output Turn-On Rise Delay
Output Turn-On Rise Time
Output Turn-Off Delay
Output Turn-Off Fall Time
Output Leakage Current
Current Limit Threshold
Overtemperature Shutdown
Threshold
Error Flag Output Resistance
Error Flag Off Current
UVLO Threshold
T
J
Increasing
T
J
Decreasing
V
IN
= 5V , I
L
=10 mA
V
IN
= 3.3V , I
L
=10mA
V
FLG
= 5V
V
IN
Increasing
V
IN
Decreasing
R
L
= 10Ω each Output
R
L
= 10Ω each Output
R
L
= 10Ω each Output
R
L
= 10Ω each Output
100
1000
0.8
0.7
DS-1527-00
May 31, 00
3

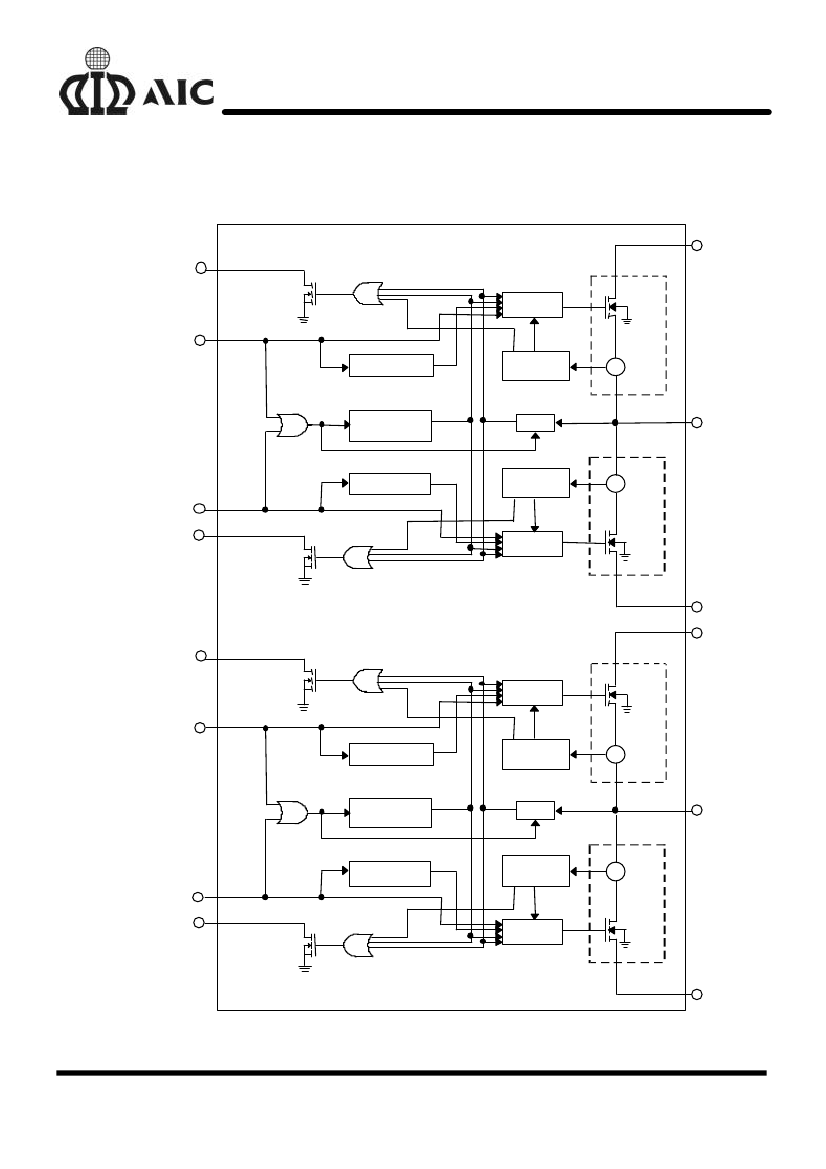

AIC1527
n

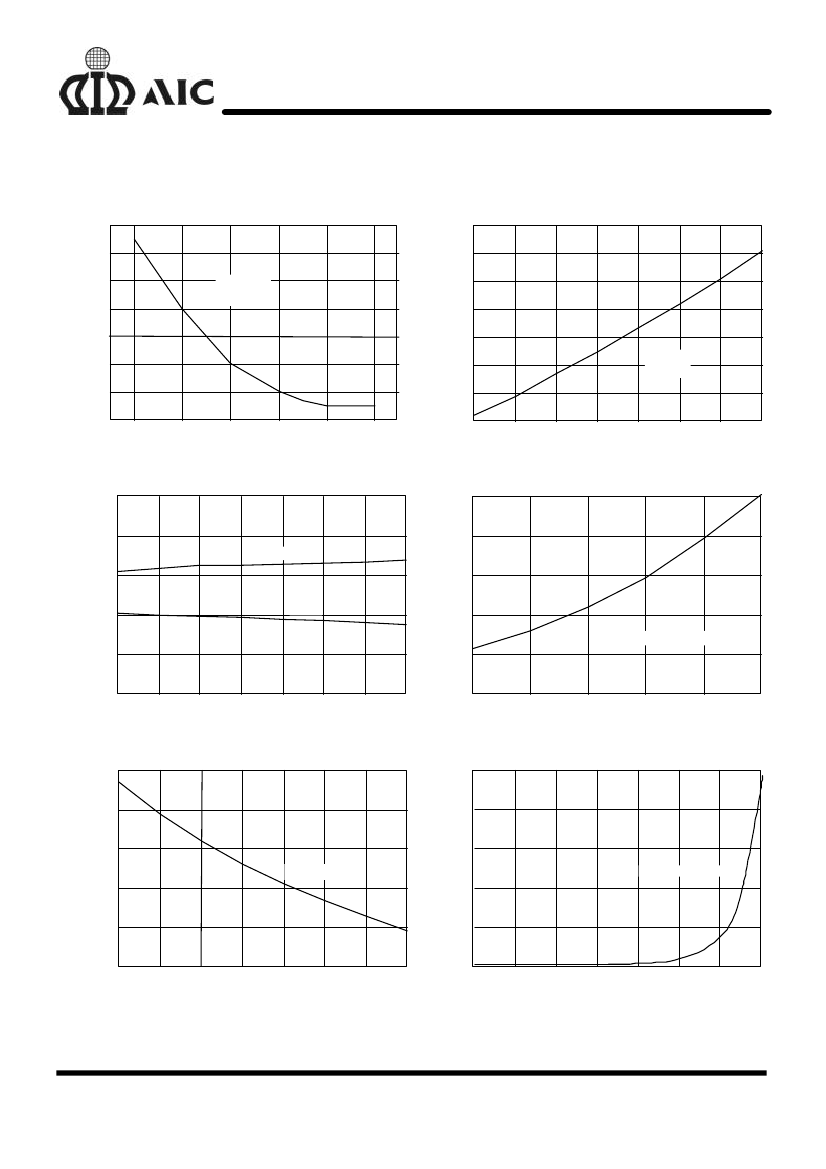

TYPICAL
118
116
PERFORMANCE CHARACTERISTICS
Output On Resistance vs. Temperature
150
140
ON Resistance vs. Supply Voltage
ON Resistance (mΩ)
114
112
110
108
106
104
3.0
3.5
R
L
=47
Ω
T=25
°
C
ON Resistance (mΩ)
130
120
110
100
90
R
L
=47Ω
V
IN
=5V
4.0
4.5
5.0
5.5
80
-40
-20
0
Supply Voltage (V)
Temperature (
°
C
)
20
40
60
80
100
UVLO Threshold Voltage vs. Temperature
3.0
320
ON State Supply Current vs. Supply Voltage
2.8
280
Threshold Voltage (V)
Rising
2.6
Supply Current (µA)
240
2.4
Falling
200
Both Switches ON
160
2.2
2.0
-40
-20
0
Temperature (
°
C
)
20
40
60
80
100
120
3
4
5
6
7
8
Supply Voltage (V)
ON State Supply Current vs. Temperature
260
OFF State Current vs. Temperature
0.20
240
0.16
Supply Current (µA)
Supply Current (µA)
220
0.12
All Switches OFF
0.08
All Switches ON
200
180
0.04
160
-40
-20
0
Temperature (
°
C
)
20
40
60
80
100
0
-40
-20
0
Temperature (
°
C
)
20
40
60
80
100
DS-1527-00
May 31, 00
5
