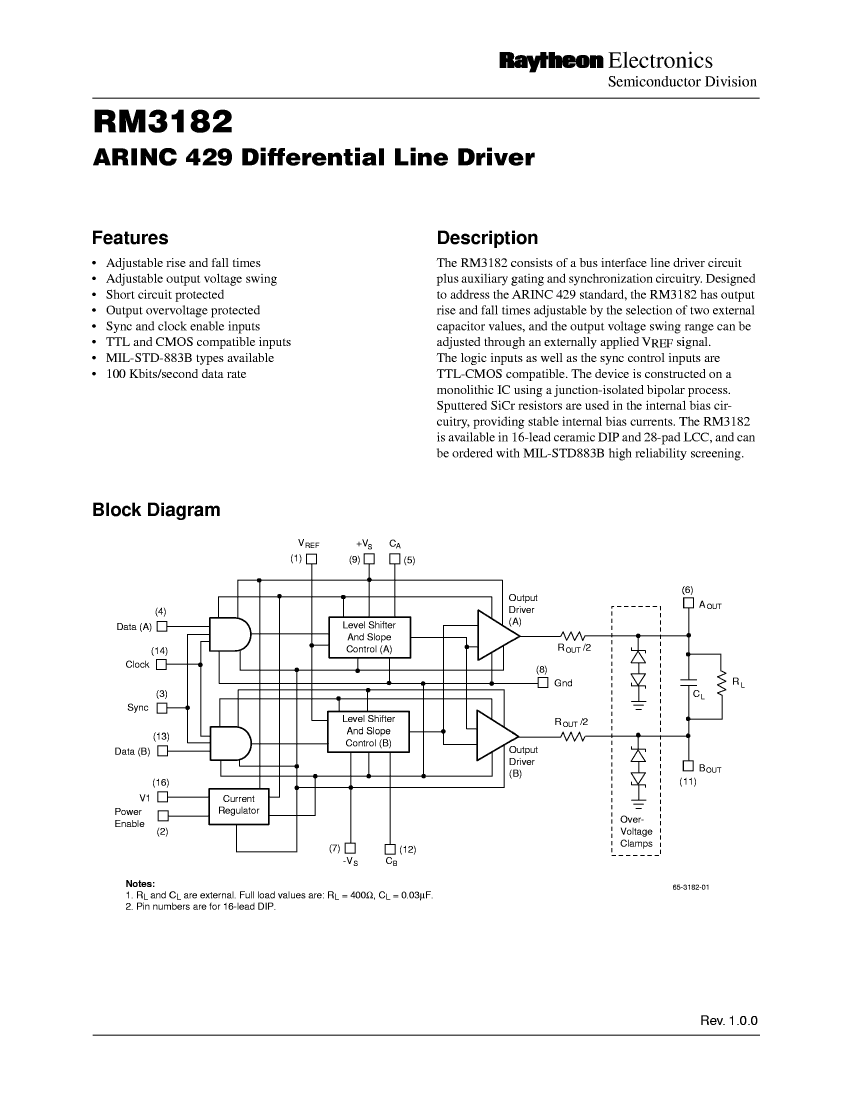

Line Driver, 2 Func, 1 Driver, BIPolar, CQCC28, PAD, LCC-28

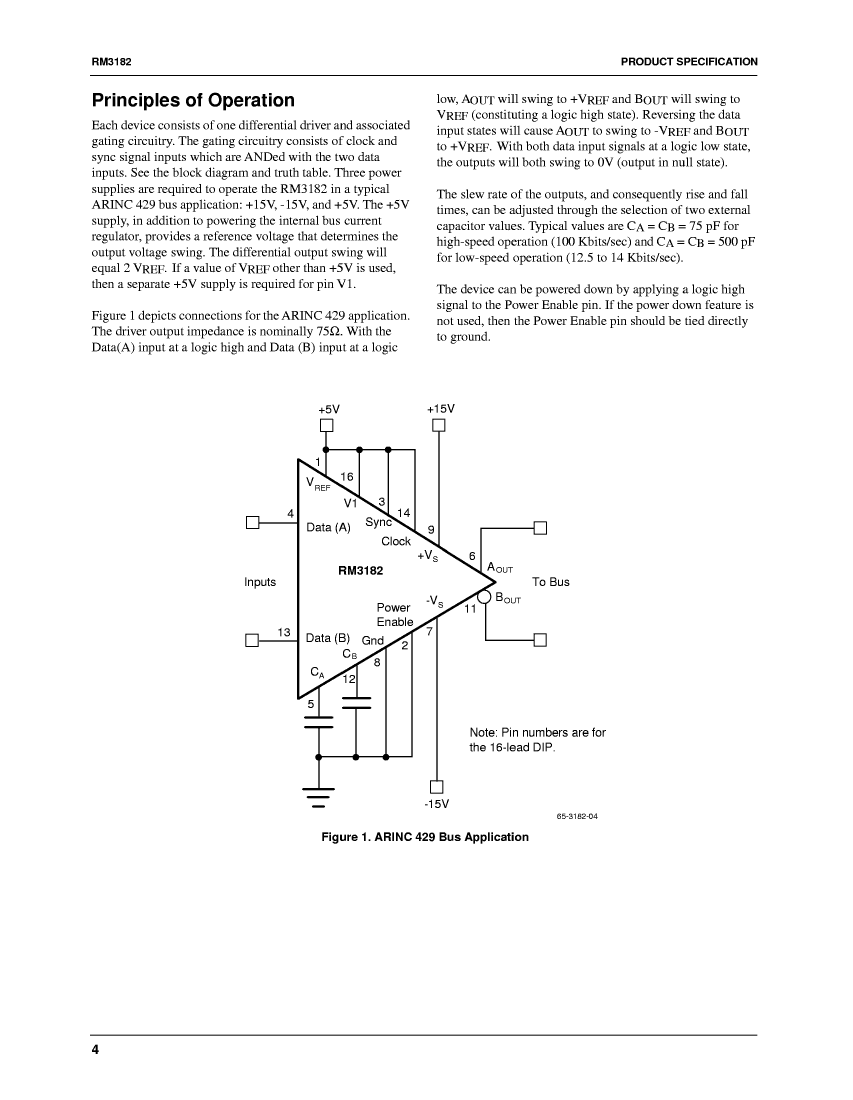

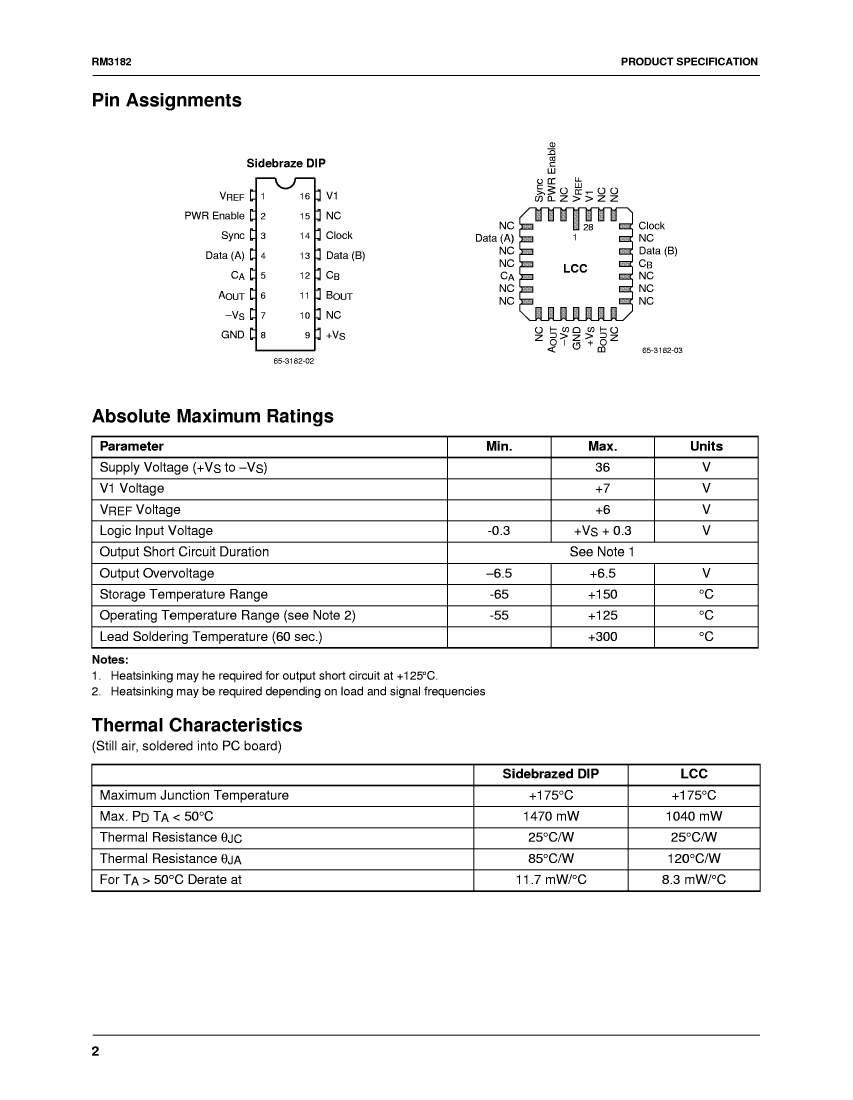

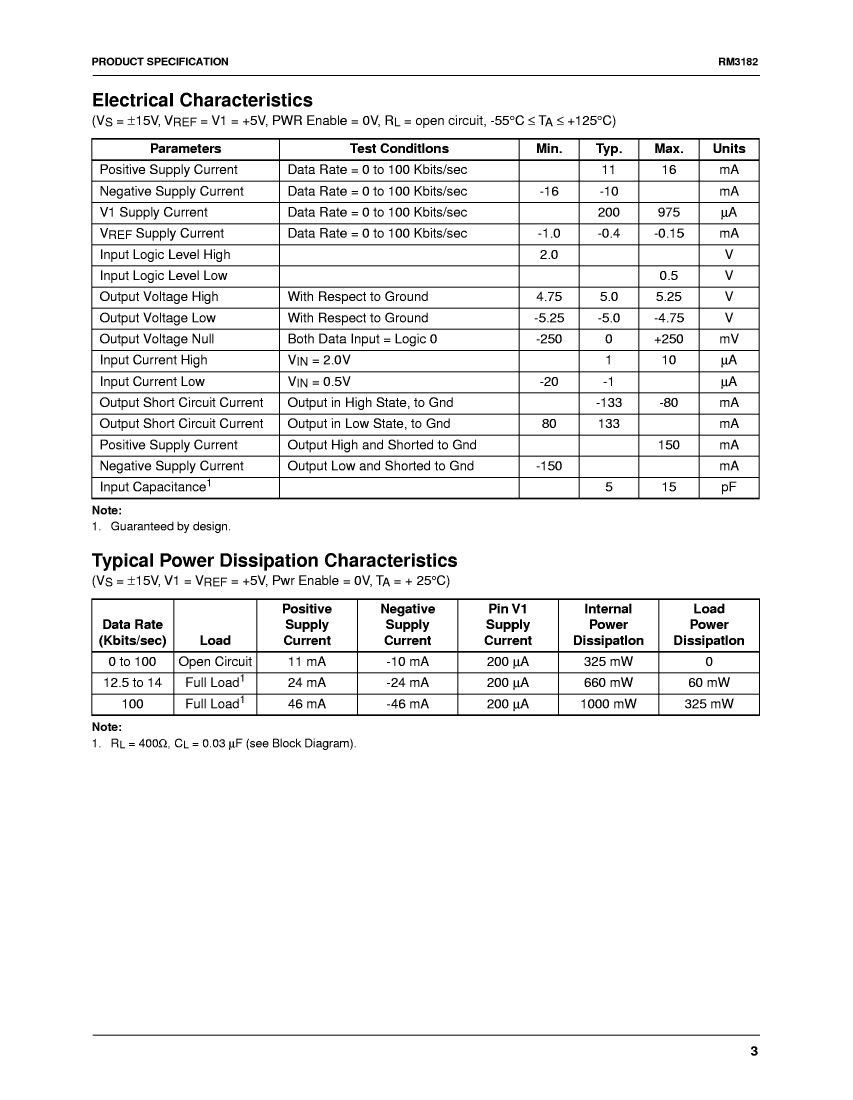

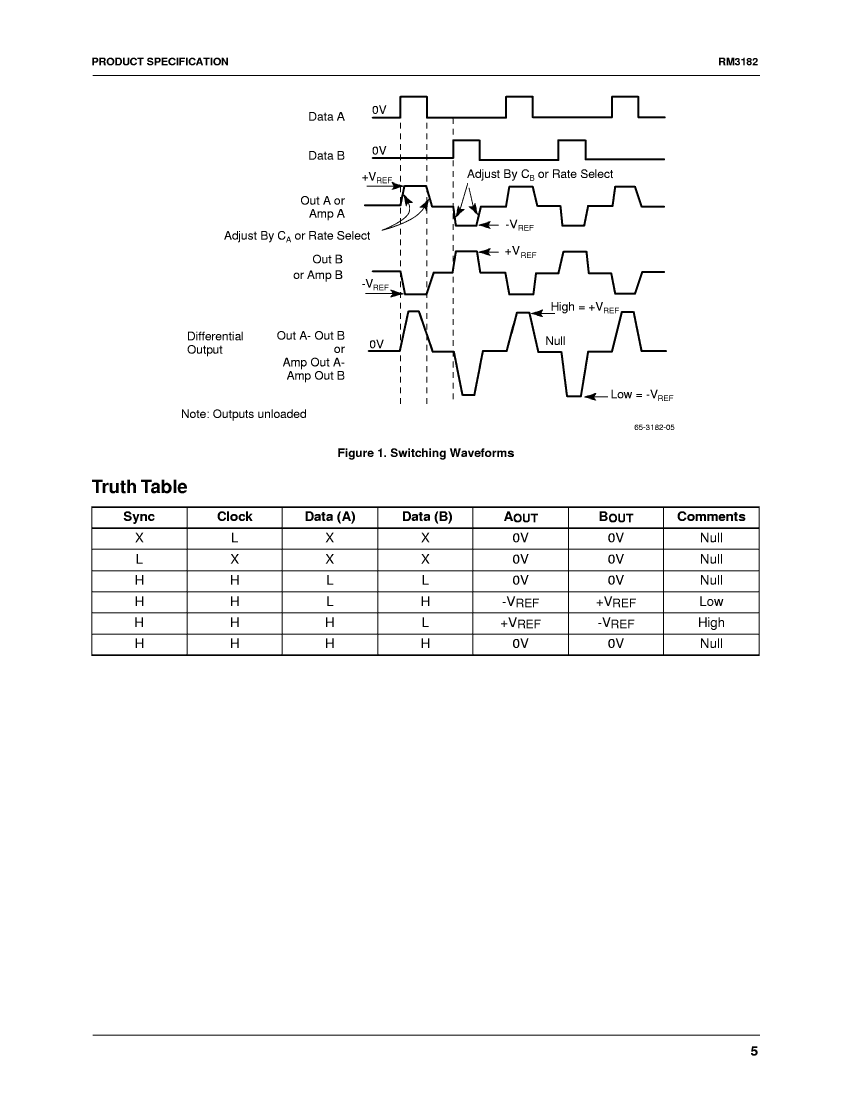

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| package instruction | PAD, LCC-28 |
| Reach Compliance Code | unknown |
| Differential output | YES |
| Number of drives | 1 |
| High level input current maximum value | 0.00001 A |
| Input properties | DIFFERENTIAL |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | ARINC 429 |
| JESD-30 code | S-CQCC-N28 |
| JESD-609 code | e0 |
| Nominal negative supply voltage | -15 V |
| Number of functions | 2 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Minimum output swing | 9.5 V |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC28,.45SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5,+-15 V |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Filter level | MIL-STD-883 Class B |
| Nominal supply voltage | 5 V |
| Supply voltage1-Nom | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| maximum transmission delay | 10000 ns |
| RM3182L/883B | RM3182AL/883B | RM3182AS/883B | RM3182S/883B | RM3182L | RM3182S | |
|---|---|---|---|---|---|---|
| Description | Line Driver, 2 Func, 1 Driver, BIPolar, CQCC28, PAD, LCC-28 | Line Driver/Receiver, 1 Driver, BIPolar, CQCC28, | Line Driver/Receiver, 1 Driver, BIPolar, CDIP16, | Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, CERAMIC, DIP-16 | Line Driver, 2 Func, 1 Driver, BIPolar, CQCC28, PAD, LCC-28 | Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, CERAMIC, DIP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Differential output | YES | YES | YES | YES | YES | YES |
| Number of drives | 1 | 1 | 1 | 1 | 1 | 1 |
| High level input current maximum value | 0.00001 A | 0.000001 A | 0.000001 A | 0.00001 A | 0.00001 A | 0.00001 A |
| JESD-30 code | S-CQCC-N28 | S-XQCC-N28 | R-XDIP-T16 | R-CDIP-T16 | S-CQCC-N28 | R-CDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of terminals | 28 | 28 | 16 | 16 | 28 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Minimum output swing | 9.5 V | 9.5 V | 9.5 V | 9.5 V | 9.5 V | 9.5 V |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC | CERAMIC | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | QCCN | DIP | DIP | QCCN | DIP |
| Encapsulate equivalent code | LCC28,.45SQ | LCC28,.45SQ | DIP16,.3 | DIP16,.3 | LCC28,.45SQ | DIP16,.3 |
| Package shape | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE |
| power supply | 5,+-15 V | 5,+-15 V | 5,+-15 V | 5,+-15 V | 5,+-15 V | 5,+-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 Class B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | MIL-STD-883 Class B | MIL-STD-883 Class B | MIL-STD-883 Class B |
| surface mount | YES | YES | NO | NO | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | DUAL | DUAL | QUAD | DUAL |
| maximum transmission delay | 10000 ns | 10000 ns | 10000 ns | 10000 ns | 10000 ns | 10000 ns |
| package instruction | PAD, LCC-28 | - | - | CERAMIC, DIP-16 | PAD, LCC-28 | CERAMIC, DIP-16 |
| Input properties | DIFFERENTIAL | - | - | DIFFERENTIAL | DIFFERENTIAL | DIFFERENTIAL |
| Interface integrated circuit type | LINE DRIVER | - | - | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | ARINC 429 | - | - | ARINC 429 | ARINC 429 | ARINC 429 |
| Nominal negative supply voltage | -15 V | - | - | -15 V | -15 V | -15 V |
| Number of functions | 2 | - | - | 2 | 2 | 2 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal supply voltage | 5 V | - | - | 5 V | 5 V | 5 V |
| Supply voltage1-Nom | 15 V | - | - | 15 V | 15 V | 15 V |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
