HV51-100T-44.736MHZ datasheet, PDF

HV51-100T-44.736MHZ: DescriptionHCMOS Output Clock Oscillator, 44.736MHz Nom, WELDED, HERMETICALLY SEALED, METAL, DIP-4; CategoryPassive components oscillator; File Size70KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

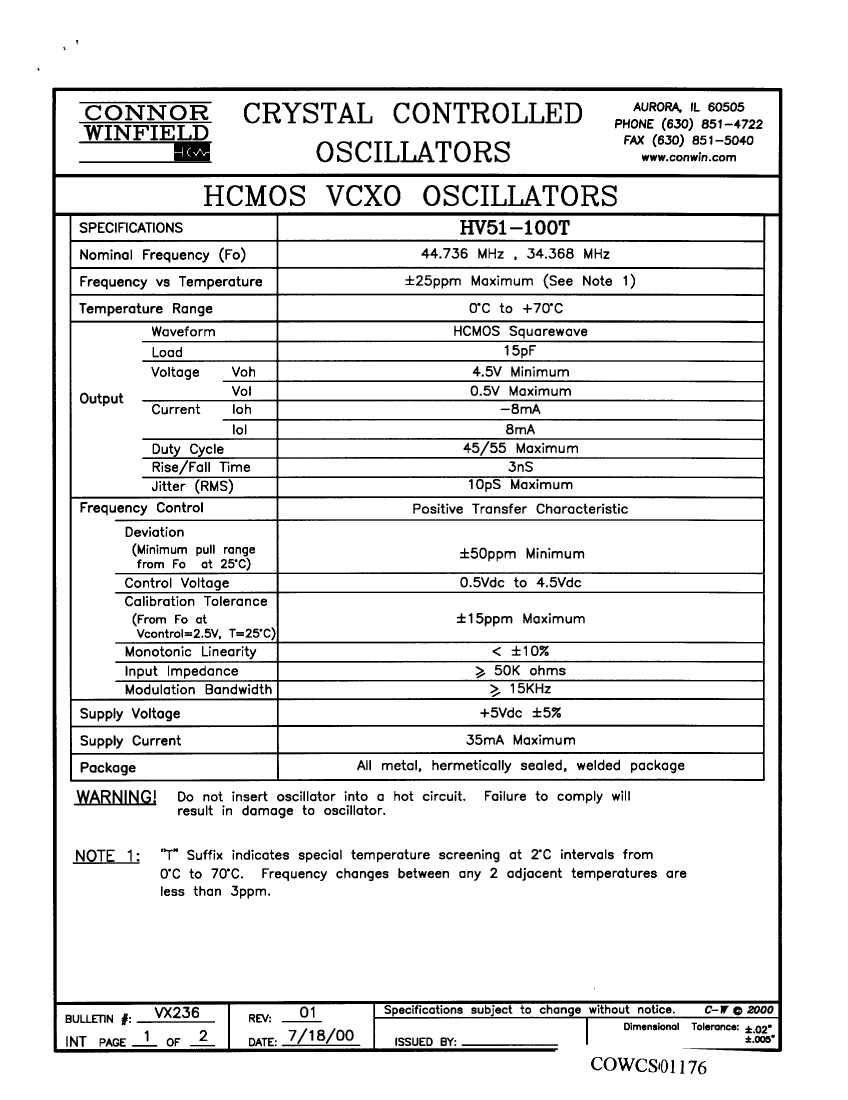

HV51-100T-44.736MHZ Overview

HCMOS Output Clock Oscillator, 44.736MHz Nom, WELDED, HERMETICALLY SEALED, METAL, DIP-4

Parameter Name	Attribute value
Maker	Connor-Winfield
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
linearity	10%
Manufacturer's serial number	HV51-100T
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	44.736 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF

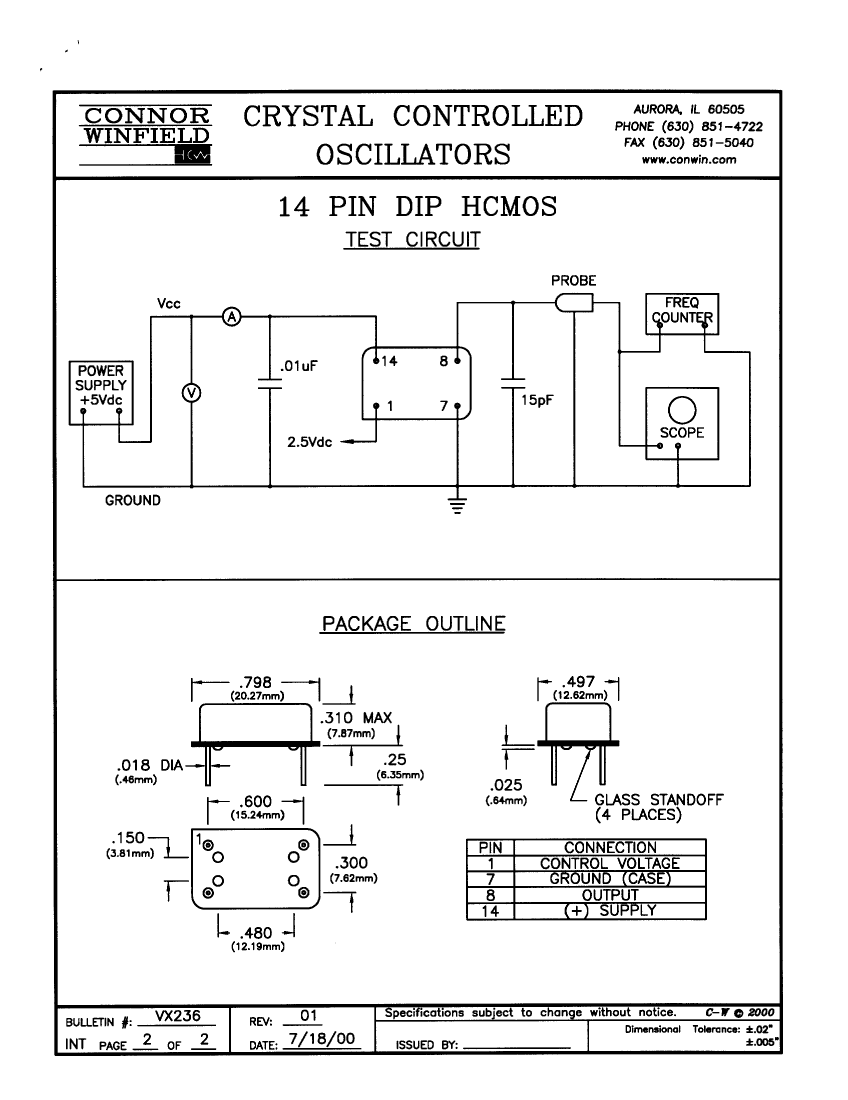

physical size	20.27mm x 12.62mm x 7.87mm
longest rise time	3 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %

	HV51-100T-44.736MHZ	HV51-100T-34.368MHZ
Description	HCMOS Output Clock Oscillator, 44.736MHz Nom, WELDED, HERMETICALLY SEALED, METAL, DIP-4	HCMOS Output Clock Oscillator, 34.368MHz Nom, WELDED, HERMETICALLY SEALED, METAL, DIP-4
Maker	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
maximum descent time	3 ns	3 ns
Frequency Adjustment - Mechanical	NO	NO
Frequency offset/pull rate	50 ppm	50 ppm
frequency stability	25%	25%
linearity	10%	10%
Manufacturer's serial number	HV51-100T	HV51-100T
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	44.736 MHz	34.368 MHz
Maximum operating temperature	70 °C	70 °C
Oscillator type	HCMOS	HCMOS
Output load	15 pF	15 pF
physical size	20.27mm x 12.62mm x 7.87mm	20.27mm x 12.62mm x 7.87mm
longest rise time	3 ns	3 ns
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
maximum symmetry	45/55 %	45/55 %
