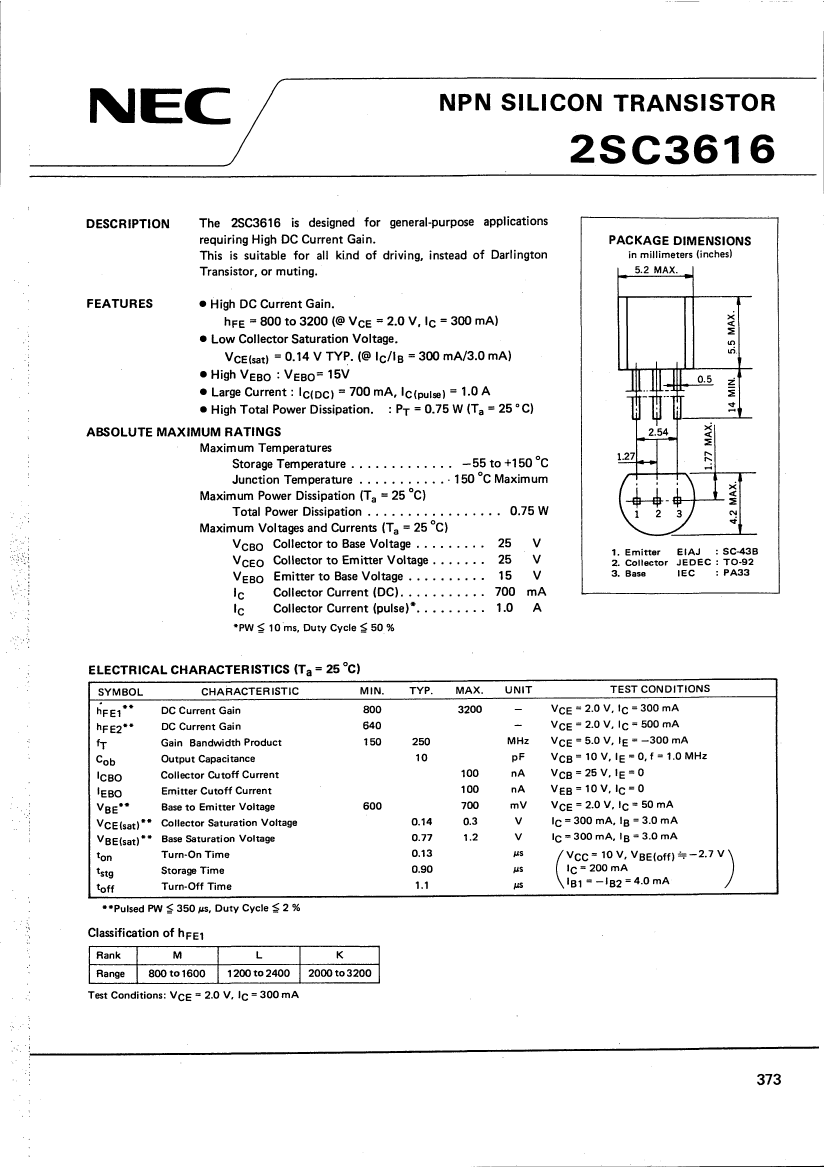

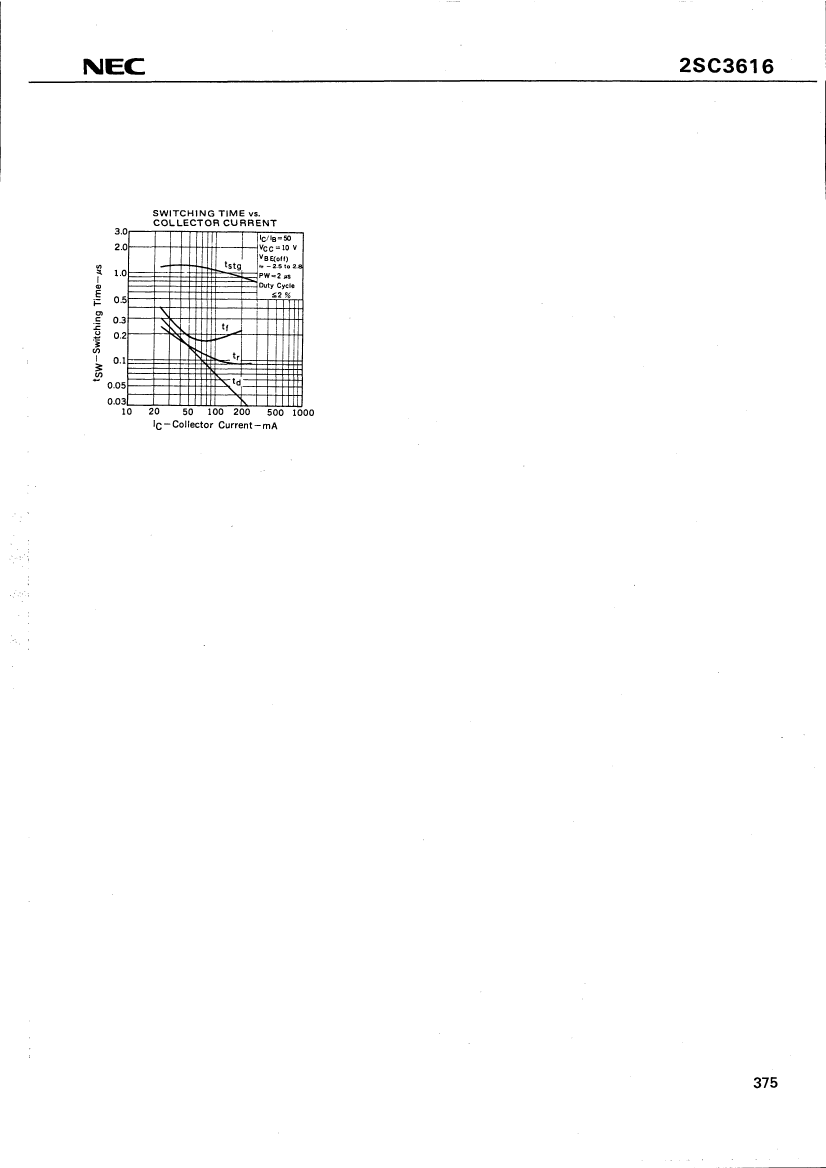

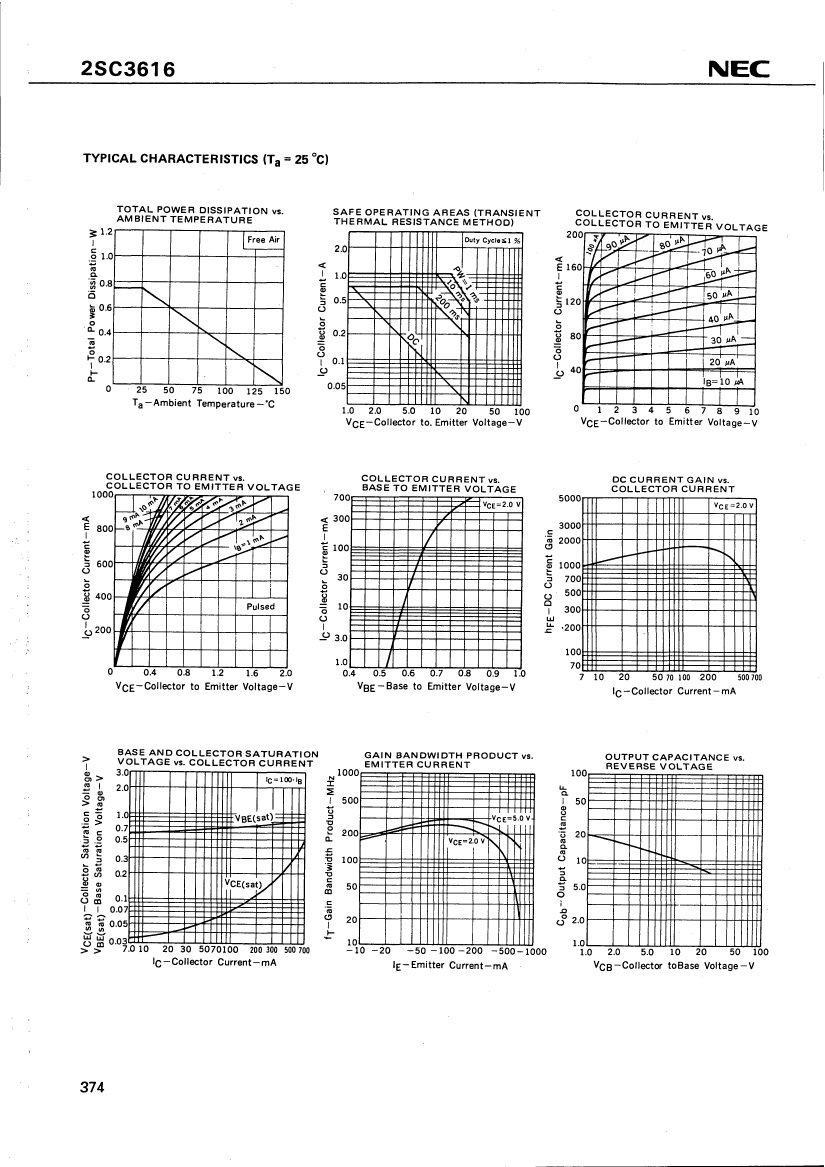

700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | TO-92 |
| package instruction | SC-43B, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.7 A |
| Collector-emitter maximum voltage | 25 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 640 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | 260 |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 250 MHz |
| Base Number Matches | 1 |
| 2SC3616-AZ | 2SC3616-K | 2SC3616-L | 2SC3616-M | 2SC3616 | |
|---|---|---|---|---|---|
| Description | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43B, 3 PIN |
| Is it Rohs certified? | conform to | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
| package instruction | SC-43B, 3 PIN | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | SC-43B, 3 PIN |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compli | unknow | unknow | unknow | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A |
| Collector-emitter maximum voltage | 25 V | 25 V | 25 V | 25 V | 25 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 640 | 2000 | 1200 | 800 | 640 |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
| JESD-30 code | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | 260 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it lead-free? | Lead free | Contains lead | Contains lead | Contains lead | - |
| JESD-609 code | - | e0 | e0 | e0 | e0 |
| Maximum operating temperature | - | 150 °C | 150 °C | 150 °C | - |
| Maximum power dissipation(Abs) | - | 0.75 W | 0.75 W | 0.75 W | - |
| Terminal surface | - | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
