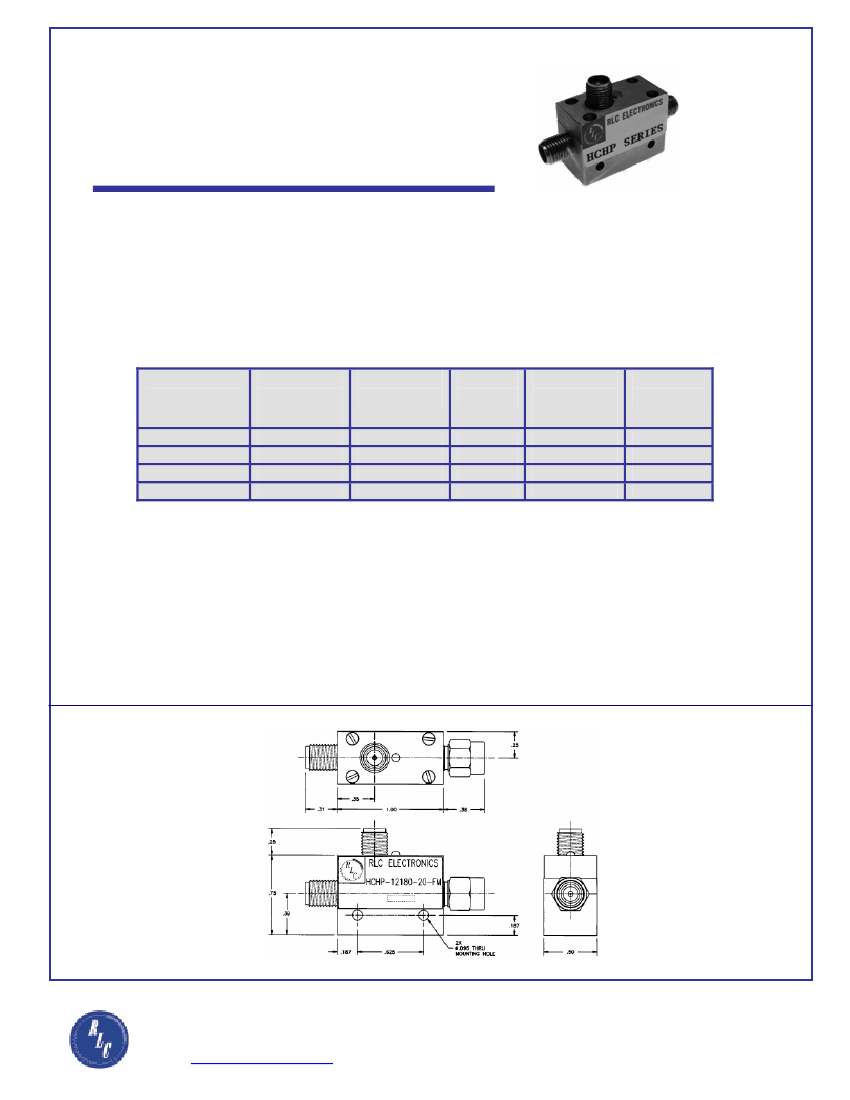

High Frequency High
Power Directional
Couplers
RLC Electronics’ high frequency high power
directional couplers offer accurate coupling, low
insertion loss and high directivity in a compact
package. The standard units are optimized for
four different frequency ranges and are available
with a choice of coupling values. These units are
ideal for sampling or injecting signals with a
negligible effect on the transmission line. They
can be easily modified for different coupling
responses or frequency ranges.
Specifications
HCHP-12180
-1-2,
HCHP-18265
-1-2,
HCHP-26540
-1-2
, HCHP-1840
-1-2
Model
Number
HCHP-12180-
HCHP-18265-
HCHP-26540-
HCHP-1840-
Frequency
Range
(GHz)
12-18
18-26.5
26.5-40
18-40
Directivity
(Min)
15dB
13dB
11dB
11dB
VSWR
(Max)
1.5:1
1.5:1
1.8:1
1.9:1
Insertion
Loss
(Max)
0.3dB
0.5dB
0.7dB
0.7dB
Power
AV
100W
80W
60W
60W
Impedance
:
50 ohms
Coupling
(nominal): 20 or 30dB
Accuracy
(including frequency variation):
+/- 1.0dB
Connectors:
‘SMA’ up to 26.5 GHz “K” compatible
above 26.5 GHz Main line-male or female
Secondary line-female
To designate the coupler desired use:
(1) Coupling value 20 or 30dB
(2) Main line connectors (input/output)
MM (male/male), FF (female/female)
MF (male/female), FM (female/male)
Example
:
HCHP-12180-20-FM is a 12-18GHz, 20dB coupler with ‘SMA’
female/male connectors (input/output) on the main line
OUTLINE DRAWING
Specifications subject to change without notification.
Tolerances unless otherwise specified are .xx +/- .02, xxx +/- .005
Specials requiring closer tolerances, different frequency ranges, special connectors
different materials, finishes, etc. can be furnished upon request.
RLC ELECTRONICS, INC.
83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753
e-mail:
sales@rlcelectronics.com
www.rlcelectronics.com
