TKJL3S25B35MPB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TKJL3S25B35MPB

TKJL3S25B35MPB: DescriptionMIL Series Connector, 128 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size111KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

TKJL3S25B35MPB Overview

MIL Series Connector, 128 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

TKJL3S25B35MPB Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	TKJL3
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	25
Termination type	CRIMP
Total number of contacts	128

Preview

Download Datasheet

View All

MIL-DTL-38999 Series I Filter Connectors

Special In-line Cable Filter Adapters

TKJL

Filter adapters are designed to be engaged between connectors in an existing circuit to provide

instant filtering without having to rewire. They are environmentally sealed and have pin con-

tacts in the plug end and socket contacts in the end that mates with the receptacle. The filter

is concentric around the central pin-socket contact. Electrical and operating characteristics are

the same as in the standard TKJ file connectors.

These adapters will mate with all MIL-DTL-38999 connectors having like contact arrangements.

For proper performance both the mating receptacle and panel must have a conductive finish.

Please contact Customer Service for dimensions.

Flange mounted in-line connectors, similar to MS27662, are also available. They are environ-

mentally sealed and use the same filters as in regular TKJ receptacles. Design permits engag-

ing cable plugs to both ends.

Contact Customer Service for proper nomenclature and availability of the in-line cable adapters

and in-line flange mounted TKJ connectors.

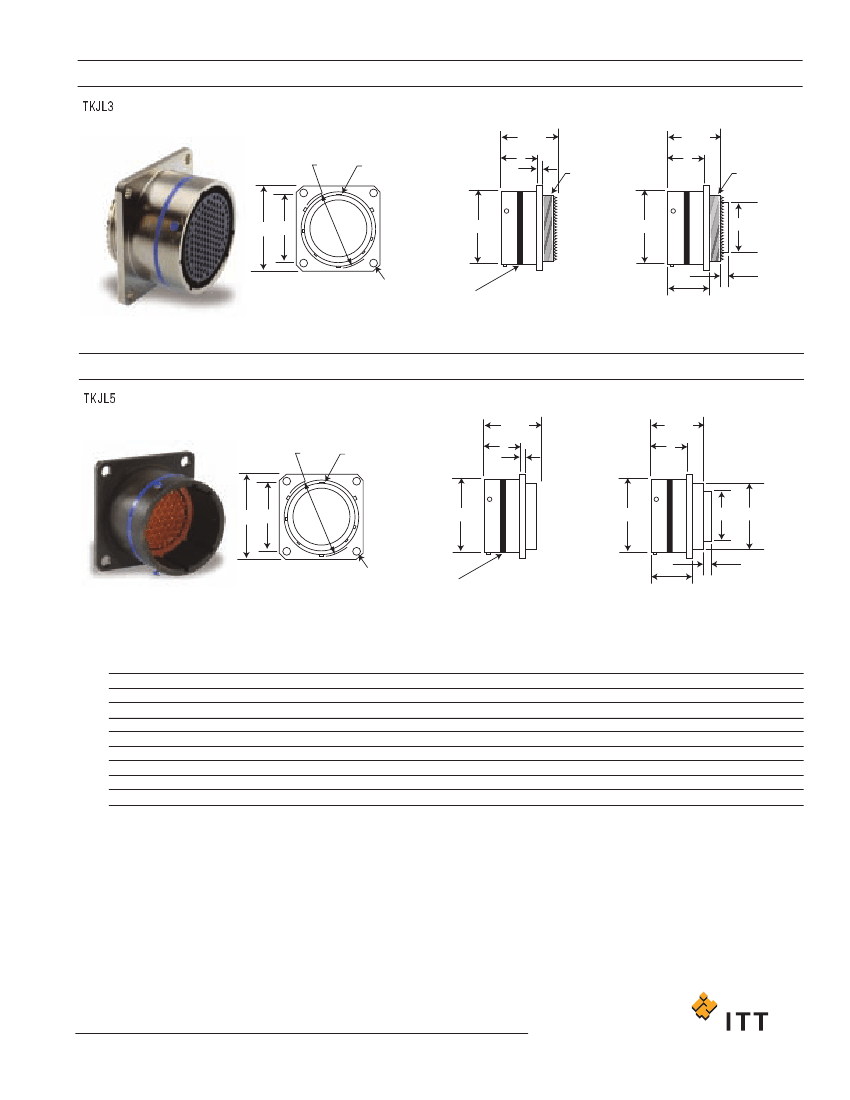

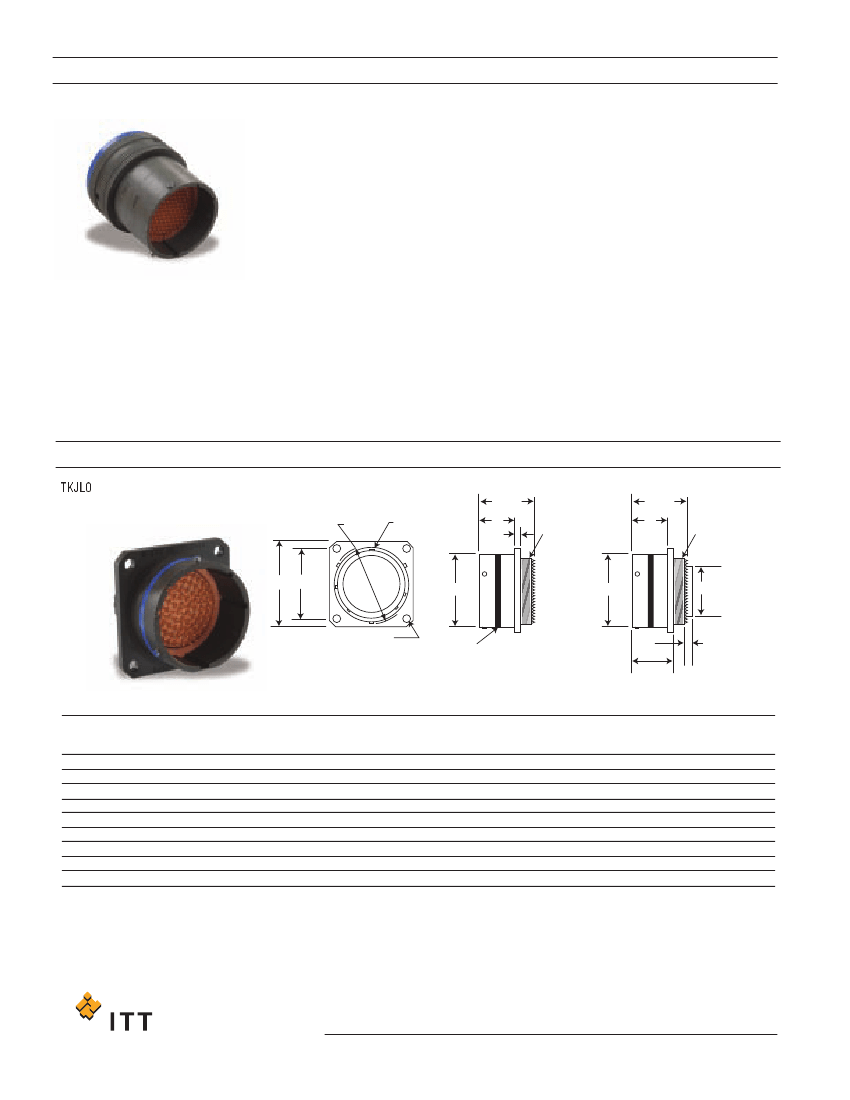

Wall Mounting Receptacle

TKJL0

J DIA.

MAX.

POLARIZING

KEYWAY

1.403

(35.64)

MAX.

T THREAD

1.930

(49.02)

MAX.

T THREAD

.926

(23.52)

MAX.

DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

1.027

(26.09)

MAX.

.090

(2.29)

MAX.

Crimp Piggyback

Shell

Size

Dia. Max.

.573 (14.55)

.701 (17.81)

.851 (21.62)

.976 (24.79)

1.101 (27.97)

1.208 (30.68)

1.333 (33.86)

1.458 (37.03)

1.583 (40.21)

Dia. Max.

.299 (7.59)

.427 (10.85)

.541 (13.74)

.666 (16.92)

.791 (20.09)

.888 (22.35)

1.005 (25.52)

1.130 (28.70)

1.255 (31.88)

Dia. Max.

.562 (14.27)

.626 (15.90)

.751 (19.07)

.876 (22.25)

1.001 (25.42)

1.063 (27.00)

1.188 (30.17)

1.313 (33.35)

1.438 (36.52)

Max.

.100 (2.54)

.130 (3.30)

Dia. Max.

.662 (16.81)

.810 (20.57)

.960 (24.38)

1.085 (27.56)

1.210 (30.73)

1.317 (33.45)

1.442 (36.63)

1.567 (39.80)

1.692 (42.98)

Max.

.632 (16.05)

.602 (15.29)

Max.

.958 (24.33)

1.051 (26.70)

1.145 (29.08)

1.239 (31.47)

1.332 (33.83)

1.458 (37.03)

1.582 (40.18)

1.708 (43.38)

1.832 (46.53)

T.P.

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.93)

1.500 (38.10)

Dia. Max.

.138 (3.51)

138 (3.51)

.138 (3.51)

.157 (3.99)

Thread

.5625-24UNEF-2A

11/16-24UNEF-2A

13/16-20UNEF-2A

15/16-20UNEF-2A

1-1/16-18UNEF-2A

1-3/16-18UNEF-2A

1-5/16-18UNEF-2A

1-7/16-18UNEF-2A

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com
