HFR-PAT0510-50R0-7 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> HFR-PAT0510-50R0-7

HFR-PAT0510-50R0-7: DescriptionFixed Attenuator, 0MHz Min, 10000MHz Max, SURFACE MOUNT PACKAGE-3; CategoryWireless rf/communication Radio frequency and microwave; File Size171KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

HFR-PAT0510-50R0-7 Overview

Fixed Attenuator, 0MHz Min, 10000MHz Max, SURFACE MOUNT PACKAGE-3

HFR-PAT0510-50R0-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	TT Electronics plc
Reach Compliance Code	unknown
Nominal attenuation	7 dB
Characteristic impedance	50 Ω
structure	COMPONENT
JESD-609 code	e0
Maximum operating frequency	10000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

High Frequency

Surface Mount Attenuators

PAT0510 Series

•

Operation to 10GHz

•

Surface mount package

•

Wrap-around terminal contruction

IRC Advanced Film Division

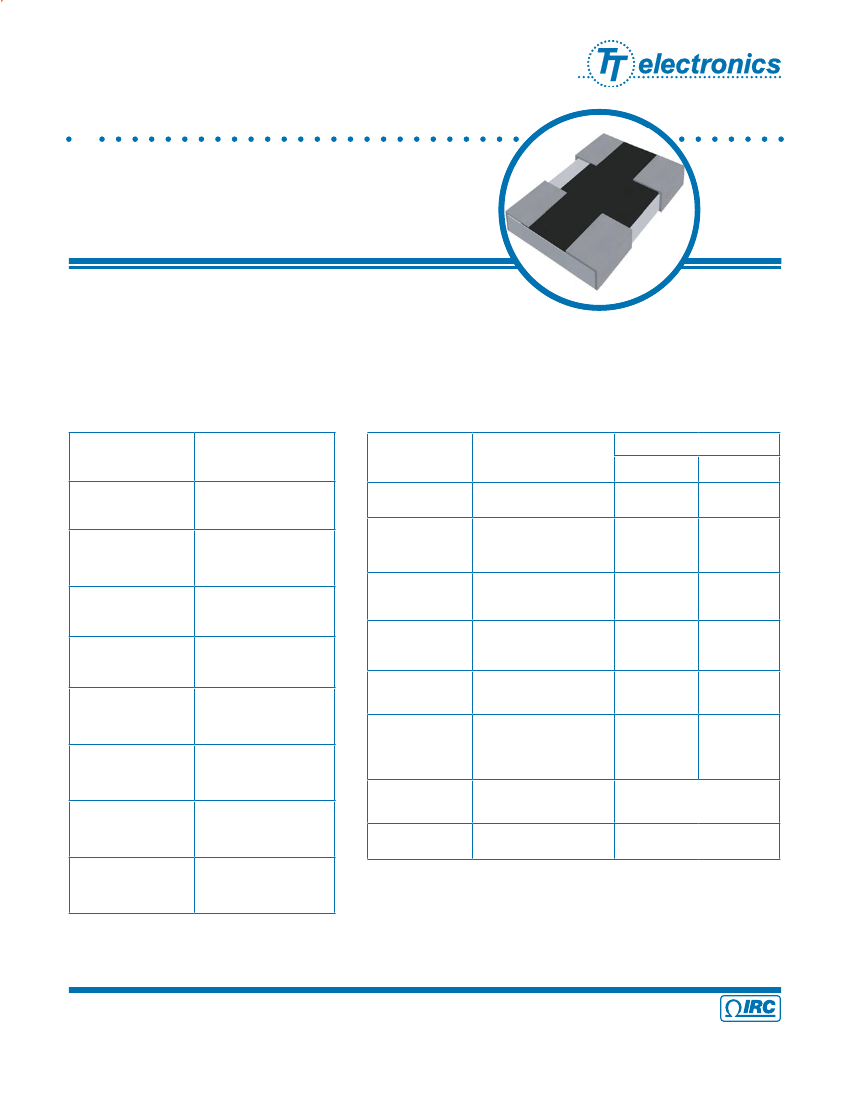

The PAT0510 chip attenuator is designed for surface mount installa-

tion on printed circuit boards. These attenuators are designed with wrap-

around terminals for solder attachment. Typical applications include mobile electronics where space savings is

a critical design factor.

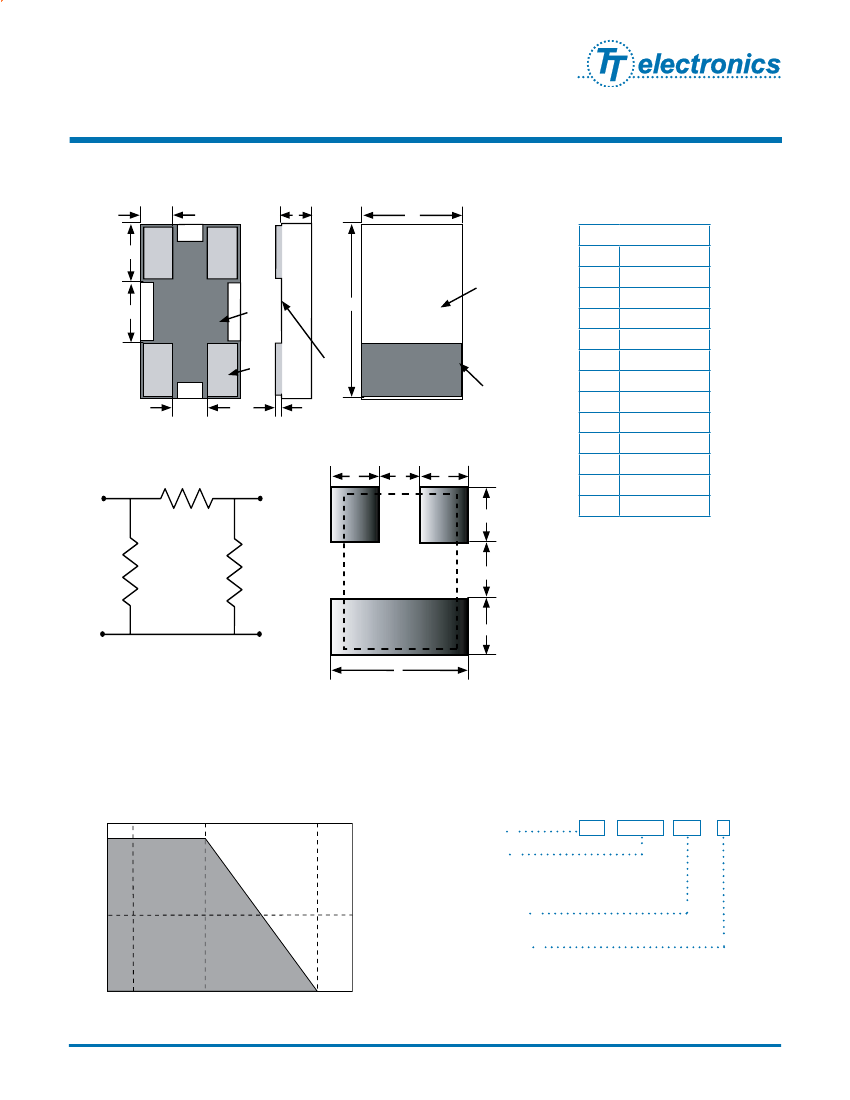

Electrical Data

Attenuation (dB)

1, 2, 3, 4, 5, 6,

7, 8, 9, 10dB

50W

0 to 3dB ±0.3dB

4 to7dB ±0.5dB

8 to 10dB ±0.7dB

1.5 or less

Environmental Data

Test Condition

Short Time

Overload

Load Life

Moisture

Resistance

Temperature

Cycle

Resistance to

Soldering Heat

32mW

Terminal

Strength

2.5 x rated voltage,

5 sec

1000 Hours, 70°C

1000 Hours, 40°C

95% RH

5 Cycles

+125°C high, -55°C

Low

260°C, 10 sec.

Fulcrum dist: 90mm

Bending width: 3mm

Substrate: Glass Epoxy

t=3mm

235°C, 3 sec.

500V, 1 minute

Tolerance

Attenuation

±0.03dB

±0.05dB

Impedance

±0.5%

±1.0%

Impedance

Attenuation

Tolerance

VSWR

±0.05dB

±1.0%

±0.03dB

±0.5%

Frequency Range

DC~10GHz

±0.03dB

±0.5%

Rated Power @

70°C

Operating

Temperature

Range

TCR

±0.03dB

±0.5%

-55°C to +125°C

Solderability

±50ppm/°C

(±0.02dB)

90/10 SN/Pb

100%Sn

Insulation

Resistance

More than 95%

1000MW or more

Termination

General Note

A subsidiary of

TT electronics plc

PAT0510 Series Issue October 2006 Sheet 1 of 2

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
