HYM532214AE-70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HYM532214AE-70

HYM532214AE-70: DescriptionEDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72; Categorystorage storage; File Size346KB，10 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HYM532214AE-70 Overview

EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72

HYM532214AE-70 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	67108864 bit
Memory IC Type	EDO DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	25.4 mm
self refresh	NO
Maximum standby current	0.004 A
Maximum slew rate	0.4 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

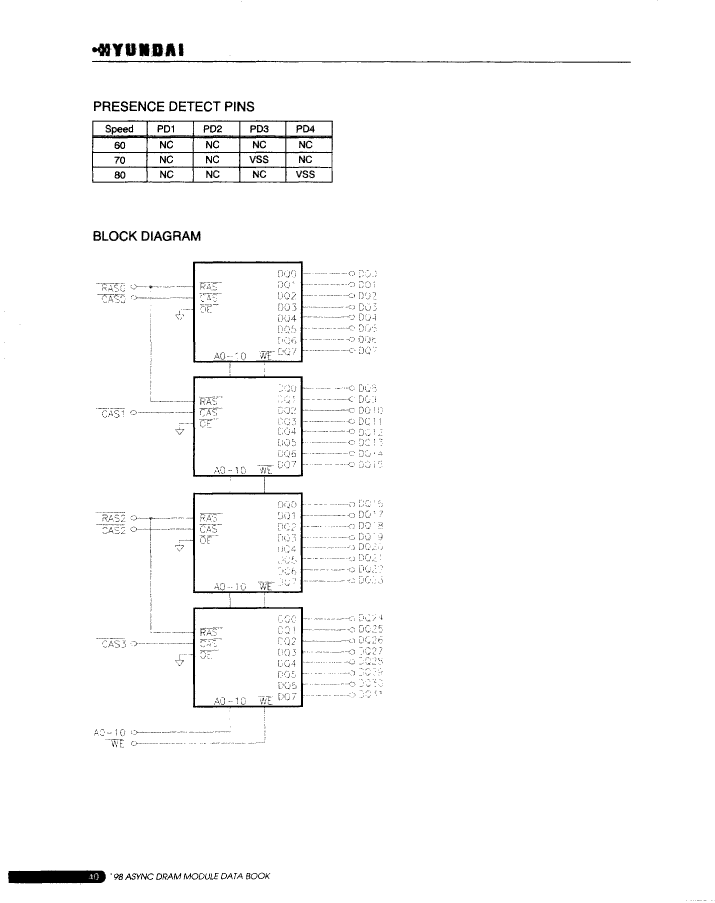

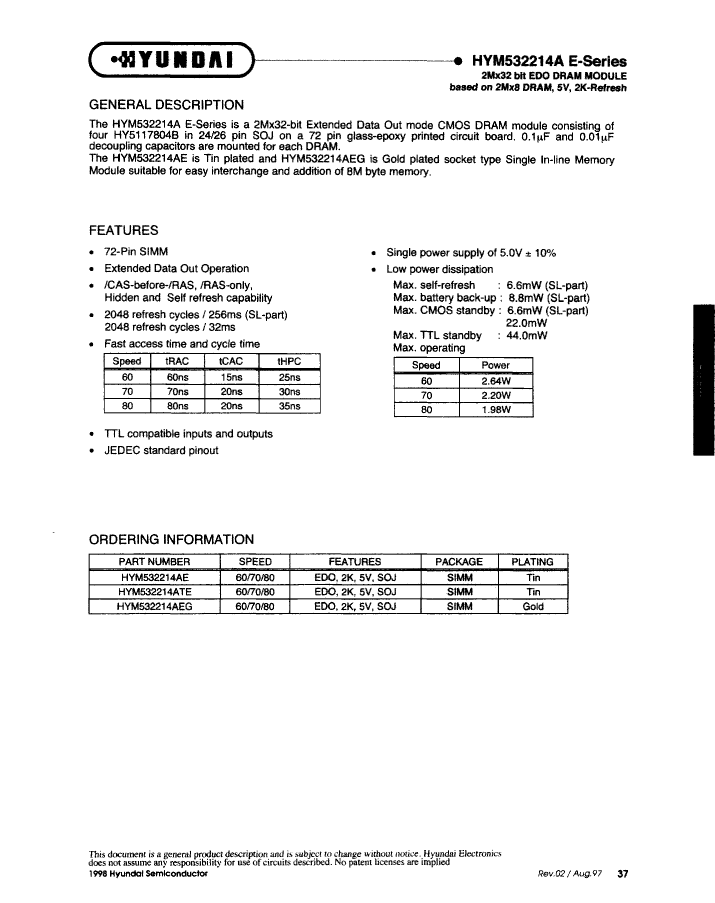

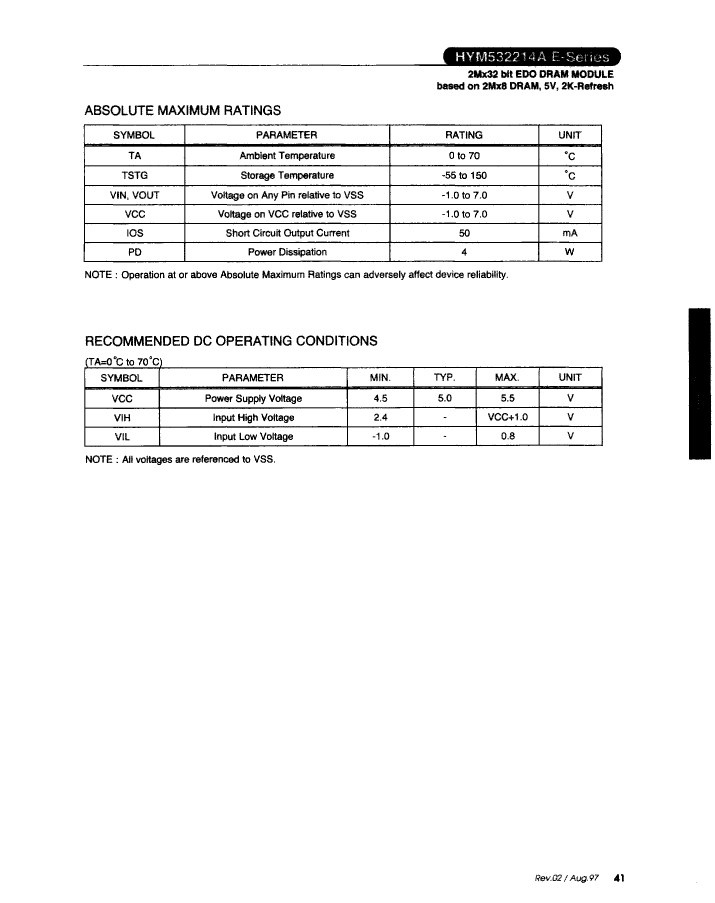

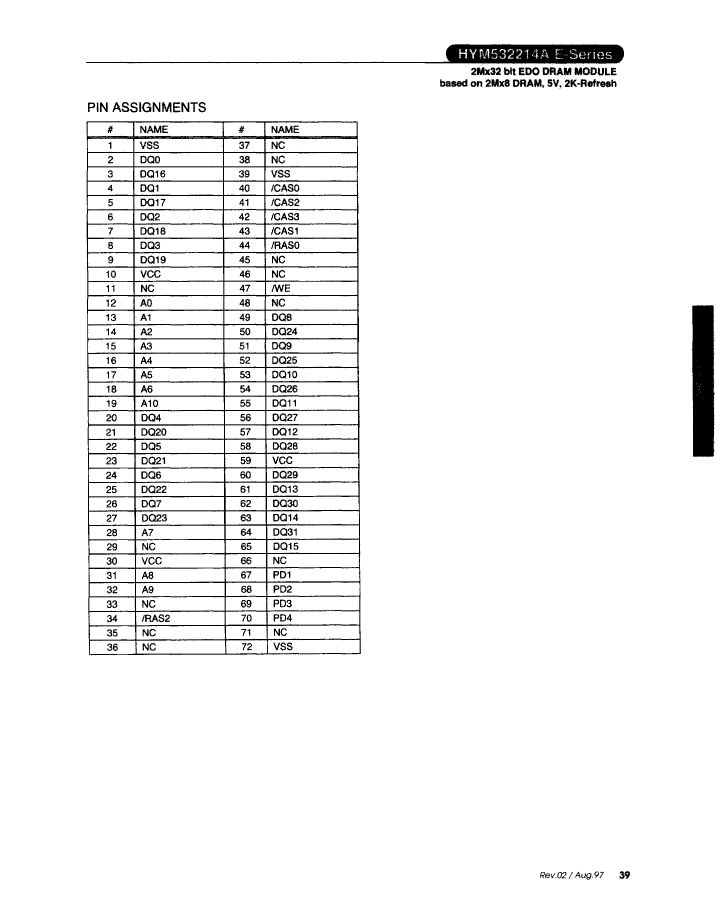

Preview

Download Datasheet

View All

HYM532214AE-70 Related Products

	HYM532214AE-70	HYM532214AEG-80	P-2208E2183BGT0	HYM532214ATE-60	HYM532214ATE-70	HYM532214ATE-80	HYM532214AE-60	HYM532214AE-80	HYM532214AEG-70
Description	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 80ns, CMOS, SIMM-72	Fixed Resistor, Thin Film, 0.8W, 218000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2208, CHIP	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 80ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 80ns, CMOS, SIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, SIMM-72
package instruction	SIMM, SSIM72	SIMM, SSIM72	SMT, 2208	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	ANTI-SULFUR, FLAME PROOF, NON-INDUCTIVE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Number of terminals	72	72	2	72	72	72	72	72	72
Maximum operating temperature	70 °C	70 °C	155 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	SMT	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO	YES	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	THIN FILM	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Maker	SK Hynix	SK Hynix	-	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	SIMM	SIMM	-	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Contacts	72	72	-	72	72	72	72	72	72
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	-	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	80 ns	-	60 ns	70 ns	80 ns	60 ns	80 ns	70 ns
I/O type	COMMON	COMMON	-	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	-	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	67108864 bit	67108864 bit	-	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	-	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	32	32	-	32	32	32	32	32	32
Number of functions	1	1	-	1	1	1	1	1	1
Number of ports	1	1	-	1	1	1	1	1	1
word count	2097152 words	2097152 words	-	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	-	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	2MX32	2MX32	-	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	-	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	-	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
power supply	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	-	2048	2048	2048	2048	2048	2048
Maximum seat height	25.4 mm	25.4 mm	-	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
self refresh	NO	NO	-	NO	NO	NO	NO	NO	NO
Maximum standby current	0.004 A	0.004 A	-	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Maximum slew rate	0.4 mA	0.36 mA	-	0.48 mA	0.4 mA	0.36 mA	0.48 mA	0.36 mA	0.4 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	-	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
