ML412PJB182MLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> ML412PJB182MLC

ML412PJB182MLC: DescriptionGeneral Purpose Inductor, 1.8uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,; CategoryPassive components inductor; File Size190KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ML412PJB182MLC Overview

General Purpose Inductor, 1.8uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,

ML412PJB182MLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	1212
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1212
structure	Rectangular
core material	FERRITE
DC Resistance	0.1 Ω
Nominal inductance(L)	1.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ML412PJB
Number of functions	1
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	1.5 mm
Package length	3.08 mm
Package form	SMT
Package width	3.08 mm
method of packing	TR, 7 Inch
Maximum rated current	2.1 A
self resonant frequency	135 MHz
series	ML412PJB
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

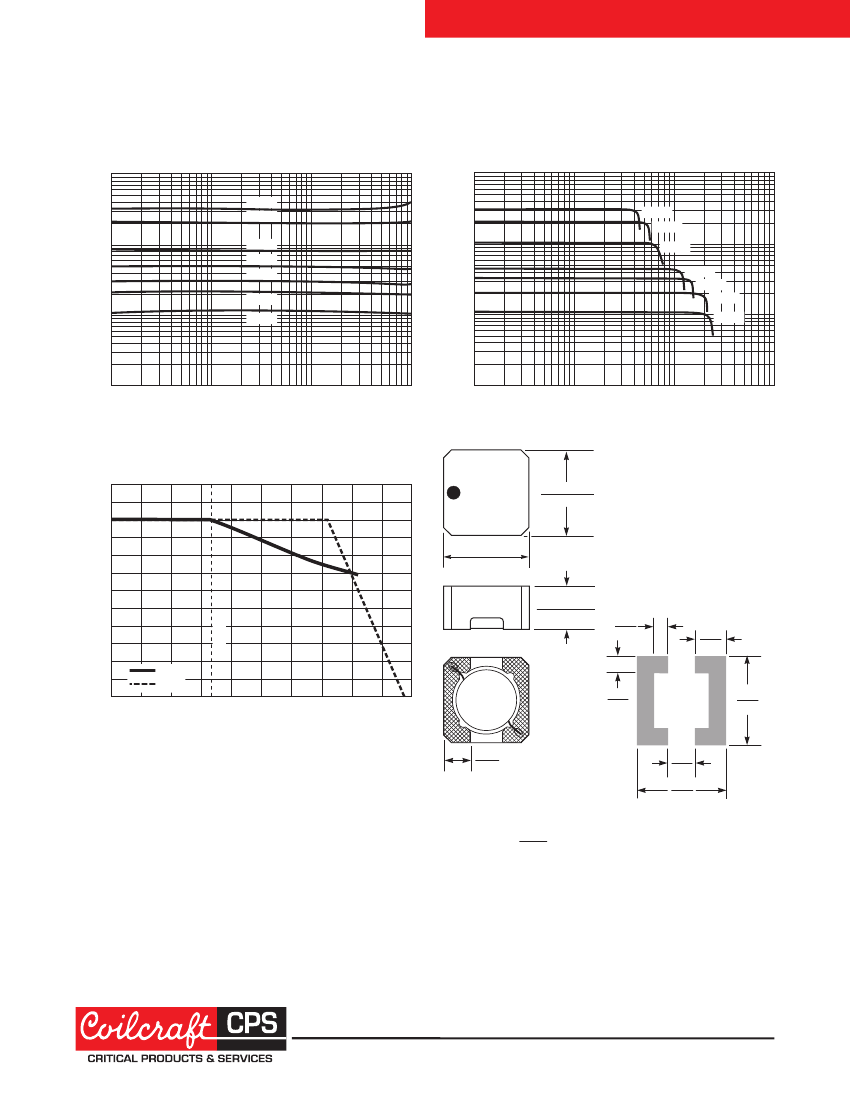

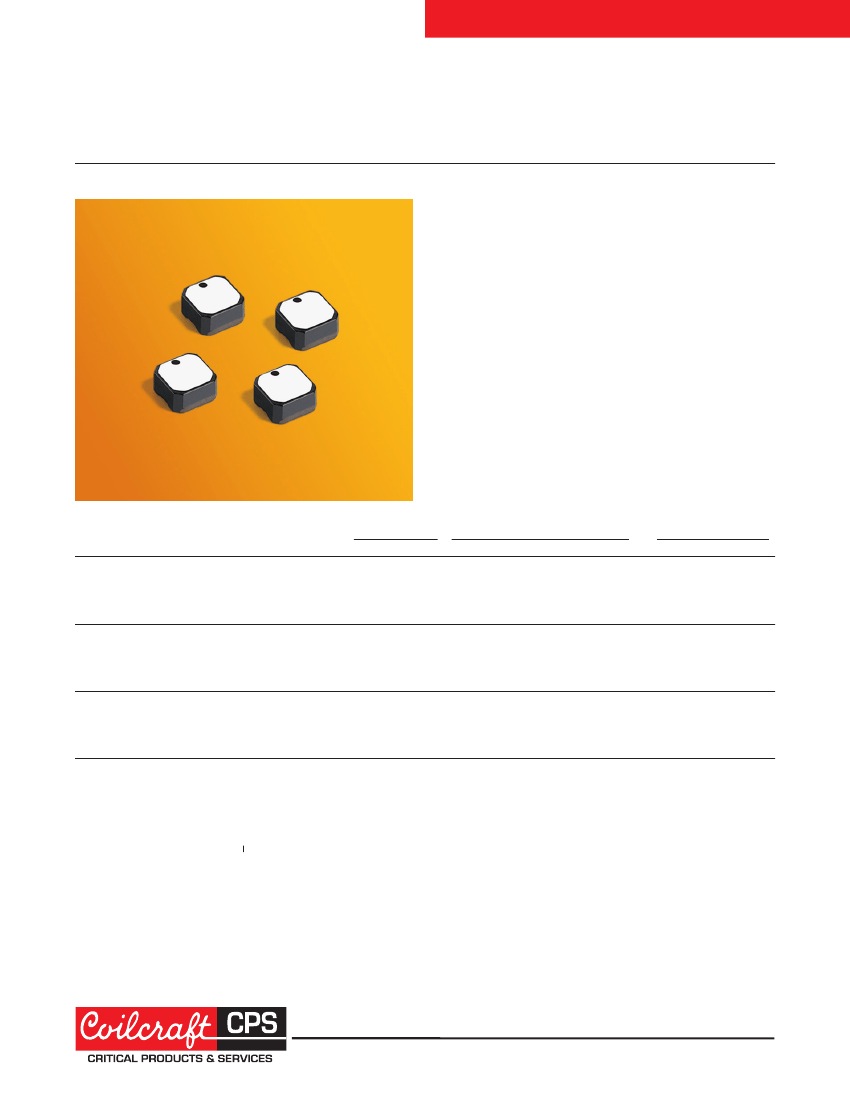

3015 POWER INDUCTORS

High-Reliability Power Inductors

ML412PJB

■

High temperature materials allow operation in ambient

temperatures up to 155°C

■

Special construction allows it to pass vibration testing to

80 G and shock testing to 1000 G.

Core material

Ferrite

Terminations

Silver-palladium-platinum-glass frit

Weight

40 – 45 mg

Ambient temperature

–55°C to +105°C with

Irms

current, +105°C

to +155°C with derated current

Storage temperature

Component: –55°C to +155°C.

Packaging: –55°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Enhanced crush-resistant packaging

1000/7″ reel

Plastic tape: 12 mm wide, 0.26 mm thick, 8 mm pocket spacing,

1.65 mm pocket depth

Recommended pick and place nozzle

OD: 3 mm; ID:

≤1.5

Part number

ML412PJB102MLZ

ML412PJB152MLZ

ML412PJB182MLZ

ML412PJB222MLZ

ML412PJB332MLZ

ML412PJB472MLZ

ML412PJB682MLZ

ML412PJB103MLZ

ML412PJB153MLZ

ML412PJB183MLZ

ML412PJB223MLZ

ML412PJB333MLZ

ML412PJB473MLZ

ML412PJB683MLZ

ML412PJB104MLZ

ML412PJB124MLZ

ML412PJB154MLZ

ML412PJB184MLZ

ML412PJB224MLZ

ML412PJB334MLZ

Inductance

±20% (µH)

1.0

1.5

1.8

2.2

3.3

4.7

6.8

100

120

150

180

220

330

DCR max

(Ohms)

0.075

0.100

0.110

0.130

0.200

0.300

0.440

0.700

0.750

0.825

1.30

1.55

2.25

3.40

4.60

6.10

8.60

9.50

23.0

SRF (MHz)

min

typ

133

190

98.0

140

94.5

135

77.0

110

63.0

55.3

40.6

33.6

24.5

23.1

21.0

16.1

11.9

9.80

7.70

6.30

9.0

5.60

8.0

5.25

7.5

4.20

6.0

3.50

5.0

Isat

(A)

10% drop 20% drop 30% drop

1.8

2.0

2.1

1.8

2.1

2.2

1.5

1.7

2.1

2.0

2.1

1.4

1.5

1.1

1.2

0.83

0.86

0.89

0.60

0.69

0.73

0.58

0.61

0.62

0.56

0.58

0.59

0.48

0.49

0.50

0.39

0.41

0.42

0.36

0.38

0.39

0.30

0.31

0.32

0.24

0.25

0.26

0.21

0.22

0.23

0.19

0.20

0.16

0.17

0.15

0.16

0.10

0.11

Irms

(A)

20°C rise 40°C rise

1.1

1.6

1.0

1.4

0.88

1.1

0.88

1.1

0.80

1.1

0.72

1.0

0.54

0.72

0.44

0.60

0.35

0.47

0.34

0.46

0.34

0.46

0.28

0.38

0.24

0.32

0.20

0.26

0.15

0.21

0.14

0.18

0.12

0.16

0.10

0.14

0.090

0.12

0.060

0.080

1. When ordering, please specify

testing

code:

ML412PJB333MLZ

Testing: Z

= COTS

= Screening per Coilcraft CP-SA-10001

= Screening per Coilcraft CP-SA-10004

= Custom screening (please specify when ordering)

2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.

Inductance at 1 MHz is the same for parts with SRF

≥10

MHz.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 8753ES or equivalent.

5. DC current that causes the specified inductance drop from its value

without current.

6. Current that causes the specified temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Specifications subject to change without notice.

Please check our website for latest information.

Document ML436-1

Revised 01/24/11

1102 Silver Lake Road

Cary IL 60013

Phone 800-981-0363

Fax 847-639-1508

E-mail cps@coilcraft.com

Web www.coilcraft-cps.com

ML412PJB182MLC Related Products

	ML412PJB182MLC	ML412PJB222MLC	48882	492119-1	ML412PJB224MLC	ML412PJB184MLC	ML412PJB154MLC	ML412PJB152MLC	ML412PJB223MLC	ML412PJB333MLC
Description	General Purpose Inductor, 1.8uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	Crimping Die Assemblies	THIS DRAWING IS A CONTROLLED DOCUMENT.	General Purpose Inductor, 220uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 180uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,	General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 1212,
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	COILCRAFT	COILCRAFT	-	-	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
package instruction	1212	1212	-	-	1212	1212	1212	1212	1212	1212
Reach Compliance Code	compliant	compliant	-	-	compliant	compliant	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1212	1212	-	-	1212	1212	1212	1212	1212	1212
structure	Rectangular	Rectangular	-	-	Rectangular	Rectangular	Rectangular	Rectangul	Rectangul	Rectangul
core material	FERRITE	FERRITE	-	-	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.1 Ω	0.11 Ω	-	-	9.5 Ω	8.6 Ω	6.1 Ω	0.1 Ω	0.825 Ω	1.3 Ω
Nominal inductance(L)	1.8 µH	2.2 µH	-	-	220 µH	180 µH	150 µH	1.5 µH	22 µH	33 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	-	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ML412PJB	ML412PJB	-	-	ML412PJB	ML412PJB	ML412PJB	ML412PJB	ML412PJB	ML412PJB
Number of functions	1	1	-	-	1	1	1	1	1	1
Number of terminals	2	2	-	-	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	-	-	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	1.5 mm	1.5 mm	-	-	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Package length	3.08 mm	3.08 mm	-	-	3.08 mm	3.08 mm	3.08 mm	3.08 mm	3.08 mm	3.08 mm
Package form	SMT	SMT	-	-	SMT	SMT	SMT	SMT	SMT	SMT
Package width	3.08 mm	3.08 mm	-	-	3.08 mm	3.08 mm	3.08 mm	3.08 mm	3.08 mm	3.08 mm
method of packing	TR, 7 Inch	TR, 7 Inch	-	-	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch
Maximum rated current	2.1 A	2.1 A	-	-	0.16 A	0.17 A	0.2 A	2.2 A	0.5 A	0.42 A
self resonant frequency	135 MHz	110 MHz	-	-	6 MHz	7.5 MHz	8 MHz	140 MHz	30 MHz	23 MHz
series	ML412PJB	ML412PJB	-	-	ML412PJB	ML412PJB	ML412PJB	ML412PJB	ML412PJB	ML412PJB
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	-	-	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	-	-	YES	YES	YES	YES	YES	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit	Silver/Palladium/Platinum - with Glass frit	-	-	Silver/Palladium/Platinum - with Glass frit	Silver/Palladium/Platinum - with Glass frit	Silver/Palladium/Platinum - with Glass frit	Silver/Palladium/Platinum - with Glass fri	Silver/Palladium/Platinum - with Glass fri	Silver/Palladium/Platinum - with Glass fri
Terminal location	DUAL ENDED	DUAL ENDED	-	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	-	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	-	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	-	-	20%	20%	20%	20%	20%	20%
