TAK CHEONG
SEM IC O N DU C TO R
500 mW DO-35 Hermetically
Sealed Glass Zener Voltage
Regulators
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
Lead Temperature (1/16” from case for 10 seconds)
T
A
= 25°C unless otherwise noted
Value
500
-65 to +200
+200
+230
Units
mW
°C
°C
°C
AXIAL LEAD
DO35
DEVICE MARKING DIAGRAM
L
ZXx
xxT
L
: Logo
Device Code
: TCZXxxxT
VZ Tolerance (T) : A, B, C or D
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 2.0 to 39 Volts
DO-35 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All external surfaces are corrosion resistant and leads are readily solderable
Cathode indicated by polarity band
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device
Type
TCZX2V0
TCZX2V2
TCZX2V4
TCZX2V7
TCZX3V0
TCZX3V3
TCZX3V6
TCZX3V9
TCZX4V3
VZ
Tolerance
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
C
A
B
C
A
B
C
Min
1.880
2.020
2.120
2.220
2.330
2.430
2.540
2.690
2.850
3.010
3.160
3.320
3.455
3.600
3.740
3.890
4.040
4.170
4.300
4.44
4.55
4.68
4.81
4.94
5.09
T
A
= 25°C unless otherwise noted
Izt
VZ@IZT
Nom
1.990
2.110
2.210
2.315
2.425
2.530
2.645
2.800
2.960
3.115
3.270
3.425
3.575
3.723
3.875
4.025
4.165
4.300
4.435
4.56
4.68
4.81
4.94
5.07
5.23
Max
2.100
2.200
2.300
2.410
2.520
2.630
2.750
2.910
3.070
3.220
3.380
3.530
3.695
3.845
4.010
4.160
4.290
4.430
4.570
4.68
4.80
4.93
5.07
5.20
5.37
(mA)
5
5
5
5
5
5
5
5
5
Zzt@Izt
(Ohms)
Max
100
100
100
110
120
120
100
100
100
Zzk@Izk
(Ohms)
Max
1000
1000
1000
1000
1000
1000
1000
1000
1000
Izk
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
1
1
1
I
R
@V
R
(uA)
Max
120
100
120
100
50
20
10
5
5
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
TCZX4V7
5
80
900
1
5
1.0
TCZX5V1
5
80
800
1
5
1.5
November 2005 / A
Page 1
TCZX2V0A/B through TCZX39VA/B/C/D Series
®
TAK CHEONG
SEM IC O N DU C TO R
Electrical Characteristics
T
A
= 25°C unless otherwise noted
Device Type
T
Tolerance
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
D
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
D
A
B
C
D
A
B
C
D
A
B
C
D
A
B
C
D
V
Z
@Izt
Min
5.28
5.45
5.61
5.78
5.96
6.12
6.29
6.49
6.66
6.85
7.07
7.29
7.53
7.78
8.03
8.29
8.57
8.83
9.12
9.41
9.70
9.94
10.18
10.50
10.82
11.13
11.44
11.74
12.11
12.55
12.99
13.44
13.89
14.35
14.80
15.25
15.69
16.22
16.82
17.42
18.02
18.63
19.23
19.72
20.15
20.64
21.08
21.52
22.05
22.61
23.12
23.63
24.26
24.97
25.63
26.29
26.99
27.70
28.36
29.02
Nom
5.41
5.59
5.76
5.94
6.12
6.28
6.46
6.66
6.84
7.04
7.26
7.48
7.73
7.99
8.24
8.51
8.79
9.07
9.36
9.66
9.95
10.19
10.45
10.78
11.10
11.42
11.74
12.05
12.43
12.88
13.33
13.79
14.26
14.72
15.19
15.65
16.10
16.64
17.26
17.88
18.49
19.11
19.73
20.22
21.68
21.18
21.63
22.08
22.62
23.19
23.72
24.24
24.89
25.62
26.29
26.97
27.69
28.42
29.09
29.77
Max
5.55
5.73
5.91
6.09
6.27
6.44
6.63
6.83
7.01
7.22
7.45
7.67
7.92
8.19
8.45
8.73
9.01
9.30
9.59
9.90
10.20
10.44
10.71
11.05
11.38
11.71
12.03
12.35
12.75
13.21
13.66
14.13
14.62
15.09
15.57
16.04
16.51
17.06
17.70
18.33
18.96
19.59
20.22
20.72
21.20
21.71
22.17
22.63
23.18
23.77
24.31
24.85
25.52
26.26
26.95
27.64
28.39
29.13
29.82
30.51
Izt
(mA)
5
Zzt@Izt
(Ohms)
Max
60
Zzk@Izk
(Ohms)
Max
500
Izk
(mA)
1
I
R
@V
R
(uA)
Max
5
V
R
(V)
2.5
TCZX5V6
TCZX6V2
5
60
300
1
5
3.0
TCZX6V8
5
20
150
0.5
2
3.5
TCZX7V5
5
20
120
0.5
0.5
4.0
TCZX8V2
5
20
120
0.5
0.5
5.0
TCZX9V1
5
25
120
0.5
0.5
6.0
TCZX10V
5
30
120
0.5
0.2
7.0
TCZX11V
5
30
120
0.5
0.2
8.0
TCZX12V
5
30
110
0.5
0.2
9.0
TCZX13V
5
35
110
0.5
0.2
10
TCZX15V
5
40
110
0.5
0.2
11
TCZX16V
5
40
150
0.5
0.2
12
TCZX18V
5
45
150
0.5
0.2
13
TCZX20V
5
55
200
0.5
0.2
15
TCZX22V
5
30
200
0.5
0.2
17
TCZX24V
5
35
200
0.5
0.2
19
TCZX27V
5
45
250
0.5
0.2
21
TCZX30V
5
55
250
0.5
0.2
23
November 2005 / A
Page 2
®
TAK CHEONG
SEM IC O N DU C TO R
Electrical Characteristics
T
A
= 25°C unless otherwise noted
Device Type
T
Tolerance
V
Z
@Izt
Min
Nom
Max
Izt
(mA)
Zzt@Izt
(Ohms)
Max
Zzk@Izk
(Ohms)
Max
Izk
(mA)
I
R
@V
R
(uA)
Max
V
R
(V)
A
29.68
30.45
31.22
B
30.32
31.10
31.88
TCZX33V
5
65
250
0.5
0.2
25
C
30.90
31.70
32.50
D
31.49
32.30
33.11
A
32.14
32.97
33.79
B
32.79
33.64
34.49
TCZX36V
5
75
250
0.5
0.2
27
C
33.40
34.27
35.13
D
34.01
34.89
35.77
A
34.68
35.58
36.47
B
35.36
36.28
37.19
TCZX39V
5
85
250
0.5
0.2
30
C
36.00
36.93
37.85
D
36.63
37.58
38.52
VF (forward voltage) = 1.2 V maximum @ IF = 200mA for all types
Note:
1. The zener voltage subdivision (VZ) is measured 40mS after diode is powered up.
2. The operating resistance (Zzt and Zzk) is measured by superimposing a minute alternation current in the regulated
current (Iz).
3. When ordering, please specify tolerance A, B, C or D.
Electrical Symbol Definition
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZK
Reverse Leakage Current @
V
R
Breakdown Voltage
Forward Current
Forward Voltage @
I
F
Typical Characteristics
I
(mA)
I
F
V
Z
V
R
(V)
I
R
I
ZT
V
F
(mV)
V
(nA)
(mA)
Ordering Information
Device
TCZXxxx
TCZXxxx.TB
TCZXxxx.TR
TCZXxxx.T26B
TCZXxxx
Package
Bulk
Tape and Ammo (52mm)
Tape and Reel
Tape and Ammo (26mm)
Quantity
10,000
5,000
10,000
5,000
Others (…contact Tak Cheong sales representatives)
Axial-Lead Tape Packaging Standards
This axial-lead component’s packaging requirements use in automatic testing and assembly equipment. And this standard practices for
lead-tape packaging of axial-lead components meets the requirements of EIA Standard RS-296-D “Lead-taping of Components on Axial
Lead Configuration for Automatic Insertion”.
November 2005 / A
Page 3
®
TAK CHEONG
SEM IC O N DU C TO R

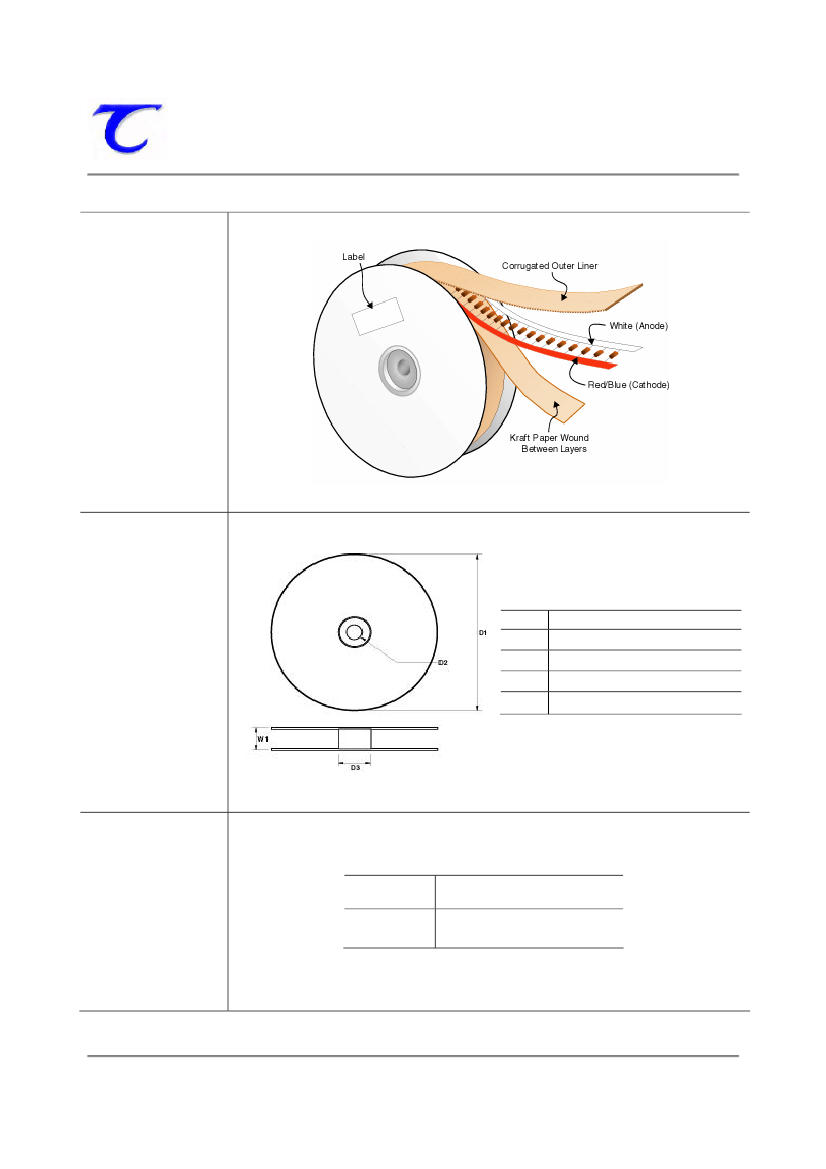

Tape & Reel Packaging Information
Tape & Reel
Outline
DIM
D1
Millimeters
356
30
84
77.5
Reel Dimensions
D2
D3
W1
PKG Type
Quantity Per Reel
Quantity Per Reel
DO-35
10,000
November 2005 / A
Page 4
®
TAK CHEONG
SEM IC O N DU C TO R

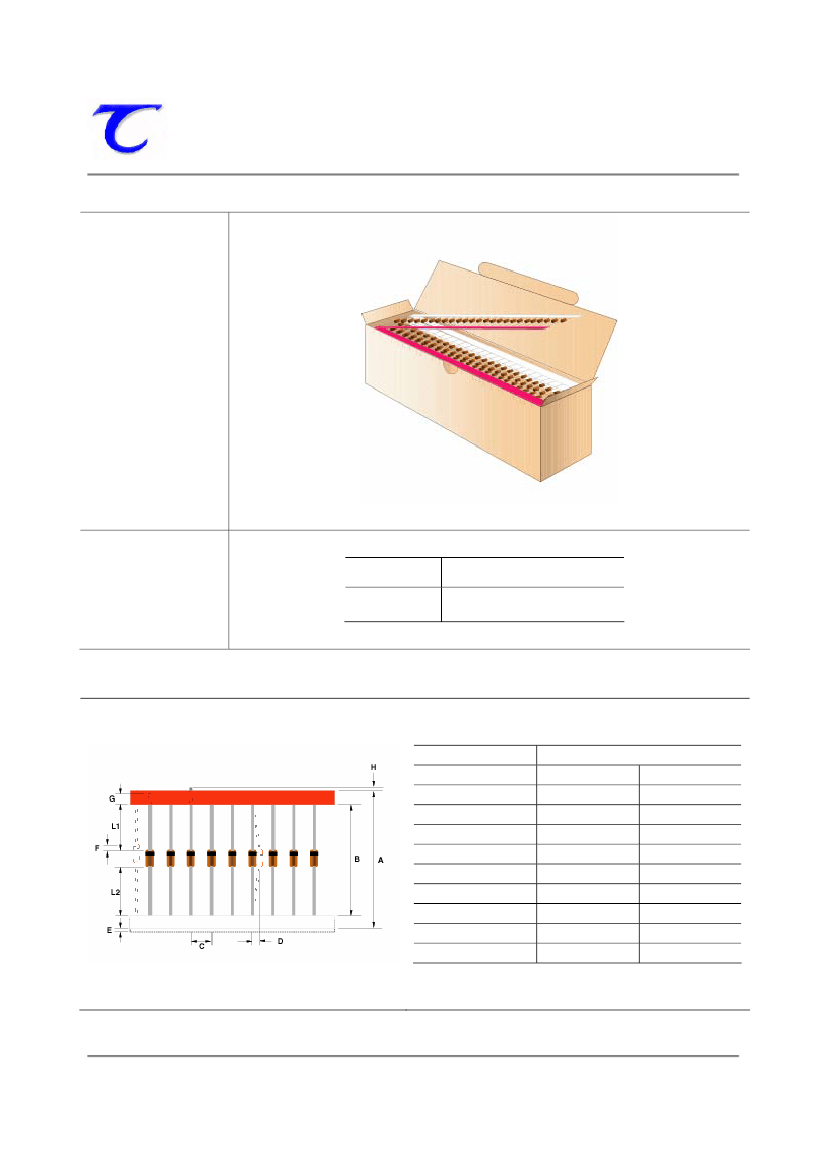

Tape & Ammo Packaging Information
Tape & Ammo
Outline
250mm x 80mm x 80mm
Quantity Per Ammo
Box
PKG Type
DO-35
Quantity Per Box
5,000
Taping Dimensions
Description
Standard Width
Tape Spacing (B)
Component Pitch (C)
Untaped Lead (L1 – L2)
Glass Offset (F)
Bent (D)
Tape Width (G)
Tape Mismatch (E)
Taped Lead (G)
Lead Beyond Tape (H)
52
52 ± 0.69
5.08 ± 0.4
± 0.69
± 0.69
1.2 Max
Millimeters
26
26 +0.5 / -0
5.08 ± 0.4
± 0.69
± 0.69
1.2 Max
6.138 ± 0.576
0.55 Max
3.2 Min
0
6.138 ± 0.576
0.55 Max
3.2 Min
0
November 2005 / A
Page 5
