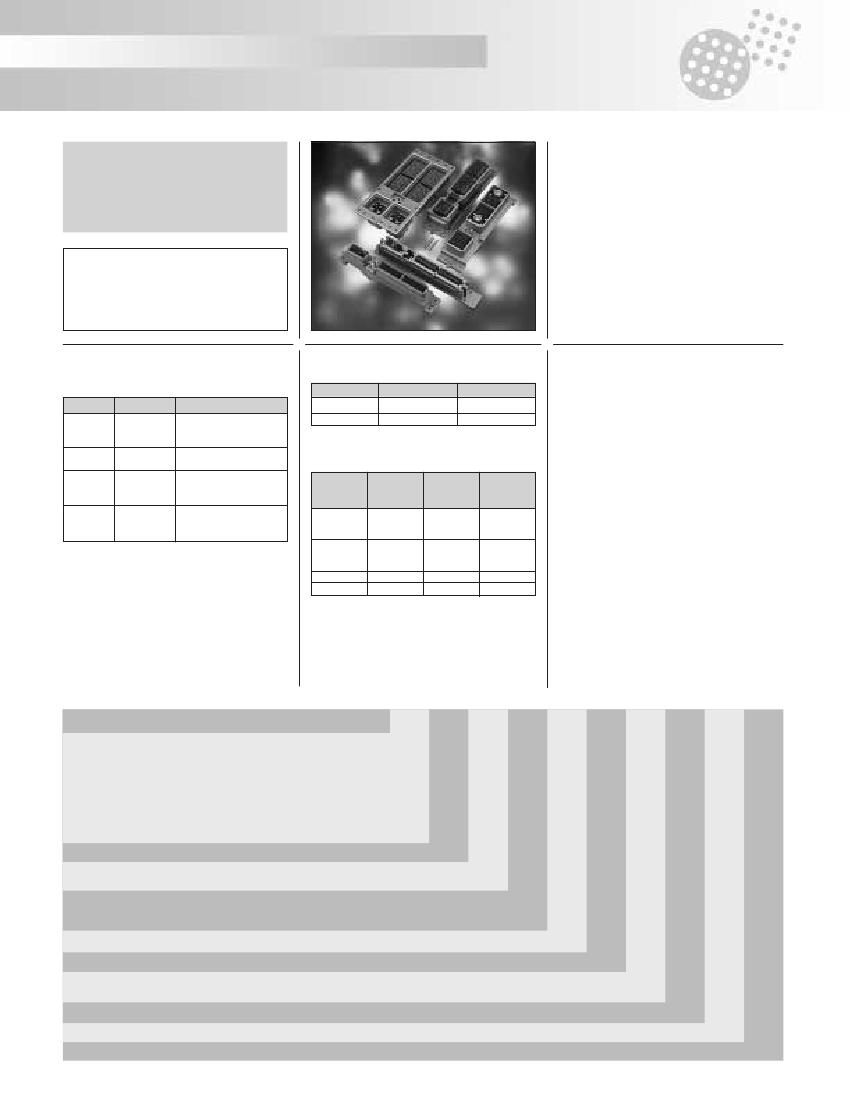

SB600 Series
Applications
Mechanical and electrical interface
between on-board civil avionics
equipments and racks
Description
• Rack and panel connector
• High density up to 800 signal contacts
• Low insertion force contact design
(tapered pin, lif socket)
• Sealed and unsealed versions
• Multiple polarizing positions
• Field replaceable thermoset inserts, featu-
ring .006 in true position of contact cavities
• Choice of front and rear removable contacts
• Contacts : signal, power, coaxial, triaxal,
filter, optical fiber and waveguide
connection contacts
• Wide range of high performance rack
applications
Standards
Arinc 600
Characteristics
Mechanical
material
aluminum
shells
alloy to
QQ-A-591
insulator
epoxy resin
thermoset
seals and
fluorinated
grommets
silicon to
MIL-R-25988
copper
contacts
alloy to
QQ-B-626
finish
alodine 1200
passivation to
MIL-C 5541 class 1
Electrical
• dielectric withstanding voltage
mated
sea level
15 000 m
1 500 Vrms
0
500 Vrms
unmated
1 500 Vrms
0
500 Vrms
Climatic
• Temperature rating : -65°C to +125°C for
both classes, sealed and unsealed
• Fluid resistance : hydraulic to MIL-H 5606
lubricating to MIL-L 23699 - isopropyl
alcohol
• Resistance to salt spray : 48 hours
MIL-STD-202 method 101 or
MIL-STD-1344 method 1001
• Sealing : environment resistant (sealed
version)
• voltage rating : 500 Vac Max 125 Vac at 21 000 m
• insulation resistance :
≥
5000 MΩ
• current ratings, continuous :
contact
wire
gauge
22
24
26
20
22
24
16
12
current
(A)
5
3
2
7,5
5
3
13
23
voltage
drop
max (mV)*
40
30
25
55
40
30
50
45
gold plated to
MIL-G-45204
over nickel to QQ-N-290
22
20
16
12
• endurance : 500 matings
• insertion and extraction forces max :
shell size 1 : 120N (27 lbs)
shell size 2 : 267N (60 lbs)
shell size 3 : 467N (105 lbs)
• vibration : 8 hours in each axis. Random vibration
at 16.4 g Rms from 50 to 2000 Hz.
MIL-STD-1344 A method 2005-1
• dynamic shock : 3 impacts of 50 g in all axis, dura-
tion 11µs (half wave) to MIL-STD-202 method 213
* measured over a conductor length of 150 mm
• triaxial contact size 8
bandwidth : 0-20 MHz - voltage rating : 500 Vac
Max 125 Vac at 21 000 m - voltage drop : inner
and middle contact
≤
55 mV under 1A - outer
contact
≤
75 mV under 12A
Ordering information
basic series
class
0
1
2
3
A
-
-
-
-
-
SB6 0
2
M
G
13 W2
P
00
01 AN
sealed
unsealed
semi-environmental (without O-ring)
semi-environmental (without O-ring and compound)
plug semi-environmental
(without O-ring and compound) with RFI shielded
(only shell size 2 - 3)
B -
unsealed plug with RFI shielded (only shell size 2 - 3)
D -
unsealed with grounding fingers
shell size
shell style
series
mounting styles
insert arrangement code
style of signal contacts
insert arrangement code
polarization code
1 -
2-3
M-
rack plug
F -
equipment receptacle
G -
rear release signal and power contacts
H -
front release signal contacts (PC and WW terminations
female) and rear release power contacts
(see schedule n°1) p 159
-
in cavities C and F (see schedule n°2 p 159)
P -
# 22 - male (rack plug)
S -
# 22 - female (equipment receptacle)
-
in cavities A-B-D-E (see schedule n°3 p 159)
(see schedule n°5 p 160)
connector packaging code
(see schedule n°4 p 159)
157

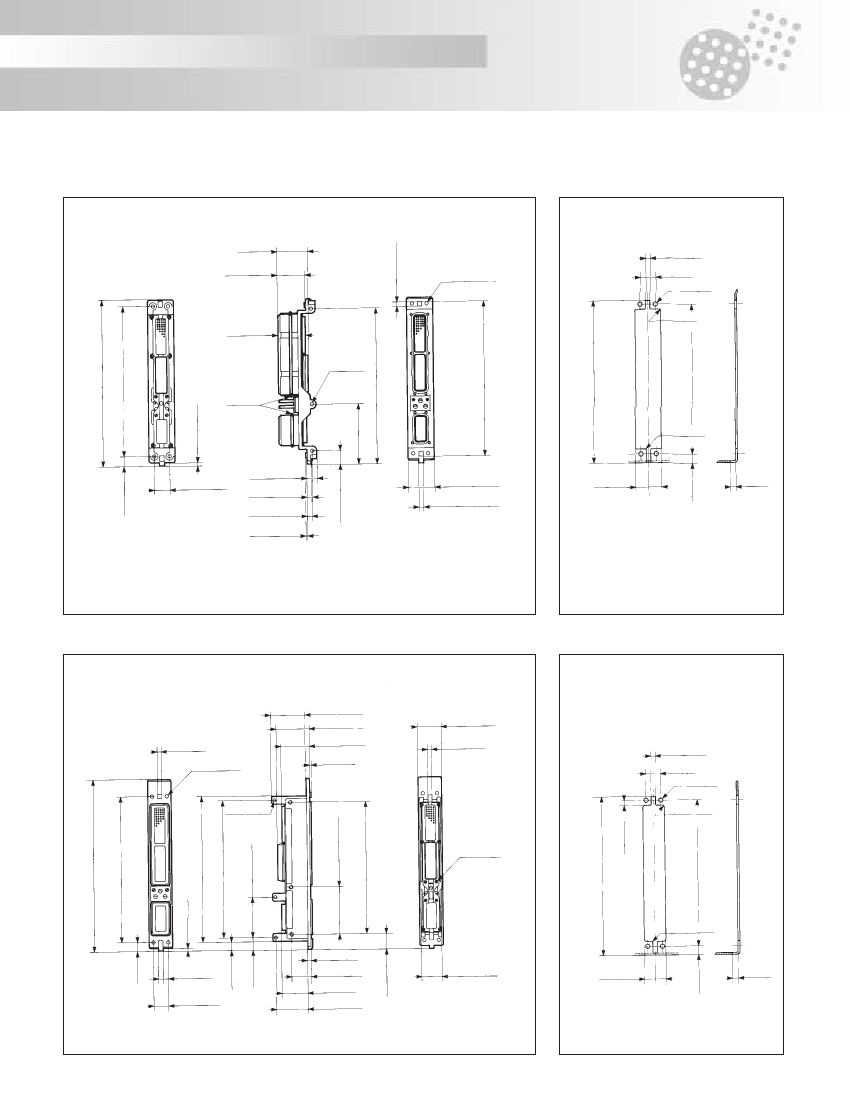

SB600 Series
Schedule n°1
mounting styles
05 -
13 -
FL -
FN -
FS -
FT -
LN -
SL -
TL -
TN -
standard mounting shell size 1
standard mounting shell size 2 and 3
float mounts 4, 6-32 eyelet
float mounts 4, 6-32 self-locking threaded inserts
float mounts 4, 4-40 self-locking threaded inserts
float mounts 4, 4-40
6-32 self-locking threaded inserts
see note
4-40 self-locking threaded inserts
4-40 self-locking threaded inserts
in all holes
6-32 self-locking threaded inserts
HA -
shell size 3 - cavities A, B, D standard insert cavity E triaxial
size 8 insert
HB -
shell size 3 - cavities A, B, E standard insert cavity D triaxial
size 8 insert
HC -
shell size 3 - cavities A, B standard insert cavities D, E triaxial
size 8 insert
HD -
shell size 3 - cavities A, D, E standard insert cavity B triaxial
size 8 insert
HE -
shell size 3 - cavities A, D standard insert cavities B, E triaxial
size 8 insert
HF -
shell size 3 - cavities A, E standard insert cavities B, D triaxial
size 8 insert
HG-
shell size 3 - cavity A standard insert cavities B, D, E triaxial
size 8 insert
HH -
shell size 3 - cavities B, D, E standard insert cavity A triaxial
size 8 insert
HJ -
shell size 3 - cavities B, D standard insert cavities A, E triaxial
size 8 insert
HK -
shell size 3 - cavities B, E standard insert cavities A, D triaxial
size 8 insert
HL -
shell size 3 - cavity B standard insert cavities A, D, E triaxial
size 8 insert
HM -
shell size 3 - cavities D, E standard insert cavities A, B triaxial
size 8 insert
HN -
shell size 3 - cavity D standard insert cavities A, B, E triaxial
size 8 insert
HP -
shell size 3 - cavity E standard insert cavities A, B, D triaxial
size 8 insert
HQ-
shell size 3 - cavities A, B, D, E triaxial size 8 insert
L1 -
shell size 1-2 - cavity A and B dummy insert
L2 -
shell size 1-2 - cavity A standard insert, cavity B dummy insert
L3 -
shell size 1-2 - cavity A dummy insert, cavity B standard insert
}
}
Note :
shells
numbers
of inserts
receptacle
1 2 3
4
6
10
plug
1 2 3
4
4
8

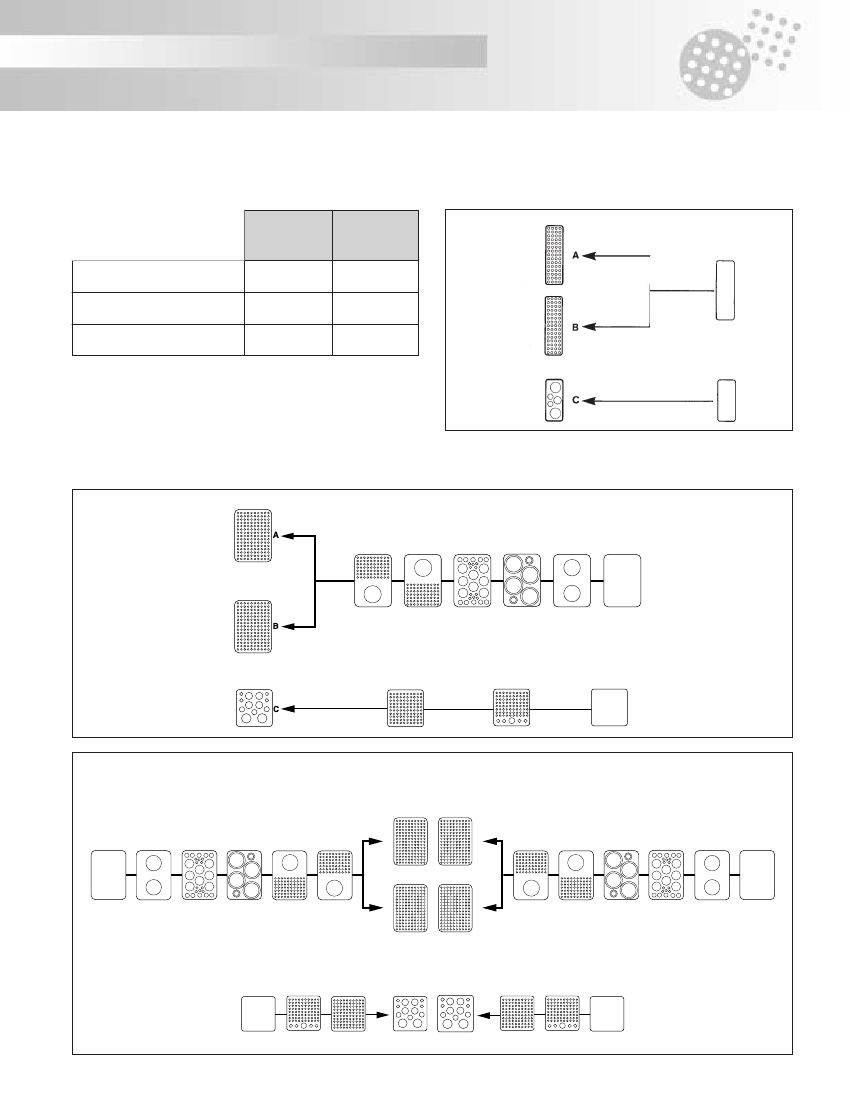

Schedule n°2 insert arrangements power cavities C and F
W2-
00 -
01 -
02 -
03 -
K1 -
K2 -
K3 -
K4 -
K5 -
K9 -
A2 -
A3 -
standard power insert (rear contact release), shell sizes 1-2-3
shell size 1,2 - cavity C dummy insert
shell size 3 - cavities C and F dummy insert
shell size 3 - cavity C standard insert and cavity F dummy insert
shell size 3 - cavity C dummy insert cavity F standard insert
shell size 3 - cavities C and F fitted with inserts for 100 size 22
contacts
shell size 3 - standard power insert in cavity C plus 100 size 22
signal insert in cavity F
shell size 3 - 100 size 22 signal insert in cavity C plus standard
power insert in cavity F
shell size 2 - cavity C empty
shell size 2 - cavity C 100 size 22 signal contact insert
shell size 2 - cavity C 100 size 22 signal contact insert rear
release (A and B, insert front release)
shell size 3 - cavity F empty, cavity C standard insert
shell size 3 - cavity F dummy insert, cavity C standard insert

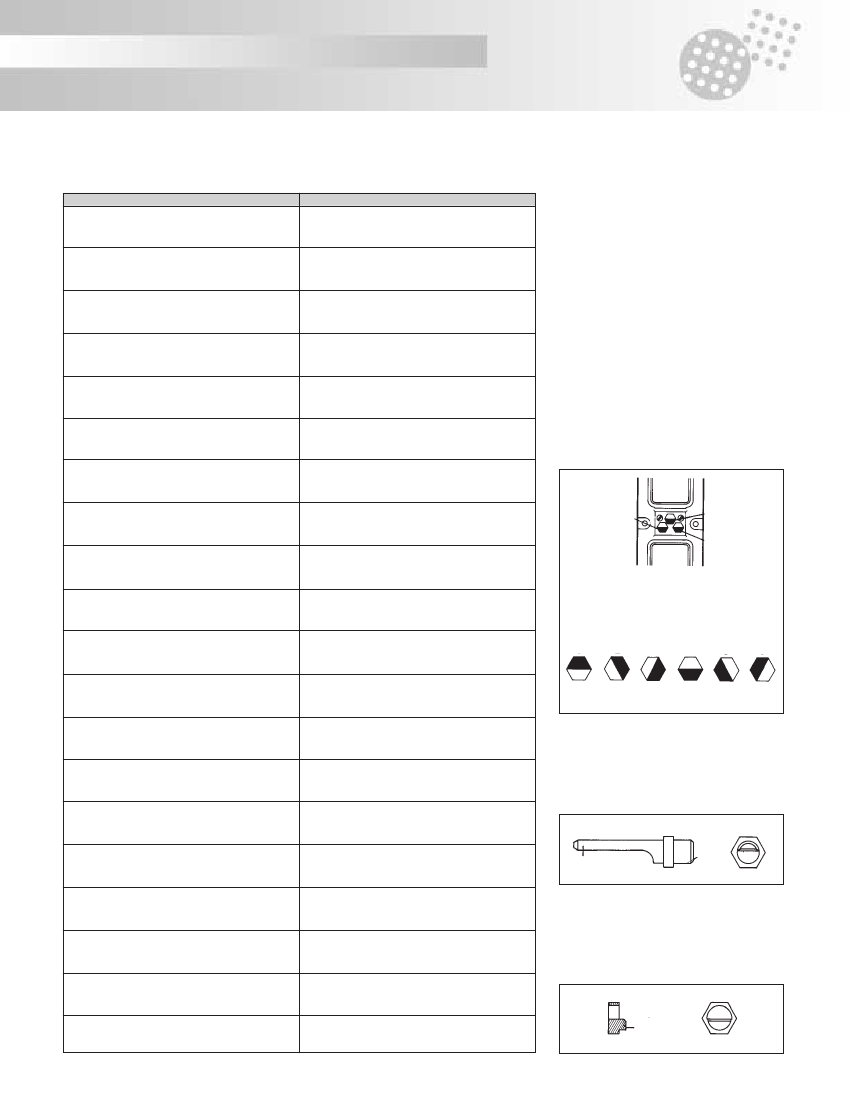

Schedule n°4 packaging code
(not applicable to connectors where no contacts are specified)
Schedule n°3 insert arrangements signal cavities A, B, D, E
00 -
standard signal inserts, shell sizes 1-2-3
01 -
shell size 2 - cavities A and B fitted with inserts for 70 size 22
plus 1 size 1 contacts
02 -
shell size 2 - standard signal insert in cavity A plus 70 size 22
plus 1 size 1 contact insert in cavity B
03 -
shell size 2 - 70 size 22 plus 1 size 1 insert in cavity A plus
standard signal insert in cavity B
04 -
shell size 2 - cavity A empty and 70 size 22 plus 1 size 1 insert
in cavity B
05 -
shell size 3 - cavity A and B 2 size 1 insert cavity E standard
insert and cavity D empty
07 -
shell size 2 - cavity A dummy insert and cavity B 70 size 22
plus 1 size 1 insert
08 -
shell size 3 - cavities A, B, D and E 70 size 22 plus 1 size 1 insert
09 -
shell size 3 - cavities A, B, D standard insert cavity E 70 size 22
plus 1 size 1 insert
A1 -
shell size 2
A2 -
shell size 2 same arrangements as 01, 02
and 03 but with size 1 coaxial contact body fitted
A3 -
shell size 2
E1 -
shell size 2 - cavities A and B empty
E2 -
shell size 2 - standard signal insert in cavity A, cavity B empty
E3 -
shell size 2 - cavity A empty, standard signal insert in cavity B
E5 -
shell size 2 - cavity A empty, cavity B triaxial size 8 insert
E6 -
shell size 2 - cavity A 2 size 1 insert, cavity B70 size 22+1 size
1 insert
E7 -
shell size 3 - cavities A, B, D 2 size 1 insert cavity E standard
insert
F2 -
shell size 2 - cavity A standard insert cavity B waveguide
F3 -
shell size 2 - cavity A waveguide cavity B standard insert
H1 -
shell size 2 - cavity A and B triaxial size 8 inserts
H2 -
shell size 2 - cavity A standard insert cavity B triaxial size 8 insert
H3 -
shell size 2 - cavity A triaxial size 8 insert cavity B standard insert
1
st
letter
signal and power contacts
A -
connector plus full complement of signal and power contacts,
crimp termination
B -
connector supplied only with signal crimp contact unmounted
C -
connector supplied with W.W signal contact (L = 12,7 mm)
mounted in insulator and without power contacts
D -
connector plus full complement of WW signal contacts
(L = 9,52 mm) and crimp power contacts. Wire wrap and power
contacts are delivered unmounted
E -
connector plus full complement of mounted P C signal contacts
(L = 6,35 mm) and crimp power contacts. Straight spill contacts
are supplied mounted. Power contacts are supplied unmounted
I -
connector supplied with straight spill contacts (L = 3,81 mm)
and crimp power contacts straight spill contacts are supplied
mounted and power contacts are supplied unmounted
L -
connector without either signal or power contacts
2
nd
letter
size 1 and size 5 coaxial contacts
N -
connector without either size 1 or size 5 coaxial contacts
A -
connector plus size 5 coaxial contacts for RG 58C/U cable plus
size 1 coaxial contacts for RG 165/U and RG 225/U cables.
(body and termination kit). Coaxial size 5 supplied unmounted.
Size 1 supplied mounted or unmounted, as per schedule n°3
C -
shell size 2-3 - connector supplied with straight size 1 coaxial
contact for UT 141-RG 402 B/U cable, contact
supplied unmounted
B -
shell size 2-3 - connector supplied with straight size 1 coaxial
contacts for RG 141A/U RG 142 B/U-KX 23
cable, contact supplied unmounted
D -
- connector plus size 5 coaxial contacts for
5021 K 1011 cable
S -
shell size 2-3 - connector plus size 1 coaxial contacts for suffix E9
}
Note : Do not use the suffix L and N together
159
